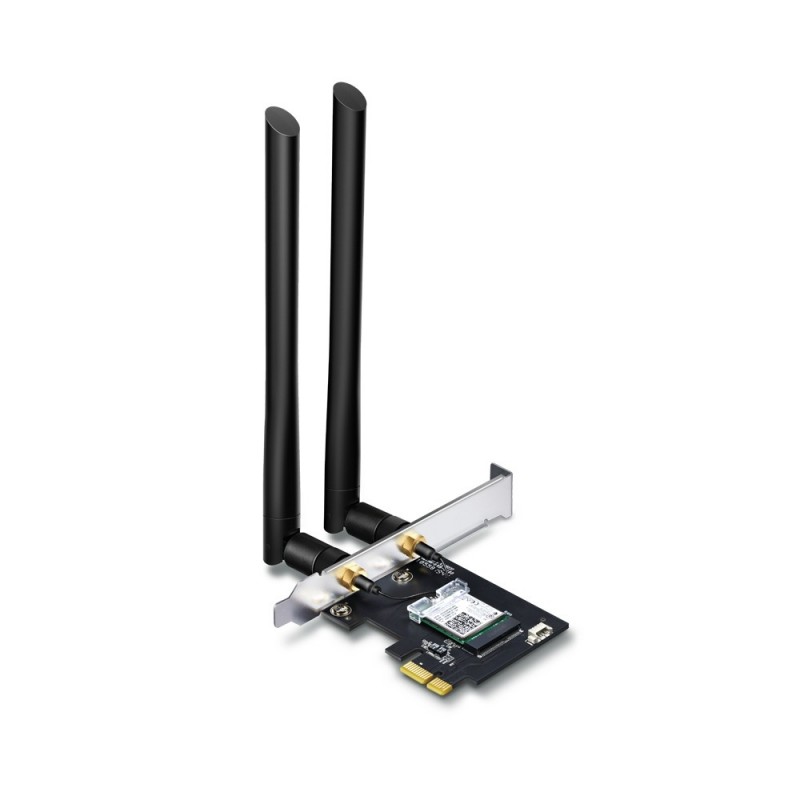

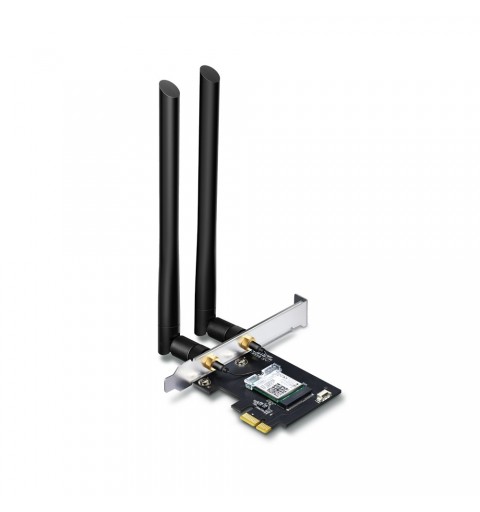

TP-Link Archer T5E Internal WLAN / Bluetooth 867 Mbit/s

Upgrade Your Desktop with Super-Fast WiFi and Bluetooth
AC1200 Wi-Fi Bluetooth 4.2 PCIe Adapter

Archer T5E

Dual Band WiFi for Faster Connections
Archer T5E is an 802.11ac dual-band WiFi PCI Express adapter with speeds up to 1167 Mbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band), providing WiFi signals on two separate bands for all your online needs. Choose the 2.4 GHz band for surfing, emailing, and social media, or switch to 5 GHz band for gaming, streaming, and large file downloads.

Arm Your PC with Bluetooth 4.2
Archer T5E is compatible with advanced Bluetooth 4.2 technology, achieving 2.5× faster speed and 10× more packet capacity than Bluetooth 4.0 to turn non-Bluetooth PCs into Bluetooth-Capable. Just connect your Bluetooth devices to your computer and enjoy.3

Powerful Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend your existing WiFi reception capabilities, allowing you to enjoy fast and uninterrupted 4K streaming and smooth gaming.

Advanced Security
WPA/WPA2 encryption standards ensure your data is safe from cyberattacks

Operating System
Supports Windows 10/8.1/8/7 (32/64 bit)

Low-Profile Bracket
In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases

TP-Link Archer T5E. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN / Bluetooth. Maximum data transfer rate: 867 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black

Ports & interfaces
Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN / Bluetooth
USB version	2.0
Network
Maximum data transfer rate	867 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported	11,54,300,867 Mbit/s
Modulation	16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Bluetooth	Yes
Bluetooth version	4.2
Design
Internal	Yes
Component for	PC
Product colour	Black
Antenna design	External
Transmitting power (CE)	23 dBm
Transmitting power (FCC)	21.5 dBm
Operating modes	Infrastructure mode
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Sustainability
Sustainability certificates	RoHS, Federal Communications Commission (FCC), CE
Weight & dimensions
Width	120.8 mm
Depth	83.2 mm
Height	21.5 mm
Packaging data
Package width	200 mm
Package depth	150 mm
Package height	39 mm
Package weight	230 g
Packaging content
Mounting brackets included	Yes
Bluetooth header cable	Yes
Quick installation guide	Yes
Logistics data
Harmonized System (HS) code	85176990
