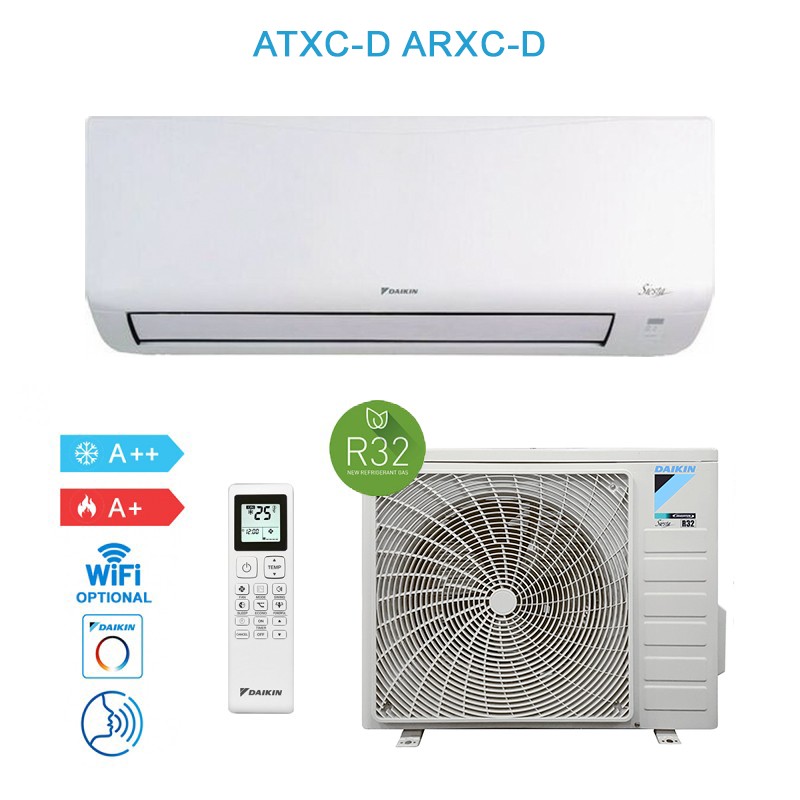

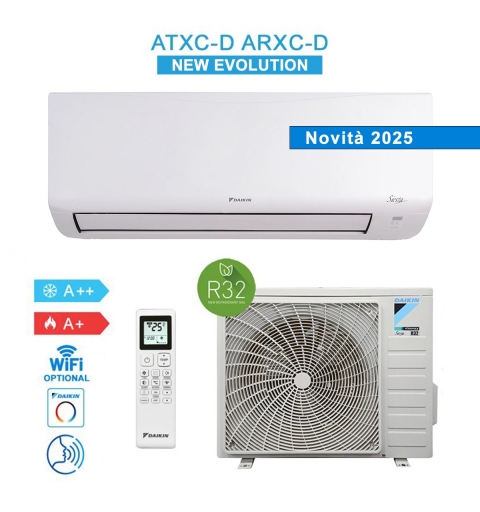

Daikin new model Siesta New Evolution 2025 - ATXC-D ARXC-D

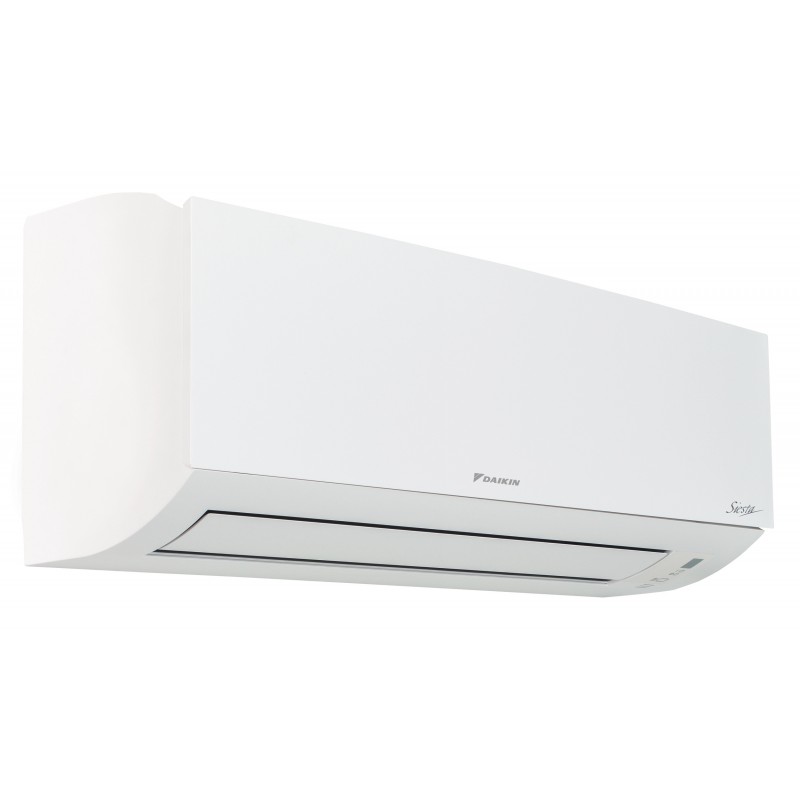

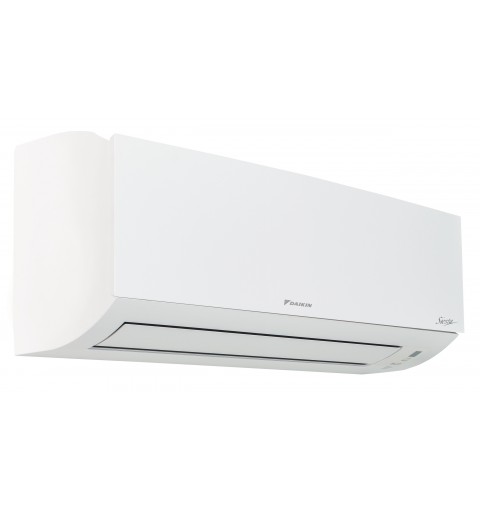

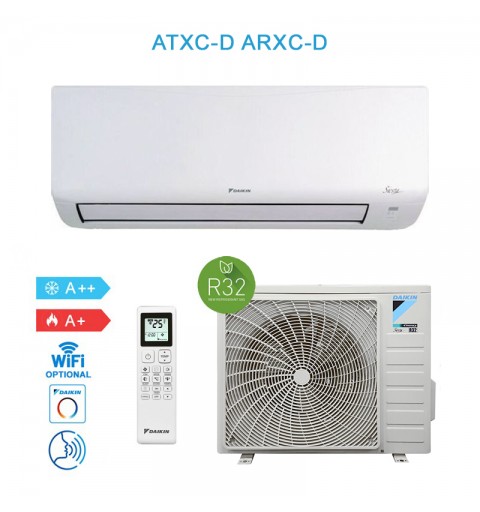

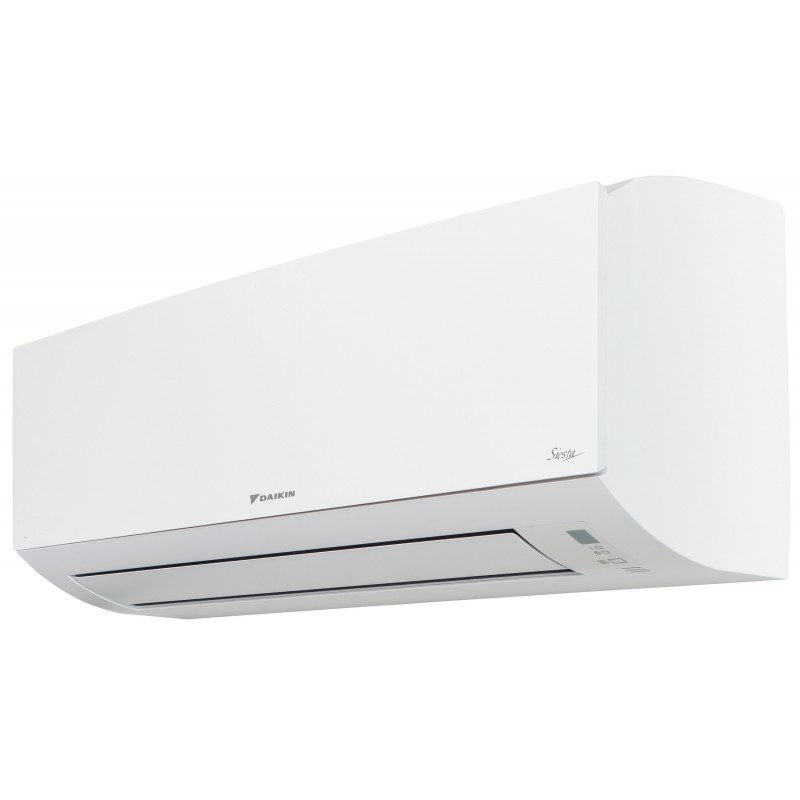

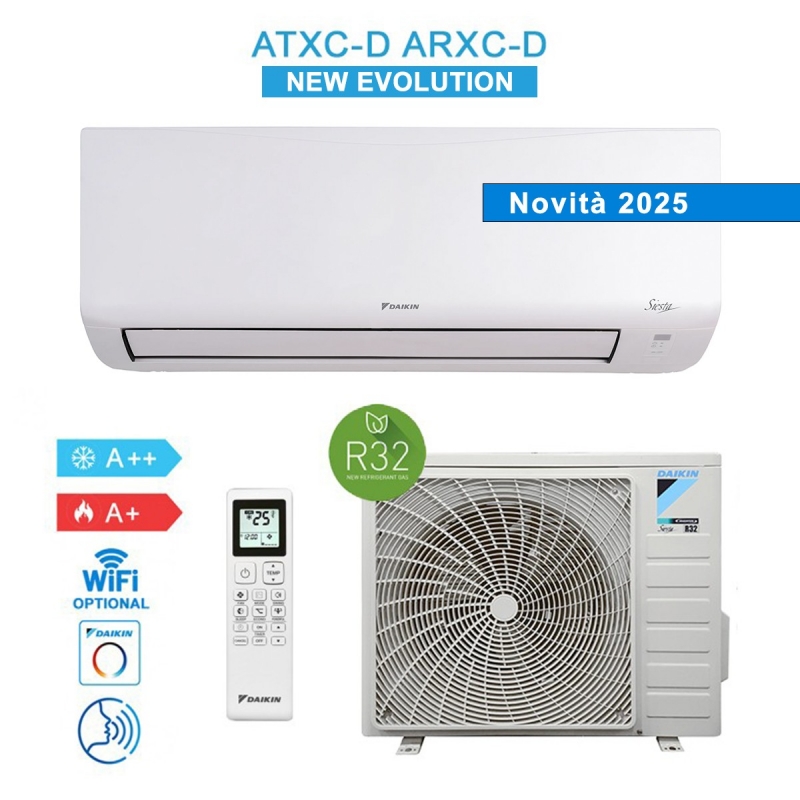

9000 BTU Air Conditioner Kit, consisting of the indoor unit ATXC25D, the outdoor unit ARXC25D, and the remote control
Wall-mounted unit with excellent value for money
Optional Wi-Fi card: BRP069B45 Daikin WIFI module accessory

____

The flat and elegant front panel easily harmonizes with any interior decor and is easier to clean. The Wi-Fi (optional): allows control of the indoor unit from anywhere via app, local network, or Internet. Seasonal efficiency values up to class A++ in cooling. Choosing an R-32 product reduces environmental impact by 68% compared to R-410A systems and results in a direct reduction in energy consumption thanks to high energy efficiency.

Product Features

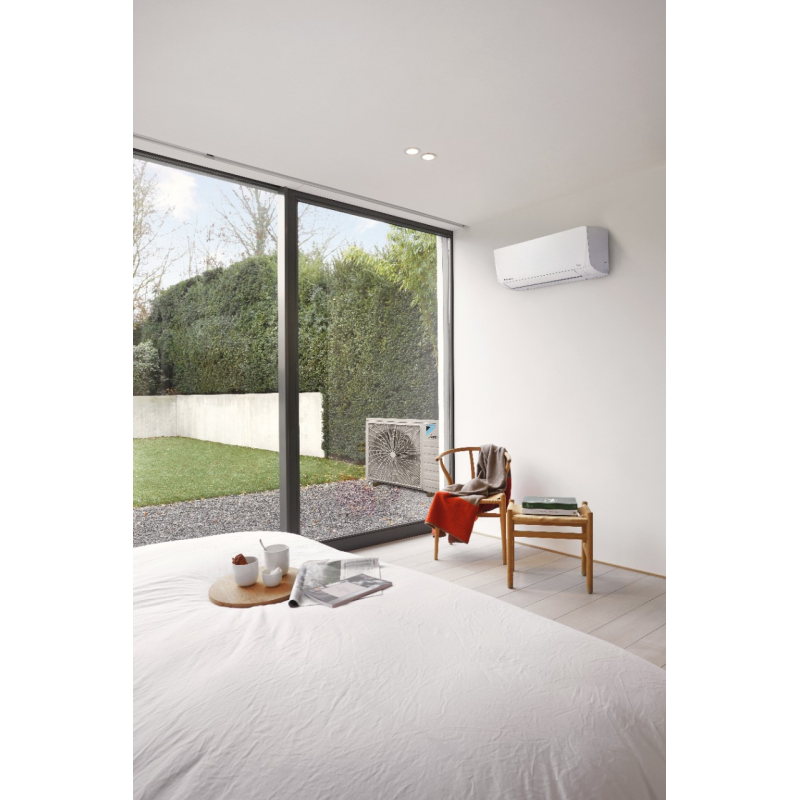

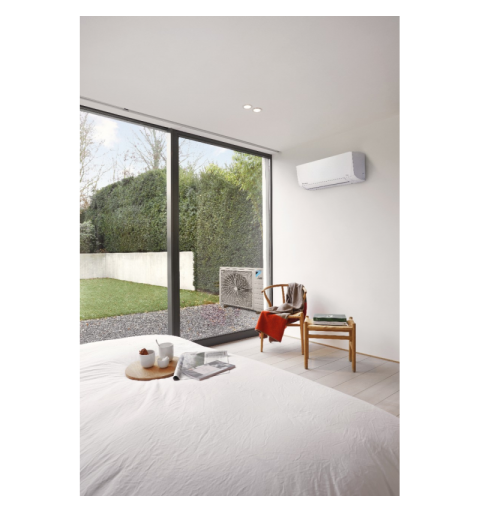

• Daikin outdoor units are neat and sturdy and can be easily installed on a roof, terrace, or simply against an exterior wall
• Daikin outdoor units feature a heat exchanger with anti-corrosion treatment (blue fin) ensuring great resistance to the harshest climatic conditions
• Outdoor units for monosplit applications
• Choosing an R-32 product reduces environmental impact by 68% compared to R-410A systems and results in a direct reduction in energy consumption thanks to high energy efficiency
• Onecta (optional): control your indoor units from anywhere via app, local network, or Internet, and monitor energy consumption
• Quiet operation down to only 21 dBA

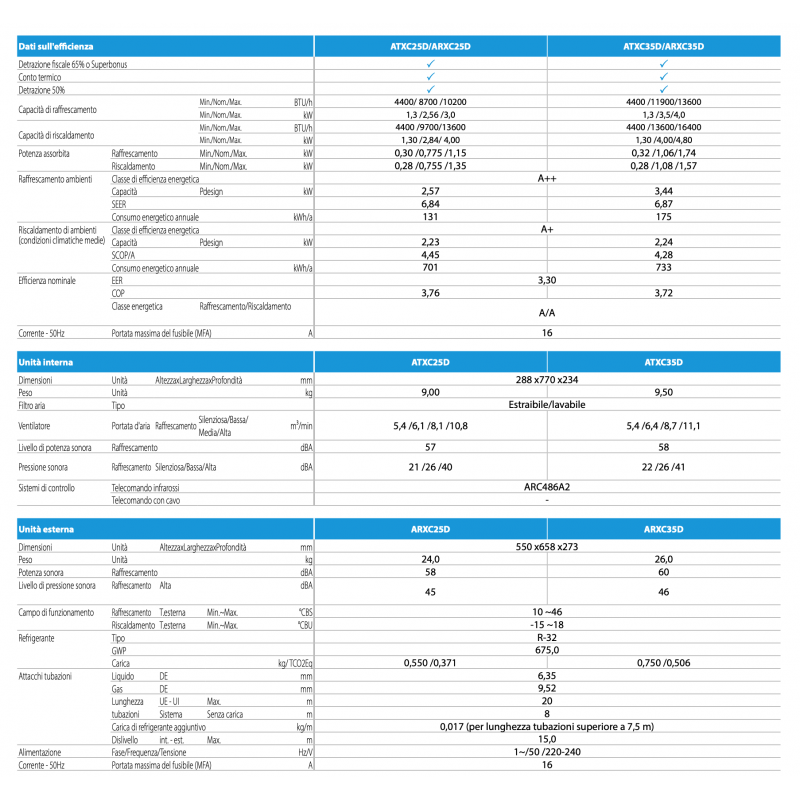

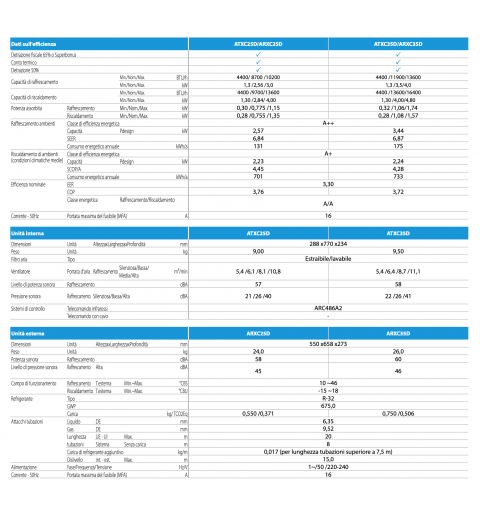

Technical Features

Cooling Capacity

• Min.: 1.3 kW
• Nom.: 2.56 kW
• Max.: 3 kW

Heating Capacity

• Min.: 1.30 kW
• Nom.: 2.84 kW
• Max.: 4 kW

Nominal Efficiency

• COP: 3.76
• EER: 3.30

Energy Class

• Cooling: A++
• Heating: A+

Annual Energy Consumption

• kWh/a: 701

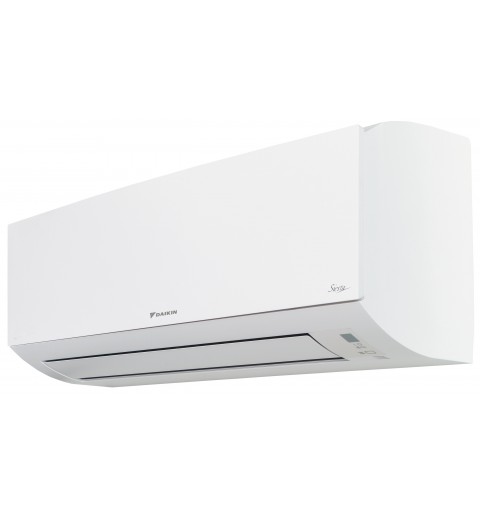

Technical Specifications of Indoor Unit:

Power Consumption

• Cooling: Nom. 0.755 kW
• Heating: Nom. 0.755 kW

Casing

• Colour: White

Dimensions of Unit

• Height: 288 mm
• Width: 770 mm
• Depth: 234 mm

Weight of Unit

• 9.00 kg

Fan Airflow Rate (Cooling)

• High: 10.8 m³/min
• Medium: 8.1 m³/min
• Low: 6.1 m³/min
• Silent Operation: 5.4 m³/min

Sound Power

• Cooling: 55.0 dBA
• Heating: 57.0 dBA

Sound Pressure Level (Cooling)

• High: 40.0 dBA
• Medium: 34.0 dBA
• Low: 26.0 dBA
• Silent Operation: 21.0 dBA

Sound Pressure Level (Heating)

• High: 40.0 dBA
• Medium: 34.0 dBA
• Low: 26.0 dBA
• Silent Operation: 21.0 dBA

Piping Connections

• Liquid: DE 6.35 mm
• Gas: DE 9.52 mm

Filter Type

• Removable/Washable

Control Systems

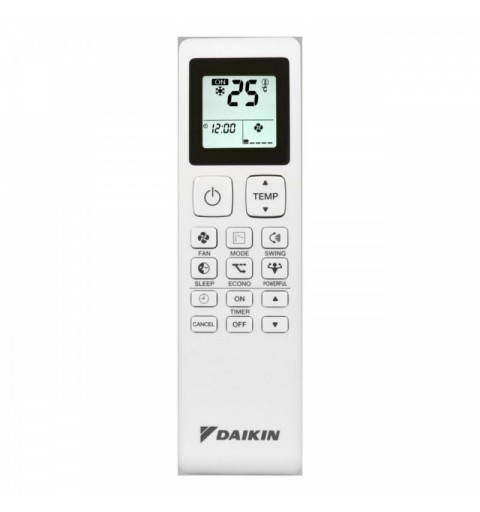

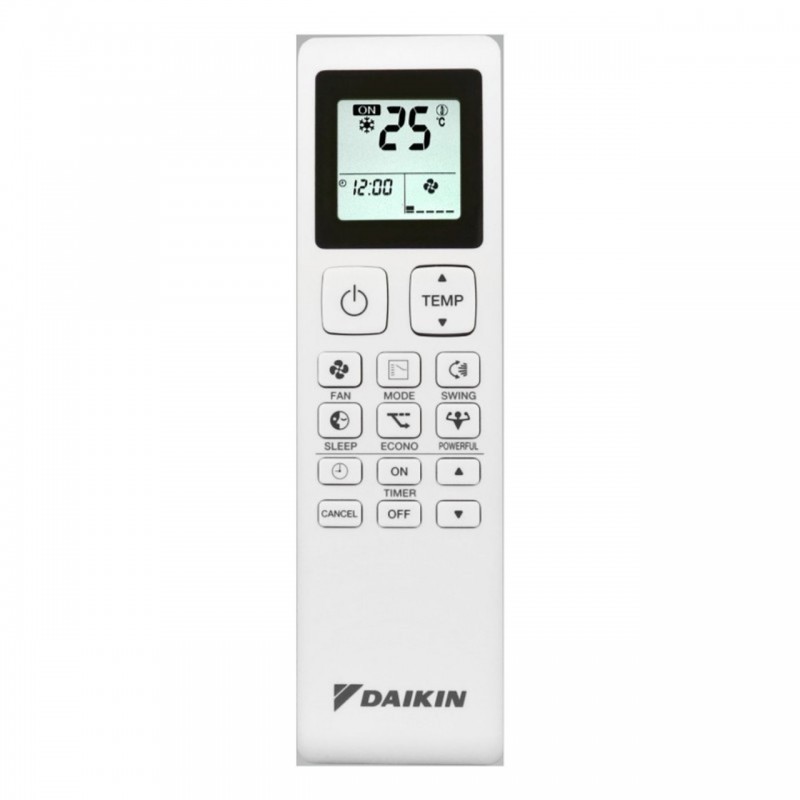

• Infrared remote control: ARC486A2
• Wired remote control: /

Standard Accessories

• Installation manual: 1
• User manual: 1
• General safety measures: 1
• Infrared remote control: 1
• AAA dry batteries: 2
• Remote control holder: 1
• Mounting plate: 1
• Indoor unit fixing screws: 2

Power Supply

• Phase: 1~
• Frequency: 50 Hz
• Voltage: 220-240 V

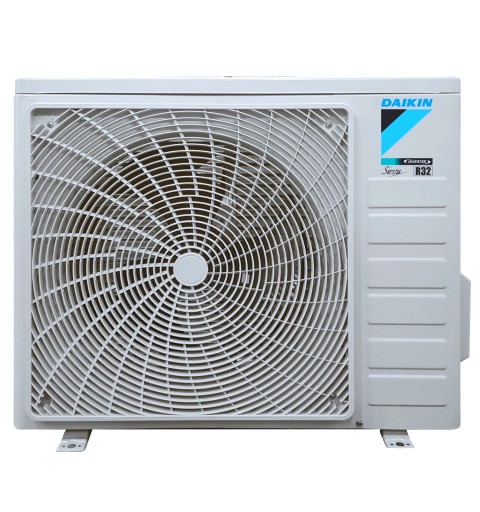

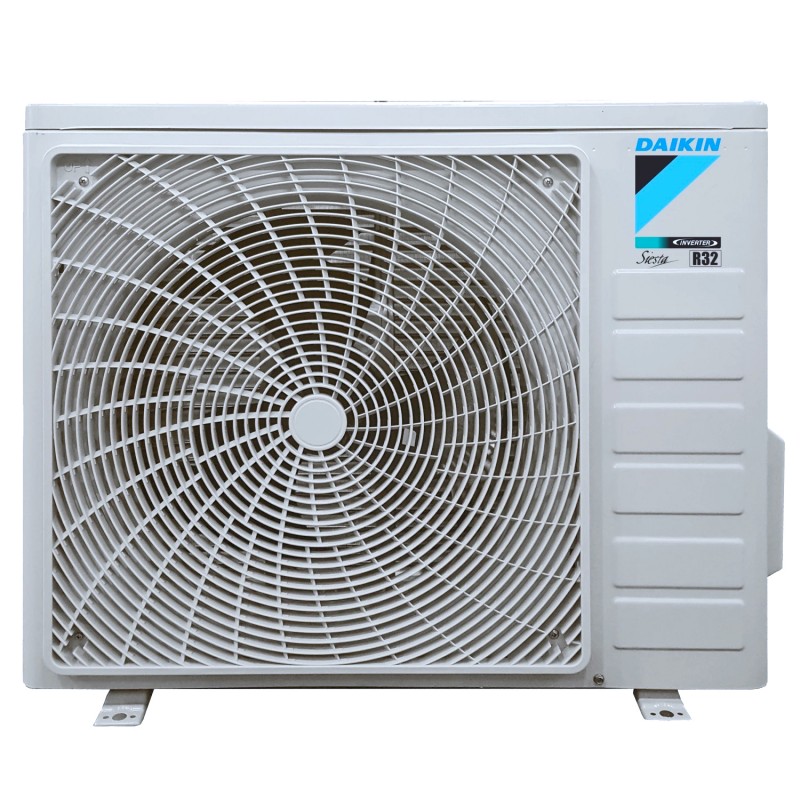

Technical Specifications of Outdoor Unit:

Dimensions of Unit

• Height: 550 mm
• Width: 658 mm
• Depth: 273 mm

Weight of Unit

• 24.0 kg

Pipe Length (OU - IU)

• Max.: 20 m

Operating Range

• Cooling External Temperature: Min. 10 °CBS, Max. 46 °CBS
• Heating External Temperature: Min. -15 °CBU, Max. 18 °CBU

Sound Pressure Level

• Cooling (High): 45.0 dBA
• Heating (High): 45.0 dBA

Refrigerant

• Type: R-32
• Charge: 0.550 kg
• Charge (TCO2Eq): 0.371
• GWP: 675.0

Piping Connections

• Additional refrigerant charge: 0.017 kg/m (for pipe length over 7.5m)
• Height Difference (int. - ext.): Max. 15.0 m

Standard Accessories

• Installation manual: 1
• Drain plug: 1
• Refrigerant charge label: 1
• Multilingual labels on fluorinated greenhouse gases: 1
• General safety measures: 1

Power Supply

• Phase: 1~
• Frequency: 50 Hz
• Voltage: 220-240 V (16A Max. fuse capacity MFA)
