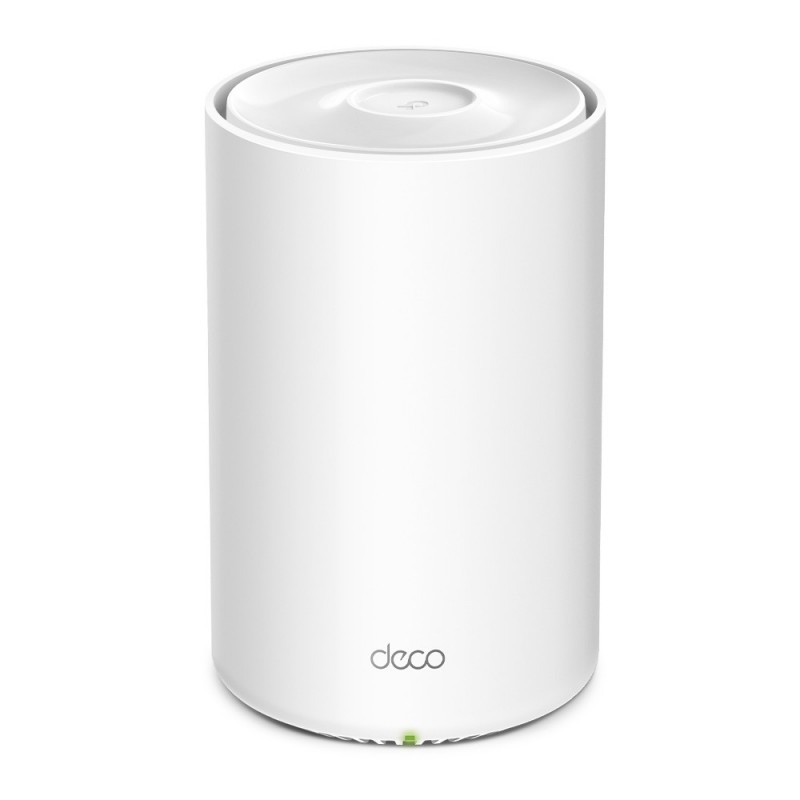

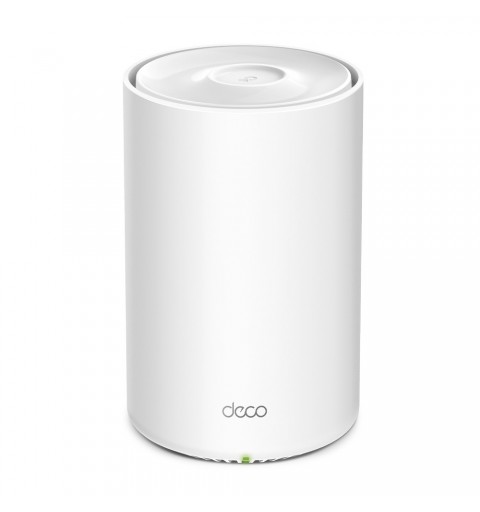

TP-LINK 4G+ AX1800 Whole Home Mesh WiFi 6 Gateway

Superior Mesh WiFi, Everywhere.
4G+ AX1800 Whole Home Mesh WiFi 6 Gateway

- Keep Connected Everywhere
Plug in a SIM card and get internet access everywhere with Deco 4G+ gateway for your vacation home, farm, or warehouse.

- Whole Home Network Solution
Deco X20-4G aims to provide a complete solution for accessible internet and an excellent whole-home WiFi experience. It features a built-in 4G+ modem, WiFi 6, and TP-Link Mesh tech.

How Deco Mesh Works

TP-Link Mesh Technology
Wi-Fi Dead-Zone Killer
Eliminate weak signal areas with a single Wi-Fi network that covers every corner of your home with seamless roaming, adaptive routing and self-healing. No more searching around for a stable connection, whether you're in the basement, garage or yard.

True Seamless Roaming
Deco units work together to form one unified network with a single network name. You phone or tablet automatically connects to the fastest Deco as you move through your home. The switching takes less than 0.3 second and is smooth and unnoticeable, creating a truly seamless online experience.

Adaptive Path Selection
TP-Link Mesh Technology dynamically chooses the best route and band for your connections and applications, guaranteeing a fast Wi-Fi no matter where you are in the home.

Self-Healing
If one Deco has an issue, the system will automatically reroute data via the other Decos to make sure you stay online.

Wi-Fi + Powerline
Powerline connections utilize your home's electrical circuit to link Decos, bypassing even the thickest of walls and ceilings.

The dual-band Wi-Fi and powerline work together to transmit data between Deco units. The total network speed is greatly improved compared with using Wi-Fi only.

IoT Mesh
Unlike traditional smart hubs, TP-Link Mesh Technology provides whole-home IoT coverage with Wi-Fi, Bluetooth and Zigbee integrated into a single system.Enjoy the magic of your smart home in every room with TP-Link Mesh Technology. Say goodbye to countless hubs.

Wi-Fi 6 Mesh
Armed with Wi-Fi 6 technology,
Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.

AI-Driven Mesh
Armed with AI Mesh technology,Deco automatically learns and improves itself from experience.
This provides the ideal mesh Wi-Fi unique to your home and network environment.
Walk through your home and enjoy seamless streaming at the fastest possible speeds.

TP-LINK 4G+ AX1800 Whole Home Mesh WiFi 6 Gateway. Housing colour: White, Antenna type: Internal, LED indicators: Power. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax). Mobile network generation: 3G, 4G, 3G standards: DC-HSPA+,HSPA,UMTS, 4G standard: TD-LTE & FDD-LTE. Processor frequency: 1.5 GHz, Cloud services supported: TP-Link ID, Supported WAN type: Dynamic IP/Static IP/PPPoE/L2TP/PPTP. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, AC adapter input current: 0.6 A

Design
Housing colour	White
LED indicators	Power
Antenna type	Internal
Antennas quantity	4
Number of devices supported	150
Transmit power	CE: ≤20 dBm (2.4GHz), ≤23 dBm (5GHz)
Reset button	Y
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Certification	CE, RoHS
Wireless LAN features
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	1201 Mbit/s
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Security algorithms	WPA,WPA-PSK,WPA3
Point-to-point protocol over Ethernet (PPPoE)	Y
Static IP	Y
Guest access	Y
Mobile network
Mobile network generation	3G, 4G
3G standards	DC-HSPA+,HSPA,UMTS
4G standard	TD-LTE & FDD-LTE
UMTS bands supported	850,900,2100 MHz
4G bands supported	700,800,850,900,1800,2100,2300,2500,2600 MHz
SIM card type	NanoSIM
Features
Built-in processor	Y
Processor frequency	1.5 GHz
Cloud services supported	TP-Link ID
Port forwarding	Y
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
Supported WAN type	Dynamic IP/Static IP/PPPoE/L2TP/PPTP
MU-MIMO technology	Y
MIMO	Y
Operating modes	3G/4G, Router, Access Point
Protocols
Supported network protocols (IPv6)	Y
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
Ethernet WAN	Y
DC-in jack	Y
Power
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
AC adapter input current	0.6 A
AC adapter output voltage	12 V
AC adapter output current	1.5 A
Weight & dimensions
Width	105 mm
Depth	105 mm
Height	167 mm
Packaging content
Number of products included	1 pc(s)
AC adapter included	Y
Number of adapters included	1 pc(s)
Ethernet cable	Y
