Daikin 2AMXF40A + ATXF35A + ATXF25A Air Conditioner Dual Split 12000 btu + 9000 Btu A++/A+ Inverter WiFi Ready

Daikin Air Conditioners are an high efficiency hallmark thanks to their high performances for cooling and heating, with the new model ATXF, Daikin has chosen to introduce the new ecologic gas R32 to reduce environmental impact of 68% compared to R-410A system. In addition, this new model reduces energetic consumption thanks to high energetic efficiency (A++) without renouncing to the maximum comfort.


Technical Characteristics

SEER: 6,22;
SCOP: 4,06;
Cooling Energetic Class : A++;
Heating Energetic Class: A+;
Power: 9000+12000 BTU;
Surface covered: from 15 to 25 m2 a split 9000; from 25 to 40 m2 a split 12000;


Cooling performance:
Capacity: 4.0 kW;
Absorption: 0.90 kW;
Operating range (Min.~Max): 10~46 ℃;

Heating performance:
Capacity: 4.2 kW;
Absorption: 0.99 kW;
Operating Range (Min.~Max): -15~18 °C;

Noise:
Indoor Unit Sound Pressure: 21 dBA;
Indoor Unit Sound Power: 55 dBA;
Outdoor Unit Sound Power: 60 dBA;

Data:
Alimentation (V/Hz/Φ) : 230/50/1;
Refrigerant gas : R-32;
Fluid/Gas Tube: 6.35 (1/4")/9.5 (3/8") mm/incg;
Maximum Length Tube: 30 m;
Maximum Drop UI - UE: 15 m;

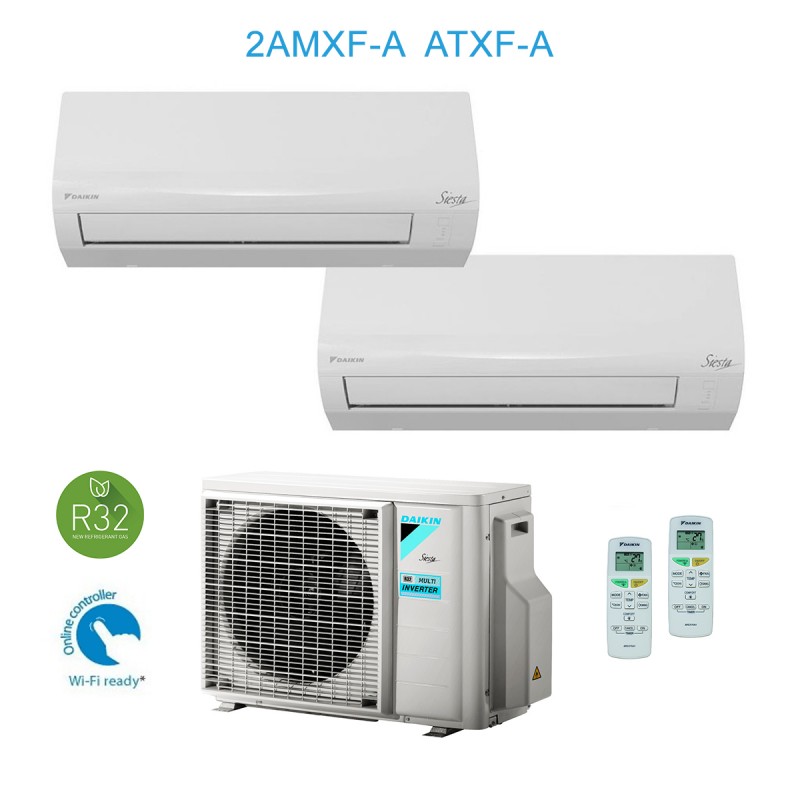

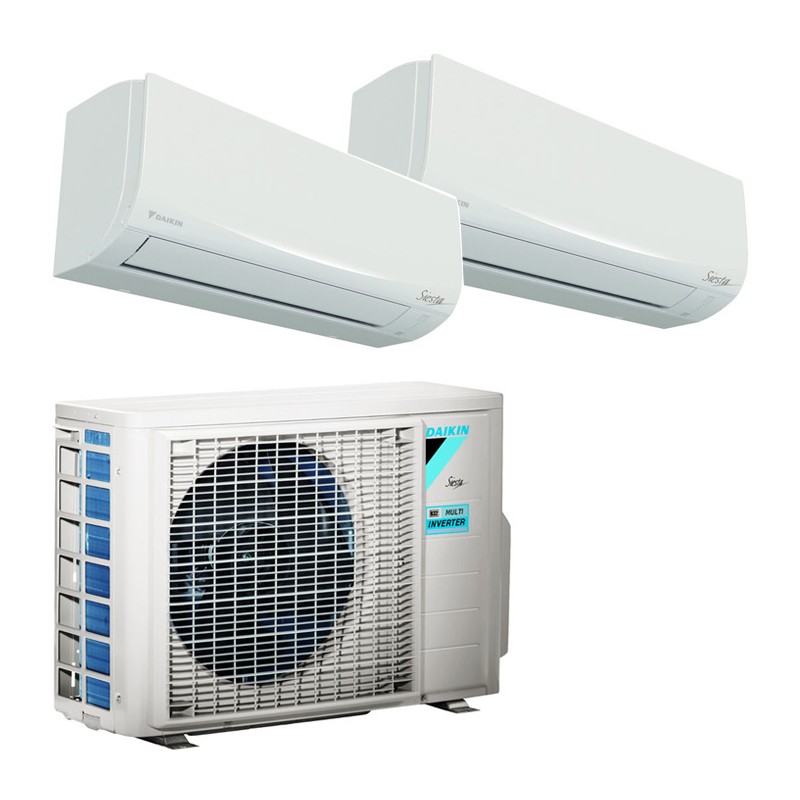

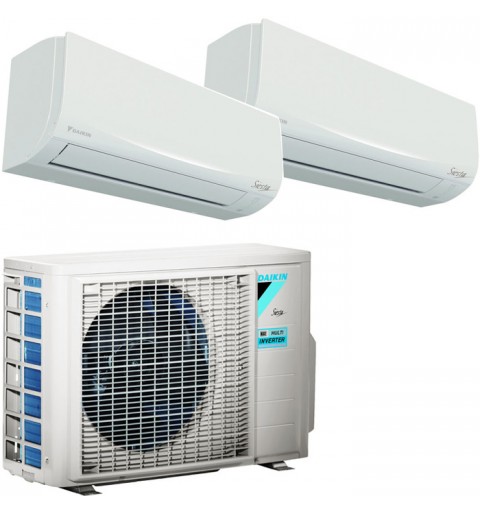

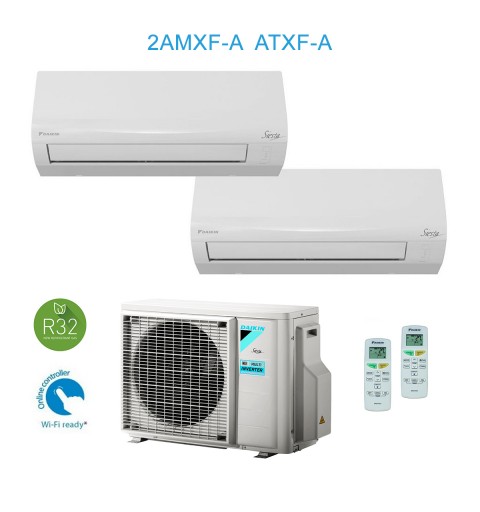

Composed of:

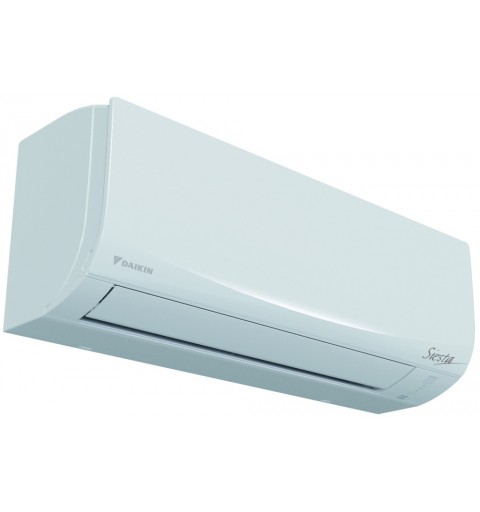

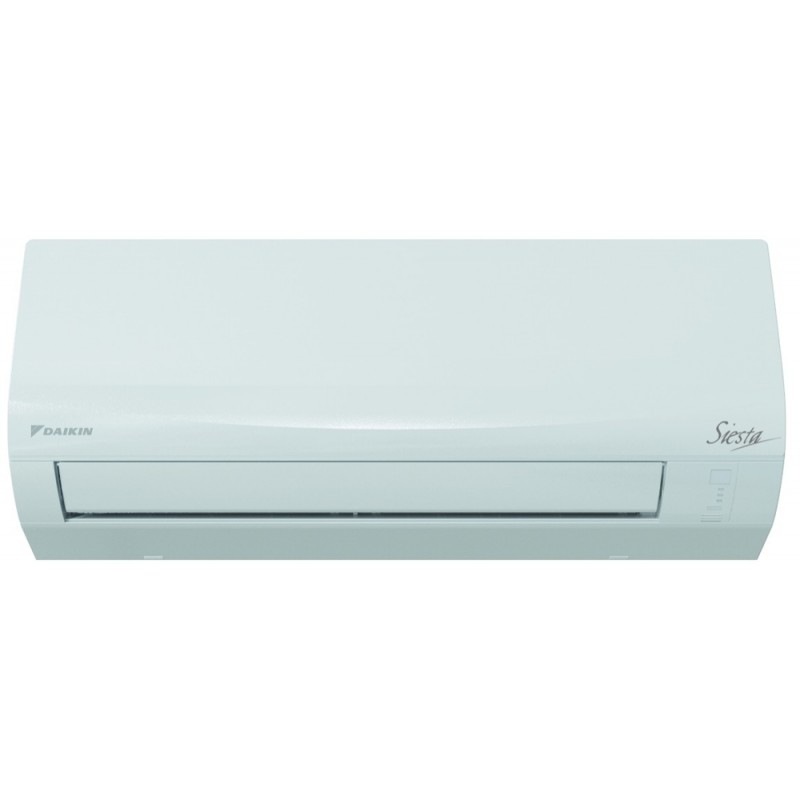

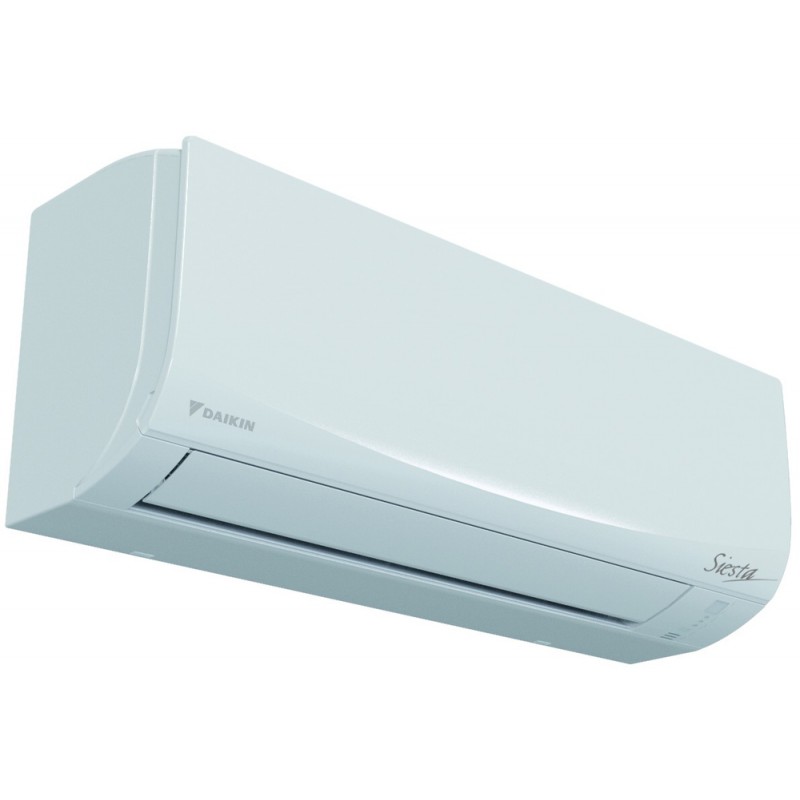

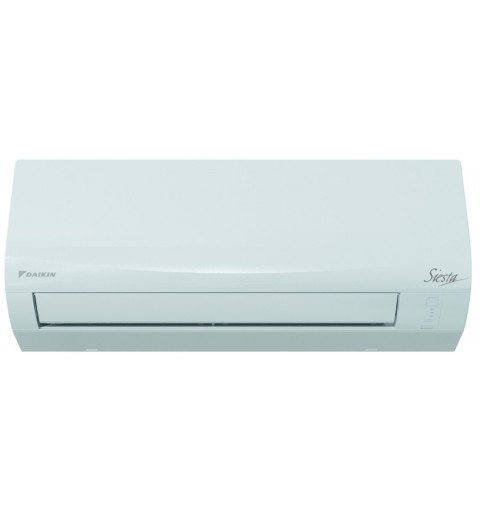

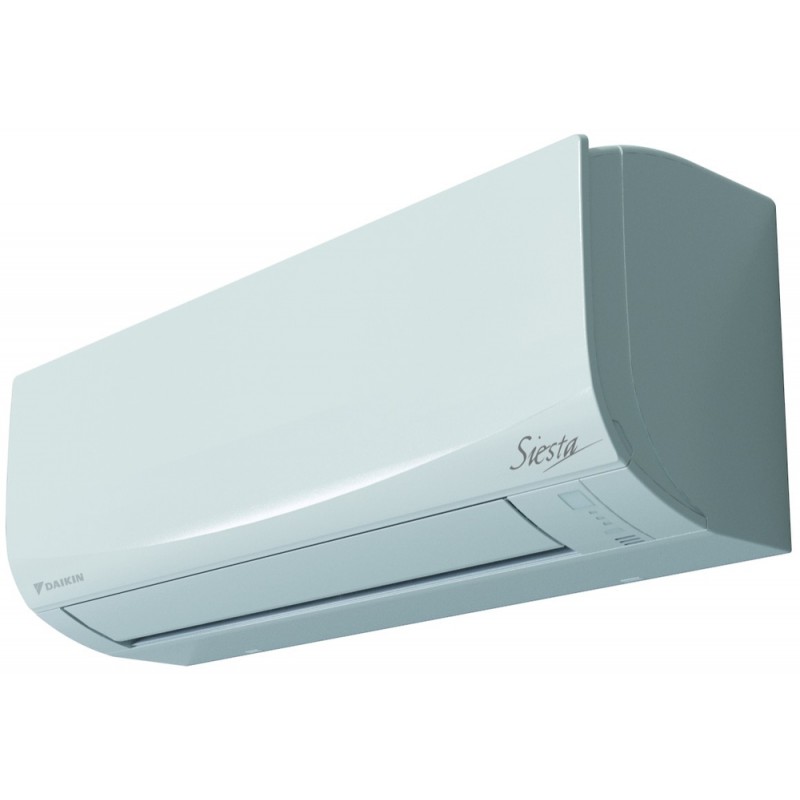

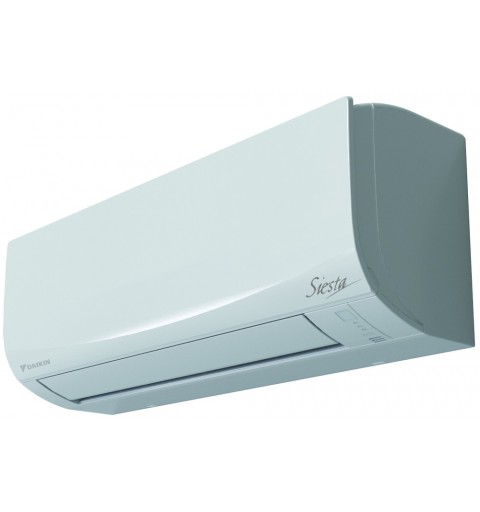

Indoor Unit:  ATXF25A + ATXF35A; (9000 btu + 12000 btu)

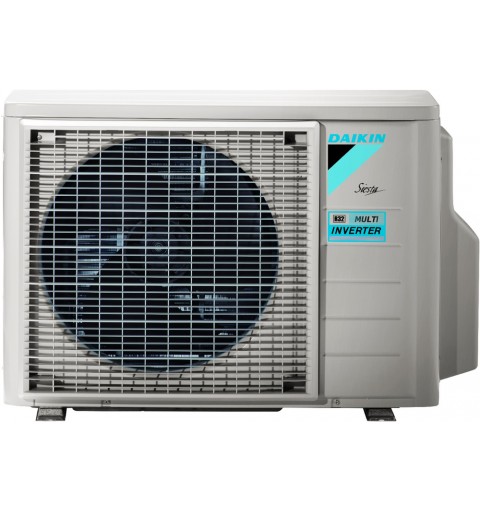

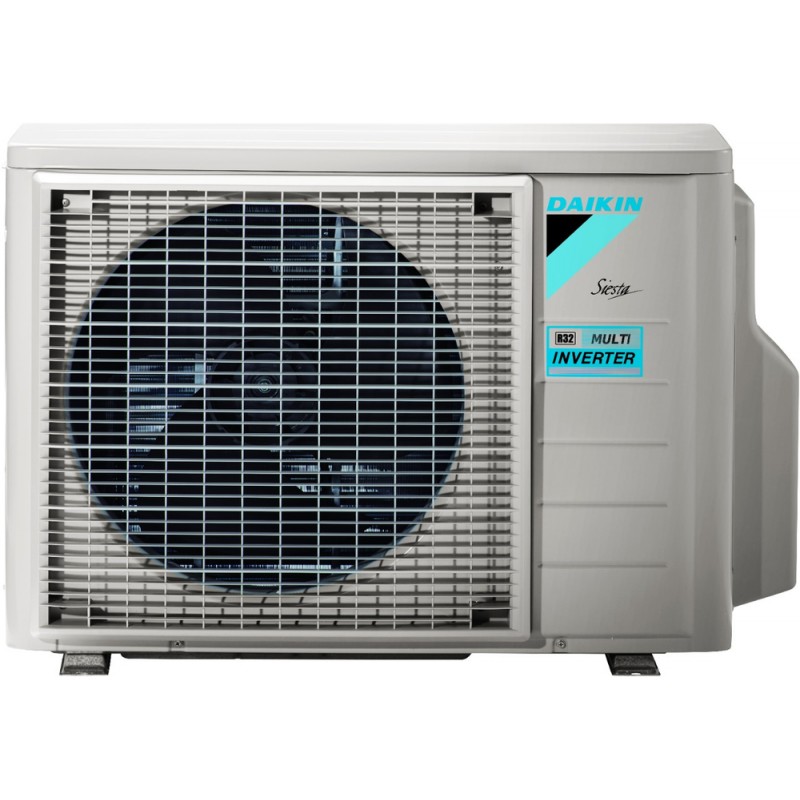

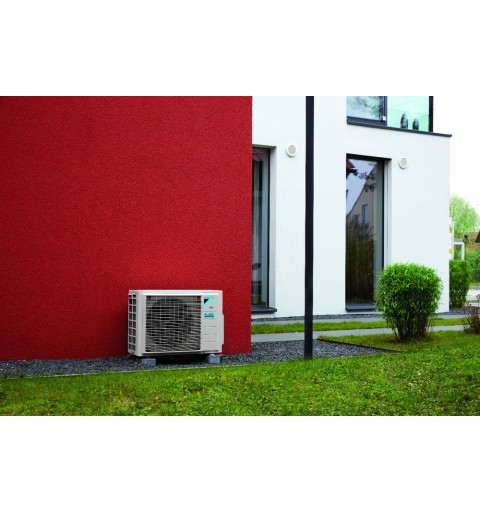

Outdoor Unit: 2AMXF40A;

Size:

Indoor Unit (HxLxW) : 286x770x225 mm ; weight: 9 Kg;
Outdoor Unit (HxLxW) : 550x765x285 mm ; weight: 36 Kg;
