Daikin 2AMXF50A + ATXF35A + ATXF35A Air Conditioner Dual Split Siesta 2x 12000Btu A++/A+ Wifi Ready Inverter R32

Daikin 2AMXF50A + ATXF35A + ATXF35A Air Conditioner Dual Split Siesta 2x 12000Btu A++/A+ Wifi Ready Inverter R32

Daikin air conditioners have always been a symbol of high efficiency and outstanding performance in both cooling and heating. With the new ATXF model, Daikin has introduced the eco-friendly R32 refrigerant, which reduces environmental impact by 68% compared to R-410A systems. Additionally, energy consumption is significantly lowered thanks to its high energy efficiency (A++), without compromising on maximum comfort.

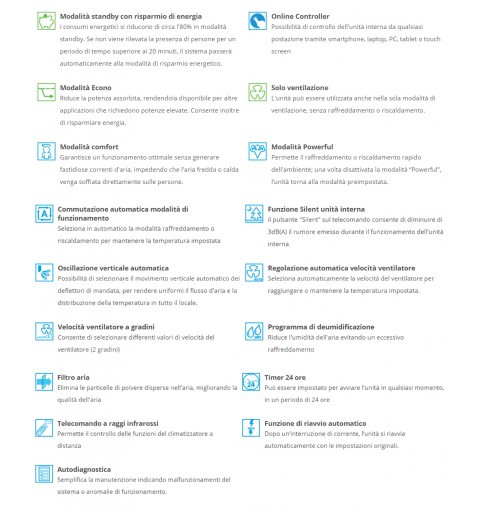

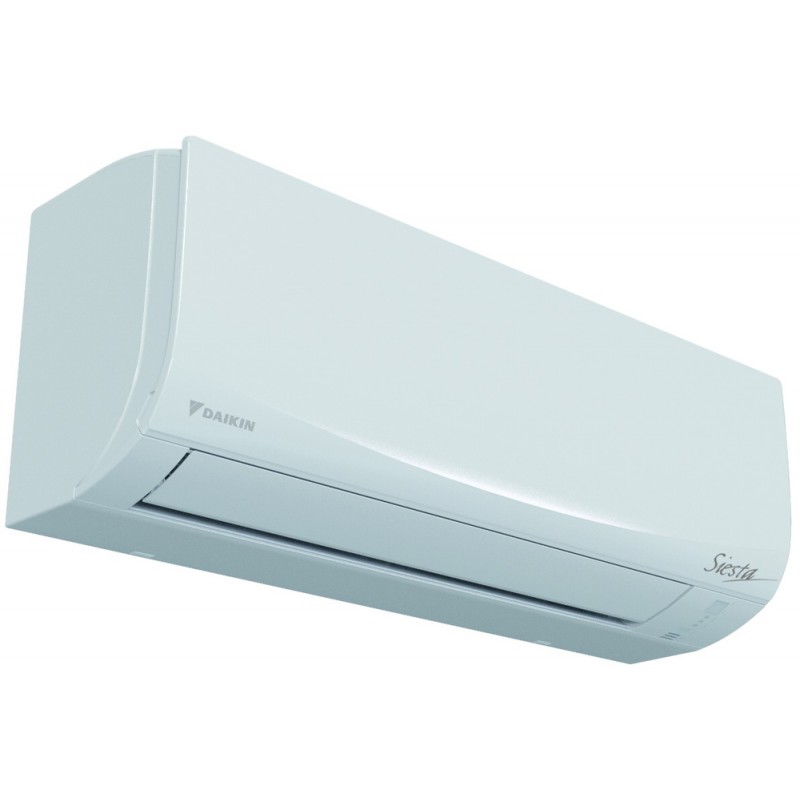

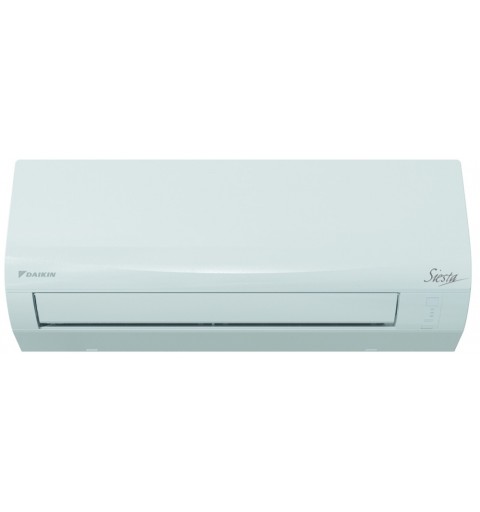

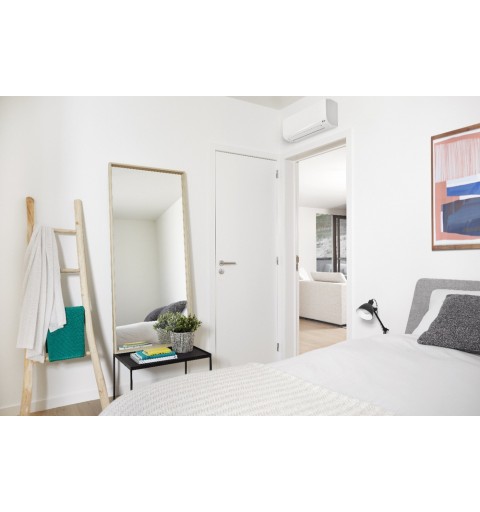

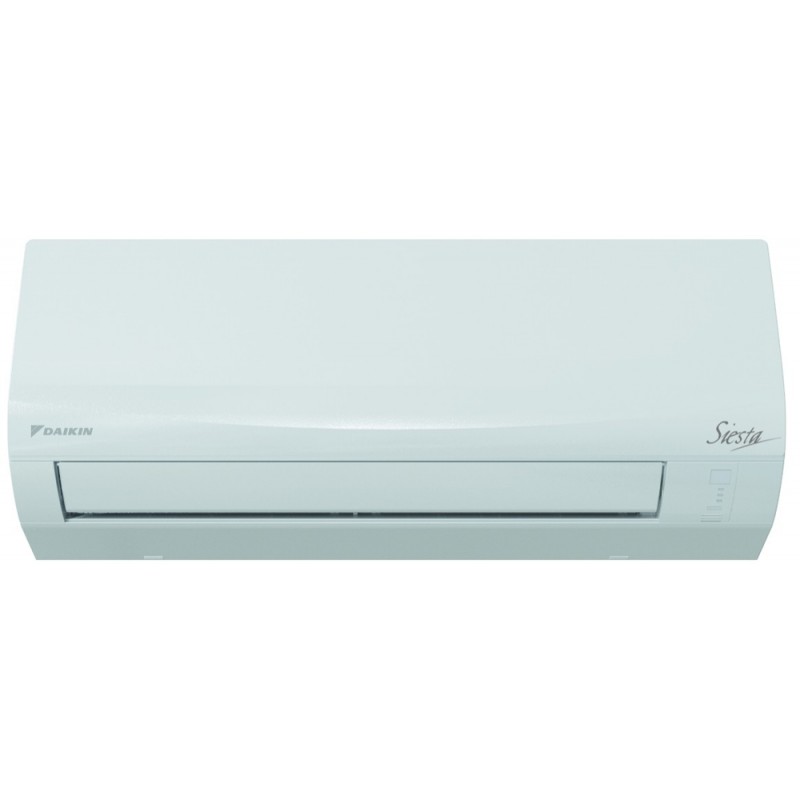

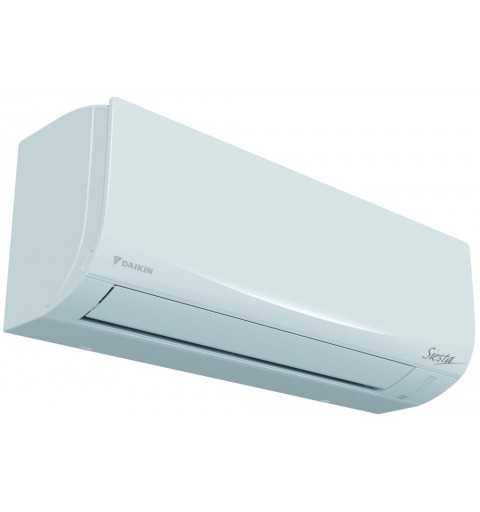

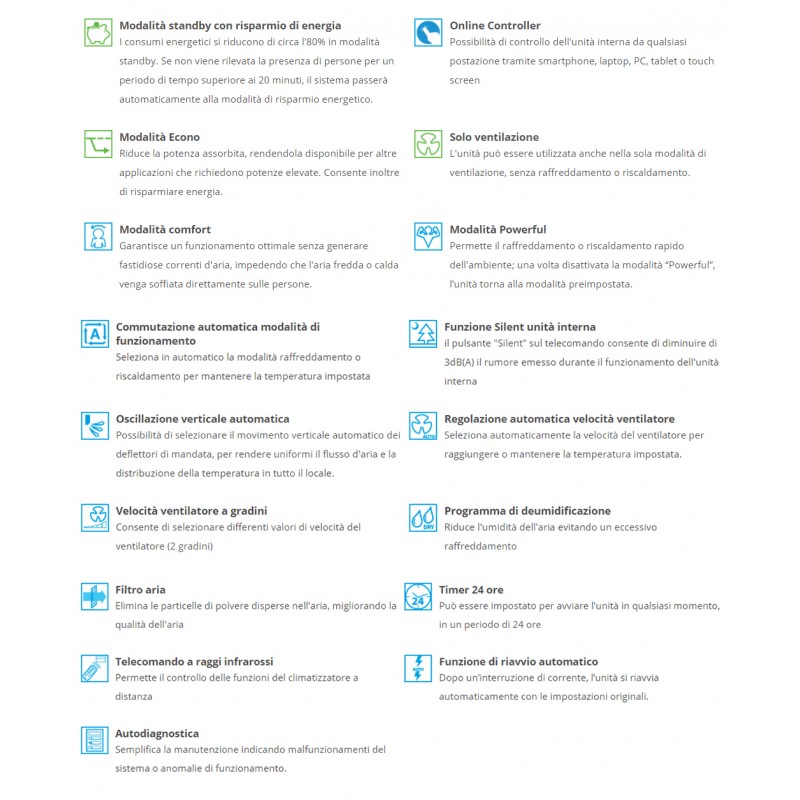

The units feature an elegant and discreet design with ultra-compact dimensions, making them easy to integrate into any interior style. But it's not just about eco-friendliness and design: the unit is equipped with advanced technology including smart management features that allow full control via your smartphone by downloading the dedicated Daikin app.

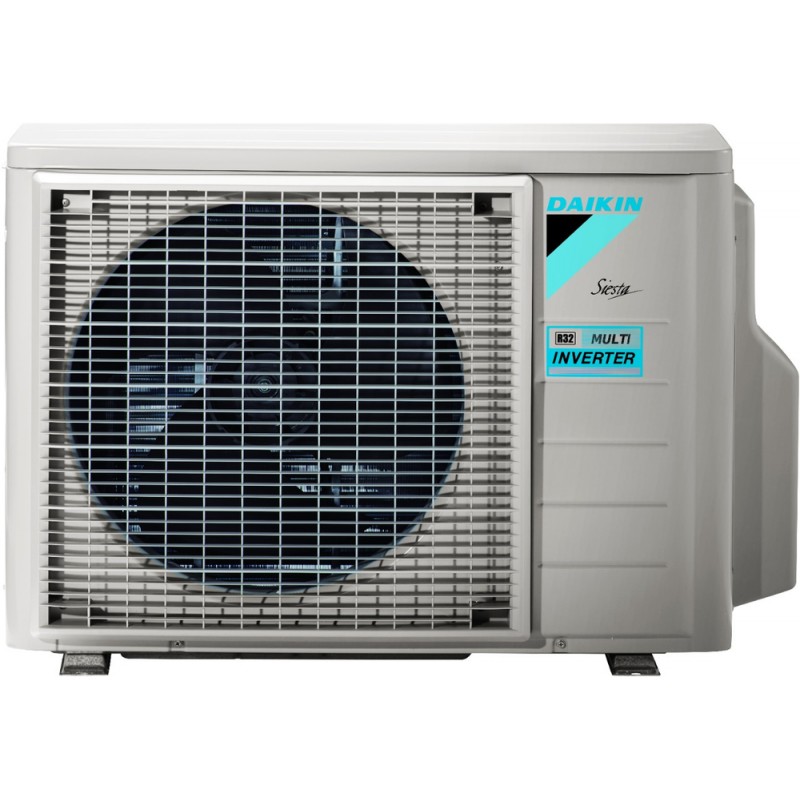

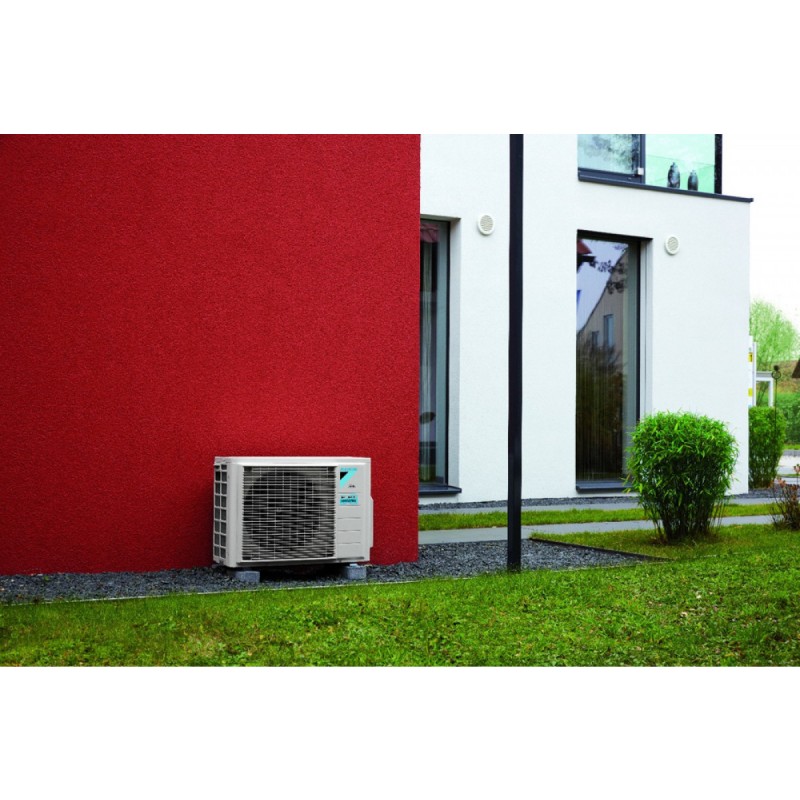

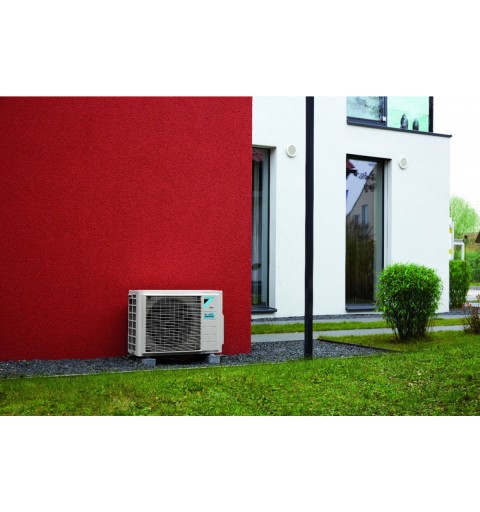

Efficiency and reliability are also ensured through the easy installation of the outdoor unit, which includes a heat exchanger with anti-corrosion treatment (blue fin), offering high resistance to harsh weather conditions.

Technical Specifications

• SEER: 6.22

• SCOP: 4.06

• Cooling Energy Efficiency Class: A++

• Heating Energy Efficiency Class: A+

• Cooling Capacity: 12000 + 12000 BTU

• Recommended Room Size: 25 to 40 m² per 12000 BTU split

Cooling Performance

• Capacity: 5.0 kW

• Operating Range (Min.~Max): 10~46 °C

Heating Performance

• Capacity: 5.6 kW

• Operating Range (Min.~Max): -15~18 °C

Sound Levels

• Indoor Unit Sound Pressure: 21 dBA

• Indoor Unit Sound Power: 55 dBA

• Outdoor Unit Sound Power: 60 dBA

Additional Data

• Power Supply (V/Hz/Φ): 230/50/1

• Refrigerant Gas: R-32

• Piping Connections Liquid/Gas: 6.35 (1/4") / 9.5 (3/8") mm/inch

• Max Pipe Length: 30 m

• Max Height Difference Indoor-Outdoor: 15 m

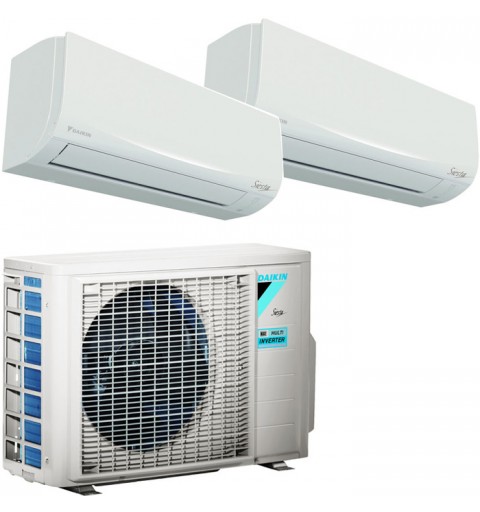

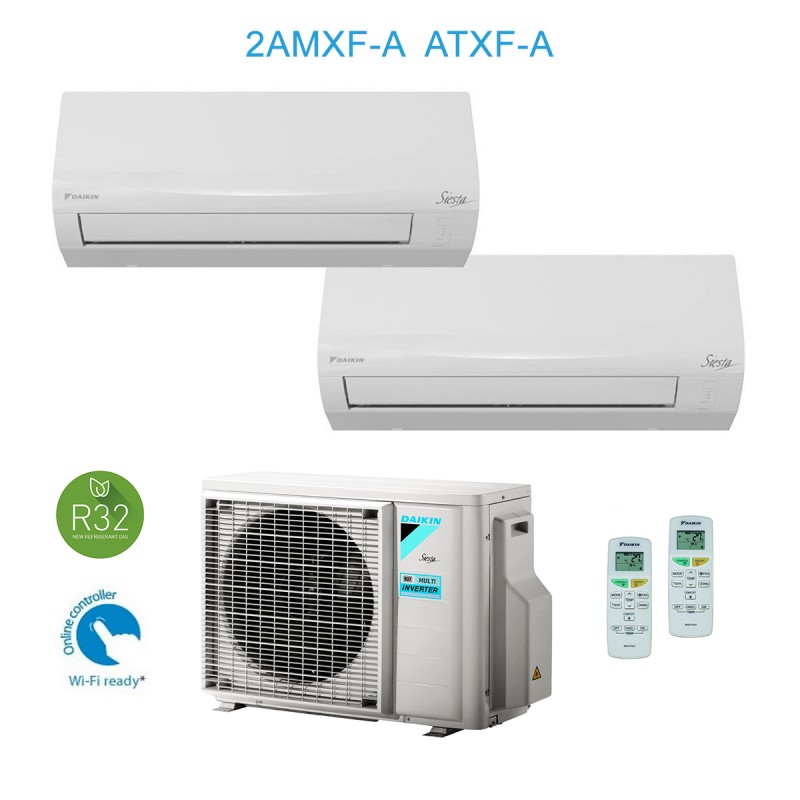

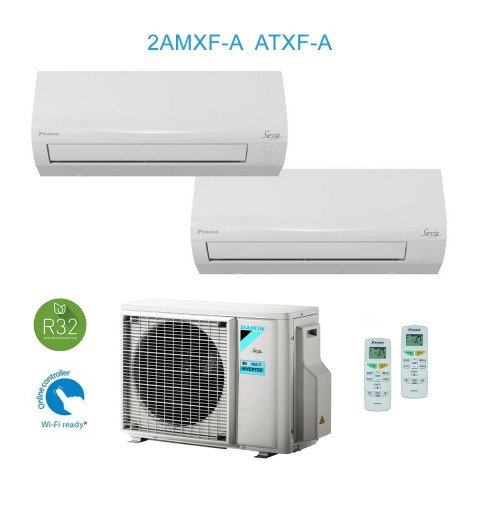

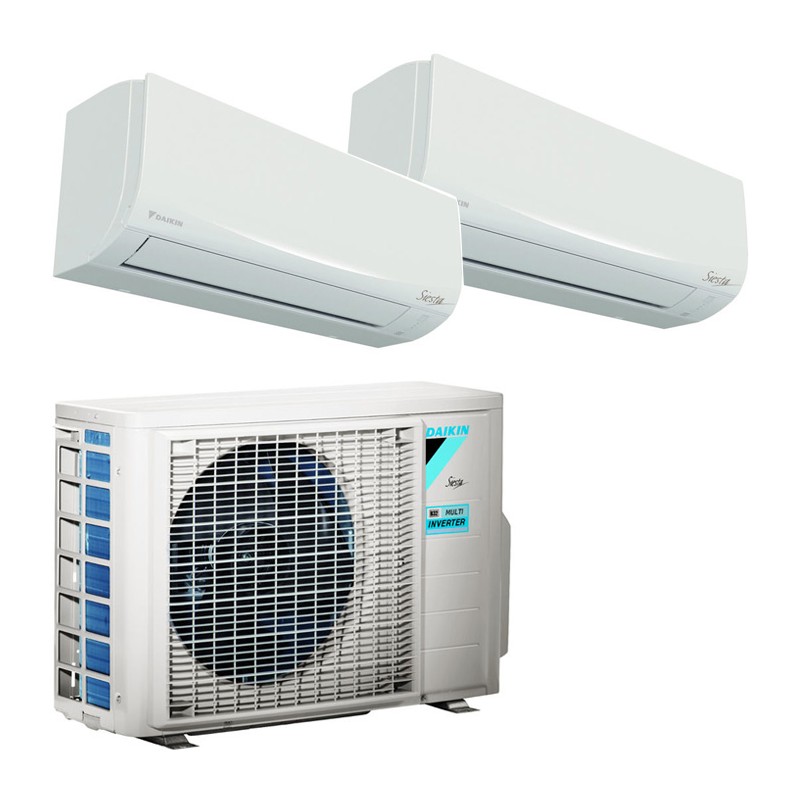

Configuration

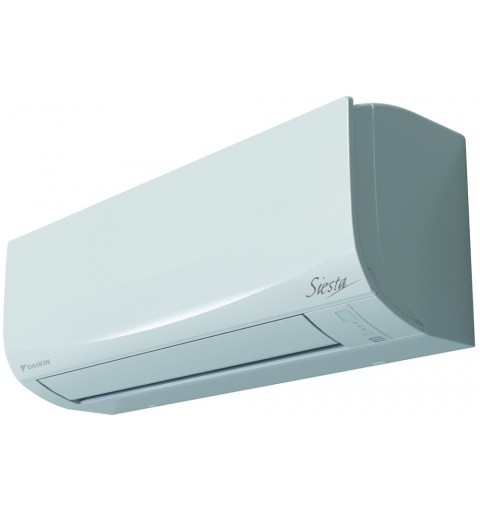

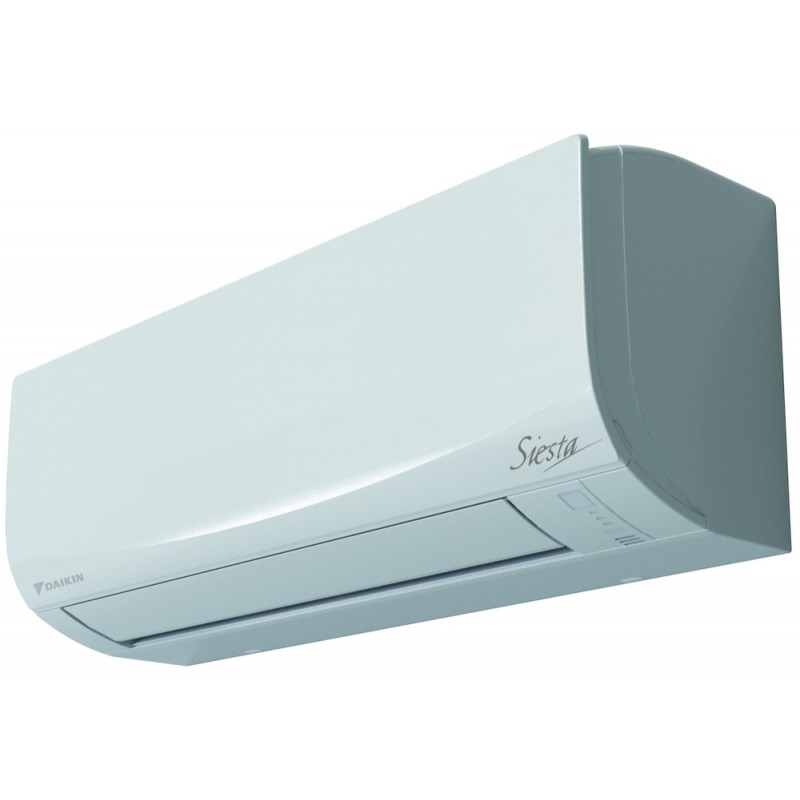

• Indoor Units: 2x ATXF35A

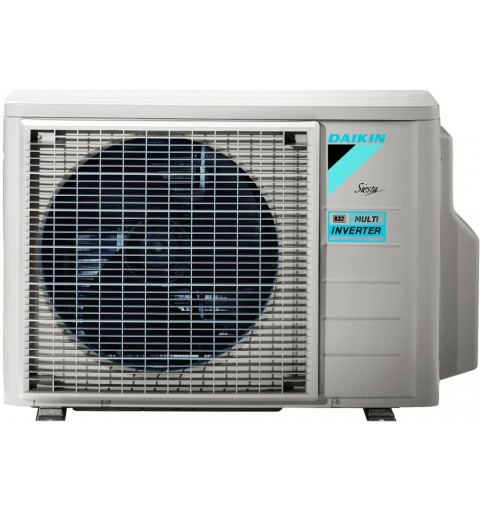

• Outdoor Unit: 2AMXF50A

Dimensions

• Indoor Unit (HxWxD): 286 x 770 x 225 mm ; Weight: 9 Kg

• Outdoor Unit (HxWxD): 550 x 765 x 285 mm ; Weight: 41 Kg
