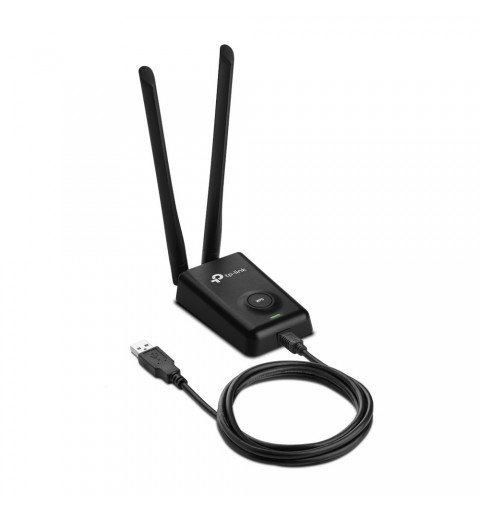

TP-Link TL-WN8200ND network card WLAN 300 Mbit/s

What This Product Does

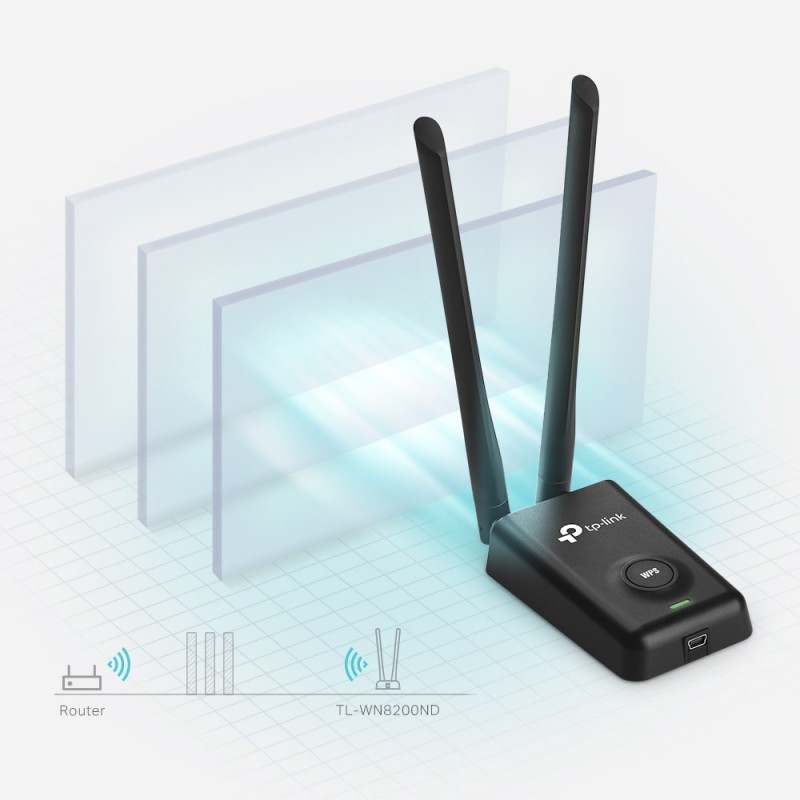

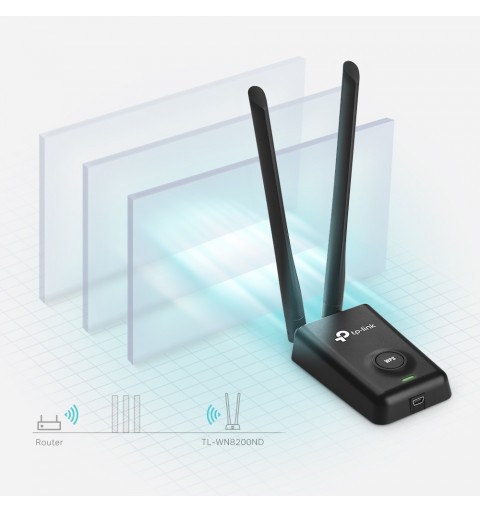

TP-LINK TL-WN8200ND is a 300Mbps high power wireless adapter that allows users to enable their PCs or notebooks with extremely powerful wireless capability to deliver performance enhancements. The adapter adopts high power design which offers up to 10 times the range of conventional adapters. One of the TL-WN8200ND's best features is its stronger penetrability, which can effectively ensure that signal still remains reliable when it passes through multiple walls or floors.

High Receive Sensitivity for Reliable Signal
TL-WN8200ND features its high receive sensitivity, which could let you move further away from the access point while still maintaining the same wireless signal. In this case, using TL-WN8200ND means that you don't have to move the laptop like a divining rod, and you can easily pick up the network with its strong sensitivity.

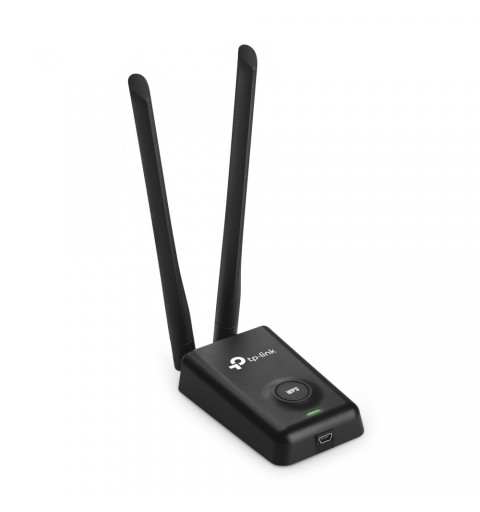

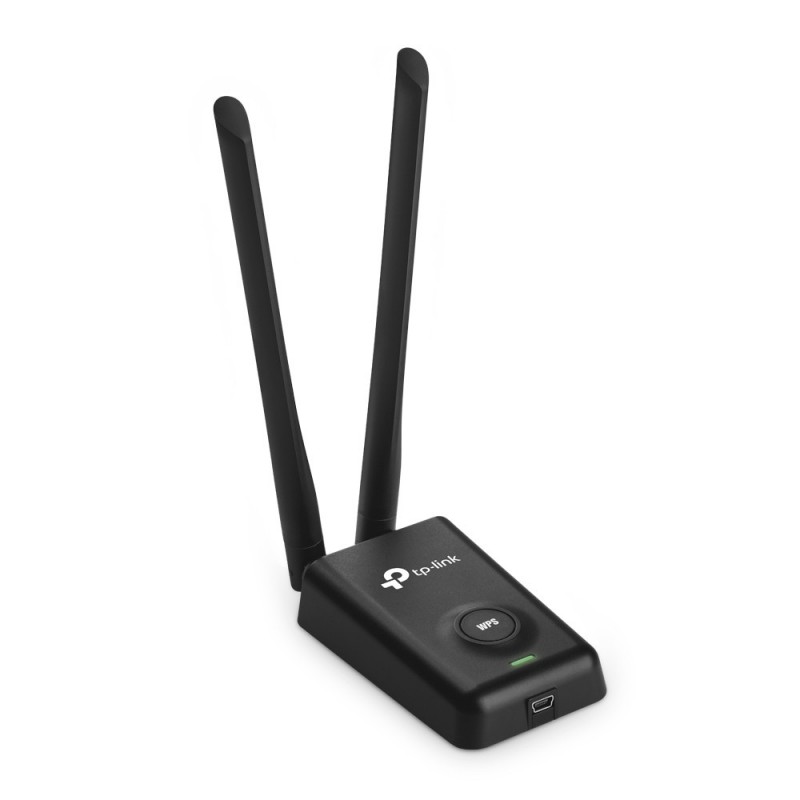

Two 5 dBi External Detachable Antennas
Two high gain external antennas insure stronger transmission and reception capacity. The two detachable antennas can be rotated and adjusted in different directions to fit various operation environments. For even more demanding applications, the antennas can also be replaced with diverse indoor antennas or directional antennas (using standard RP-SMA connector) to show even greater flexibility and wider wireless coverage.

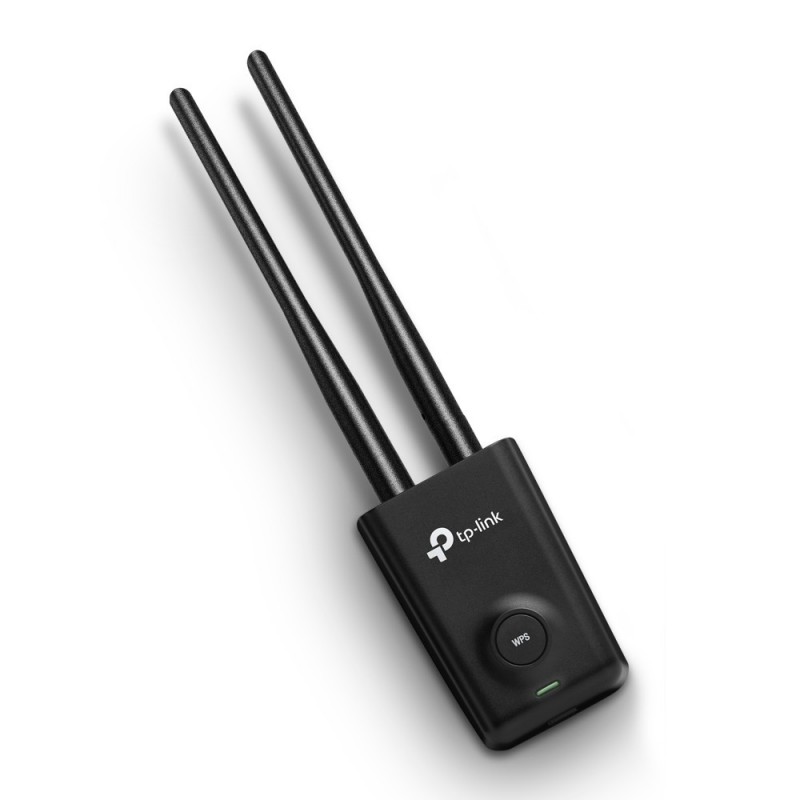

One Button for Security Setup
TL-WN8200ND supports Wi-Fi Protected Setup™ (WPS) that allows users to simply press the "WPS" button on the exterior, instantly establishing a highly secured connection. Not only is it faster than normal security setups but more convenient in that you don't need to remember any password!

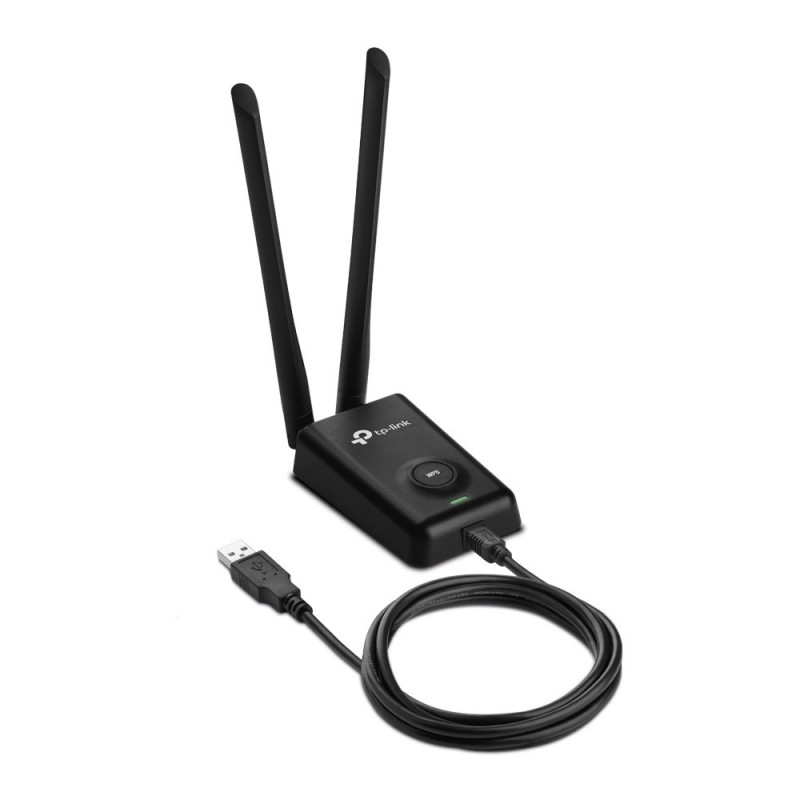

Desktop-Style Design & 1.5m USB Extension Cable
Besides the fashionable and novelty exterior, the desktop-style design is beneficial for the signal reception in various application environments, guaranteeing the smooth and stable signal. And TL-WN8200ND also provides 1.5m USB extension cable, convenient for your installation, even for the desktop equipment.

Bundled CD for Easy Operation
TL-WN8200ND comes with a CD with utility that helps you complete the software installation and wireless network settings, including security configurations and wireless connection, which is convenient for users, even for novice users.

TP-Link TL-WN8200ND. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 300 Mbit/s, Top Wi-Fi standard: Wi-Fi 4 (802.11n), Wi-Fi band: Single-band (2.4 GHz). Product colour: Black

Ports & interfaces
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
Network
Maximum data transfer rate	300 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported	150,300 Mbit/s
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Design
Internal	No
Product colour	Black
Antenna design	External
Antenna direction type	Omni-directional
Antenna gain level (max)	5 dBi
Transmitting power (CE)	20 dBm
Transmitting power (FCC)	27 dBm
WPS push button	Yes
LED indicators	Yes
Operating modes	Infrastructure mode
System requirements
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.9 Mavericks
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Sustainability
Sustainability certificates	CE, Federal Communications Commission (FCC), RoHS
Weight & dimensions
Width	90.8 mm
Depth	60.8 mm
Height	24.5 mm
Packaging data
Package width	200 mm
Package depth	150 mm
Package height	39 mm
Package weight	250 g
Packaging content
Cables included	USB
Resource CD	Yes
Quick installation guide	Yes
Logistics data
Harmonized System (HS) code	85176990
