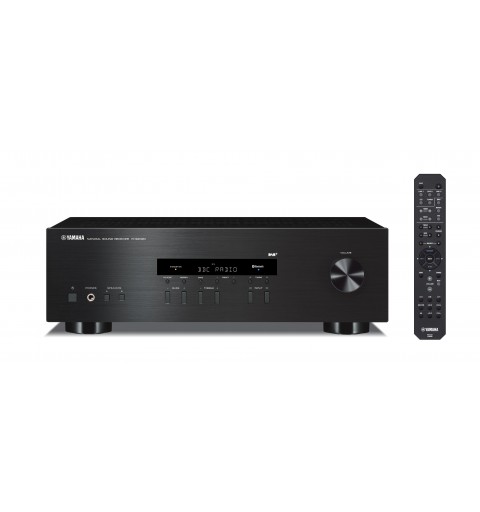

Yamaha R-S202D AV receiver stereo Black

Hi-Fi Receiver featuring the outstanding sound quality and clean design that Yamaha is famous for. Provides Bluetooth® compatibility and a DAB/DAB+ tuner for enjoying digital broadcasts.

Yamaha High Sound Quality, Created by Rich Experience and Tradition, and High Technological Expertise
Yamaha, with a long history of 125 years as a musical instrument maker, also has a high reputation for HiFi components. The R-S202D was created by taking advantage of this rich experience and high technological expertise. Based on the concept of “Natural Sound”, for reproducing all music as it really sounds, and built with scrupulous care from circuit design to basic sound production, even though an entry model it reproduces high sound quality and musically rich sound.

100 W x 2 High Output Power* and High Sound Quality Circuit Design
The R-S202D, with 100 W* x 2 high drive power that's above its class, has a high sound quality design that minimises the length of signal routes and optimises the circuit layout. Positioning the power transformer near the power amp circuit reduces power loss while improving peak power supply capacity to enable high volume output. The signal ground and power supply ground are connected at one point, eliminating mutual interference to achieve a higher S/N ratio. The result is sound filled with clarity and a feeling of openness.

Bluetooth® Compatible for Wireless Music Streaming

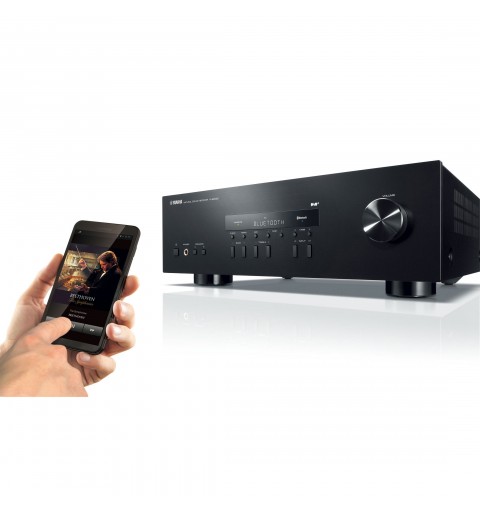

The R-S202D provides Bluetooth® functionality to let you enjoy easy wireless music playback from smartphones and other devices. Use the display on your phone to select the songs from your library and hear them play with the full power and sound quality of your audio system.

Enjoy Digital Radio from DAB/DAB+ Tuner
DAB and DAB+ are Digital Audio Broadcasting formats that offer a large selection of radio stations with high sound quality. Other benefits include automatic tuning to available stations with a list to choose from, and display of information such as station name. You can preset 40 DAB/DAB+ stations.

Simple and Sophisticated Design

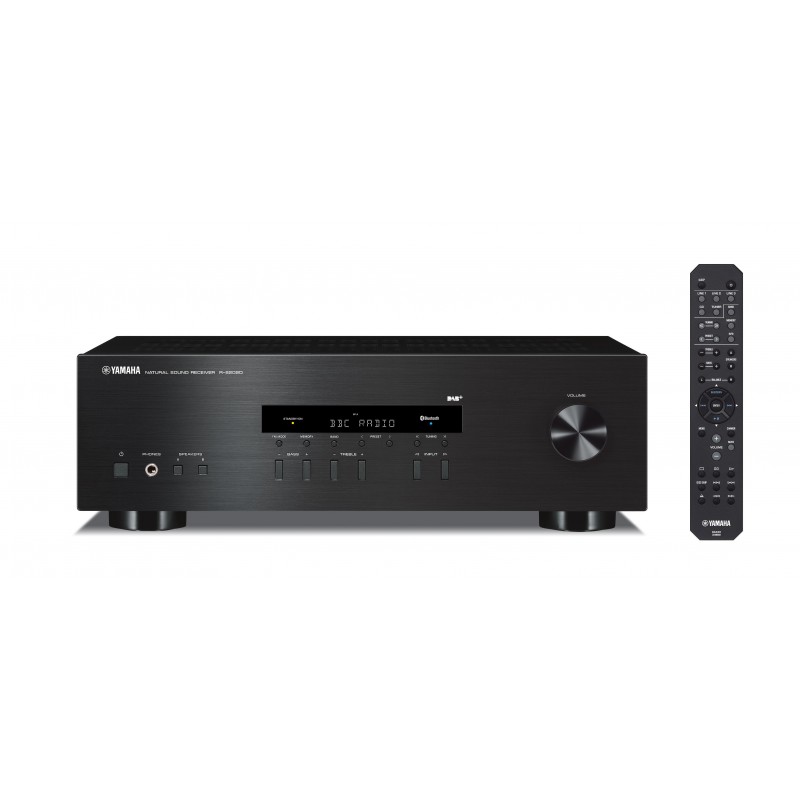

The R-S202D inherits the simple and sophisticated design style that Yamaha HiFi audio is famous for. With an elegant hair line finish, it harmonises beautifully with other HiFi audio equipment. The operating buttons and volume knobs also show our commitment to simplicity and ease of use.

Speaker Selector and Speaker Terminals for Two Systems

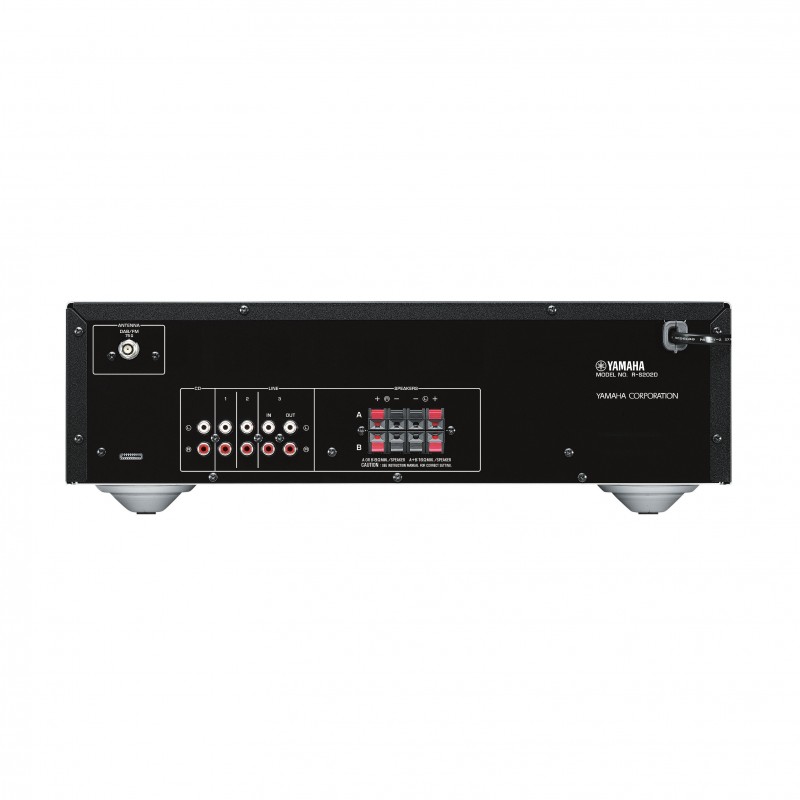

Equipped with speaker terminals for two systems, this receiver lets you can connect two sets of speakers. The speaker selector makes it easy to switch between speaker outputs, allowing you to hear the sound from one speaker system (A or B) or from both (A+B).

Power Saving
A power management function automatically cuts off the power (switches to standby mode) when the receiver has not been operated for a long time. It can be set to 2, 4, 8 or 12 hours, or off. In addition, power consumption during standby is only 0.5 W, achieving good energy saving performance.

Yamaha R-S202D. Receiver type: stereo, Power output per channel (1KHz@8 Ohm): 140 W, Dynamic power per channel (4 Ohm): 165 W. Speakers connectivity type: Clamp terminals. Supported radio bands: DAB, DAB+, FM. Power consumption (standby): 0.5 W. Width: 435 mm, Depth: 322 mm, Height: 141 mm

Audio
Receiver type	stereo
Power output per channel (1KHz@8 Ohm)	140 W
Dynamic power per channel (4 Ohm)	165 W
Dynamic power per channel (8 Ohm)	125 W
Input sensitivity	500 mV
Frequency range	10 - 100000 Hz
Network
Wi-Fi	No
Bluetooth	Yes
Radio
Supported radio bands	DAB, DAB+, FM
Preset stations quantity	40
Optical drive
Optical drive included	No
Storage
Card reader integrated	No
Technical details
Display	LCD
Apple docking compatibility	Not supported
Volume control	Rotary
Power
Power consumption (standby)	0.5 W
Weight & dimensions
Width	435 mm
Depth	322 mm
Height	141 mm
Weight	6.7 kg
