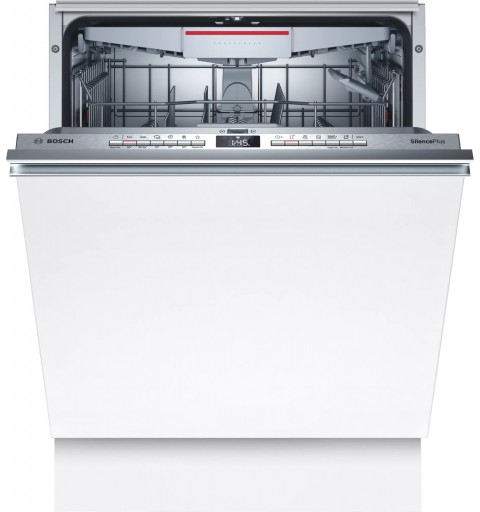

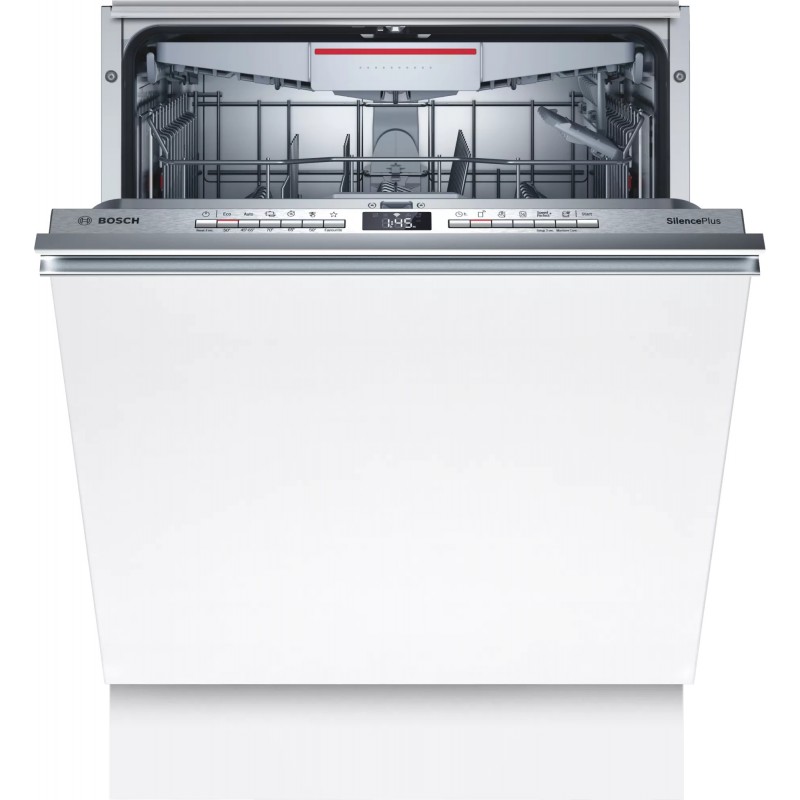

Bosch Serie 4 SMH4ECX14E dishwasher Fully built-in 13 place settings C

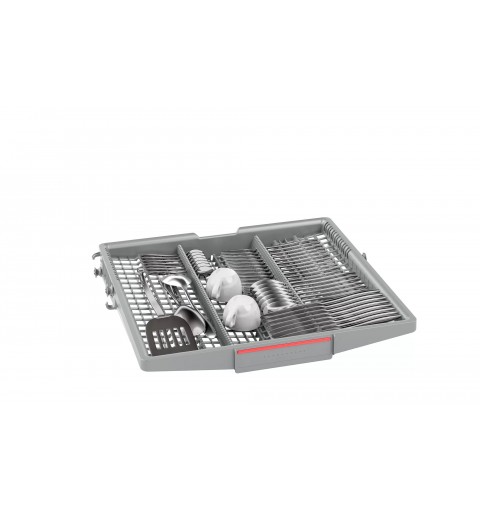

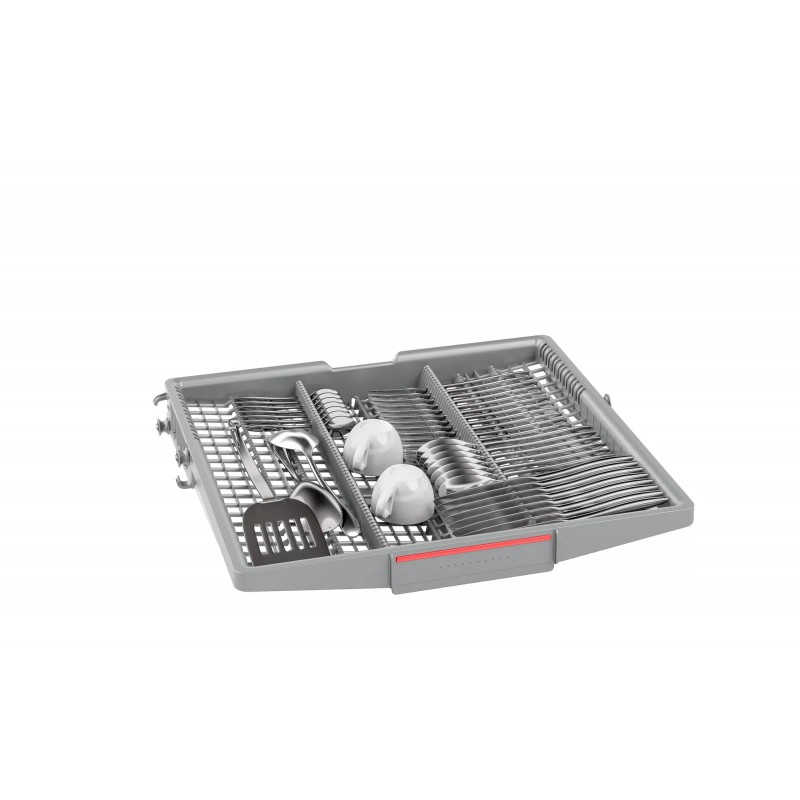

VarioDrawer: now your dishwasher features high-level flexibility.
Sometimes you can’t fit everything you want into your dishwasher because of its inflexible setup. The VarioDrawer is an extra level at the top of Activewater dishwashers, which solves this problem. It is the ideal place for cutlery and smaller kitchen utensils like ladles or whisks and can even fit espresso cups. This gives you more flexibility when loading your dishwasher and leaves more space in the bottom basket. The cutlery basket can also be replaced by the VarioDrawer in order to create capacity for up to 14 place settings in 60cm dishwashers and 10 place settings in 45cm dishwashers. As a result, your dishwasher will allow for more flexible and comfortable loading.

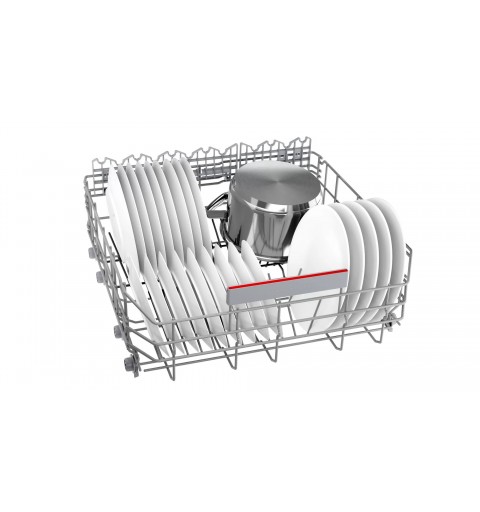

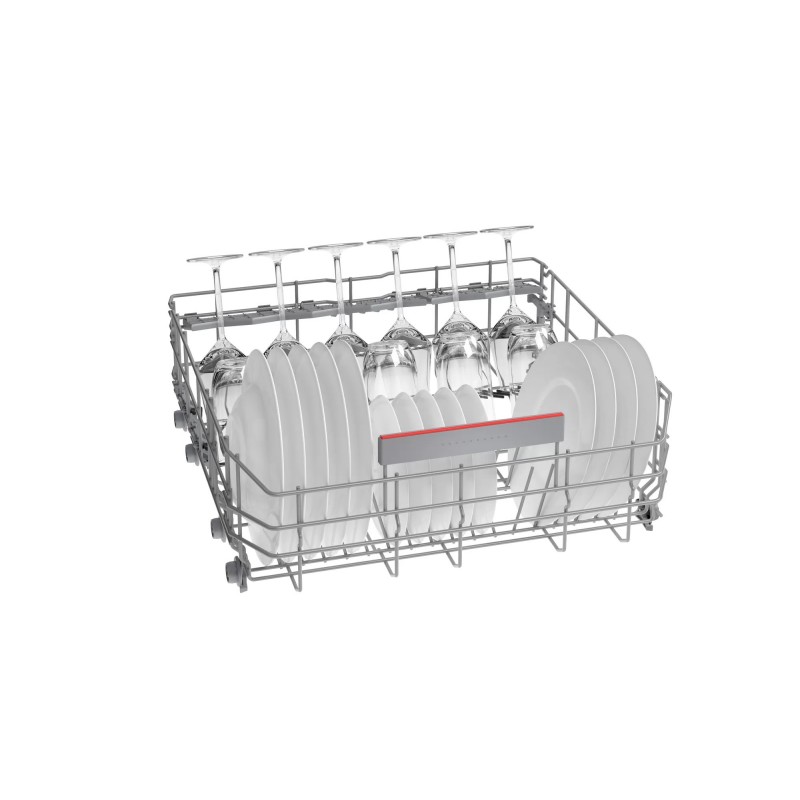

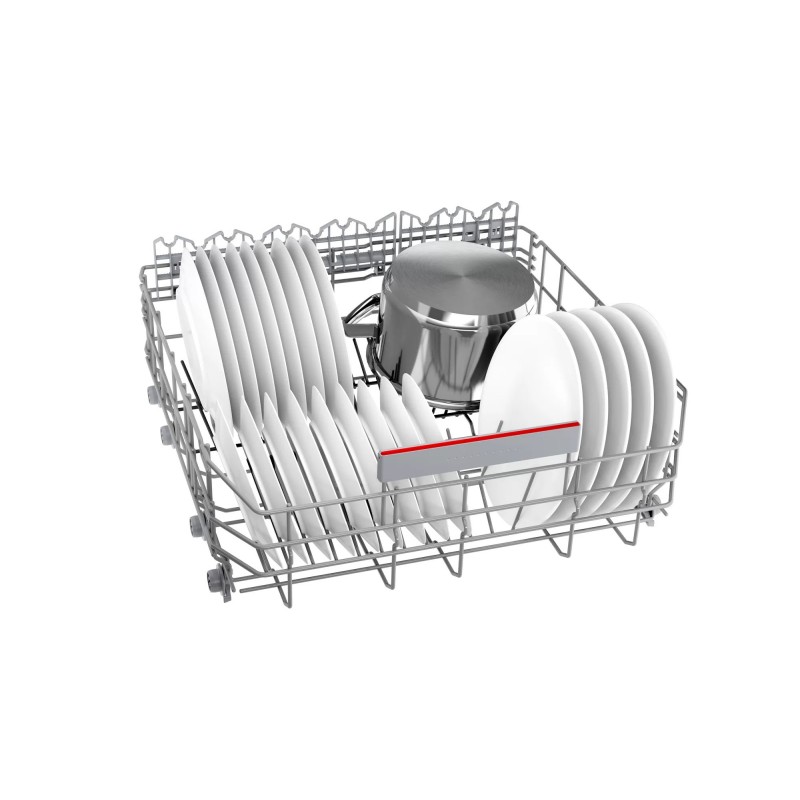

Rackmatic
Thanks to the triple rackmatic system, the height of the top basket can easily be adjusted by up to 5 cm. And you can do this when its fully loaded. That means even more adjustment options and thus maximum flexibility.

Silence program
The silence program is the quietest way to run your dishwasher. By activating it, you automatically reduce the noise levels of your dishwasher to the lowest minimum possible. This is achieved by an especially adapted Eco 50 °C program, a reduced spray pressure and extended cleaning phase.

Slience Plus 44dB
The silence Pro program is an remarkably quit way to run your dishwasher. By activating it, your dishwasher operate at a volume level of 44dB.

Easy Start Guide
Selecting the right wash programme for your dishwasher can not only be confusing, but can often result in less than perfect cleaning results. Home Connect with Easy Start Guide function takes the guesswork out of this job and always recommends the right program to you -directly from your mobile device. Every time. And with every wash. The only thing you need to do is enter the degree of soiling and the type and quantity of the dishes or cutlery being washed in your Home Connect app. So you can easily choose the right program and get perfect results, cycle after cycle.

Your appliance listens to you.
Thanks to partnering with Amazon Alexa, your dishwasher can be controlled by voice as well. Please find out, if the relevant “Home Connect” skill within the Alexa app is available for your country & language. Activate the respective skill to establish the connection between Amazon Alexa and your home appliance.

Tab Counter
Running out of dishwasher tablets is the last thing you want when you need clean dishes. The Tab Counter feature on the Home Connect app tracks your consumption and informs you via push notification when you´re down to your last five tablets according to your last purchase. Via direct link, you can conveniently reorder a new pack. Finally, a dishwasher that looks after itself.

Push Notifications
Waiting around for your dishwasher to finish can waste time and cause unnecessary stress. Especially for those with busy schedules. Home Connect puts your mind at ease and helps you be more productive with your time. If you wish, Push Notifications can be sent from your dishwasher directly to your mobile device, conveniently letting you know the current programme status of your dishwasher, as well as other useful information. Multitasking in and out of the home just got a little easier.

AquaStop: the dishwasher that protects itself from water damage.
Machine malfunctions always seem to occur at the most inconvenient times, costing you both money and precious time. Our dishwashers with the AquaStop system consists of a special double-walled feed hose, a safety valve and a floor tank with float switch that provide 100% protection against water damage. What’s more, Bosch offers a lifetime guarantee for the life of your appliance. Get perfect results you can rely on, day after day.

ActiveWater: less water, less energy, better performance.
Bosch's innovative ActiveWater technology maximises efficiency to produce outstanding results whilst protecting the environment. With carefully targeted water distribution, improved filter technology, faster heating and increased pump output for more water circulation, ActiveWater dishwashers give superb results.

EcoSilence Drive: dishwashing like you’ve never heard before.
Keeping the house clean can be difficult. Keeping it quiet can sometimes feel impossible. Our dishwashers with EcoSilence drive deliver high-performance cleaning with low noise emission. Equipped with a brushless, energy-saving motor that optimally reduces friction noise, the EcoSilence drive ensures a much smoother, quieter operation. Now you can enjoy a home that is as quiet as it is clean.

10-Year Rust-Through Warranty
We have developed special surface treatments and production processes that are precisely tailored to the materials used in the interior of our dishwashers. As a result, a 10-year guarantee against rust through of the inner cavity, from the inside out, on all our dishwashers can be offered. This guarantee can be activated for all dishwashers purchased from 01.01.2012 onwards.

DosageAssist
The dosage assist ensures optimal cleaning results and a quieter wash. The detergent drops out the detergent dispenser and into a special tray on the top basket where it gets completely dissolved.

Automatic Programmes: take the guesswork out of cleaning.
Different loads of washing require different wash settings. Choosing the incorrect programme not only wastes time, but also water and energy. Bosch automatic programmes automatically regulate the water temperature and rinse time during washing to suit the level of soiling and load volume. This means, with automatic programmes you only use as much water as needed for perfect results. The right wash for every load – all at the touch of a button.

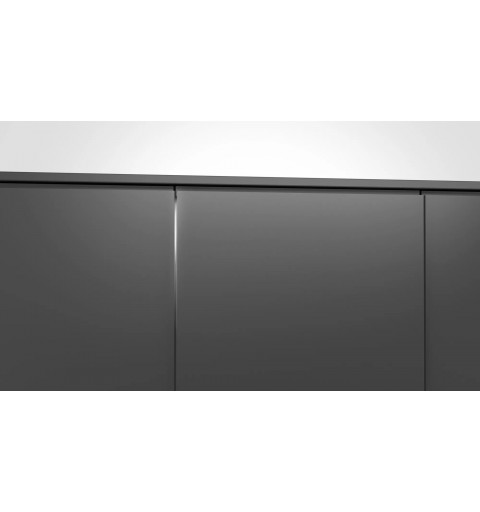

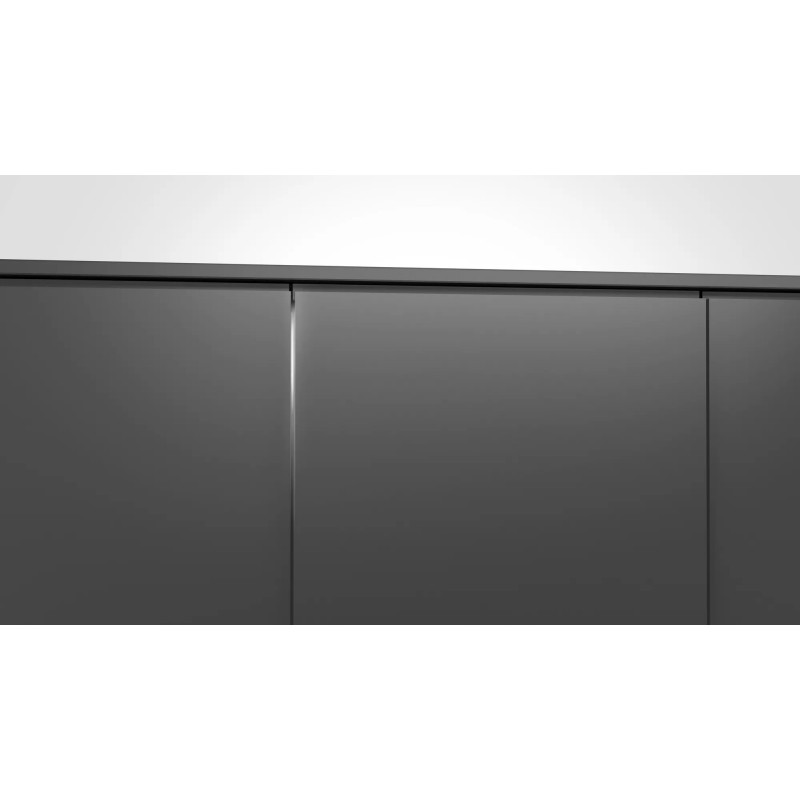

Vario Hinge
Until now, fully-integrated dishwashers were only built top-mounted, leaving large gaps between the cabinet fronts. This is now a thing of the past. Thanks to the vario hinge, there is no need to compromise anymore. The fully integrated cabinet front is pushed upwards slightly when opening the appliance. This allows for small, even gaps in the top mounted cabinet.

Bosch Serie 4 SMH4ECX14E. Appliance placement: Fully built-in, Product size: Full size (60 cm), Control panel colour: Stainless steel. Number of place settings: 13 place settings, Noise emission class: B, Noise level: 44 dB. Feet adjustment: 6 cm, Control apps supported: Bosch Home Connect. Energy efficiency class: C, Water consumption per cycle: 9.5 L, Energy consumption per 100 cycles: 74 kWh. Width: 598 mm, Depth: 550 mm, Height: 815 mm

Design
Appliance placement	Fully built-in
Product size	Full size (60 cm)
Custom panel-ready	Yes
Door colour	Not applicable
Control panel colour	Stainless steel
Control type	Buttons
Built-in display	Yes
Cord length	1.75 m
Inlet hose length	1.65 m
Outlet hose length	1.9 m
Baskets adjustable placement	Upper
Upper basket adjustable height	Yes
Upper basket rack(s) quantity	2
Lower basket rack	Foldable
Lower basket rack type	Double
Lower basket safety stop	Yes
Cutlery compartment type	Drawer
Cutlery basket type	Bosch VarioDrawer
Tub material	Stainless steel
Certification	VDE
Performance
Number of place settings	13 place settings
Number of washing programs	6
Noise emission class	B
Noise level	44 dB
Dishwashing programs	Auto 45-65°C, Eco 50°C, Express, Intensive 70°C, Pre-rinse, Silent 50°C
Cycle time	275 min
Delayed start timer	Yes
Delay start (max)	24 h
AquaStop function	Yes
AquaSensor function	Yes
Glass protection	Yes
Half-load	Yes
Load sensor	Yes
Ergonomics
Dosage assistant	Yes
Automatic detergent detection	Yes
Self-cleaning filter	Yes
Adjustable feet	Yes
Feet adjustment	6 cm
Smartphone remote support	Yes
Power
Energy efficiency class	C
Energy efficiency scale	A to G
Energy consumption per cycle	0.736 kWh
Water consumption per cycle	9.5 L
Energy consumption per 100 cycles	74 kWh
Connected load	2400 W
AC input voltage	220-240 V
AC input frequency	50\60 Hz
Current	10 A
Weight & dimensions
Width	598 mm
Depth	550 mm
Height	815 mm
Weight	37.8 kg
Installation compartment width	60 cm
Installation compartment depth	55 cm
Installation compartment height (min)	81.5 cm
Installation compartment height (max)	87.5 cm
Package weight	40 kg
