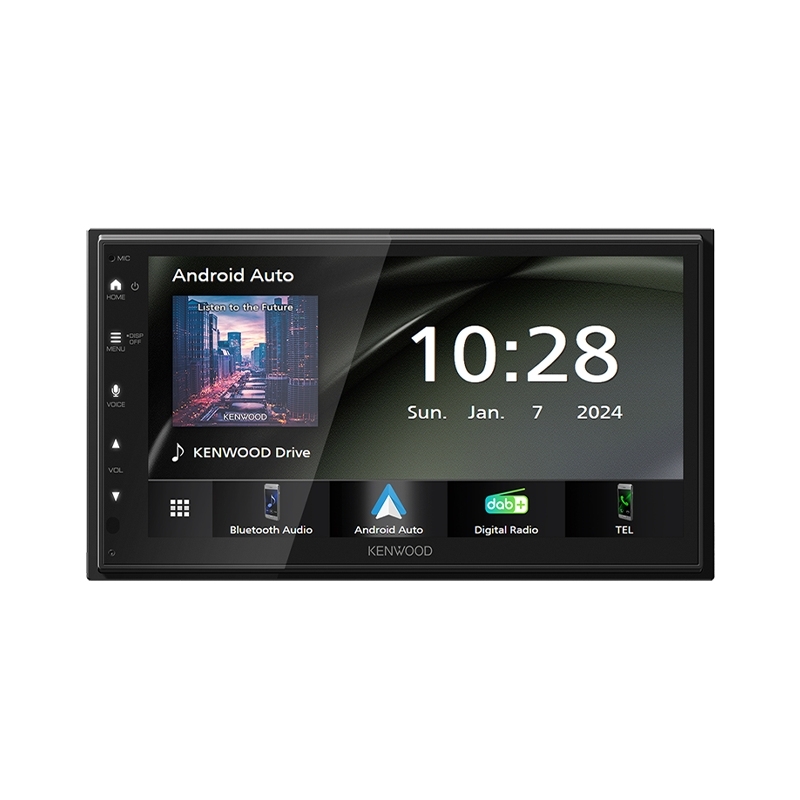

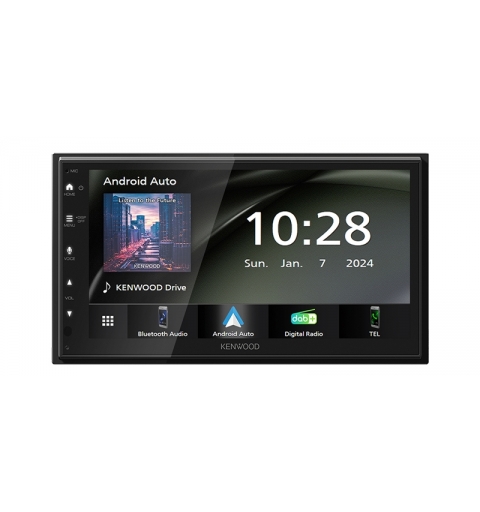

Kenwood DMX6523DABS car media receiver Black Wi-Fi Bluetooth

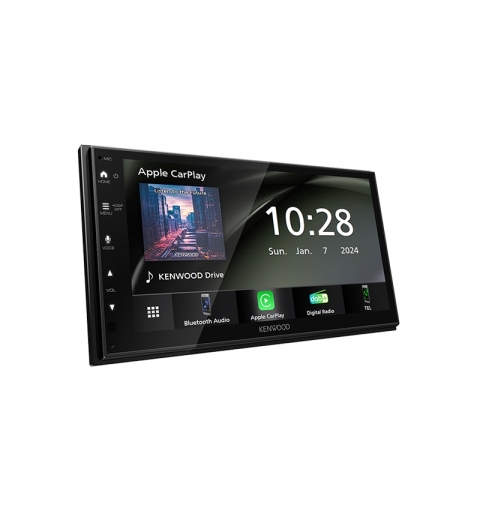

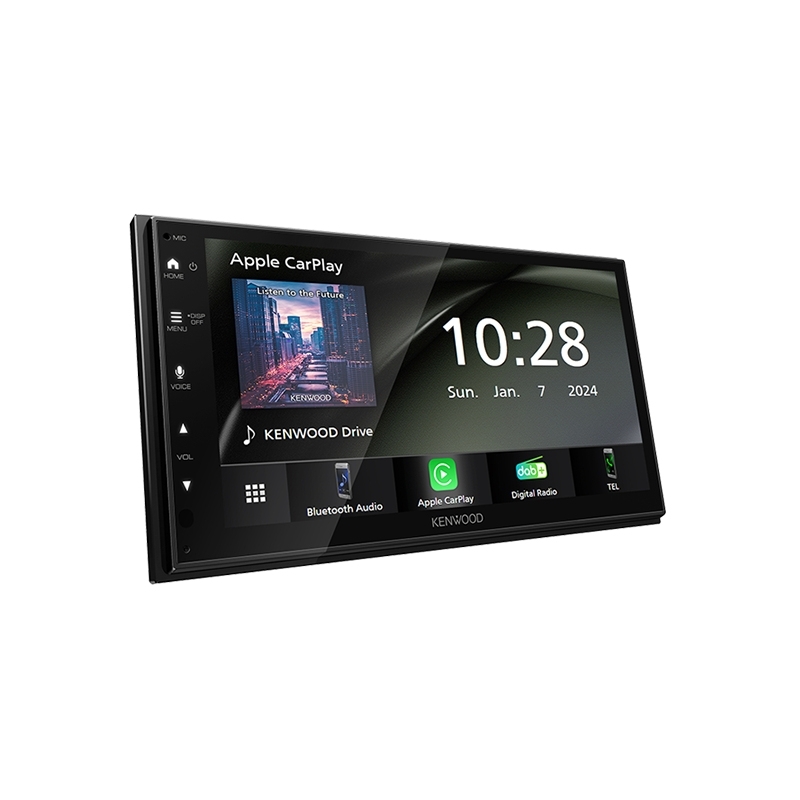

Apple CarPlay – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

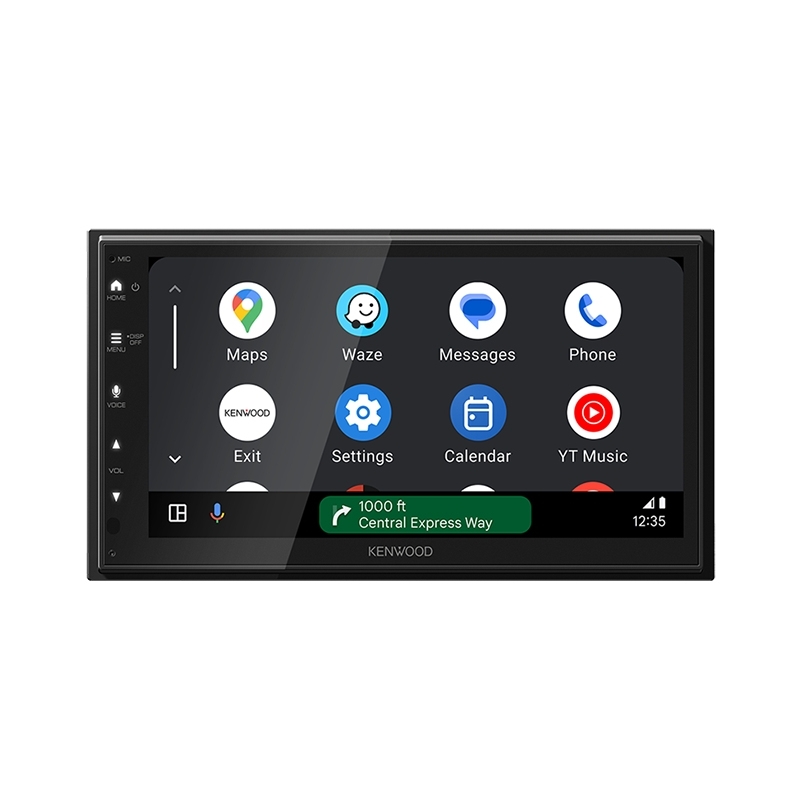

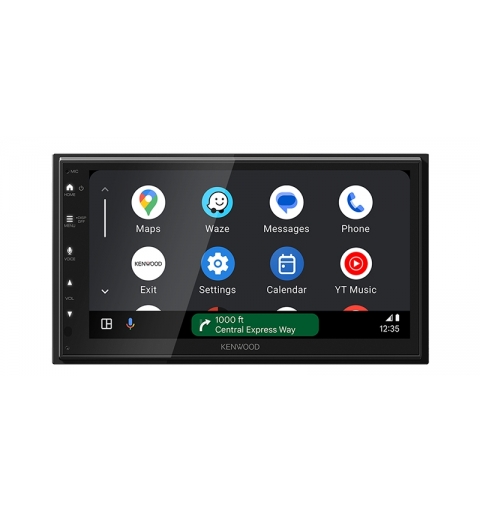

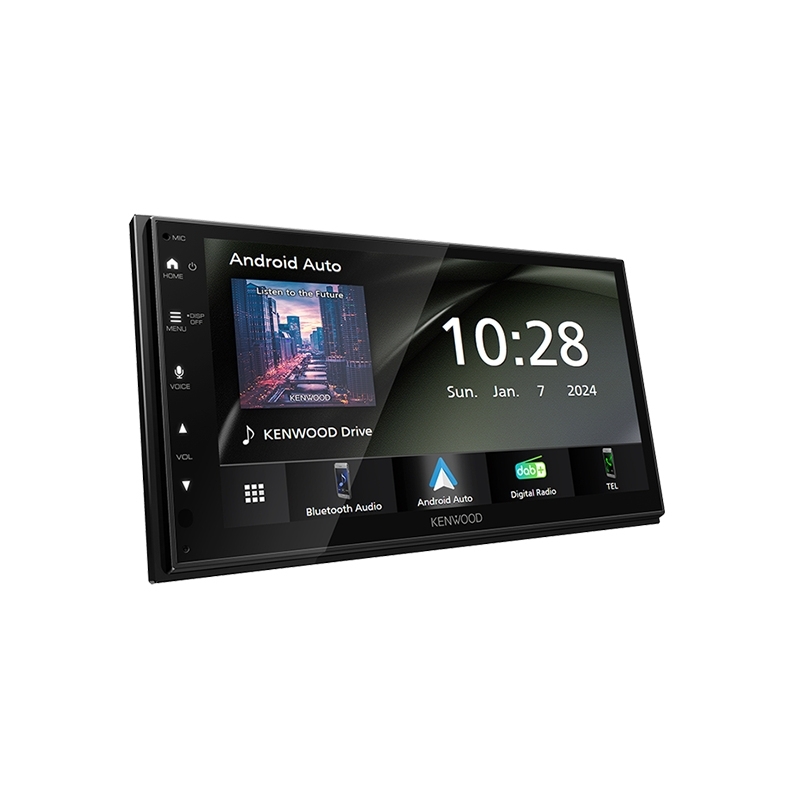

Android Auto™ – Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

Wireless Mirroring for smartphone
By installing the “MirrorApp+” app, your smartphones seamlessly displayed on the receiver's screen without cable. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and Smartphone.

Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.

Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Playable Video & Audio Files
You can play back from USB devices audio and video files compressed in various formats.

Safe Driving
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.

WSVGA LCD Display
The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.

Direct OEM Steering Remote Control
The receivers can be installed in most Japanese and Korean vehicles easily.

Short Chassis Design
The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

High Current 2.1A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.

*Compatibility depends on the smartphone.

Remote Control (Optional)
This receiver unit can be operated using the optional remote control KCA-RCDV340.

Kenwood DMX6523DABS. Product colour: Black, DIN size: 2 DIN, Maximum power per channel: 50 W. Audio formats supported: AAC, FLAC, MP3, OGG, WAV, WMA, Video formats supported: H.264, MKV, MPEG, MPEG1, MPEG2, MPEG4, WMV. Display type: LCD, Touchscreen type: Capacitive, Display diagonal: 17.3 cm (6.8"). Wi-Fi standards: 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi frequency: 5 GHz, Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Supported radio bands: AM, DAB, DAB+, FM, FM band range: 87.5 - 108 MHz, FM usable sensitivity: 5 dBf

Prestazione
Colore del prodotto	Nero
Grandezza DIN	2 DIN
Alimentazione massima per canale	50 W
Range di frequenza	20 - 20000 Hz
Rapporto segnale/rumore (SNR)	75 dB
Impedenza	100 Ω
Tipi di dischi supportati	No
Compatibile per iPod	Sì
Equalizzatore	Sì
Quantità bande equalizzatore	13
Allineamento temporale	Sì
Multimediale
Riproduzione MP3	Sì
Riproduzione USB Direct	Sì
Formati video supportati	H.264, MKV, MPEG, MPEG1, MPEG2, MPEG4, WMV
Display
Display incorporato	Sì
Tipo di display	LCD
Touch screen	Sì
Tipologia touch screen	Capacitivo
Dimensioni diagonale schermo	17,3 cm (6.8")
Risoluzione del display	1024 x 600 Pixel
Connettività
Wi-Fi	Sì
Bluetooth	Sì
Standard Wi-Fi	802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Frequenza Wi-Fi	5 GHz
Banda Wi-Fi	Dual-band (2.4 GHz/5 GHz)
Potenza del segnale	17,78 dbm
Versione Bluetooth	5.0
Profili Bluetooth	A2DP, AVRCP, HFP, PBAP, SPP
Portata Bluetooth	10 m
Porta USB	Sì
Numero di USB	1
Versione USB	2.0
Connettore USB	USB tipo A
Posizione della porta USB	Posteriore
Supporto di Apple CarPlay	Sì
Supporto Android Auto	Sì
Radio
Bande del sintonizzatore	AM, DAB, DAB+, FM
Banda FM	87,5 - 108 MHz
Sensibilità FM utilizzabile	5 dBf
Sensibilità AM (LW)	99 μV
Sintonizzazione digitale automatica	Sì
Sintonizzatore DAB	DAB+
Gestione chiamata
Chiamate in vivavoce	Sì
Dimensioni e peso
Larghezza	181,7 mm
Profondità	85,7 mm
Altezza	112 mm
Peso	1,28 kg
