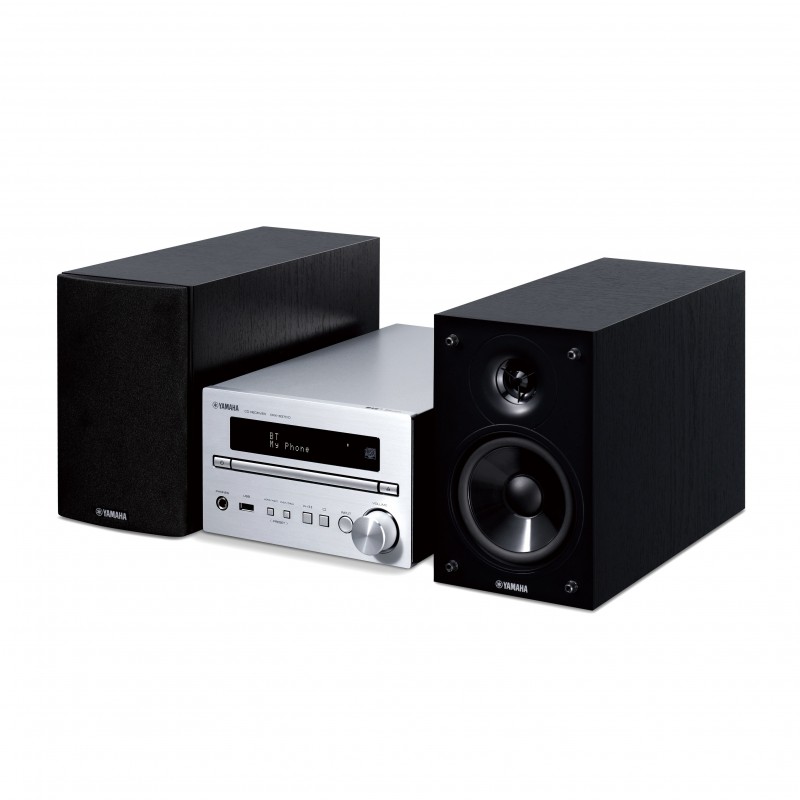

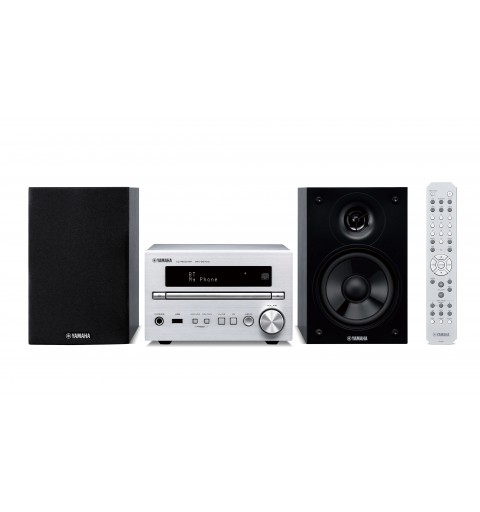

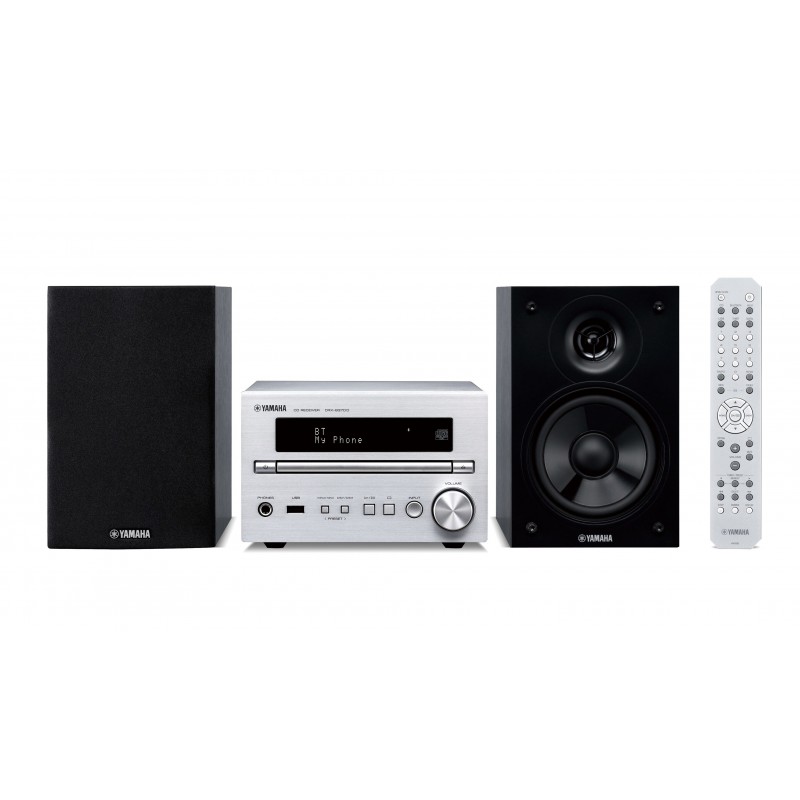

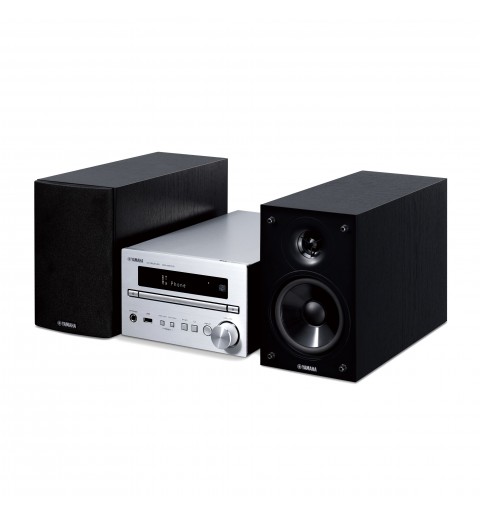

Yamaha MCR-B270D Home audio micro system 30 W Black, Silver

Hi-Fi authenticity in this compact unit systems from the renowned Yamaha PianoCraft range. An aluminium front panel and Burr-Brown DACs reflect a commitment to sound quality for all audio sources.

Bluetooth Wireless Streaming
Connect wirelessly via Bluetooth for quick and simple audio playback from smartphones and other Bluetooth devices. Whether listening to your favourite music streaming services on your phone or watching videos on your tablet, get the most out of your sound by streaming it to your micro Hi-Fi system.

Hi-res Music from USB
Playback of 192 kHz / 24-bit FLAC and WAV files via USB reflects the Hi-Fi origins of this system. This support offers listeners the ability to experience the best in Hi-Fi listening.

PianoCraft Design
The PianoCraft series has for many years, embodied authentic Hi-Fi performance from a compact unit. Inheriting design philosophies from Yamaha Hi-Fi components ensure quality Hi-Fi performance from any PianoCraft product.

Sophisticated Appearance
The MCR-B270D maintains the design image of Yamaha Hi-Fi components - presenting an extremely high-class, sophisticated appearance.

The centre unit has a front panel made of high-grade aluminium with a hairline finish that looks clean and elegant. Adding this stylish system to your room will enhance not just your listening but your home décor as well.

VCCS Vibration Control Cabinet Structure Technology
To prevent unwanted cabinet vibration, Yamaha developed an internal structure called VCCS (Vibration Control Cabinet Structure) that employs strategically placed pieces of a composite material providing excellent vibration isolation performance.

Digital Radio
DAB and DAB+ versions* of digital radio offer a large selection of radio stations with high-quality sound.

Other benefits include automatic tuning to available stations and display of information such as station name.
*Availability of service varies by region.

Yamaha MCR-B270D. Type: Home audio micro system, Product colour: Black, Silver, Number of optical discs: 1 discs. RMS rated power: 30 W, Speaker type: 2-way, Woofer diameter: 11 cm. Supported radio bands: DAB, DAB+, FM, Tuner type: Digital. Headphone connectivity: 6.3 mm. Audio formats supported: AAC, AIFF, ALAC, FLAC, MP3, SBC, WAV, WMA, Disc types supported: CD, CD-R, CD-RW, Playback disc formats: CD audio

Design
Tipo	Microsistema audio per la casa
Colore del prodotto	Nero, Argento
Lettore disco ottico	Sì
Lettore cassette	No
Numero di dischi ottici	1 dischi
Interrutore On/Off	Sì
Multimediale
Tipo di speaker	2-vie
Numero di altoparlanti	2
Potenza in uscita (RMS)	30 W
Diametro del woofer	11 cm
Diametro del tweeter	2,5 cm
Impedenza	6 Ω
Rapporto segnale/rumore (SNR)	84 dB
PMPO (Potenza musicale di picco)	40 W
Distorsione armonica totale (THD)	0,05%
Range di frequenza	60 - 30000 Hz
Bass reflex	Sì
Radio
Bande del sintonizzatore	DAB, DAB+, FM
Tipo sintonizzatore	Digitale
Stazioni preimpostate	Sì
Quantità stazioni preimpostate	30
Collegamento in rete
Wi-Fi	No
Bluetooth	Sì
Versione Bluetooth	4.2
Connettività
Docking Apple	No
Connessione cuffia	6,3 mm
Quantità porte USB 2.0	1
Uscite per cuffie	1
Ingresso Aux	Sì
Uscita subwoofer	Sì
Ingresso audio digitale ottico	1
Prestazione
Hi-Fi	Sì
Riproduzione MP3	Sì
Lettore di schede integrato	No
Tipi di dischi supportati	CD, CD-R, CD-RW
Formato di riproduzione	CD audio
Formati audio supportati	AAC, AIFF, ALAC, FLAC, MP3, SBC, WAV, WMA
Riproduzione USB Direct	Sì
Ergonomia
Controllo del volume	Manopola
Lettore CD	Sì
Gestione energetica
Alimentazione	AC
Consumi (modalità stand-by)	1,3 W
Dimensioni e peso
Larghezza altoparlante frontale	12,3 cm
Profondità altoparlante frontale	29,8 cm
Altezza altoparlante frontale	19,2 cm
Peso altoparlante frontale	2,2 kg
Dimensioni dell'unità principale (AxPxH)	180 x 322 x 118 mm
Peso unità principale	2,7 kg
Contenuto dell'imballo
Telecomando portatile	Sì
Altre caratteristiche
Profili Bluetooth	A2DP, AVRCP
