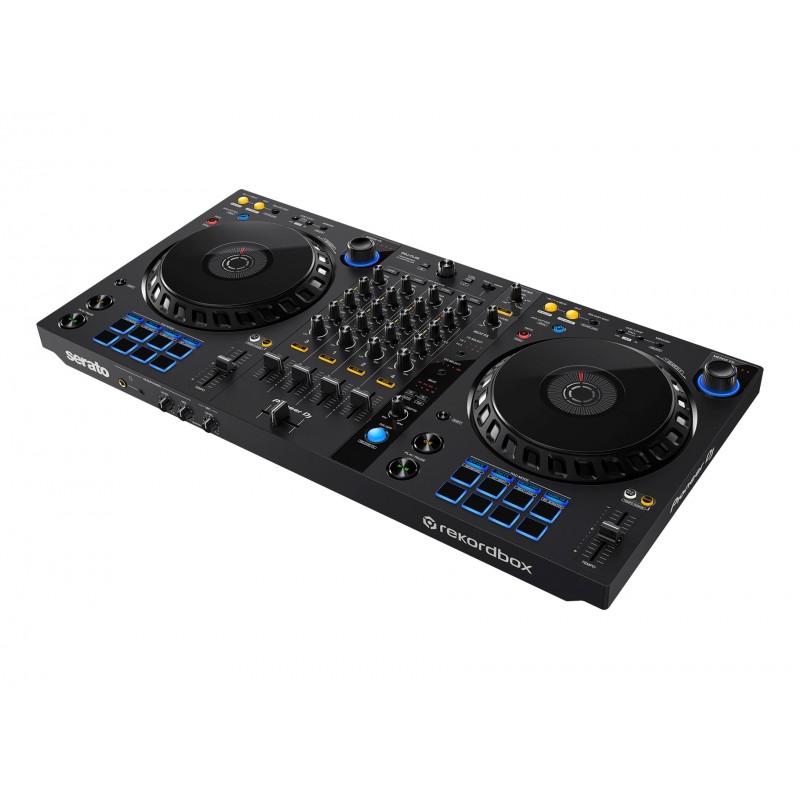

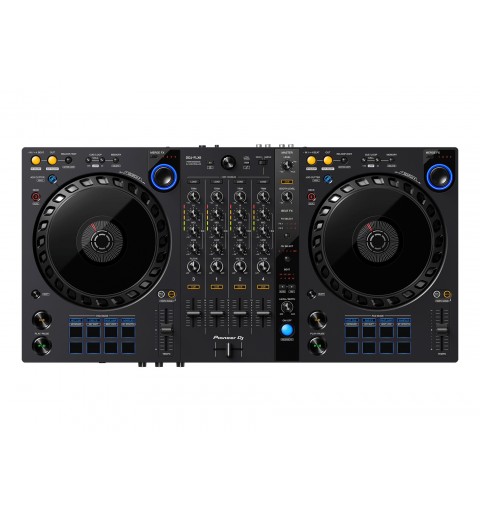

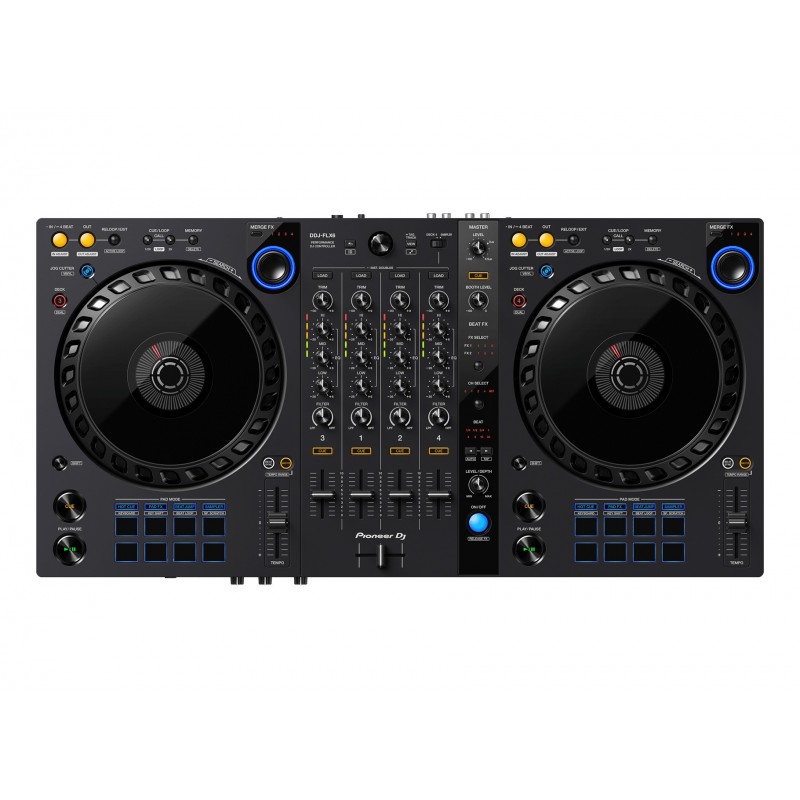

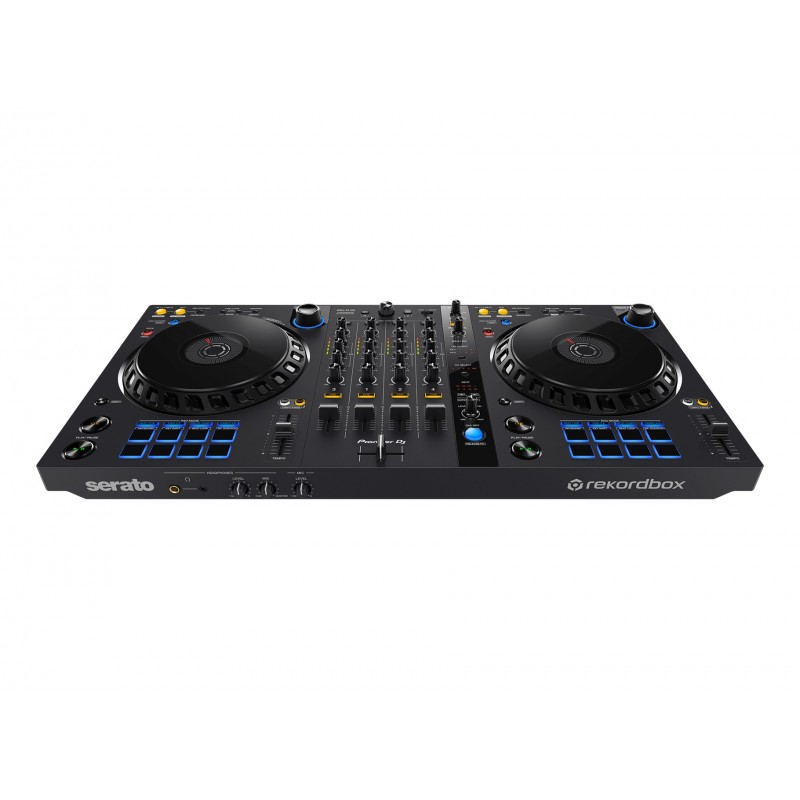

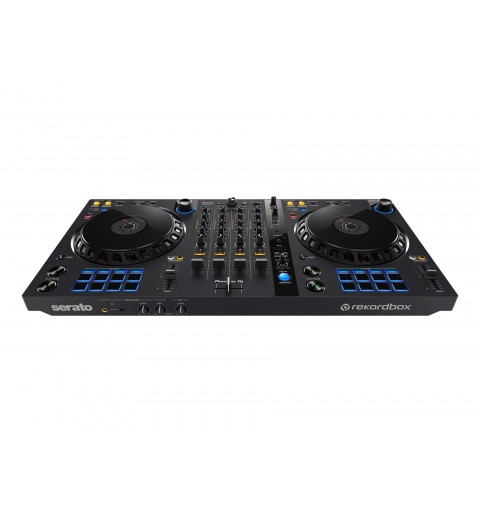

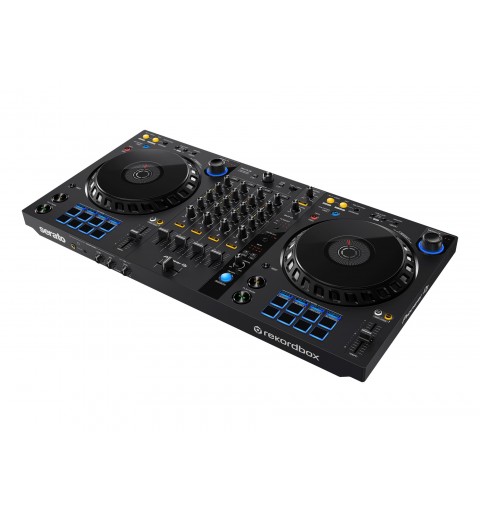

Pioneer DDJ-FLX6 DJ controller Magnetic tape scratcher 4 channels Black

All-new Merge FX
Add drama to your sets and easily mix different styles of music. No matter what the BPM or key of the next track is, you can create an exciting transition whenever you want. Simply press the knob and turn it as fast or as slowly as you like to start building up the tension in the music.

1. Select a Merge FX preset and press the knob. Choose one of the 4 assigned Merge FX patterns and press the knob to start building the tension.
2. Turn the Merge FX knob. Increase the influence of the effect by simply turning the knob — depending on the preset pattern you’ve chosen, the combination of different effects and samples is triggered at the same time.
3. Press the knob again to release the effect, then play the next track. When you’re ready to make a drop and move to your next track, simply press the knob again. The effect is released and, when one is assigned in the preset, the sample plays. The track stops automatically so all you need to do is hit play on the other deck to drop your next track.
4. Customize your Merge FX. In the new Merge FX section in rekordbox (PC/Mac), you can customize each effect type and the samples used in each pattern to create your own variations. Choose from 41 types of effect for each element (Build FX, Build Sample, Release FX, and Drop Sample) and combine them to create more than 9,000 different patterns.

Jog Cutter: Create pro-sounding scratch effects, one-handed
Turn on Jog Cutter and simply move the jog wheel to apply a professional-sounding scratch effect to the last Hot Cue or playback position you used on that deck. There are 10 different scratch patterns and you can switch from one to another by simply moving the playhead position, shown on the jog wheel’s display, to point toward the angle for the scratch you want to use.

Full-size jog wheels with track position display
Pitch bending and scratching feels natural thanks to the large jog wheels, which are the same size as those on the flagship CDJ-3000 multi player. Each one features On Jog Display too, so you can keep an eye on the playhead position.

Full-size jog wheels with track position display
Pitch bending and scratching feels natural thanks to the large jog wheels, which are the same size as those on the flagship CDJ-3000 multi player. Each one features On Jog Display too, so you can keep an eye on the playhead position.

Plug and play compatibility with rekordbox and Serato DJ Pro
With a built-in sound card and support for DJ Performance functions in rekordbox (equivalent to the Core plan) and Serato DJ Pro, all you need to do is connect the DDJ-FLX6 via USB cable to a laptop that’s running either software application and you can start DJing. You don’t need a paid subscription plan for either.

New aesthetic design
The layout of the controls on the DDJ-FLX6 is similar to that on our club-standard CDJ + DJM setup, so you can perform intuitively. However, this DJ controller introduces a fresh look, with a high-quality dark-gray matte finish and redesigned jog wheels that will make your setup stand out.

Loop section
Sets the In / Out point of the loop on the fly.

Call Cue/ Loop section
Calls the cues and loops already set for the track.

MERGE FX select button
Changes the Merge FX type, cycling through types in the following order: MERGE FX 1,2,3 or 4.

Browser section
Browses / loads the tracks within the tree view to the deck.

DECK4/SAMPLER selector switch
Selects whether channel 4 plays the sampler sound or the sound from deck 4.

DECK SELECT button
Switches the deck to be used.

MERGE FX knob
Press: Turns the selected MERGE FX on/off. Turn: The effect of the selected Merge FX changes.

SHIFT button
Press another button while holding the [SHIFT] button to use a different feature assigned to the button.

BEAT SYNC button
Automatically synchronizes the tempo (BPM) and beatgrid with the deck set as the master.

MASTER button
Sets the relevant deck as the master.

Performance Pads
Call up and control the Hot Cues, Pad FX, Beat Jump, and sampler.

Beat FX section
Turn on / off BEAT FX and change the effect, applied channel, depth, and the length of the beat to be synced.

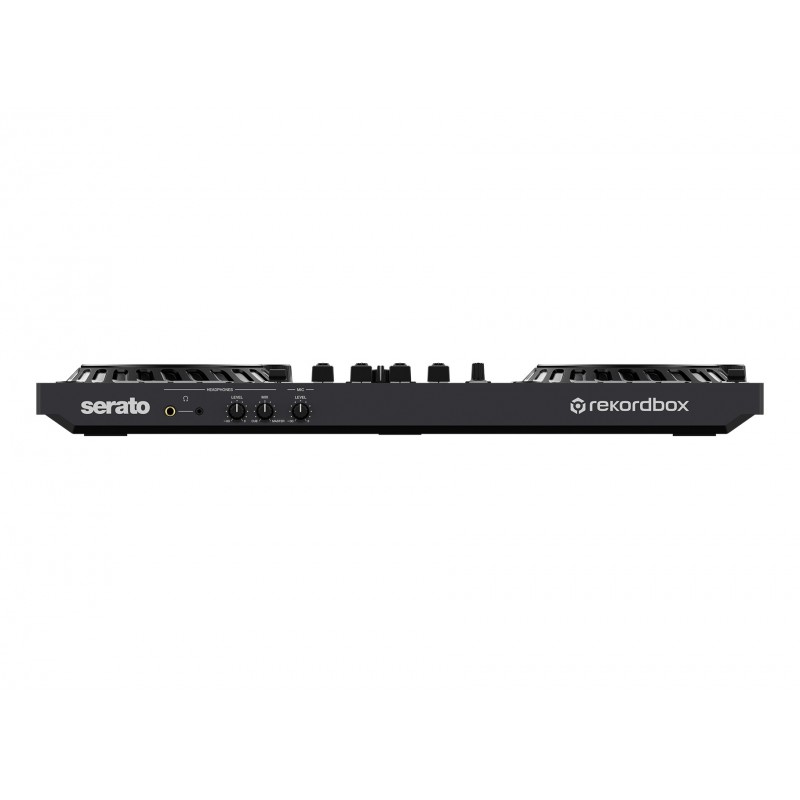

PHONES output terminals
Connections for your headphones. Stereo phone plugs (1/4") and stereo mini phone plugs (ø 3.5 mm) can be used with the unit.

HEADPHONES LEVEL knob
Adjusts the level of the headphones sound.

HEADPHONES MIX knob
Adjusts the monitor volume balance between sounds from the master channel and the channels which have the headphone [CUE] button pressed.

MIC LEVEL knob
Adjusts the level of sound input to the [MIC] input terminal.

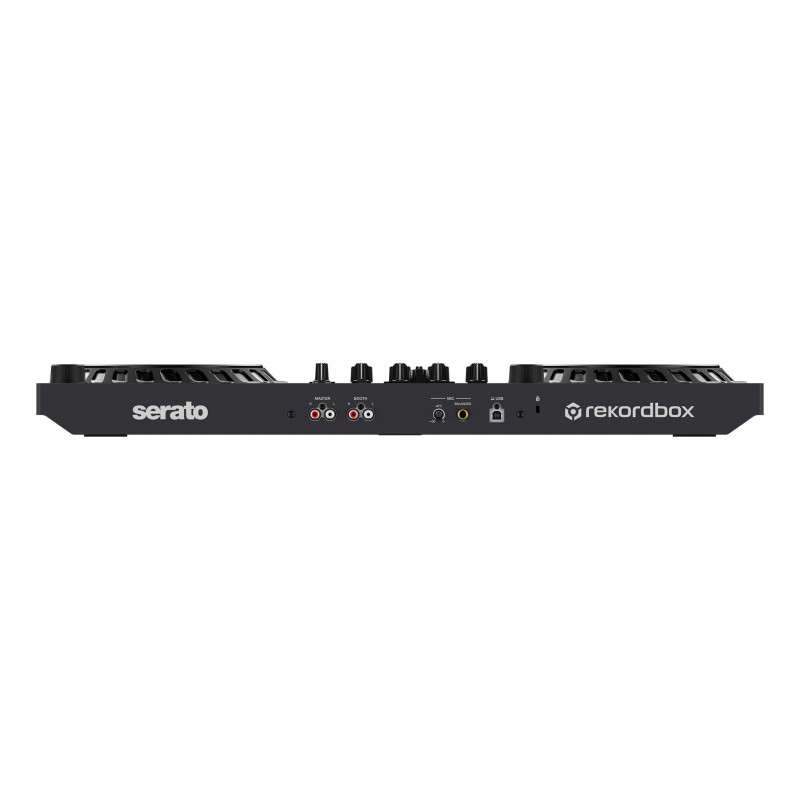

MASTER output terminals (RCA pin jack type)
Connection for a powered speaker, a power amplifier, etc. Compatible with RCA pin-jack type unbalanced outputs.

BOOTH output terminals (RCA pin jack type)
Connection for a powered speaker, a power amplifier, etc. Compatible with RCA pin-jack type unbalanced outputs.

MIC ATT. (Attenuator) knob
Adjusts the volume of input sound from the [MIC] input terminal.

MIC input terminal (1/4" TRS Jack)
Connection for a microphone. Phone plug (1/4") can be used.

USB port
Connection for a PC/Mac. A USB hub can't be used.

Kensington security slot
Connection for a cable lock for security.

Pioneer DDJ-FLX6. Width: 676 mm, Depth: 345.7 mm, Height: 68.7 mm. Cables included: USB

Technical details
Scratcher type	Magnetic tape scratcher
Number of scratcher platters	10
Mixer section	Y
Number of mixer channels	4 channels
Number of controls	4
Signal-to-Noise Ratio (SNR)	104 dB
Total Harmonic Distortion plus Noise (THD+N)	0.004%
Frequency range	20 - 20000 Hz
Sample rate	44.1 kHz
Control type	Buttons, Rotary, Touch
Product colour	Black
Ports & interfaces
USB ports quantity	1
Microphone in	Y
Number of microphone inputs	1
Headphone outputs	2
USB port	Y
System requirements
Mac compatibility	Y
Weight & dimensions
Width	676 mm
Depth	345.7 mm
Height	68.7 mm
Weight	3.8 kg
Packaging content
Quick start guide	Y
