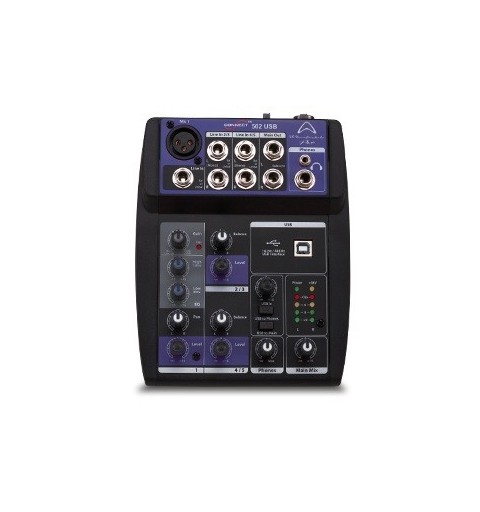

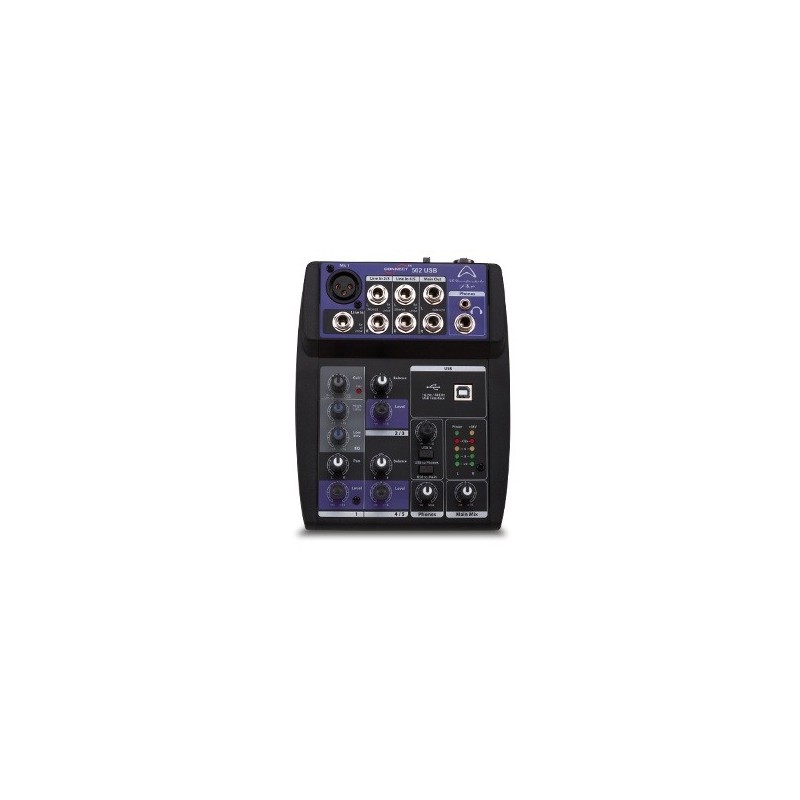

Wharfedale Connect 502 USB 5 channels 20 - 20000 Hz Black

The Wharfedale Pro Connect 502 USB is a high quality micro-mixer, suitable for a wide range of applications.
The built-in USB connectivity is ideal for home recording, live-sound and fixed installation use.
Professional big mixer features such as phantom powered, balanced XLR microphone inputs give you full functionality and great sound in an ultra compact and cost effective package. The microphone pre-amplifiers use the same high quality components and construction methods that are employed in our mid-format SL Series Mixers.
The Wharfedale Pro Connect 502 USB features an intuitive, ergonomically designed user interface that is excellent for beginners and professionals alike. Comprehensive connectivity ensures that a Connect 502 USB mixer can handle any situation.

- 5 Channels.
- 1x XLR/TRS Balanced Input.
- Gain Adjustment.
- 2 Band EQ.
- L/R Pan Control.
- LED Peak Indicator.
- Level Control.
- 2 Mono/Stereo Inputs.
- Balanced 1/4" TRS Connectors.
- Balance Control.
- Level Control.
- Switchable Global +48V Phantom Power.
- 1/4" TRS Main Outputs.
- USB to Main/Headphone Switch with Level Control.

Wharfedale Connect 502 USB. Channels quantity: 5 channels, Sample rate: 12 kHz, Frequency range: 20 - 20000 Hz. Total Harmonic Distortion (THD): 0.0025%. Headphone connectivity: 3.5 mm/6.35 mm. Width: 77 mm, Depth: 226 mm, Height: 253 mm

Audio
Channels quantity	5 channels
Sample rate	12 kHz
Frequency range	20 - 20000 Hz
Outputs
Total Harmonic Distortion (THD)	0.0025%
Equalizer
Equalizer bands quantity	2
Ports & interfaces
Microphone in	Y
Headphone connectivity	3.5 mm/6.35 mm
Technical details
Product colour	Black
Weight & dimensions
Width	77 mm
Depth	226 mm
Height	253 mm
Weight	660 g
Package width	267 mm
Package depth	240 mm
Package height	486 mm
Package weight	1.64 kg
