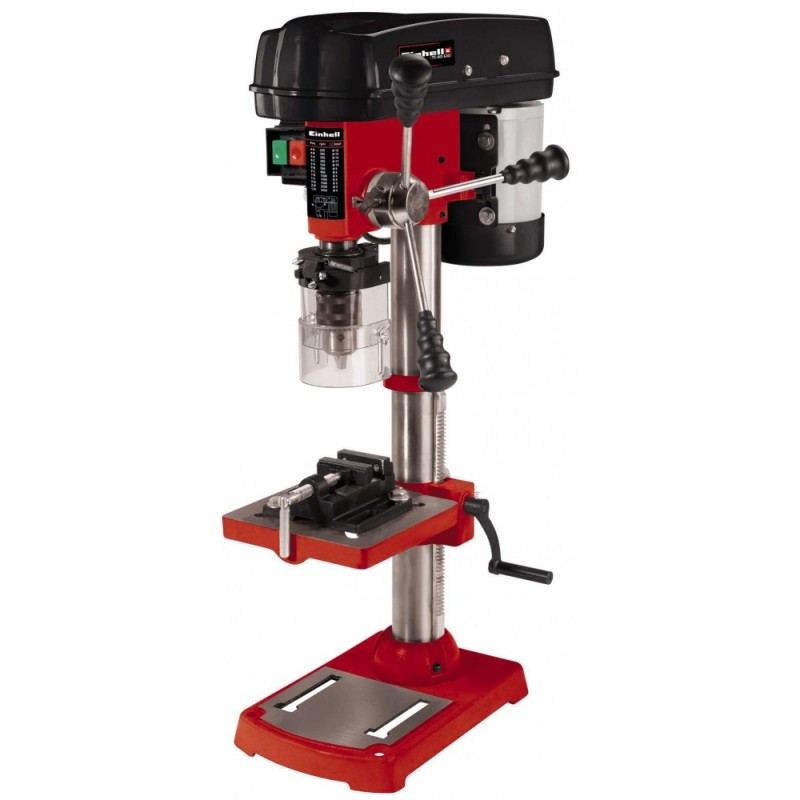

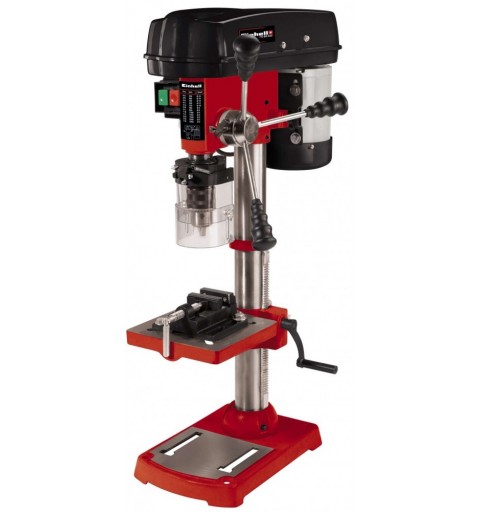

Einhell TC-BD 630 drill press Key 630 W

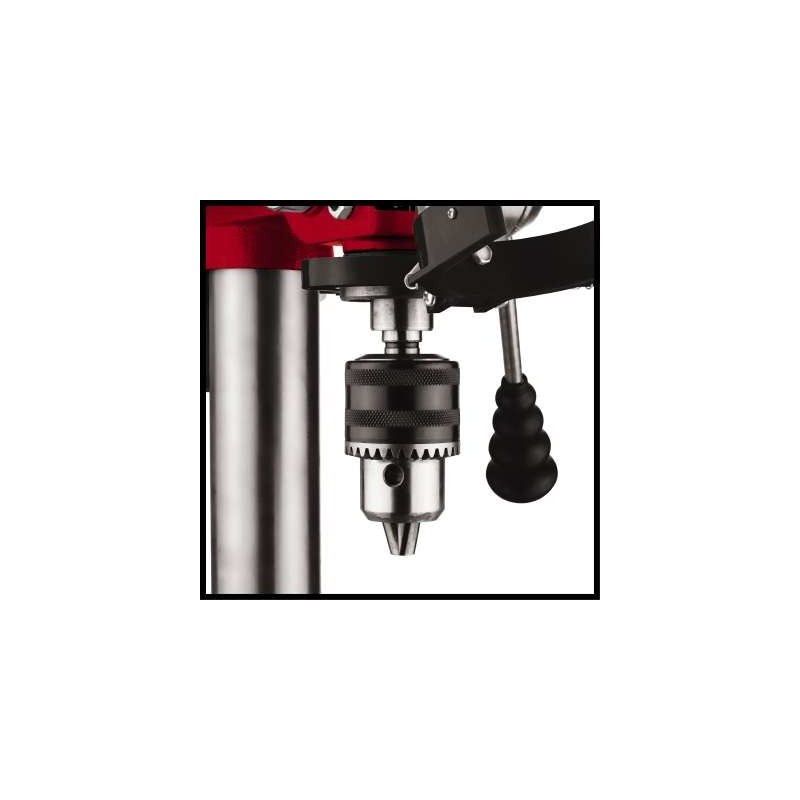

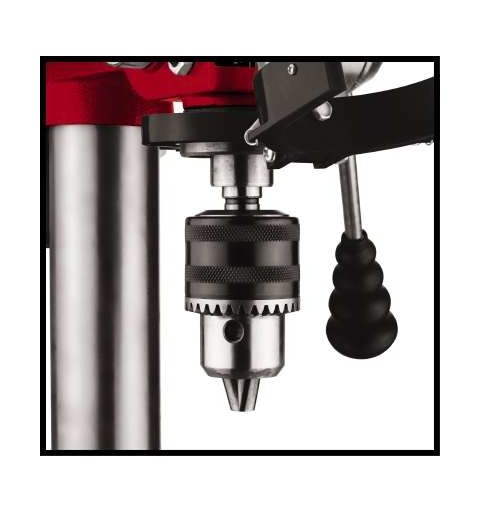

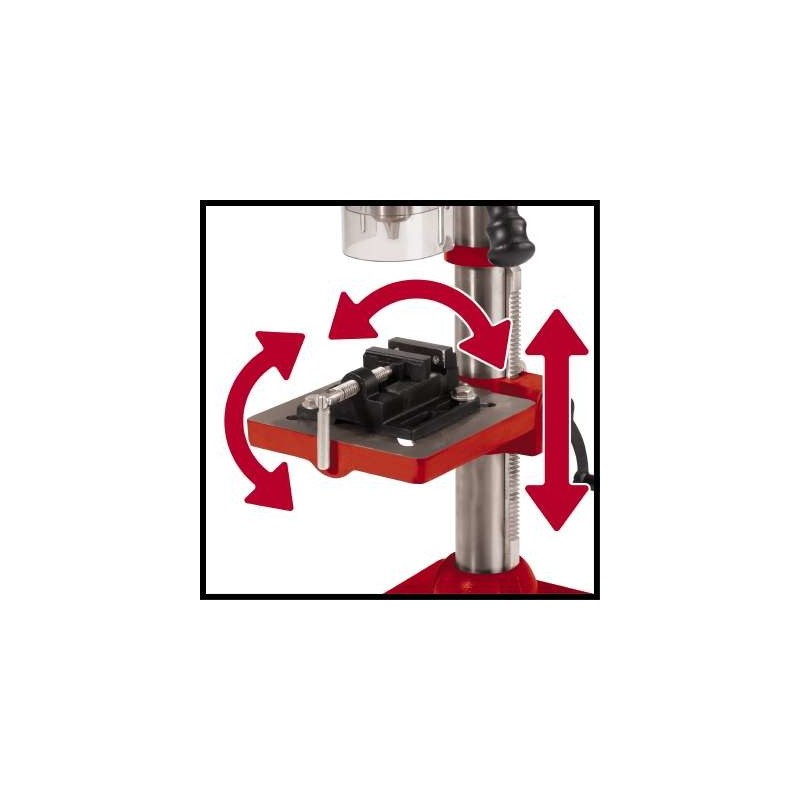

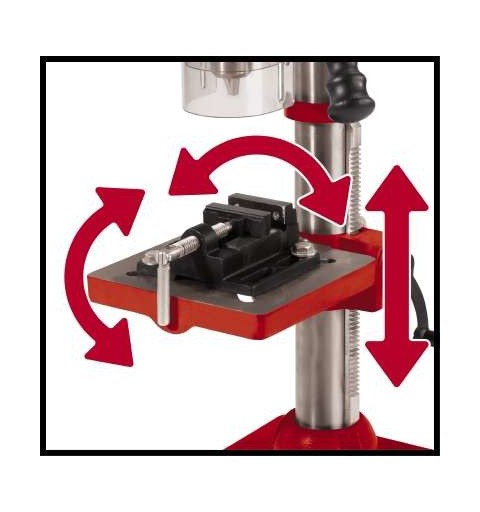

The Einhell TC-BD 630 pillar drill allows the desired holes to be made precisely and accurately in workpieces made of metal or wood. Thanks to its 12 speed levels, the TC-BC 630 pillar drill works at the appropriate speed for every material. The robust ring gear chuck from 1.5 to 16 millimeters is suitable for all standard drill bit sizes. The MK2 chuck also holds morse taper bits, offering even more flexibility. The easily adjustable depth stop enables fast, precise drilling even in series production. With a height-adjustable drill table with tilt and swivel functions, the pillar drill can be used for a wide variety of applications. The drilling spindle with ball bearings is designed for easy, long-lasting use. The capstan has rubberized handles for precise power dosing and a pleasant feel. The folding chip guard of the ON/OFF switch with zero-voltage release keeps the user safe. The package includes a vise for clamping the workpiece.

Einhell TC-BD 630. Product type: Bench drill press, Chuck type: Key, Chuck mount: B16. Rotational speed (min): 250 RPM, Rotational speed (max): 2450 RPM, Drilling diameter in steel (max): 1.6 cm. Drill table tilting: -45 - 45°. Power: 630 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Width: 430 mm, Depth: 765 mm, Height: 195 mm

Design
Product type	Bench drill press
Chuck type	Key
Chuck mount	B16
Product colour	Black, Red
Performance
Variable speed	Y
Number of speeds	12
Rotational speed (min)	250 RPM
Rotational speed (max)	2450 RPM
Drilling diameter in steel (max)	1.6 cm
Drill bit diameter (min)	1.5 mm
Drilling depth (max)	6 cm
Throat depth	12.6 cm
Ergonomics
Drill table tilting	-45 - 45°
Power
Power	630 W
AC input voltage	230 V
AC input frequency	50 Hz
Weight & dimensions
Width	430 mm
Depth	765 mm
Height	195 mm
Weight	32.5 kg
