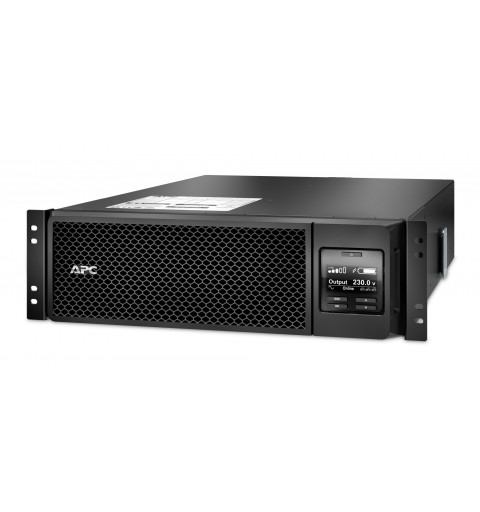

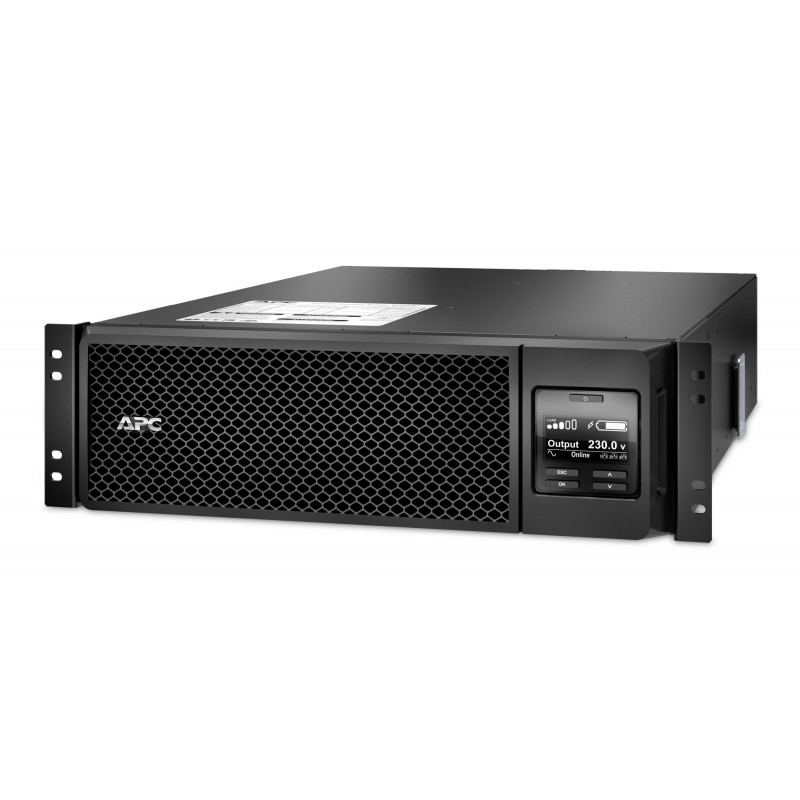

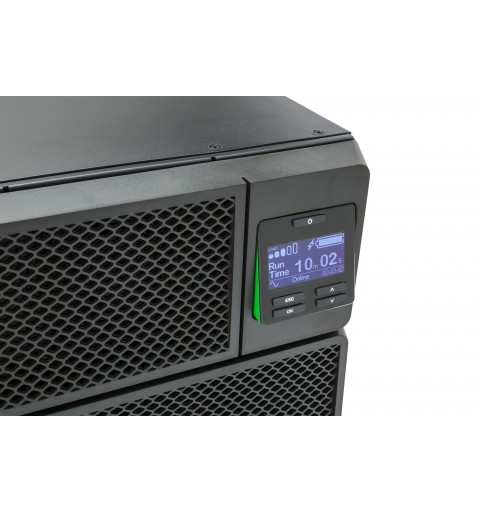

APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 4500 W 10 AC outlet(s)

    APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 5 kVA 4500 W 10 AC outlet(s)

    €6,913.14 Tax included
    Article Code: 586169
    New product
    2-Year Italian Warranty: logo ita

    APC Smart-UPS On-Line, Double-conversion (Online), 5 kVA, 4500 W, Sine, 100 V, 275 V

    Availability:
    Quantity
    Add to Wishlist
    cached Add to Compare
    APC Smart-UPS On-Line,4500 Watts /5000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 Serial, Smart-Slot, USB, Extended runtime model

    Includes: Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, Warranty card

    APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 4500 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Terminal, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 845 VAh, Typical backup time at full load: 4 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 3U. Width: 432 mm, Depth: 719 mm, Height: 130 mm
    Features
    UPS topologyDouble-conversion (Online)
    Output power capacity5 kVA
    Output power4500 W
    WaveformSine
    Input operation voltage (min)100 V
    Input operation voltage (max)275 V
    Input frequency40 - 70 Hz
    Output operation voltage (min)220 V
    Output operation voltage (max)240 V
    Output frequency regulation50/60 Hz
    Surge energy rating480 J
    Efficiency94.1%
    Crest factor3:1
    Emergency Power Off (EPO)Y
    Output voltage Total Harmonic Distortion (THD)3%
    Noise level55 dB
    Surge protectionY
    Audible alarm(s)Y
    Auto-restartY
    Ports & interfaces

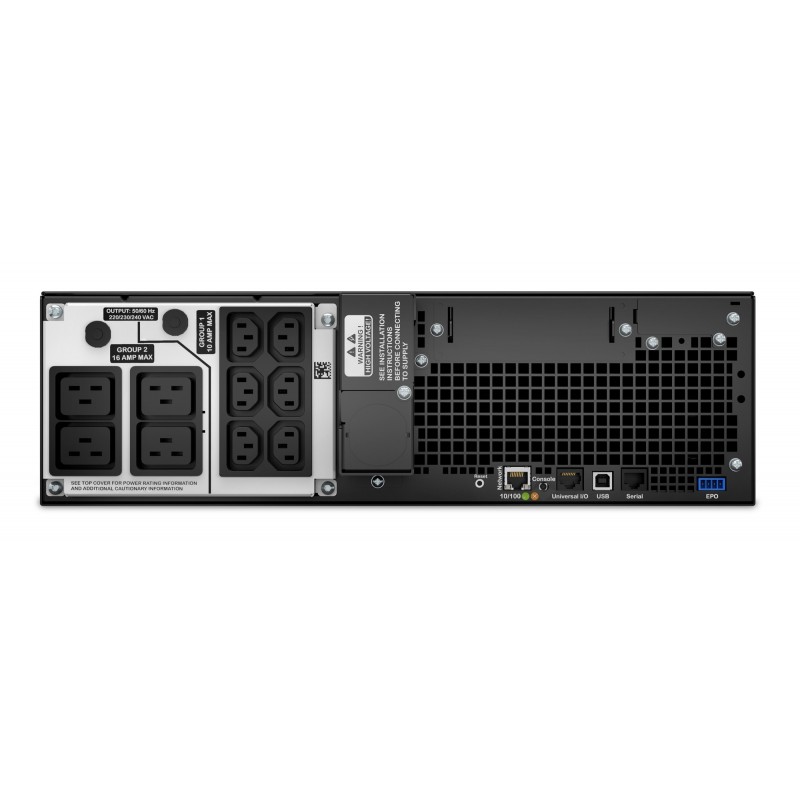

    AC outlet typesC13 coupler, C19 coupler
    Power plugTerminal
    AC outlets quantity10 AC outlet(s)
    Number of output IEC jumpers2
    USB portY
    Serial interfaceY
    Serial interface typeRJ-45
    SmartSlotY
    Battery
    Battery technologySealed Lead Acid (VRLA)
    Battery capacity845 VAh

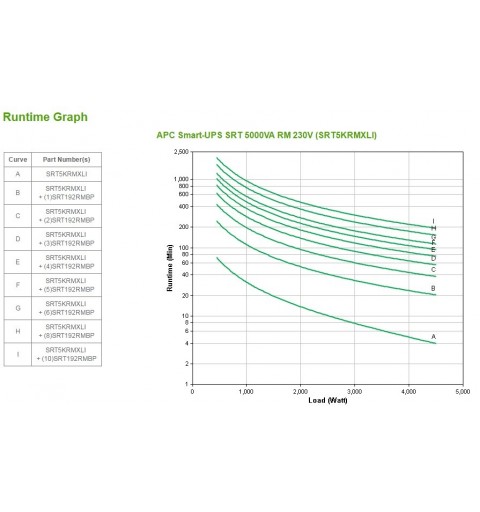

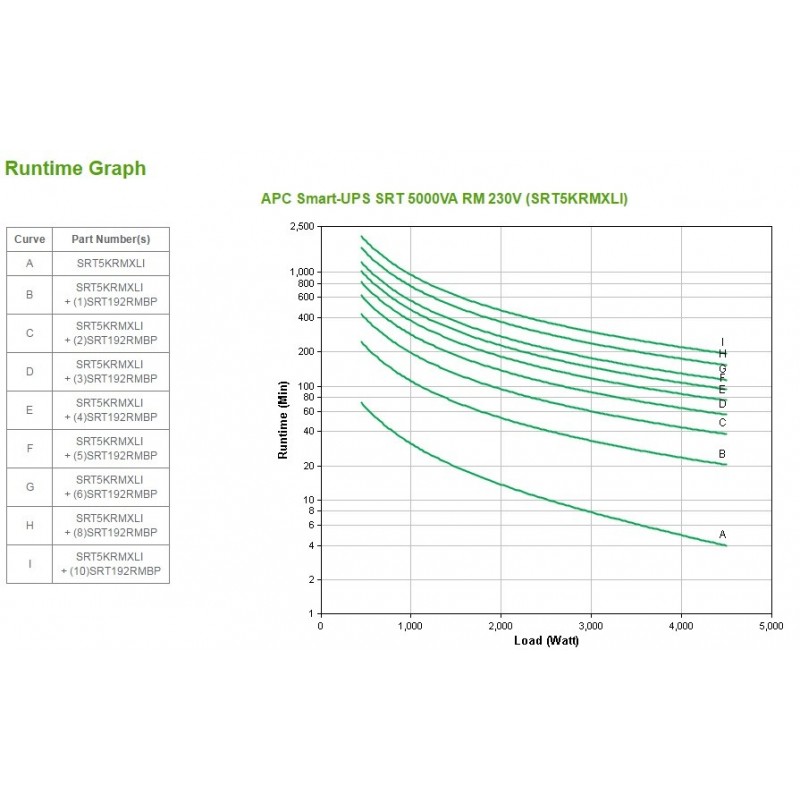

    Typical backup time at full load4 min
    Typical backup time at half load11.8 min
    Battery life (max)5 year(s)
    Battery recharge time1.5 h

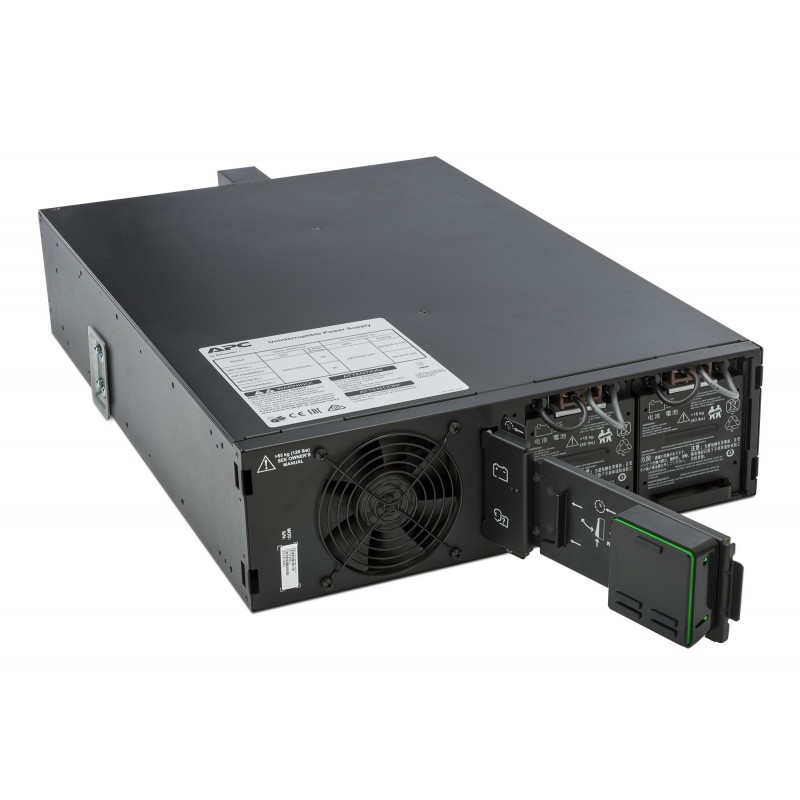

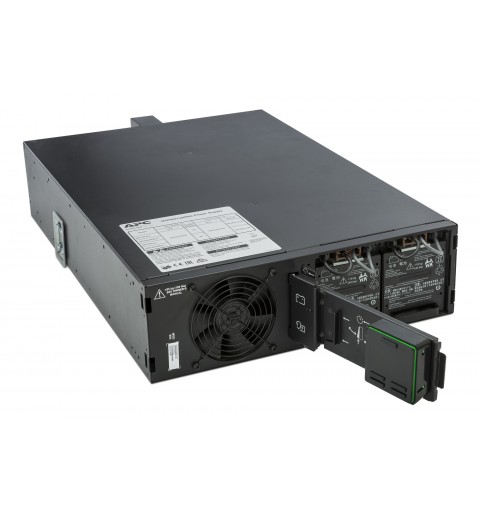

    Hot-swap batteryY
    Automatic battery testY
    Cold startY
    Replacement battery cartridgeAPCRBC140
    Design
    Form factorRackmount
    Product colourBlack
    Rack capacity3U

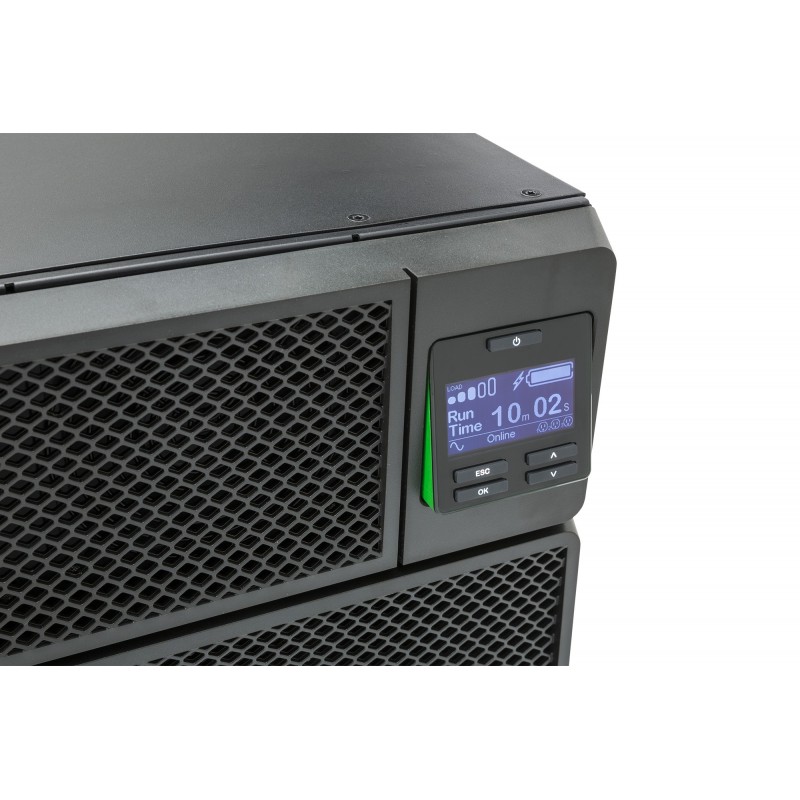

    Display typeLCD
    CertificationREACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
    Operational conditions
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-15 - 45 °C
    Operating relative humidity (H-H)0 - 95%
    Storage relative humidity (H-H)0 - 95%
    Operating altitude0 - 3000 m
    Non-operating altitude0 - 15000 m
    Weight & dimensions
    Width432 mm
    Depth719 mm
    Height130 mm
    Weight54.4 kg
    Package width610 mm
    Package depth960 mm
    Package height330 mm
    Package weight66.9 kg
    Packaging data
    Rack mount kitY
    Temperature sensorY
    Quick installation guideY
    Warranty cardY
    Logistics data
    Products per pallet6 pc(s)
    Harmonized System (HS) code85078000
    Other features
    Packaging contentWeb/SNMP Management Card
