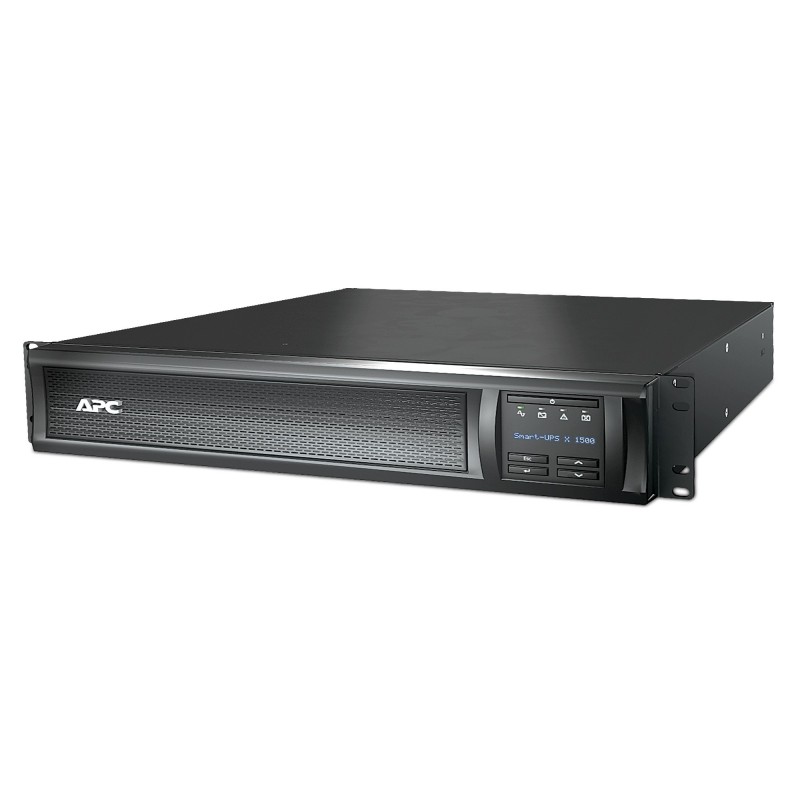

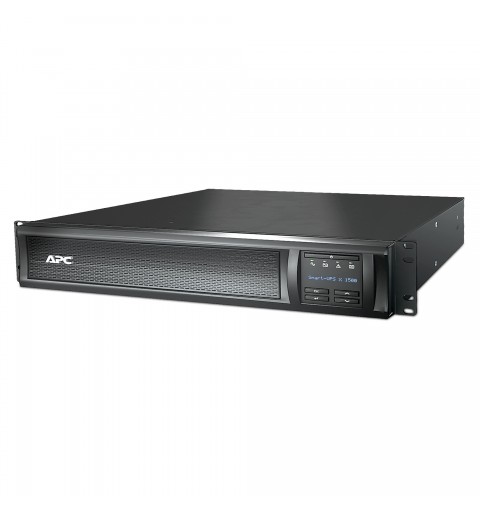

APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1200 W 8 AC outlet(s)

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.

Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Energy meter
Provides actual kilowatt hours of usage for energy conscious users.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

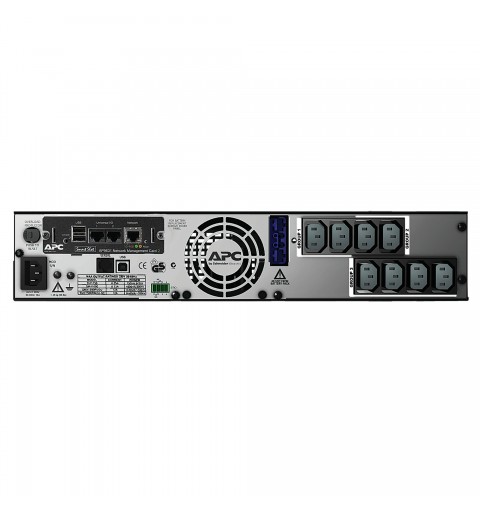

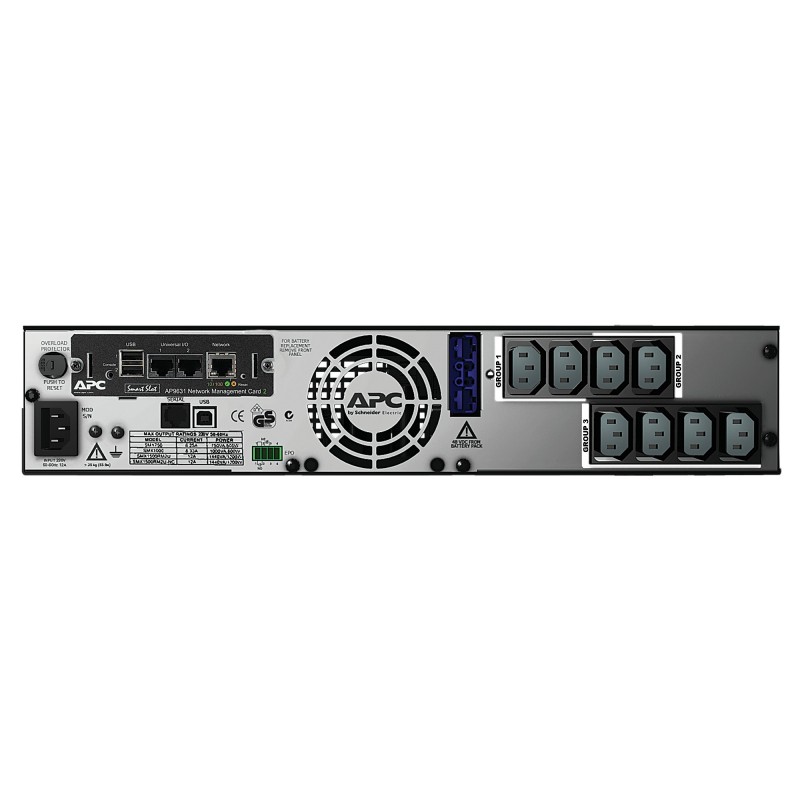

Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.

High online efficiency
Reduces utlility costs, generates less heat.

EPO
Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation.

APC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 1200 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 311 VAh, Typical backup time at full load: 5.8 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 490 mm, Height: 89 mm

Features
UPS topology	Line-Interactive
Output power capacity	1.5 kVA
Output power	1200 W
Waveform	Sine
Input operation voltage (min)	151 V
Input operation voltage (max)	302 V
Input frequency	50/60 Hz
Output frequency regulation	50/60 Hz
Automatic Voltage Regulation (AVR)	Y
Surge energy rating	645 J
Efficiency	98.5%
Emergency Power Off (EPO)	Y
Noise level	40 dB
Surge protection	Y
Audible alarm(s)	Y
Audible alarm modes	Low battery alarm, Overload alarm
Auto-restart	Y
Ports & interfaces
AC outlet types	C13 coupler
Power plug	C14 coupler
AC outlets quantity	8 AC outlet(s)
Number of output IEC jumpers	2
USB port	Y
SmartSlot	Y
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	311 VAh

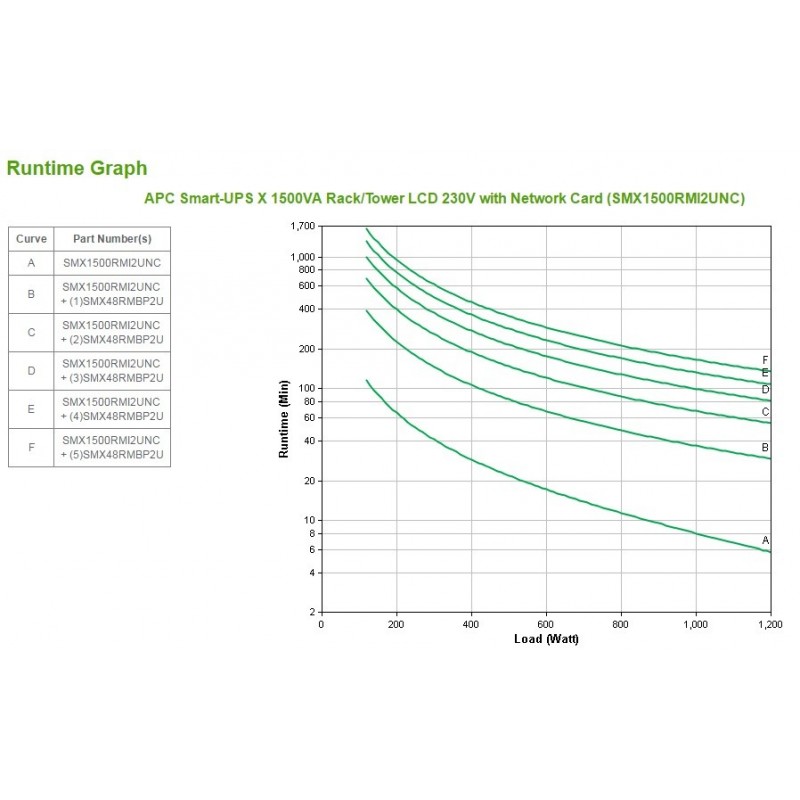

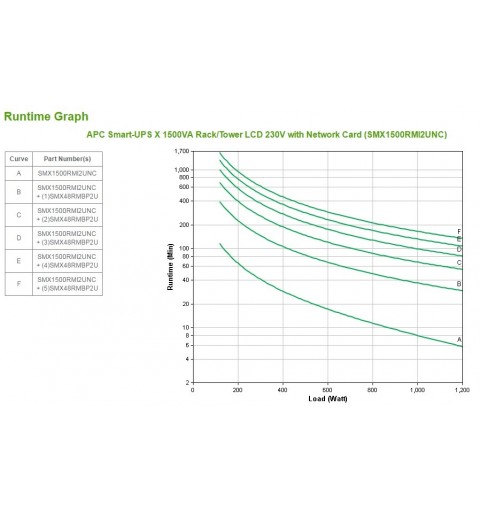

Typical backup time at full load	5.8 min
Typical backup time at half load	17.2 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Hot-swap battery	Y
Automatic battery test	Y
Cold start	Y
Design
Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	2U
Cable length	1.83 m
Display type	LCD
LED indicators	Y
Certification	C-tick, CE, EN 50091-1, EN 50091-2, VDE, REACH, PEP, EOLI
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Width	432 mm
Depth	490 mm
Height	89 mm
Weight	24.8 kg
Package width	589 mm
Package depth	620 mm
Package height	246 mm
Package weight	30 kg
Packaging data
Rack mount kit	Y
Cables included	RS-232, USB cable
Quick installation guide	Y
Software CD	Y
Logistics data
Products per pallet	8 pc(s)
Harmonized System (HS) code	85078000
Other features
Nominal input voltage	230 V
Packaging content	Removable support feet
