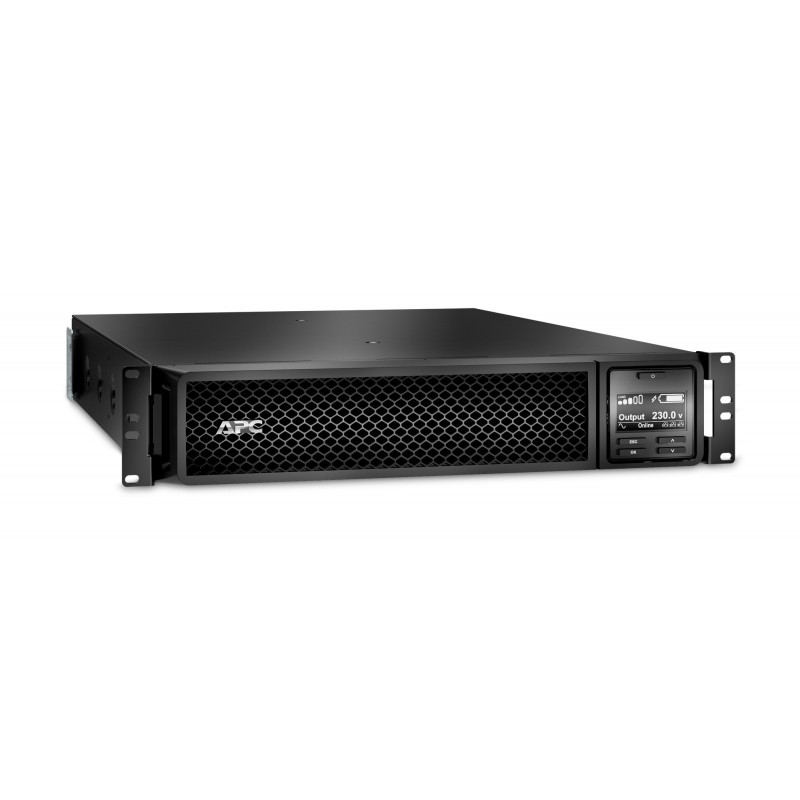

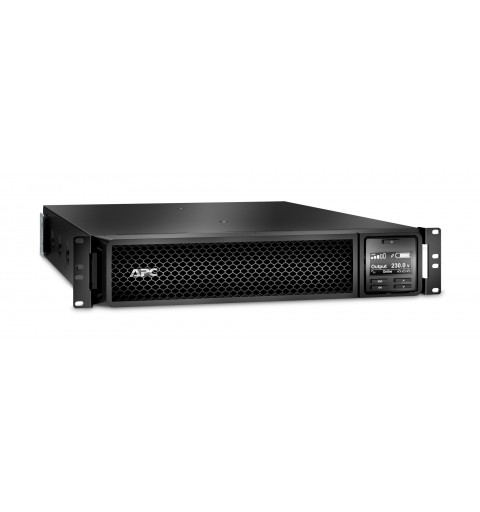

APC Smart-UPS On-Line SRT uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W

A versatile UPS developed for unstable power conditions worldwide

Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

APC Smart-UPS On-Line SRT. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, Serial interface type: RJ-45. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 505 VAh, Typical backup time at full load: 4 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 635 mm, Height: 85 mm

Features
UPS topology	Double-conversion (Online)
Output power capacity	3 kVA
Output power	2700 W
Waveform	Sine
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Automatic Voltage Regulation (AVR)	Yes
Surge energy rating	340 J
Efficiency	92%
Crest factor	3:1
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	2%
Noise level	55 dB
Surge protection	Yes
Power protection features	Overload
Audible alarm(s)	Yes
Audible alarm modes	Battery replacement
Auto-restart	Yes

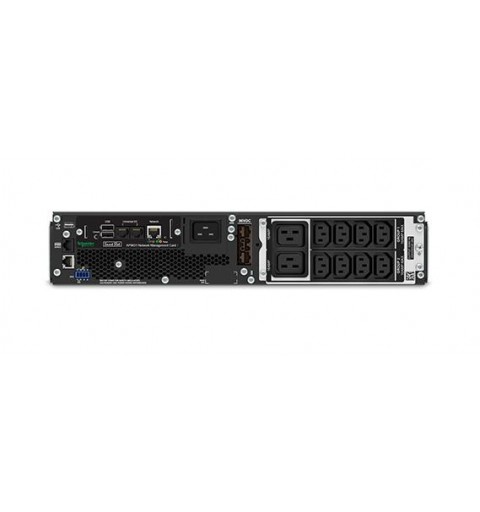

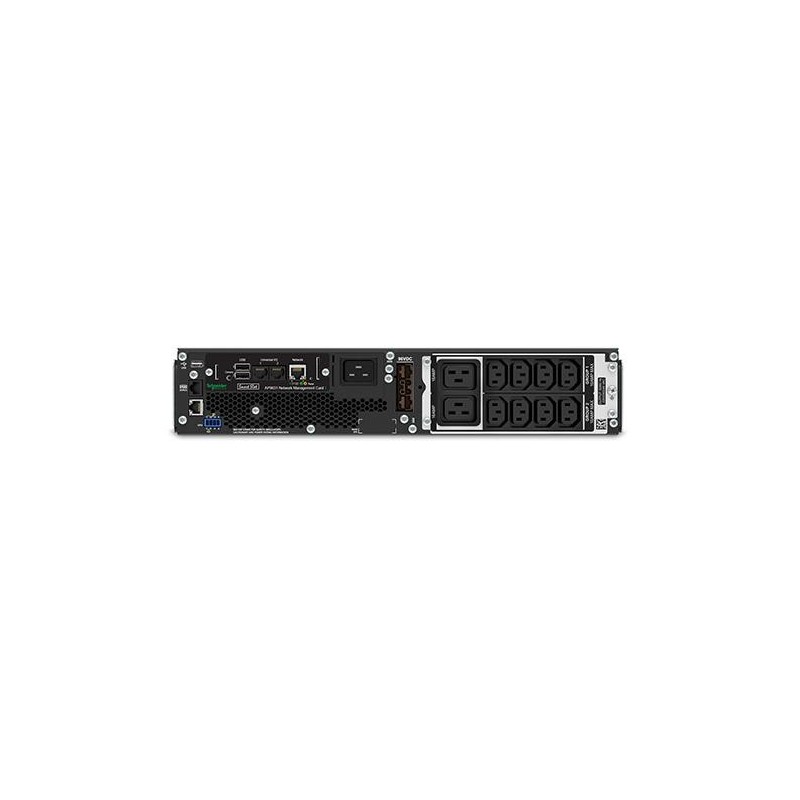

Ports & interfaces
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes
Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	505 VAh

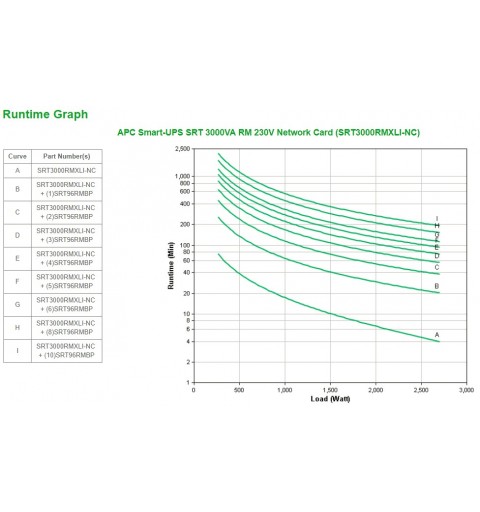

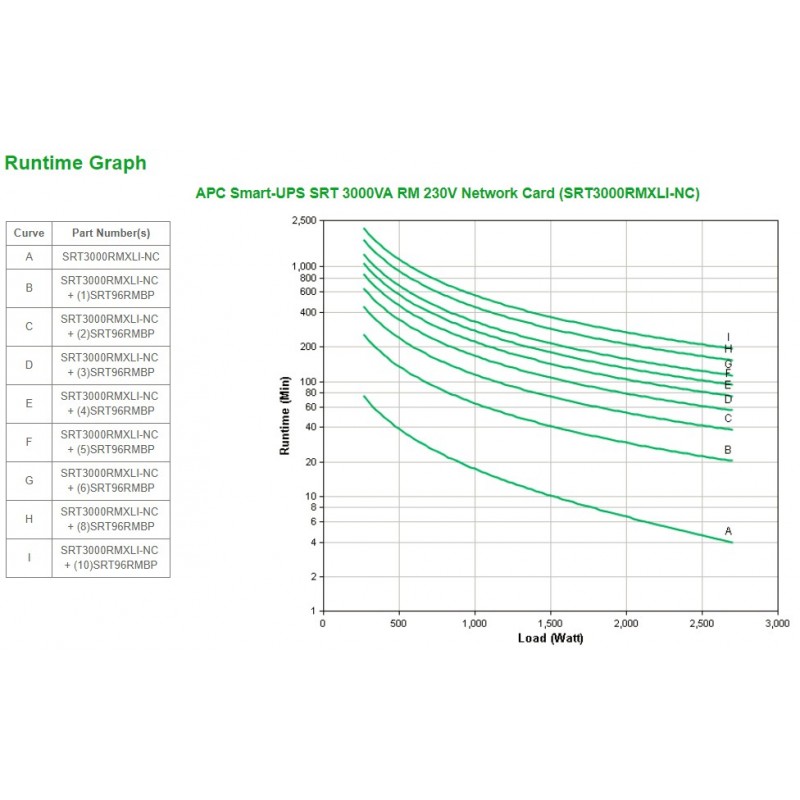

Typical backup time at full load	4 min
Typical backup time at half load	11.8 min
Battery life (max)	5 year(s)
Battery recharge time	3 h
Hot-swap battery	Yes
Automatic battery test	Yes
Cold start	Yes
Design
Form factor	Rackmount
Product colour	Black
Rack capacity	2U
Cable length	2.44 m

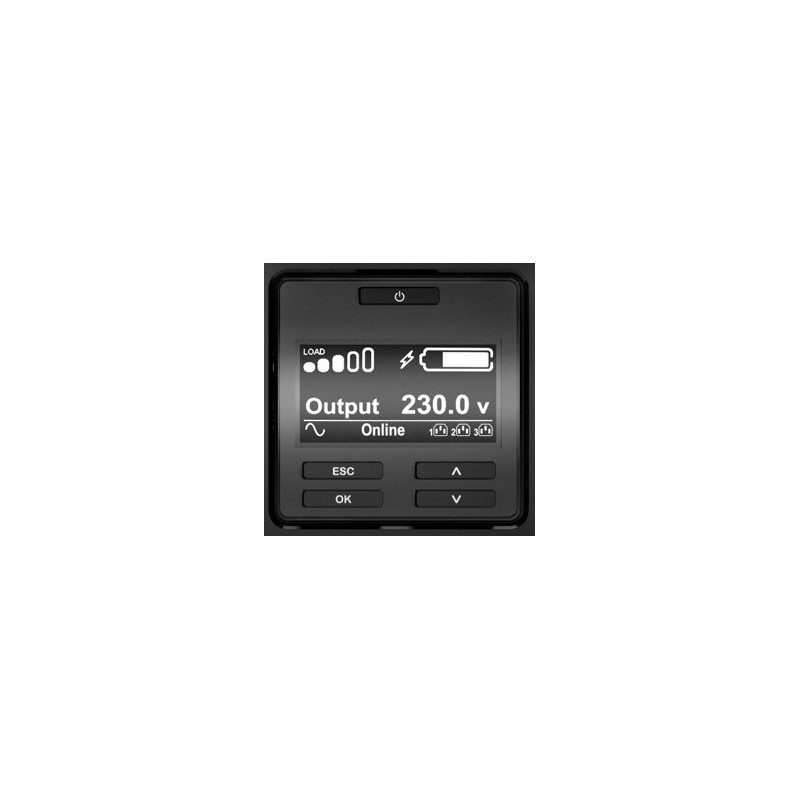

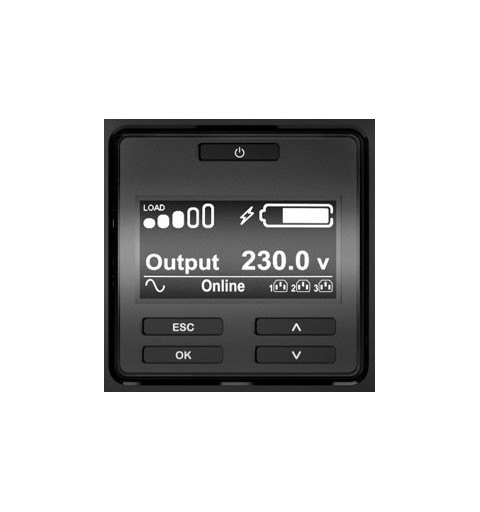

Display type	LCD
LED indicators	Battery replacement
International Protection (IP) code	IP20
Certification	CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Weight & dimensions
Width	432 mm
Depth	635 mm
Height	85 mm
Weight	31.3 kg
Package width	599 mm
Package depth	871 mm
Package height	246 mm
Package weight	39.3 kg
Packaging data
Quick installation guide	Yes
Logistics data
Products per pallet	6 pc(s)
Harmonized System (HS) code	85078000
Other features
Output voltage	230 V
