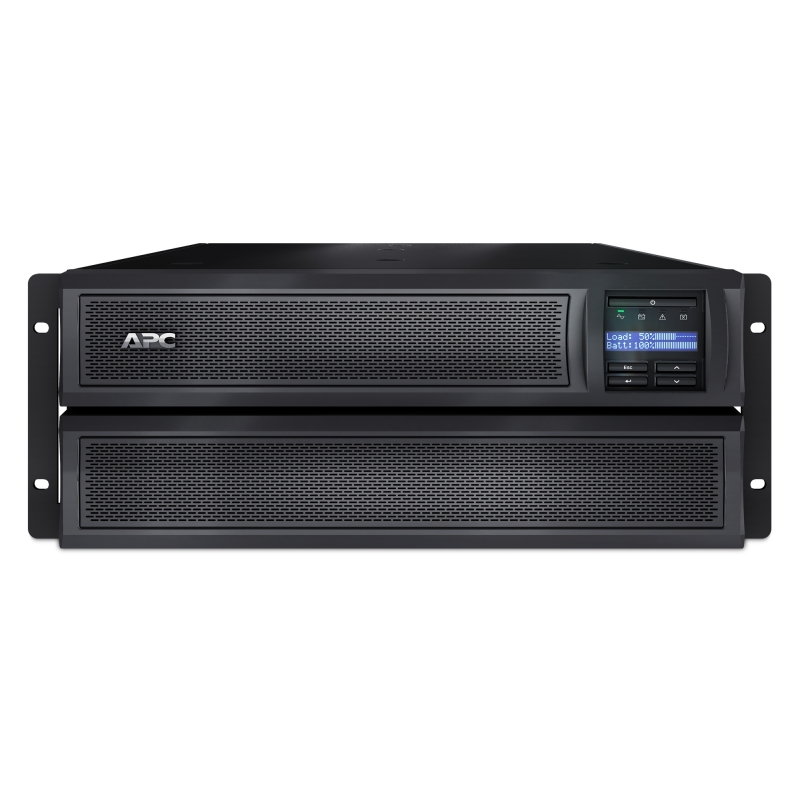

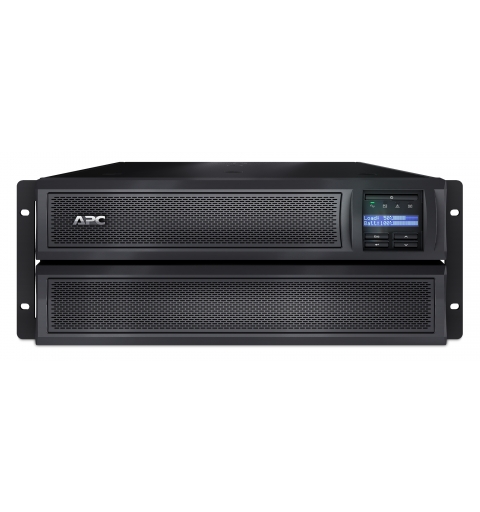

APC Smart-UPS X SMX2200HV - 2200VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth

Stay always online and prevent data loss
As soon as the power fails, an APC Smart-UPS immediately supplies emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.

Extend the runtime

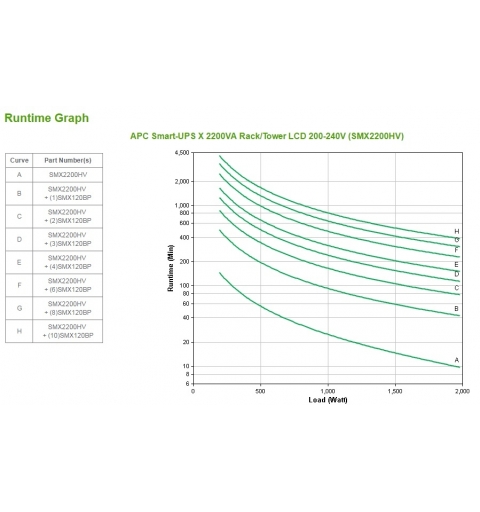

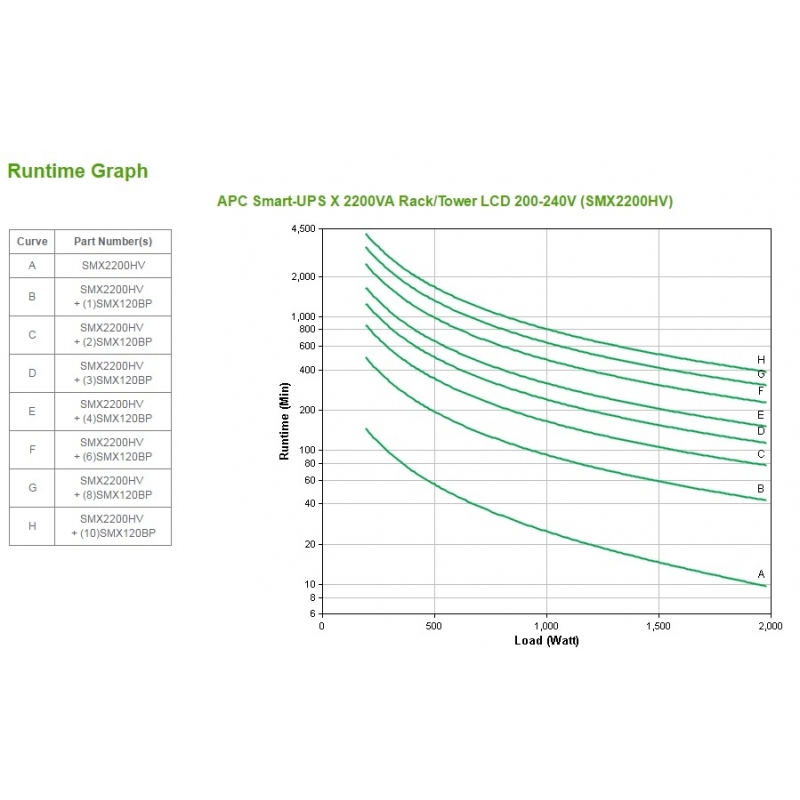

You can easily increase the number of minutes that the APC SMX UPS can independently supply emergency power by connecting external battery packs (SMX120BP).
A runtime of several hours is even possible.

Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.

Network Management Card
If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, it is even possible to differentiate between the shutdown moment and the order in which this happens.

Easy to use
This APC Smart-UPS SMX is easy to operate thanks to the LCD screen.

Rack/tower convertible

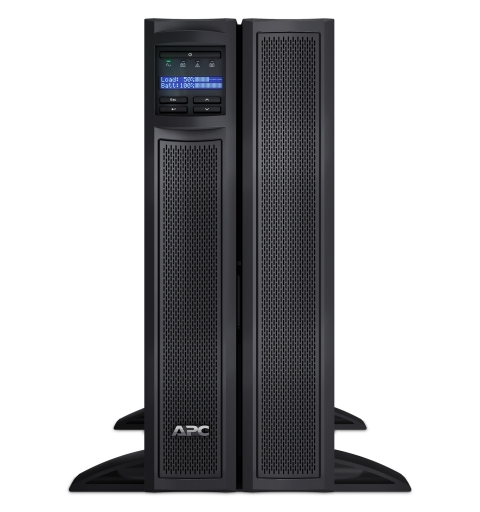

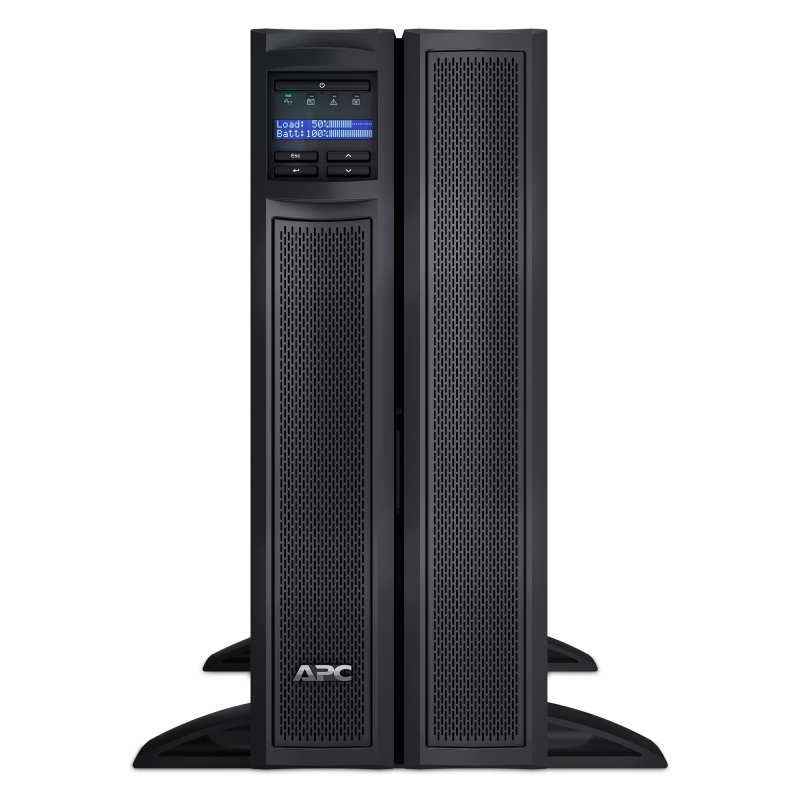

The APC Smart-UPS SMX is rack/tower convertible. Because both the feet and the front post rack brackets are included, you can mount it in a rack (4U) or place it upright. If you prefer to mount it on all four rack uprights, order the optional SU032A.

Extend the lifespan
The internal battery cartridge (APCRBC143) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMX2200HV or connected equipment. This allows you to easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment will always remain online.

Warranty extension
The factory warranty of the SMX2200HV is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).

Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.

It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.

You can also switch off non-critical loads; this extends the runtime for critical equipment.

Included in the box
1x SMX2200HV
1x USB cable
2x C13 to C14 power cord 2 meters
1x Schuko to C19 input power cord 2 meters
1x C19 to C20 power cord 2.5 meters
1x Software CD with Powershute Business Edition
1x Documentation CD
1x British BS1363A to C19 input power cord
2x front post rack brackets

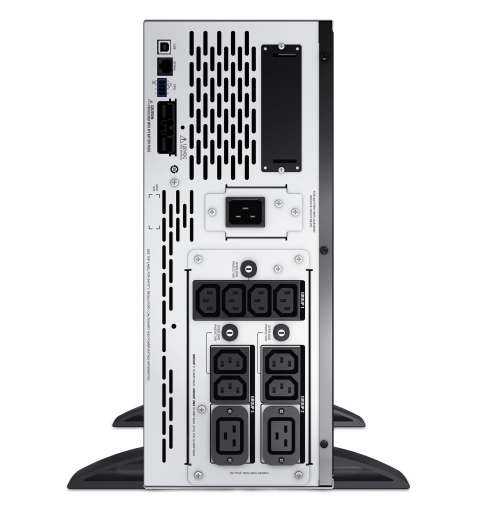

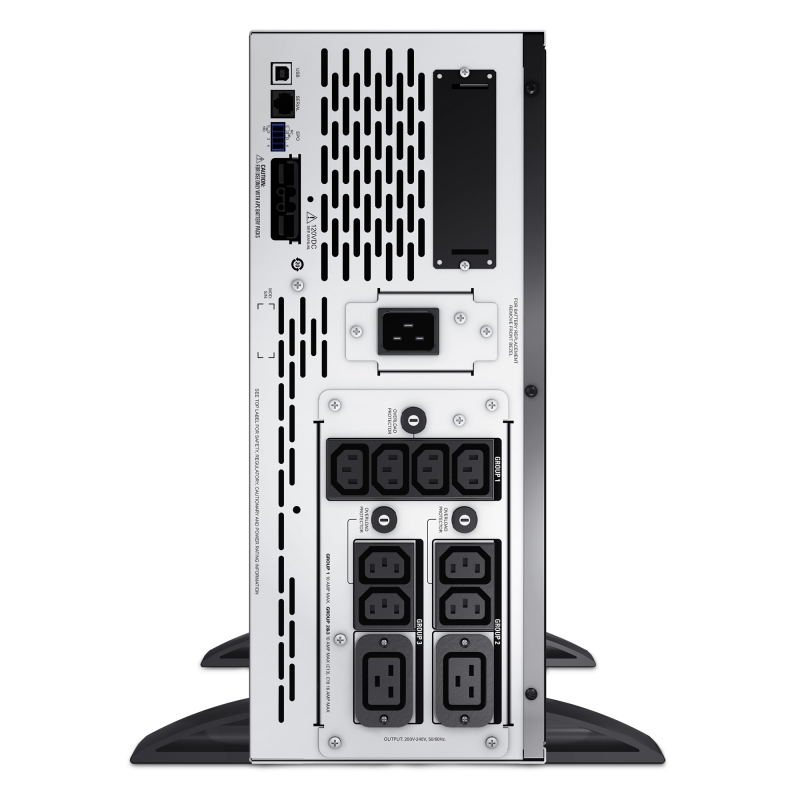

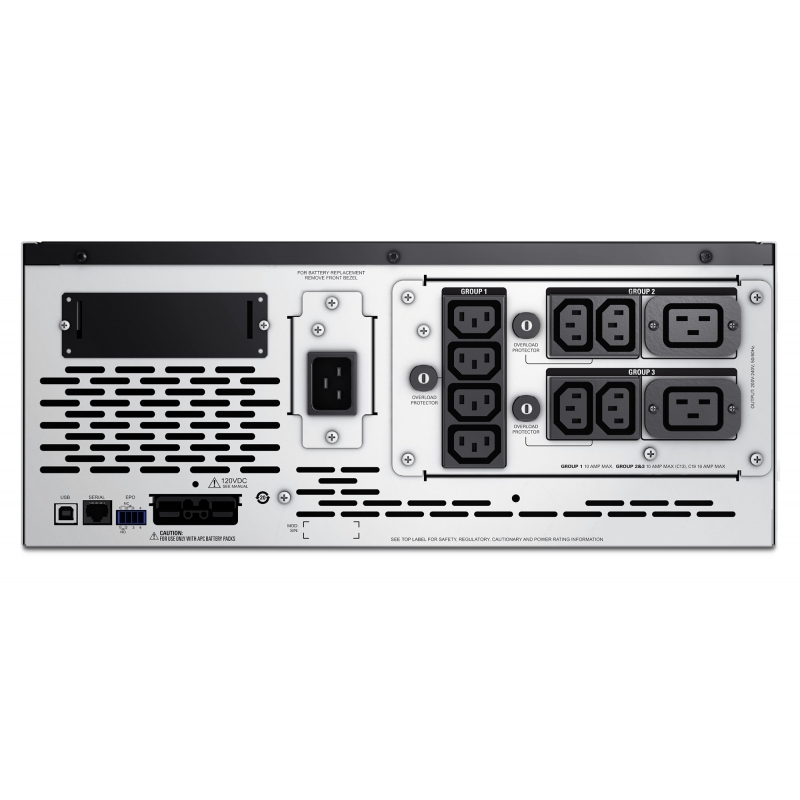

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. Connect to 10 of the SMX120BP external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.

APC Smart-UPS X SMX2200HV - 2200VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 702 VAh, Typical backup time at full load: 9.8 min. Form factor: Rackmount/Tower, Product colour: Black, Stainless steel, Rack capacity: 4U. Compliance certificates: RoHS, Certification: CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 CL A, IEC 60950,...

Caratteristiche
Topologia UPS	A linea interattiva
Potenza in uscita	2,2 kVA
Potenza in uscita	1980 W
Forma d'onda	Sinusoidale
Tensione operativa in entrata (min)	140 V
Tensione operativa in entrata (max)	280 V
Frequenza di ingresso	50/60 Hz
Tensione operativa di uscita (min)	208 V
Tensione di uscita (max)	240 V
Regolazione della frequenza di uscita	50/60 Hz
Regolatore automatico di tensione (AVR)	Sì
Valutazione sovraccarico energetico	645 J
Tempo di mantenimento (max)	10 ms
Efficienza	98,1%
Spegnimento di emergenza (EPO)	Sì
Emissione acustica	55 dB
Protezione contro le sovratensioni	Sì
Allarmi sonori	Sì
Riavvio automatico	Sì
Connettività
Tipo di uscita AC	Accoppiatore C13, Accoppiatore C19
Presa di corrente	Accoppiatore C20
Quantità prese AC	10 presa(e) AC
Numero di jumpers uscita IEC	2
Porta USB	Sì
SmartSlot	Sì
Porta SmartConnect	No
Batteria
Tecnologia batteria	Acido piombo (VRLA)
Capacità della batteria	702 VAh
Tempo di salvataggio minimo a pieno carico	9,8 min
Tempo di salvataggio minimo a mezzo carico	25,3 min
Durata della batteria (max)	5 anno/i
Tempo di ricarica	3 h
Batteria scambio a caldo	Sì
test automatico batteria	Sì
Partenza a freddo	Sì
Design
Fattore di forma	Rackmount/Tower
Colore del prodotto	Nero, Acciaio inox
Capacità di rack	4U
Lunghezza cavo	2 m
Tipo di display	LCD
Indicatori LED	status, Sostituzione della batteria
Condizioni ambientali
Intervallo temperatura di funzionamento	0 - 40 °C
Intervallo di temperatura	-15 - 45 °C
Range di umidità di funzionamento	0 - 95%
Umidità	0 - 95%
Altitudine di funzionamento	0 - 3000 m
Altitudine di non-funzionamento	0 - 15000 m
Dimensioni e peso
Larghezza	178 mm
Profondità	483 mm
Altezza	432 mm
Peso	38,6 kg
Dati su imballaggio
Sensore di temperatura	Sì
CD software	Sì
Larghezza imballo	586 mm
Profondità imballo	633 mm
Altezza imballo	330 mm
Peso dell'imballo	47,7 kg
Dati logistici
Quantità per pallett	6 pz
Impronta di carbonio totale (kg of CO2e)	3397,7
