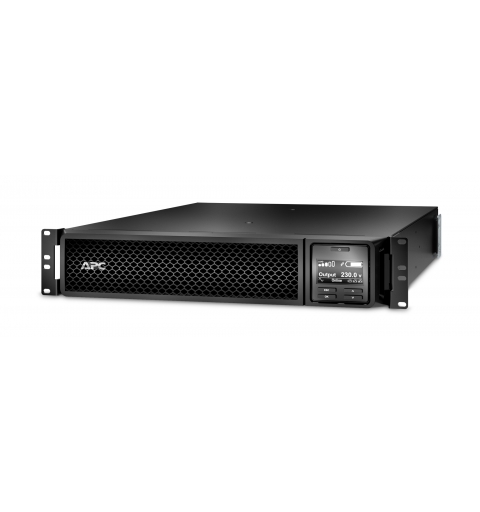

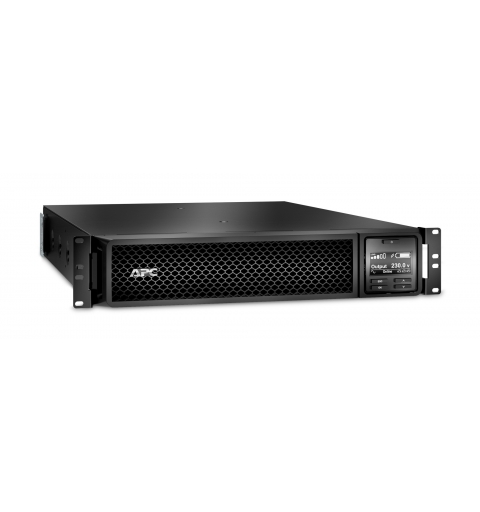

APC Smart-UPS On-Line SRT2200RMXLI - 2200VA, 8x C13 & 2x C19, rack mount

Stay always online and prevent data loss

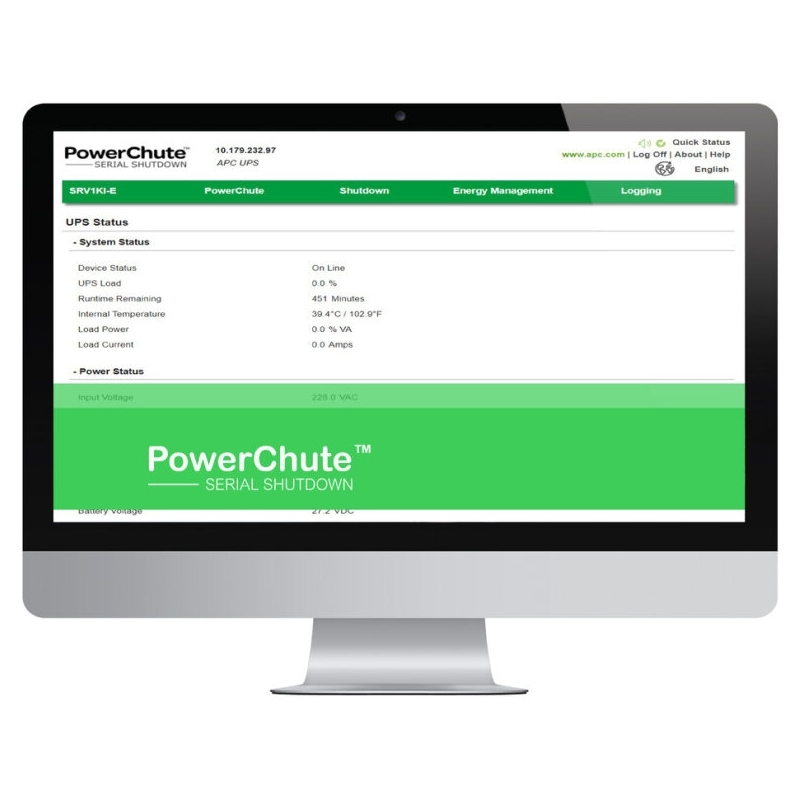

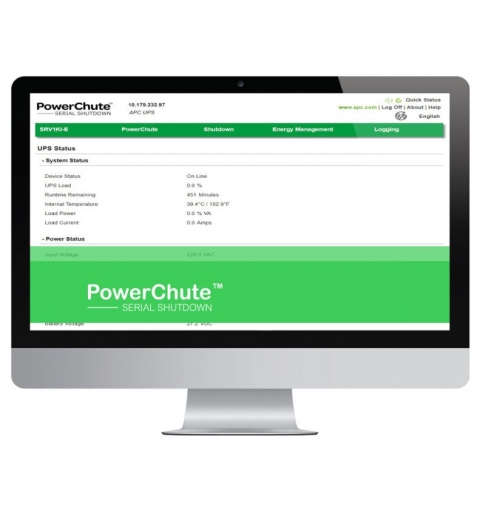

An APC Smart-UPS On-Line always supplies perfectly clean power to all connected equipment thanks to its double conversion technology. Even power failures have no effect on this. The APC Smart-UPS On-Line then automatically supplies emergency power without having to switch. This prevents unwanted failure of, for example, a PC, server, storage or switch. With the free APC PowerChute software, you can even have critical IT hardware shut down automatically and in a controlled manner when the UPS battery is almost empty. This prevents data loss, downtime and physical damage to hardware.

Extend the runtime
You can easily increase the number of minutes that the APC SRT2200RMXLI can supply emergency power independently by connecting external battery packs (SRT72RMBP). A runtime of several hours is even possible.

Availability
The Smart-UPS On-Line has an internal bypass and uses double conversion, which maximizes the availability and lifespan of connected hardware. It also makes the UPS compatible with an emergency generator. The On-Line double conversion technology ensures clean, uninterrupted power to protected equipment, even when generator power is used.

Safety
In addition, a Smart-UPS On-Line protects connected devices against peak voltages caused by lightning, among other things. This APC emergency power supply is ideally suited for business use.

Ease of use

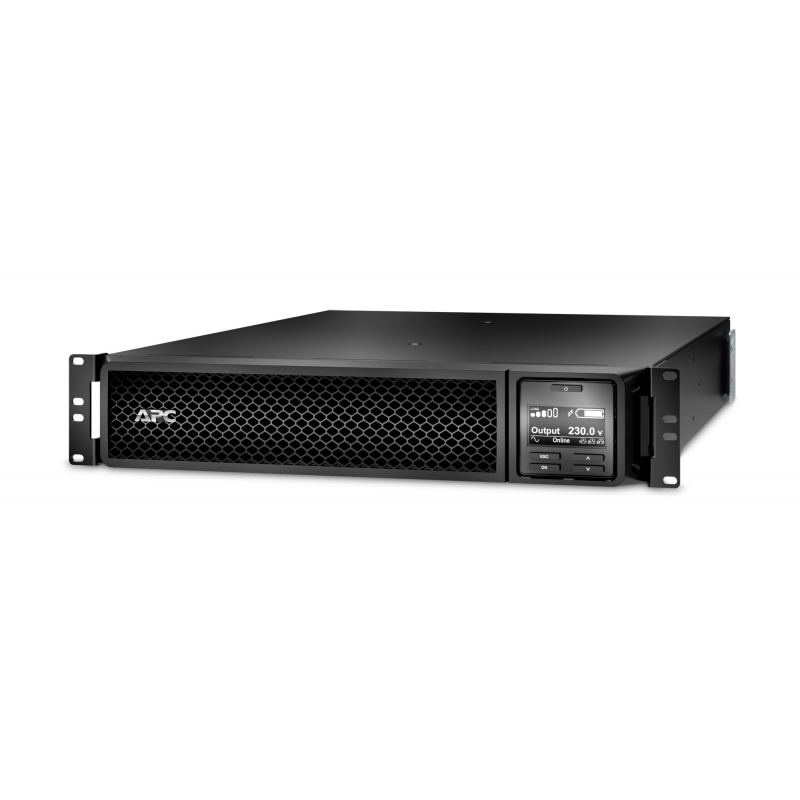

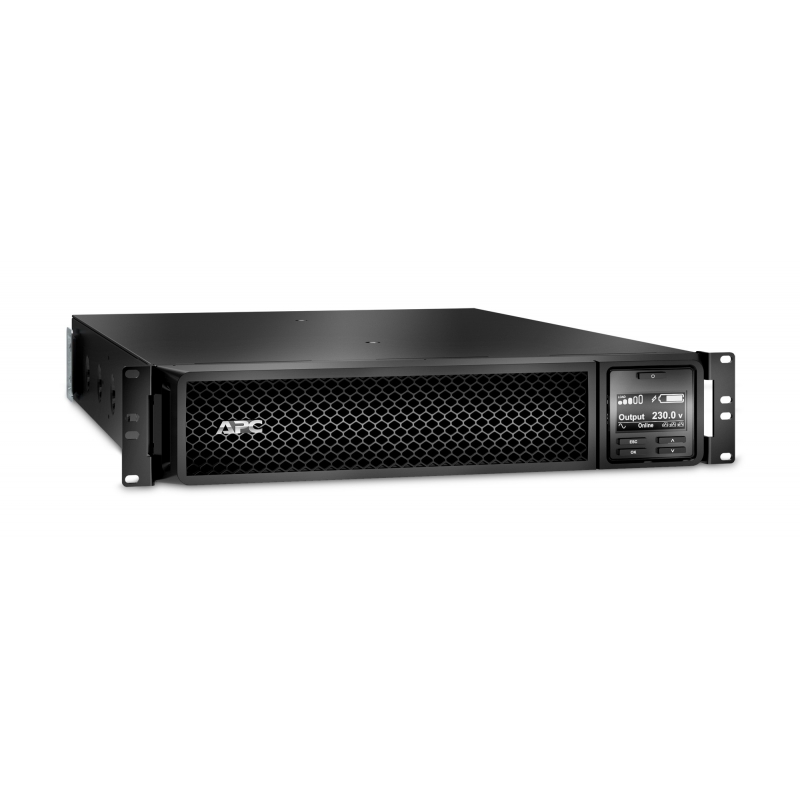

The APC Smart-UPS SRT is easy to operate thanks to a tiltable graphic LCD screen and physical buttons. This makes it possible to set and read out the basic functionalities. Because the background color of the screen changes depending on the type of warning, the seriousness of the situation can be quickly visually assessed. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack.

Network Management Card
If you connect the UPS directly to your network via the optional APC Network Management Card (AP9640/AP9641), it can be easily managed remotely via SNMP or our remote management software Ecostruxure IT Expert (SFTWES1-DIGI). You can also automatically send a shutdown signal via the network to multiple physical and/or virtual servers. By means of the APC PowerChute Network Shutdown Software belonging to the network card, it is even possible to differentiate the shutdown moment and the order in which this happens.

Extend the lifespan
The internal battery cartridge (APCRBC141) can be easily, safely and independently replaced by the user. This without having to switch off the APC SRT2200RMXLI or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.

Warranty extension
The factory warranty of the SRT2200RMXLI is 3 years, with the exception of the battery cartridge, which has a factory warranty of 2 years. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).

Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which can limit oversizing of the UPS.

It is also possible to reset a group of multiple UPS outlets and the equipment connected to them. If a network card (ap9640) is used in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this can even be done remotely.

You can also switch off non-critical loads; this extends the runtime for critical equipment.

Included in the box
1x SRT2200RMXLI
1x USB cable
1x C13 to C14 powercord 1.2M
1x Software CD with Powershute Business Edition
1x Documentation CD
1x Schuko to C19 input powercord 2M
1x British BS1363A to C19 input powercord
1x C19 to C20 input powercord 2.5M
2x Rackmount brackets

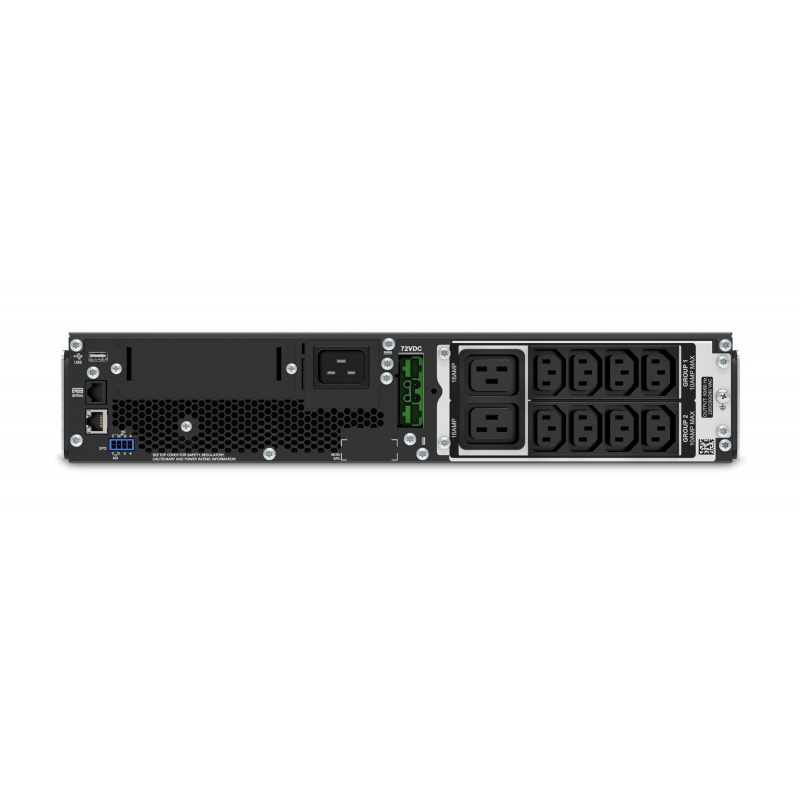

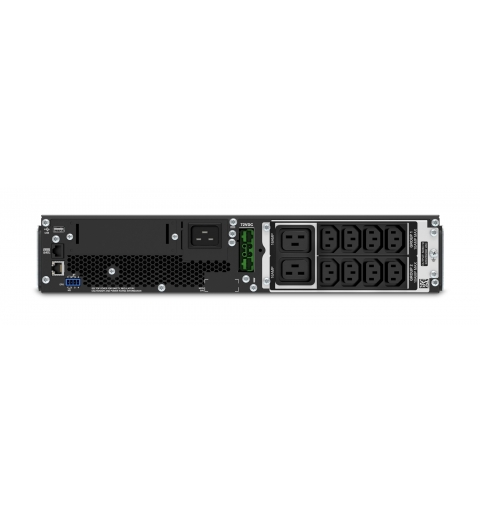

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

APC Smart-UPS On-Line SRT2200RMXLI - 2200VA, 8x C13 & 2x C19, rack mount. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 367 VAh, Typical backup time at full load: 3.9 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH

Caratteristiche
Topologia UPS	Doppia conversione (online)
Potenza in uscita	2,2 kVA
Potenza in uscita	1980 W
Forma d'onda	Sinusoidale
Tensione operativa in entrata (min)	100 V
Tensione operativa in entrata (max)	275 V
Frequenza di ingresso	40/70 Hz
Tensione operativa di uscita (min)	220 V
Tensione di uscita (max)	240 V
Regolazione della frequenza di uscita	50/60 Hz
Valutazione sovraccarico energetico	340 J
Efficienza	92,2%
Fattore di cresta	3:1
Spegnimento di emergenza (EPO)	Sì
Emissione acustica	55 dB
Protezione contro le sovratensioni	Sì
Gestione web-based	Sì
Riavvio automatico	Sì
Connettività
Tipo di uscita AC	Accoppiatore C13, Accoppiatore C19
Presa di corrente	Accoppiatore C20
Quantità prese AC	10 presa(e) AC
Numero di jumpers uscita IEC	2
Porta USB	Sì
Interfaccia seriale	Sì
Tipo interfaccia seriale	RJ-45
SmartSlot	Sì
Porta SmartConnect	No
Batteria
Tecnologia batteria	Acido piombo (VRLA)
Capacità della batteria	367 VAh
Numero di batterie	1
Tempo di salvataggio minimo a pieno carico	3,9 min
Tempo di salvataggio minimo a mezzo carico	11,6 min
Durata della batteria (max)	5 anno/i
Tempo di ricarica	3 h
Batteria scambio a caldo	Sì
test automatico batteria	Sì
Partenza a freddo	Sì
Design
Fattore di forma	Rackmount/Tower
Colore del prodotto	Nero
Capacità di rack	2U
Lunghezza cavo	2,44 m
Tipo di display	LCD
Indicatori LED	Sì
Codice di protezione internazionale (IP)	IP20
Condizioni ambientali
Intervallo temperatura di funzionamento	0 - 40 °C
Intervallo di temperatura	-20 - 50 °C
Range di umidità di funzionamento	0 - 95%
Umidità	0 - 95%
Altitudine di funzionamento	0 - 3000 m
Altitudine di non-funzionamento	0 - 15000 m
Dimensioni e peso
Larghezza	432 mm
Profondità	584 mm
Altezza	85 mm
Peso	25 kg
Dati su imballaggio
Supporto	Sì
CD software	Sì
Larghezza imballo	599 mm
Profondità imballo	810 mm
Altezza imballo	246 mm
Peso dell'imballo	34 kg
Dati logistici
Quantità per pallett	12 pz
Impronta di carbonio totale (kg of CO2e)	3656,4
Altre caratteristiche
Voltaggio nominale di entrata	230 V
