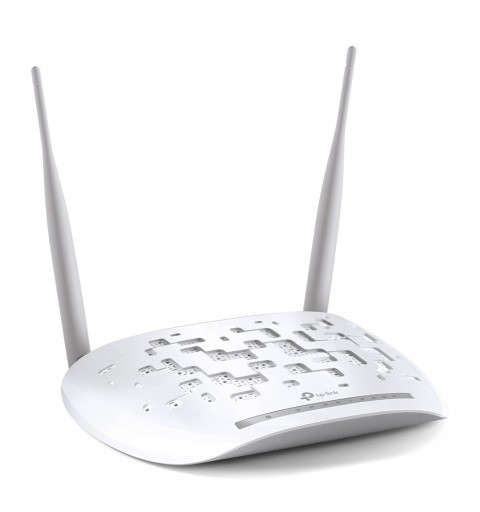

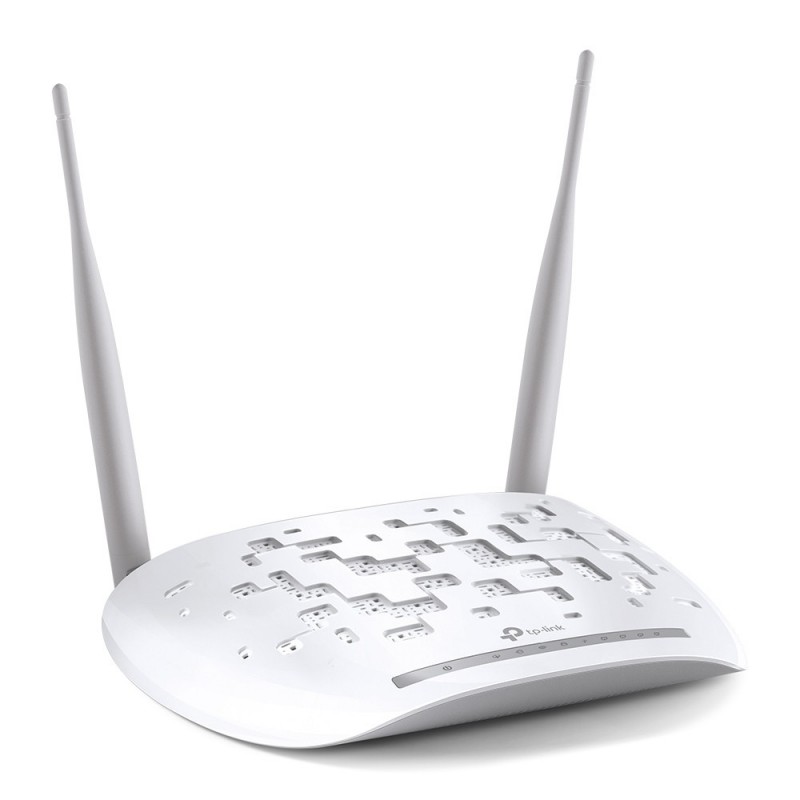

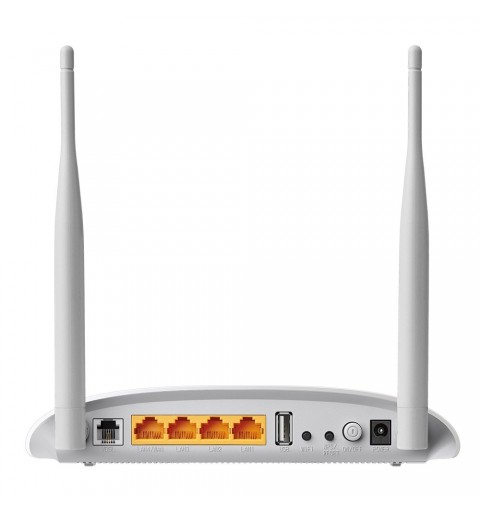

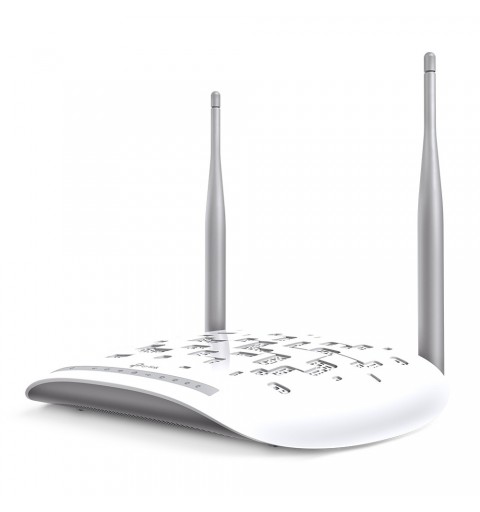

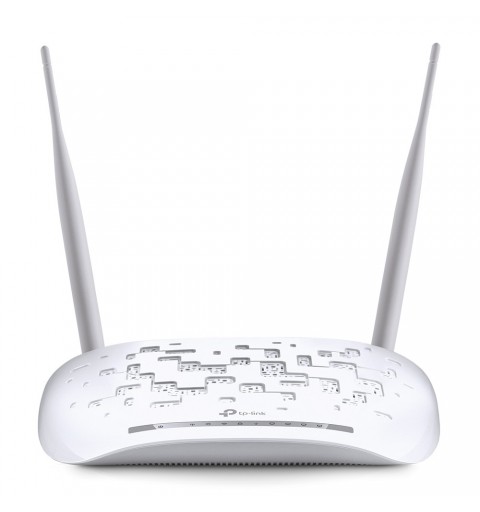

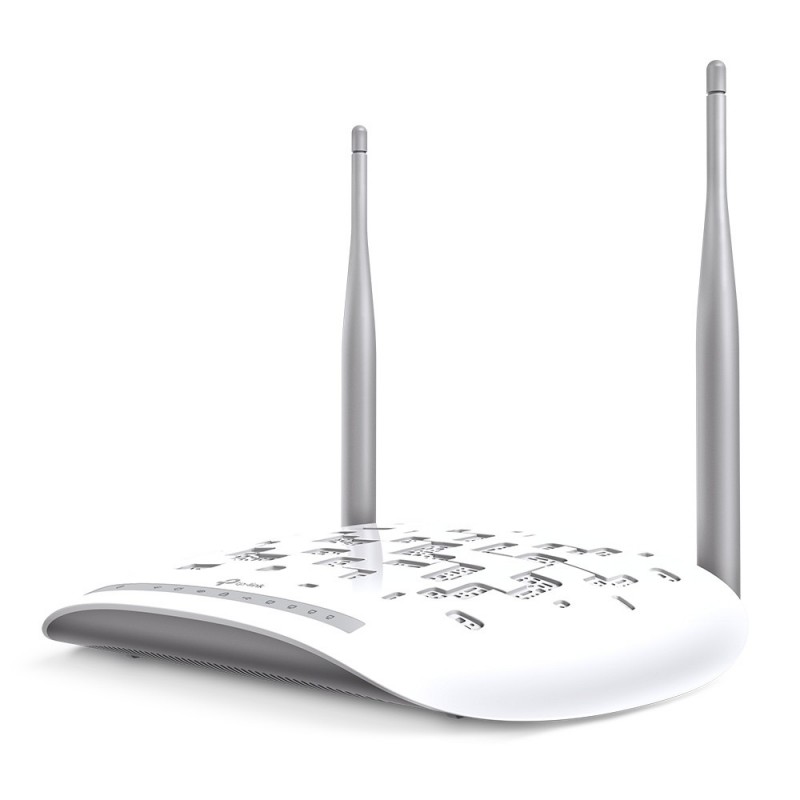

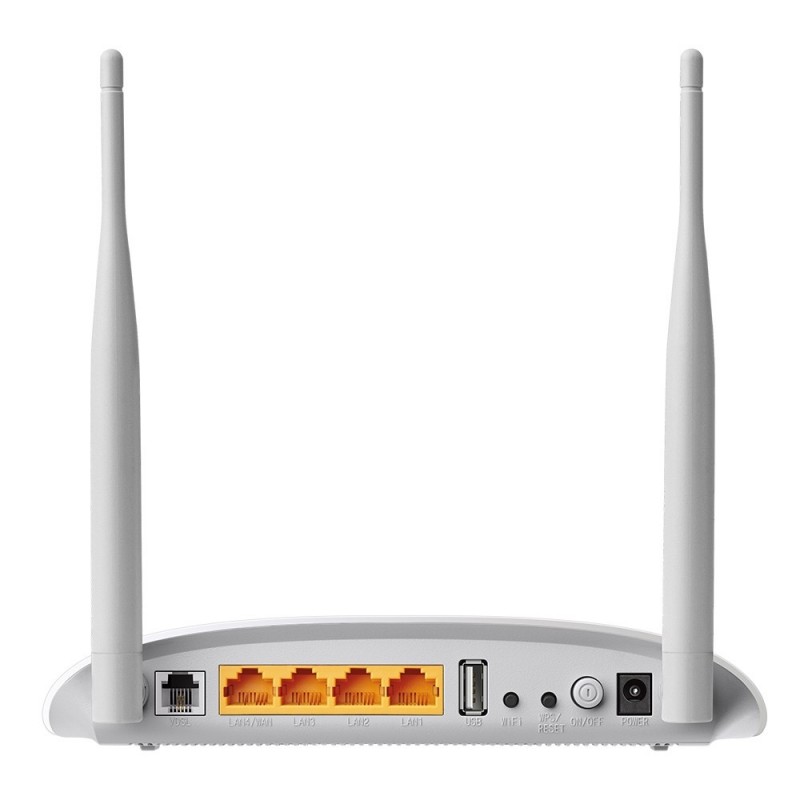

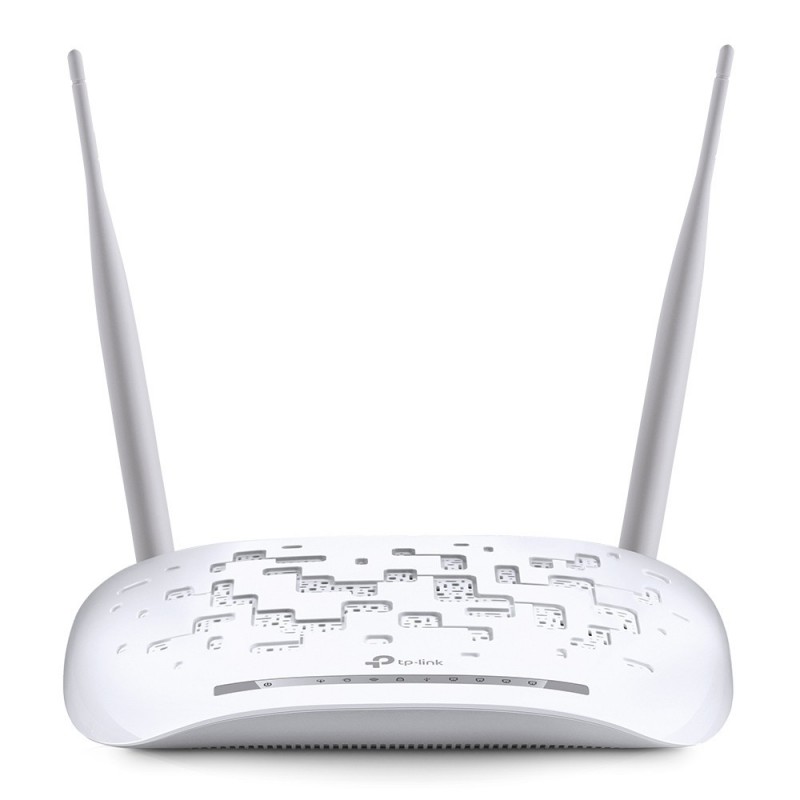

TP-LINK 300Mbps Wireless N USB VDSL/ADSL Modem Router

What This Product Does
TP-LINK’s TD-W9970, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and up stream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970 is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks.

USB Sharing Port – Easy Sharing
Using the TD-W9970’s multi-functional USB 2.0 port, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device’s FTP server functions so that you never have to part with your files.

Interchangeable LAN/WAN Port –Compatible with Fiber/Cable service
The TD-W9970 supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.

Up to 100Mbps broadband speed
TheTD-W9970 supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming.

Virtually Impregnable-10 VPN IPsec tunnels
The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W9970 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.

TP-LINK 300Mbps Wireless N USB VDSL/ADSL Modem Router. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Security algorithms: 128-bit AES,128-bit WEP,192-bit AES,256-bit AES,3DES,64-bit.... Product type: Tabletop router, Product colour: White

WAN connection
Ethernet WAN	Y
DSL WAN	Y
SIM card slot	N
3G/4G USB modem compatibility	N
WAN connection type	RJ-45
Wireless LAN features
Wi-Fi band	Single-band (2.4 GHz)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Wi-Fi standards	802.11b,802.11g,Wi-Fi 4 (802.11n)
Network
Ethernet LAN	Y
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u
Port forwarding	Y
Dynamic DNS (DDNS)	Y
VPN tunnels quantity	10
VPN Passthrough	Y
VPN support	PPTP, L2TP, IPSec Pass-through
DSL features
VDSL2	Y
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
RJ-11 ports quantity	1
Management features
Web-based management	Y
Quality of Service (QoS) support	Y
Reset button	Y
WPS push button	Y
Security
Security algorithms	128-bit AES,128-bit WEP,192-bit AES,256-bit AES,3DES,64-bit WEP,DES,MD5,SHA-1,WPA,WPA-PSK,WPA2,WPA2-PSK
Stateful Packet Inspection (SPI)	Y
Filtering	Y
MAC address filtering	Y
IP address filtering	Y
URL filtering	Y
DMZ support	N
Network address translation (NAT)	Y
Protocols
DHCP client	Y
Universal Plug and Play (UPnP)	Y
Design
Product type	Tabletop router
Product colour	White
Wall mountable	Y
LED indicators	Y
On/off switch	Y
Antenna
Antenna type	External
Antenna gain level (max)	5 dBi
Antennas quantity	2
Features
Firmware upgradeable	Y
Certification	CE, FCC, RoHS
Power
Power source type	DC
Output voltage	12 V
Output current	1 A
Operational conditions
Storage relative humidity (H-H)	5 - 90%
System requirements
Windows operating systems supported	Windows 10,Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows XP
Linux operating systems supported	Y
Mac operating systems supported	macOS
Weight & dimensions
Height	36 mm
Packaging data
Cables included	LAN (RJ-45), Phone (RJ-11)
AC adapter included	Y
Quick start guide	Y
Package width	260 mm
Package depth	232 mm
Package height	70 mm
Package weight	550 g
Other features
xDSL connection	Y
