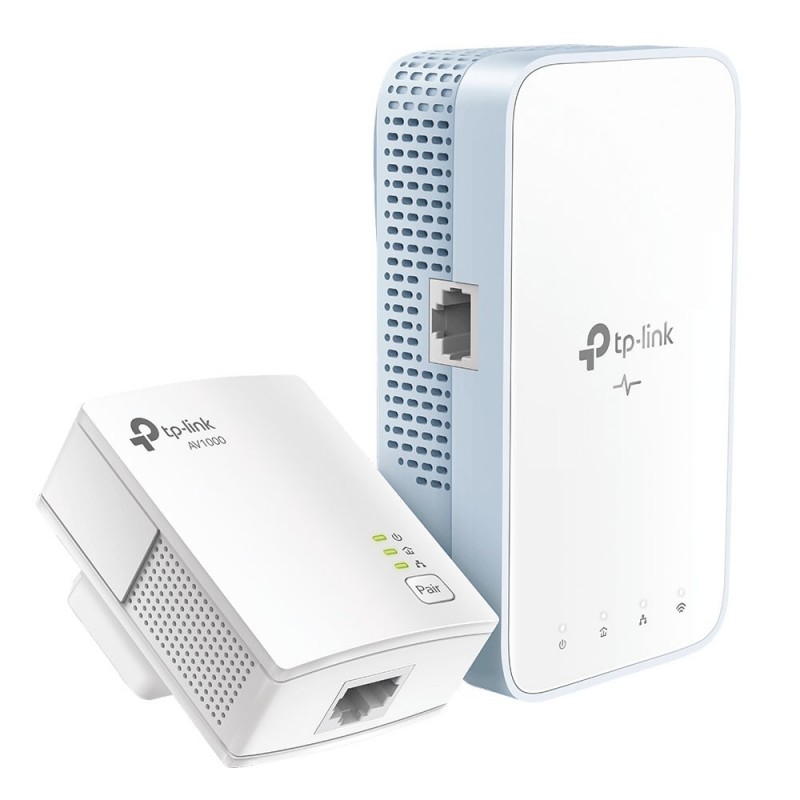

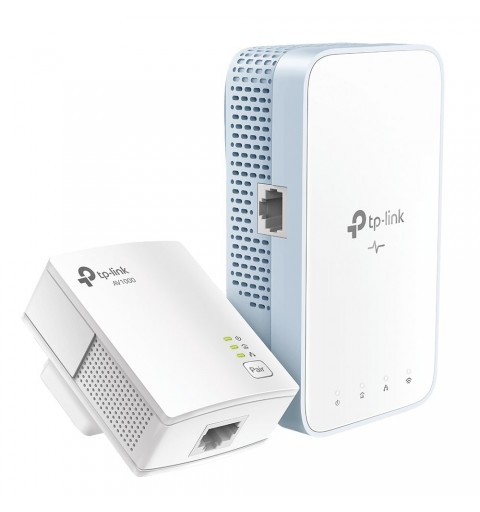

TP-LINK AV1000 Gigabit Powerline ac Wi-Fi Kit

Extend AC750 Wi-Fi to Every Room Using Existing Electrical System
AV1000 Gigabit Powerline ac Wi-Fi Kit

Extend Wired and Wireless Network Using Electrical System
TL-WPA7517 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.

- > No need for drilling or wire installation
- > Network passes through walls and floors
- > Expand coverage by adding more extenders
- > Powerline adapters must be deployed in sets of two or more and be connected to the same electrical circuit

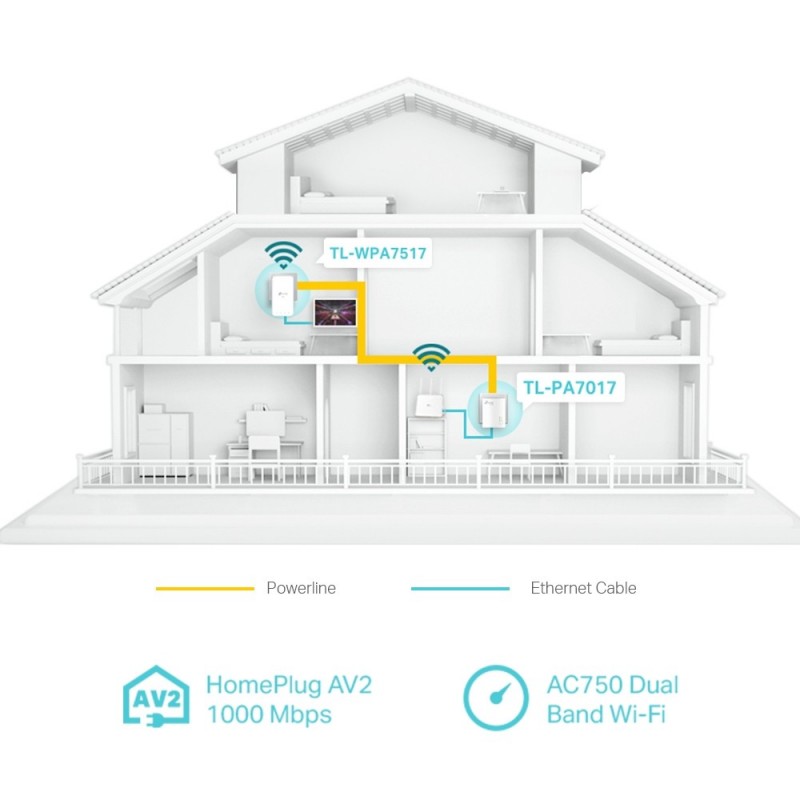

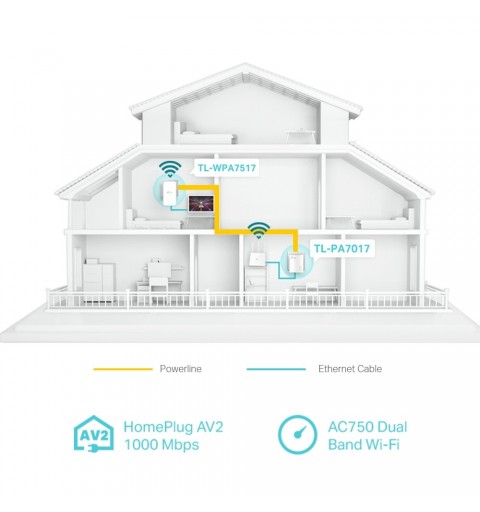

AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7517 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

AC750 Wi-Fi for an Advanced Online Experience
With the 802.11ac Wi-Fi technology, the TL-WPA7517 operates a dual band Wi-Fi network (simultaneous 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz) with more bandwidth and less interference, maximizing the performance of your powerline network.

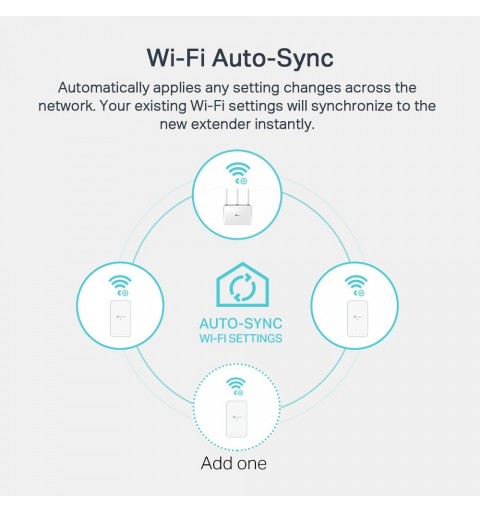

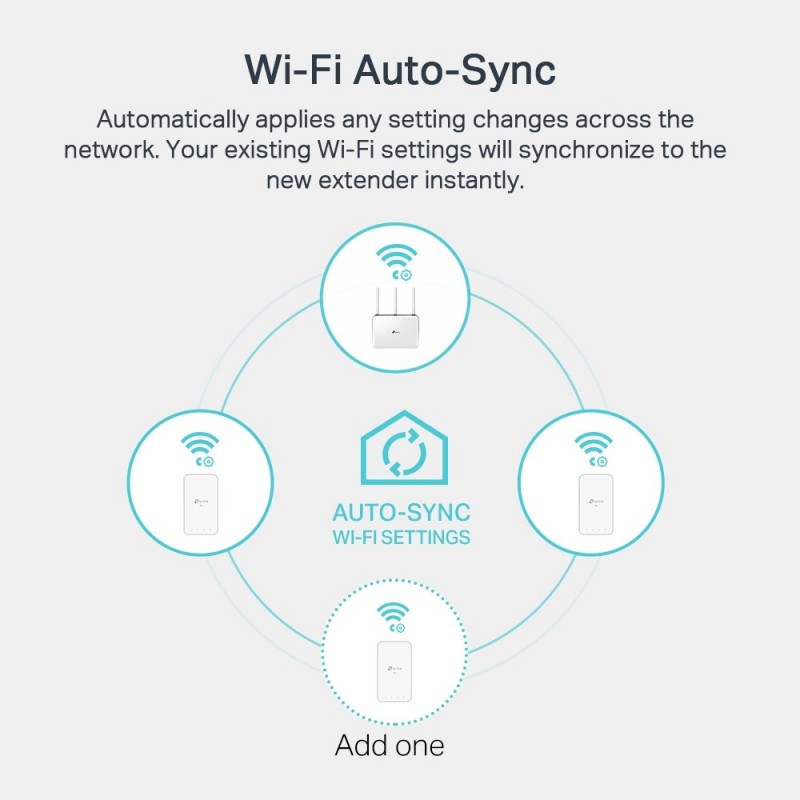

One Tap for a Unified Network

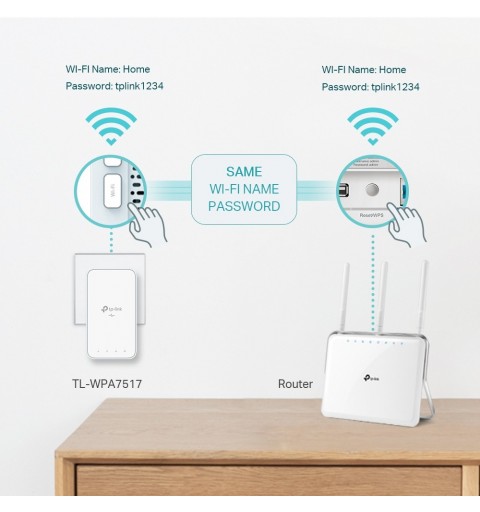

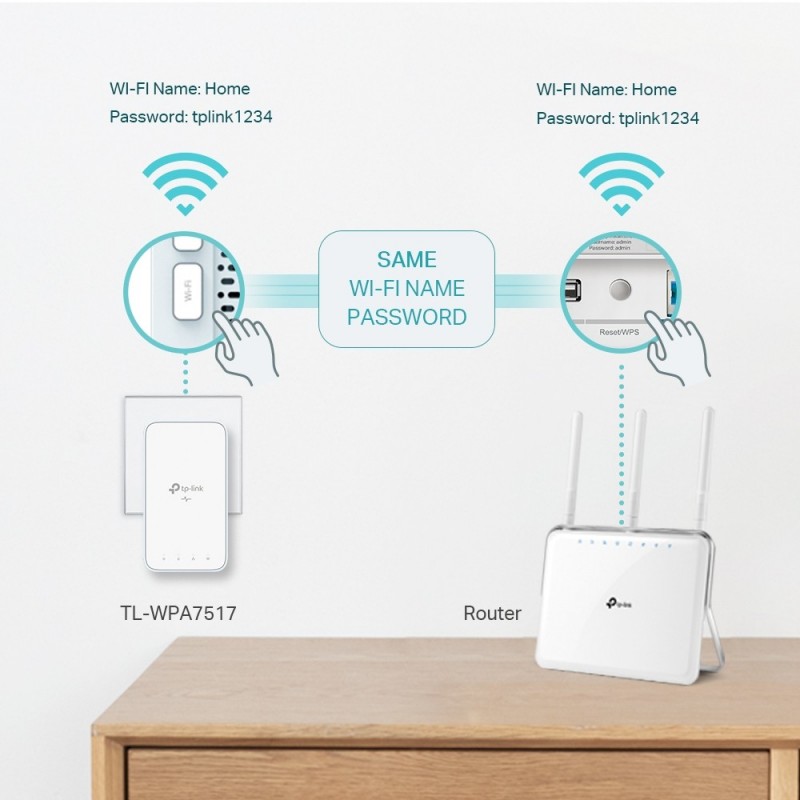

One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.

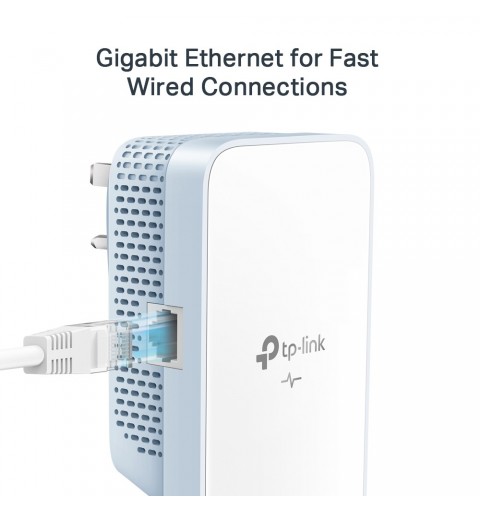

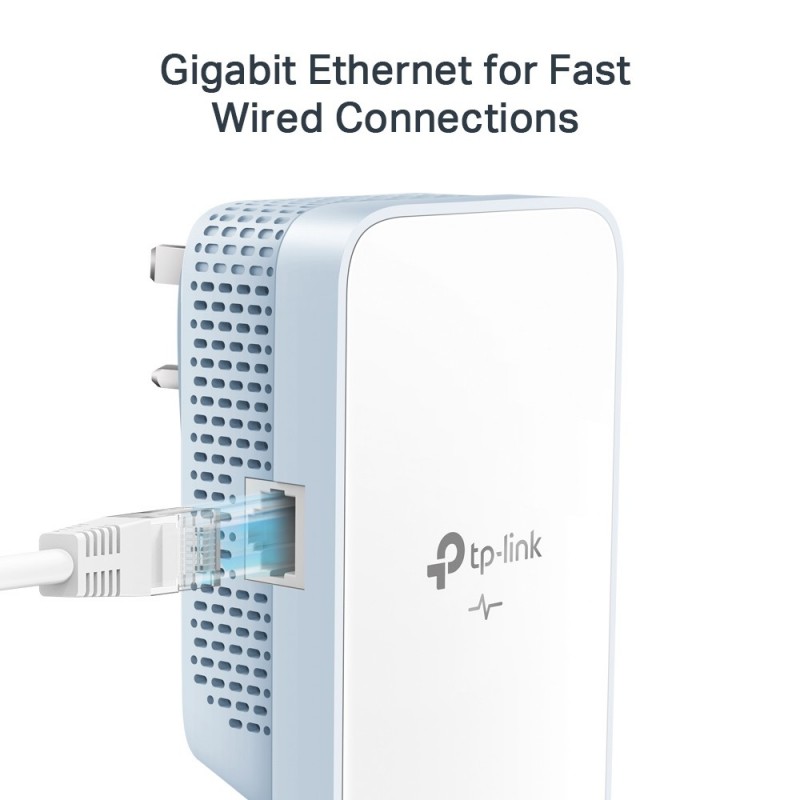

Gigabit Ethernet for Fast Wired Connections
One Gigabit Ethernet port provides reliable high-speed wired connection for a bandwidth intensive device, such as game consoles, smart TVs, STB and more, or connects multiple devices by adding a switch. Two Ethernet cables are included in the box.

Powerline Management on Your Smartphone
Manage your powerline Wi-Fi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.

- View real-time powerline speed
- LED control (also controlled by LED On/Off button)
- Guest network

TP-LINK AV1000 Gigabit Powerline ac Wi-Fi Kit. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u, Ethernet LAN interface type: Gigabit Ethernet. Product colour: White, Antenna type: Internal, Certification: CE, RoHS. Windows operating systems supported: Windows 10,Windows 7,Windows 8,Windows 8.1. Cables included: LAN (RJ-45)

Performance
Maximum data transfer rate	1000 Mbit/s
Ethernet LAN	Y
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Y
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u
Built-in power socket	N
Modulation	OFDM
Security algorithms	128-bit AES,WEP,WPA-PSK,WPA2-PSK
Maximum operating distance	300 m
Design
Antenna type	Internal
Product colour	White
Certification	CE, RoHS
System requirements
Windows operating systems supported	Windows 10,Windows 7,Windows 8,Windows 8.1
Mac compatibility	Y
Mac operating systems supported	Y
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Packaging content
Manual	Y
Cables included	LAN (RJ-45)
