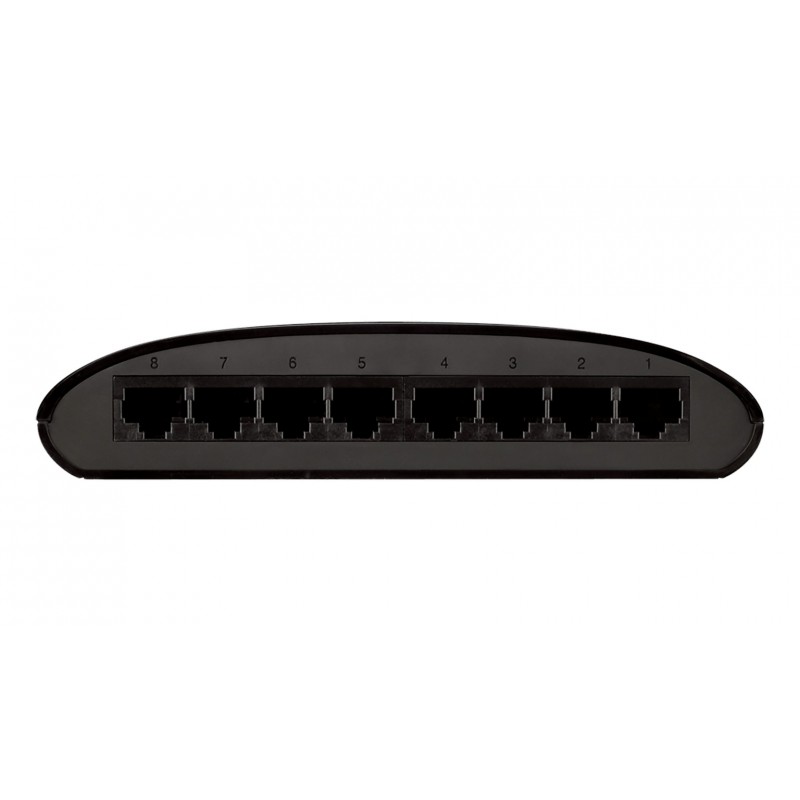

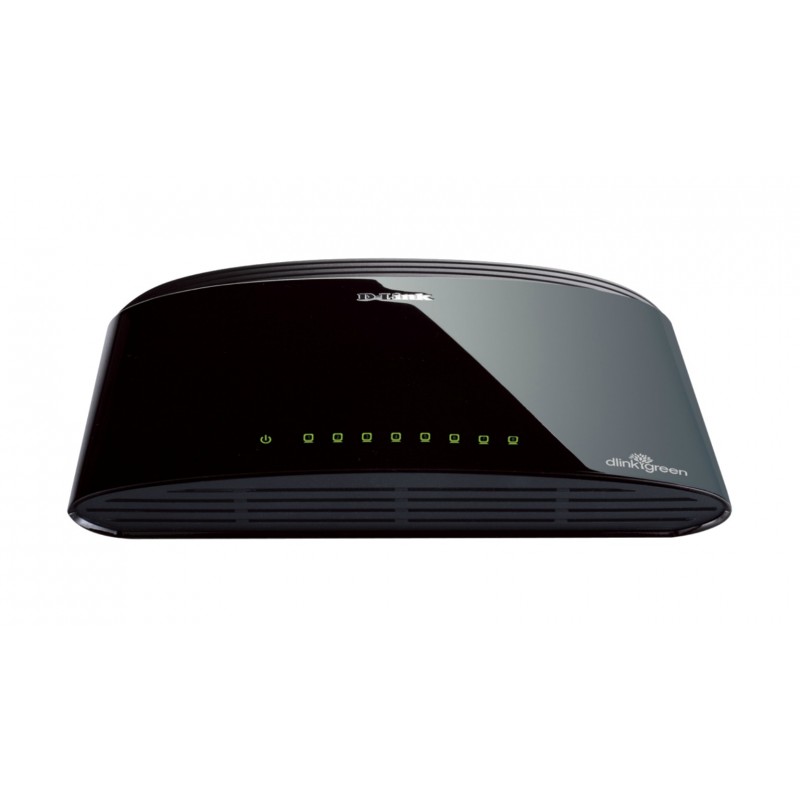

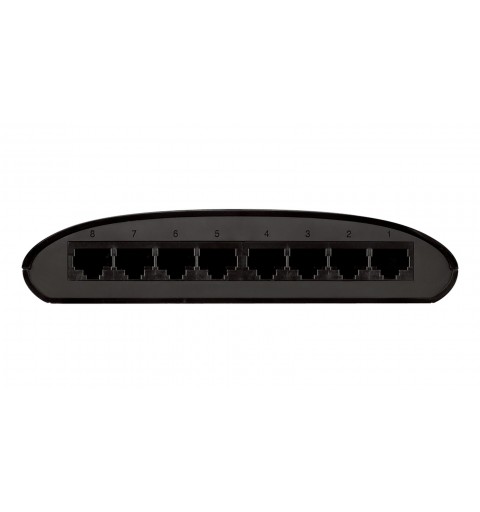

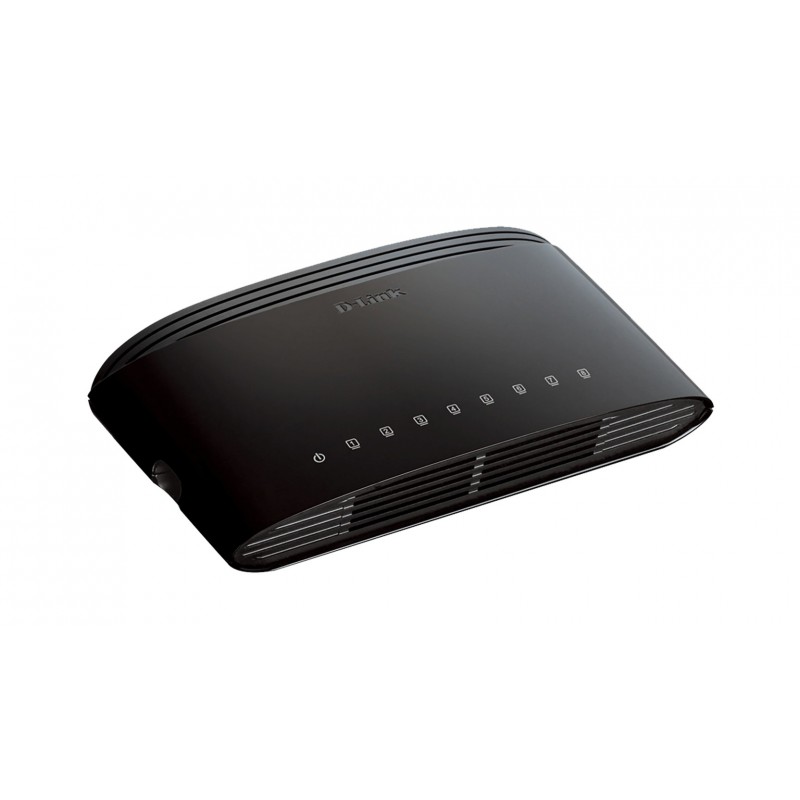

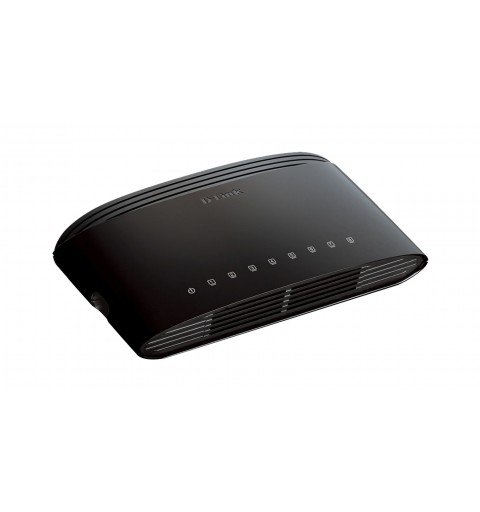

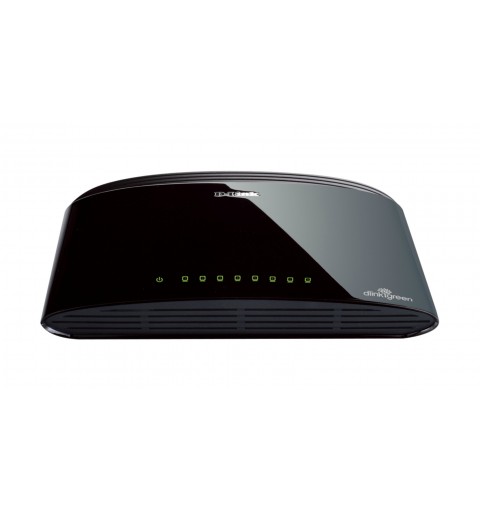

D-Link DES-1008D Unmanaged Fast Ethernet (10/100) Black

8 10/100Mbps Ports - Unmanaged Stand-alone - Layer 2 Switch: This compact palm-sized switch is designed for the home and small offices. It provides 8 10/100Mbps ports to connect to 8 workstations and servers. Hubs can also connect to this switch.

All ports auto-sense the network speed of the computers and hubs to run at either 10Mbps or 100Mbps. The ports also auto-negotiate between full and half duplex and support flow control. Expansion is easy through a MDI uplink port. You cascade several switches together through this port to get more ports.

IEEE 802.3x Flow Control allows your servers to directly connect to this switch for fast, reliable data transfer. At 200Mbps full duplex, this switch provides high-speed data pipes to your Servers with minimum data transfer loss.

Auto-negotiation of MDI/MDIX cross over eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, workstation, a hub or another switch using the usual straight-through twisted-pair cable.

D-Link DES-1008D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1024 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3,IEEE 802.3x. Power connector: DC-in jack

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3,IEEE 802.3x
10G support	N
Copper ethernet cabling technology	100BASE-TX,10BASE-T
Full duplex	Y
Auto MDI/MDI-X	Y
Data transmission
MAC address table	1024 entries
Switching capacity	1 Gbit/s
Design
Rack mounting	N
Stackable	N
Product colour	Black
LED indicators	Y
Performance
Maximum data transfer rate	100 Mbit/s
Mean time between failures (MTBF)	116186 h
Power
Input current	1 A
Output voltage	5 V
Packaging data
Package width	104 mm
Package depth	158 mm
Package height	94 mm
Package weight	310 g
