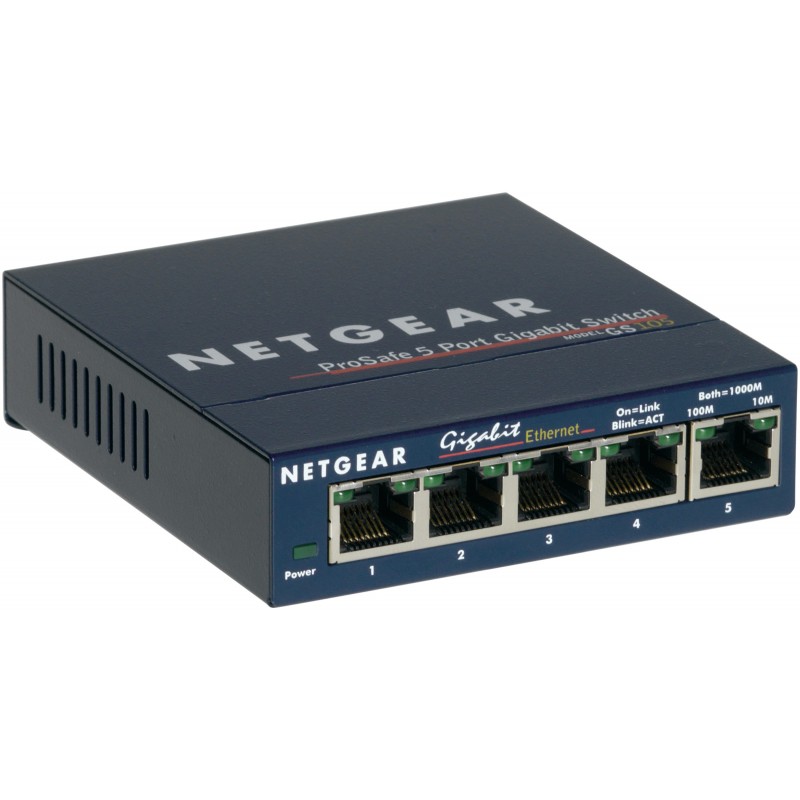

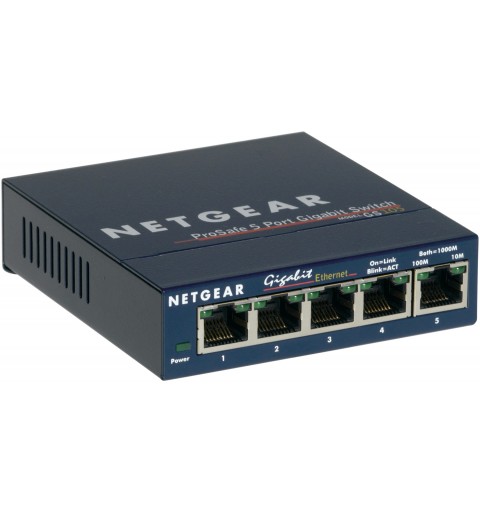

NETGEAR GS105 Unmanaged Gigabit Ethernet (10/100/1000) Blue

Gigabit Power, 10/100 Simplicity

- Connects up to 10x faster than Fast Ethernet for maximum performance†
- Up to 60% lower power consumption
- Auto power-down mode saves energy when port is unused
- Simple to combine Fast Ethernet and Gigabit devices in your network
- Plug-and-play installation delivers ease of use

Features

- ProSafe 5- and 8-port Gigabit Desktop Switches connect your network with the dual advantages of performance and convenience
- Fast, auto-switching Ethernet connection integrates 10, 100, and 1000 Mbps devices into your network
- Supports Windows® and Macintosh® platforms
- LEDs make it easy to monitor link, speed, and activity
- AutoUplink™ technology automatically adjusts for two common types of cables
- Compact metal case for desktop or wall mounting

NETGEAR Green

- Up to 60% lower power consumption
- Auto power-down mode saves energy�0;0;0;3; when port is unused
- Packaging manufactured with at least 80% recycled materials

NETGEAR GS105. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u. DC input voltage: 12 V. Power connector: DC-in jack

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
10G support	No
Copper ethernet cabling technology	1000Base-T, 100Base-TX, 10Base-T
Full duplex	Yes
Flow control support	Yes
Data transmission
MAC address table	2000 entries
Switching capacity	10 Gbit/s
Store-and-forward	Yes
Maximum data transfer rate	1 Gbit/s
Jumbo frames support	Yes
Design
Stackable	No
Product colour	Blue
LED indicators	Yes
Performance
Buffer size	128 KB
Mean time between failures (MTBF)	3197945 h
Power
Power source	DC
Power supply included	Yes
DC input voltage	12 V
Input current	1 A
Power consumption (typical)	3.5 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Weight & dimensions
Width	94 mm
Depth	100 mm
Height	27 mm
Weight	261 g
Logistics data
Harmonized System (HS) code	85176990
Other features
Dimensions (W x D x H) (imperial)	94 x 104.1 x 27.9 mm (3.7 x 4.1 x 1.1")
