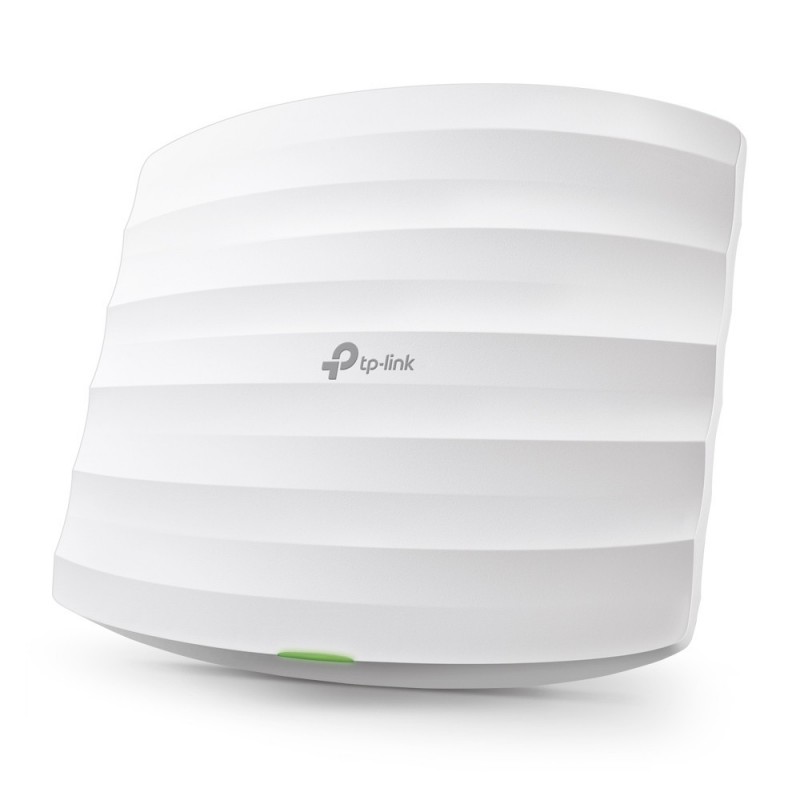

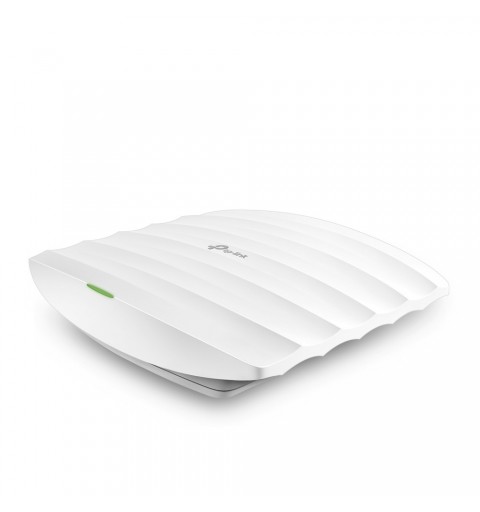

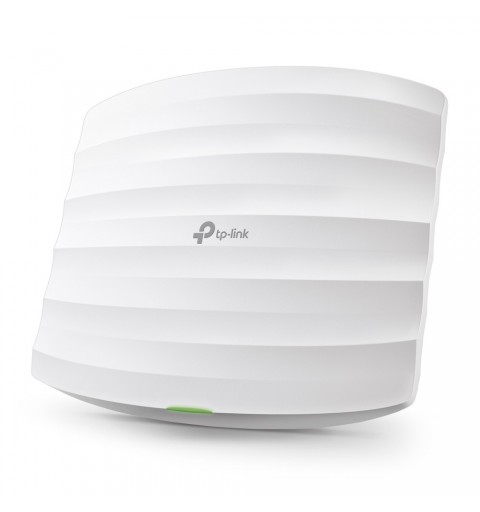

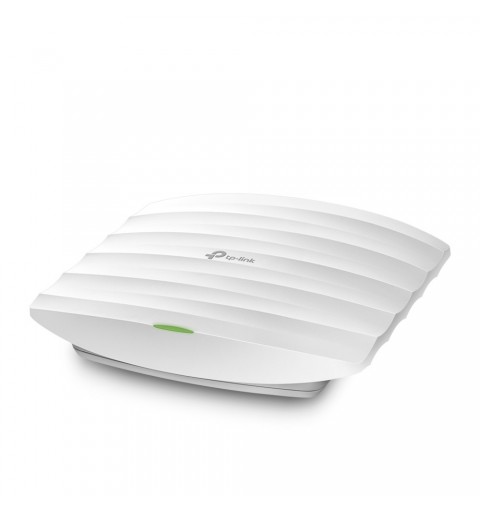

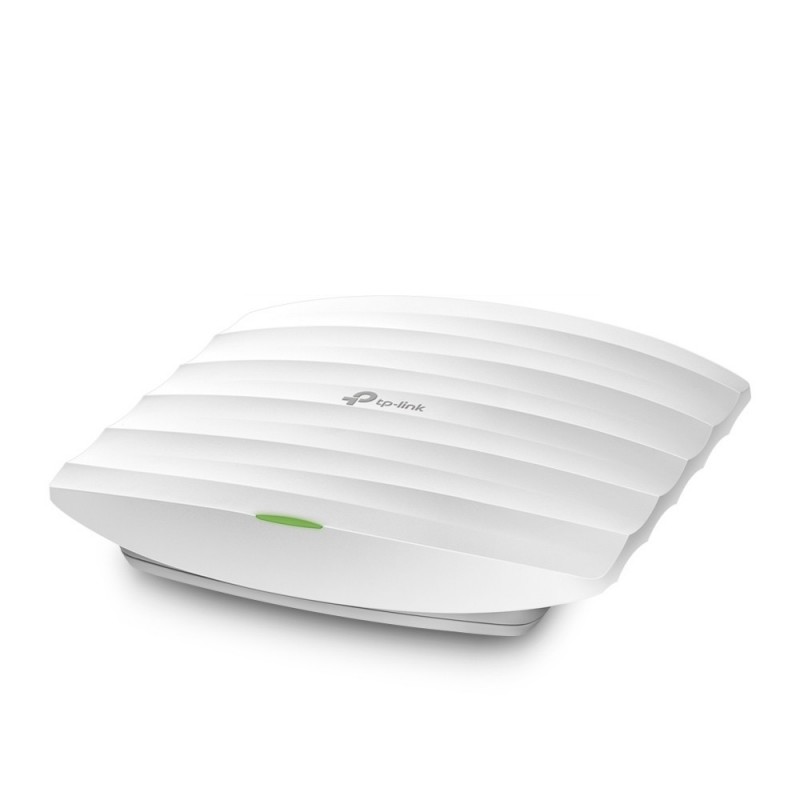

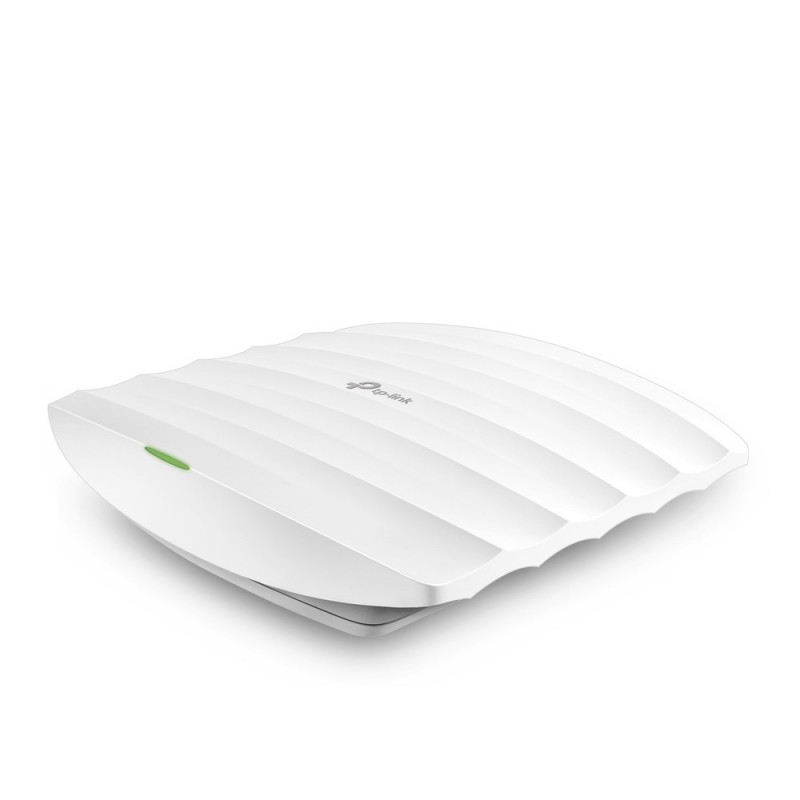

TP-Link EAP225 wireless access point White

Superior Wi-Fi Speeds with MU-MIMO Technology
Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.

Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Facebook check-in and SMS authentication expands your social influence in secured ways
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE injector, making deployment effortless and flexible.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.

TP-Link EAP225. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, Cabling technology: 10/100/1000Base-T(X). Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK. Output voltage: 12 V, Output current: 1.5 A, Power supply: 10.15 W. Product colour: White, LED indicators: Power, WLAN. Width: 180 mm, Depth: 180 mm, Height: 47.5 mm

Features
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.3af
Cabling technology	10/100/1000Base-T(X)
Quality of Service (QoS) support	Y
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
Management features
Web-based management	Y
Ports & interfaces

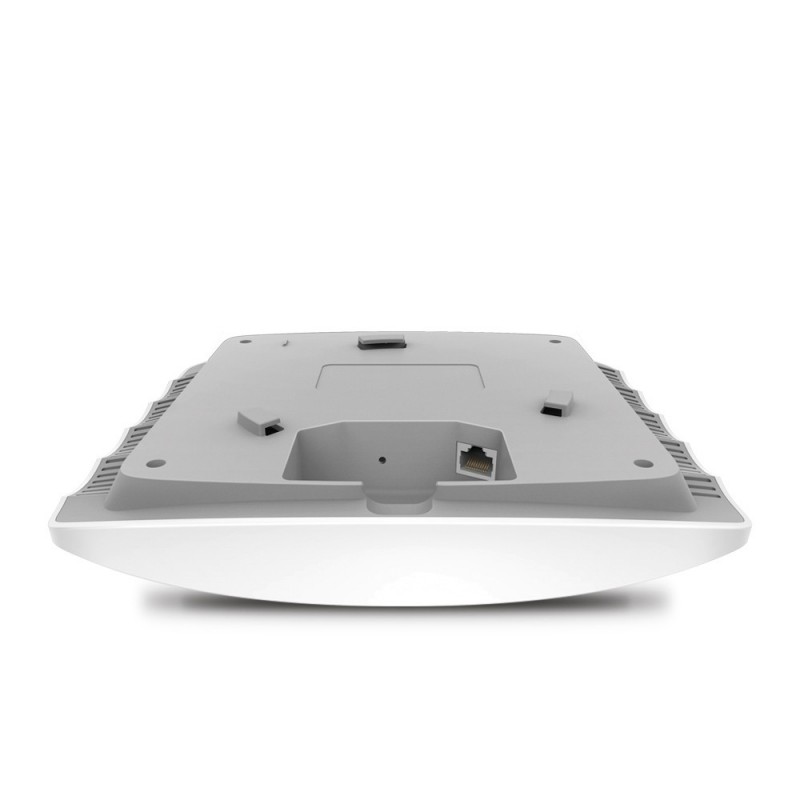

Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Power
Output voltage	12 V
Output current	1.5 A
Power supply	10.15 W
Design
Product colour	White
On/off switch	Y
Reset button	Y
LED indicators	Power, WLAN
Weight & dimensions
Width	180 mm
Depth	180 mm
Height	47.5 mm
Packaging data
Package type	Box
Packaging content
Number of products included	1 pc(s)
AC adapter included	Y
Quick start guide	Y
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Harmonized System (HS) code	85176990
