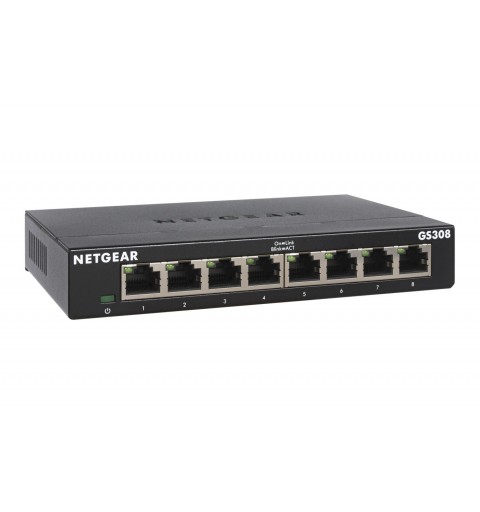

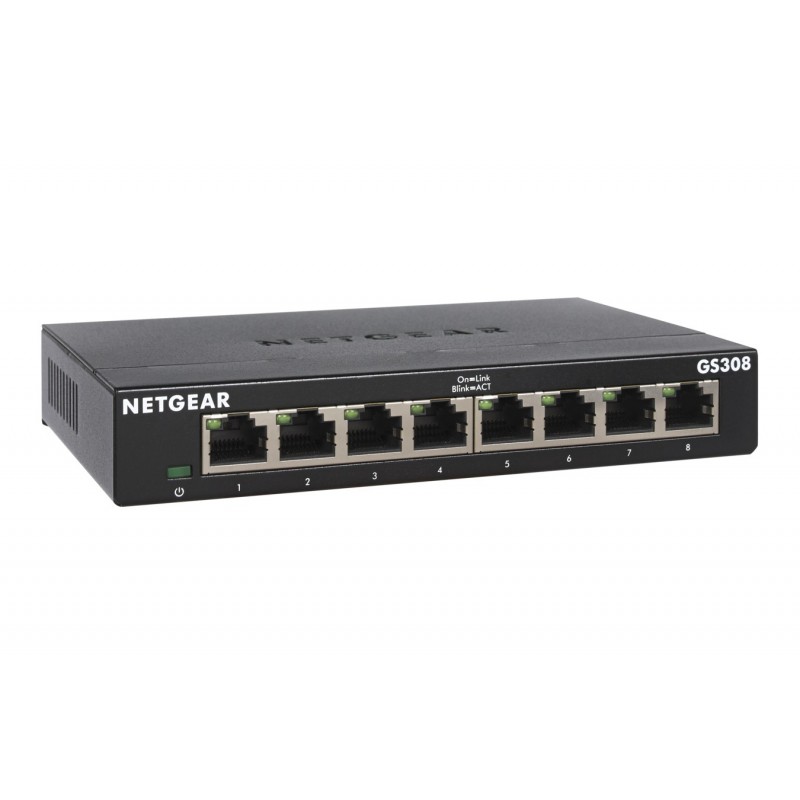

NETGEAR GS308-300PES network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. With these unmanaged plug-andplay switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.

NETGEAR GS308-300PES. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u. Power connector: DC-in jack. Wall mountable

Management features
Switch type	Unmanaged
Switch layer	L2
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8

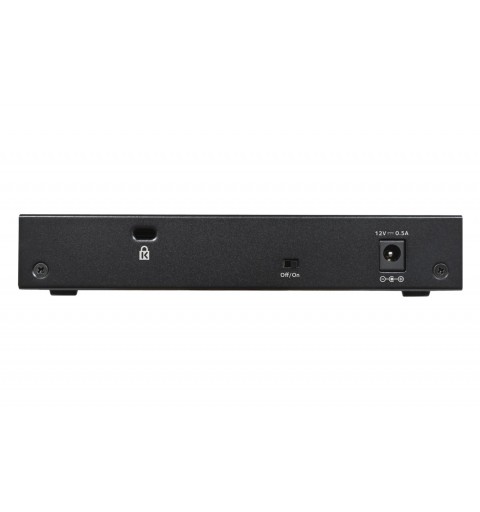

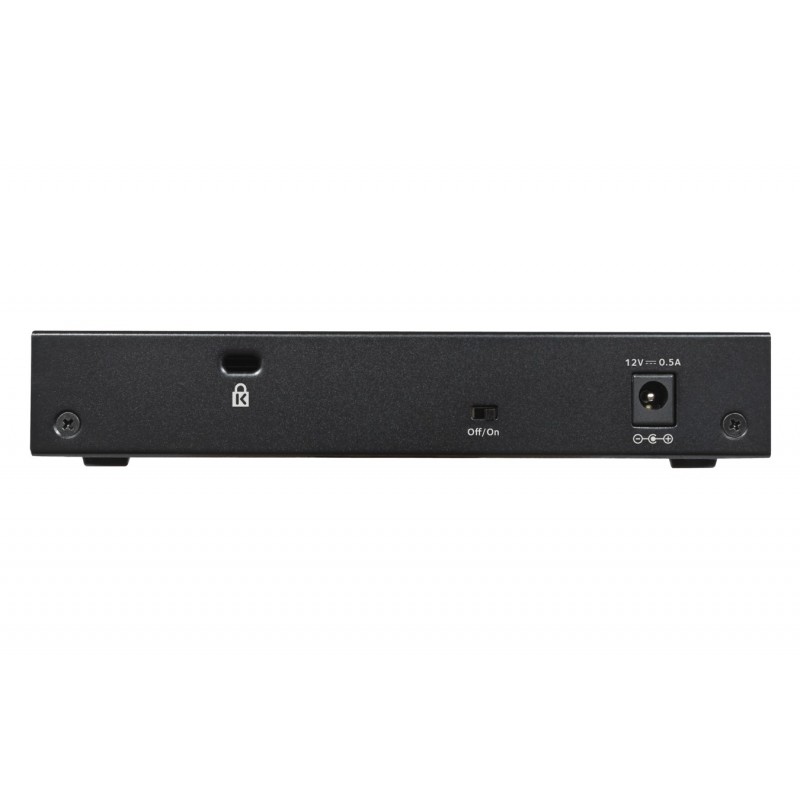

Power connector	DC-in jack
Network
Networking standards	IEEE 802.1p, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable length detection	Yes
Data transmission
MAC address table	8000 entries
Switching capacity	16 Gbit/s
Forwarding rate	1.448 Mpps
Latency (1 Gbps)	2.6 µs
Jumbo frames support	Yes
Jumbo frames	9216
Packet buffer memory	128 MB
Design
Rack mounting	No
Product colour	Black
Housing material	Metal
LED indicators	Activity, Link, Power
Wall mountable	Yes
Certification	CE Mark FCC Part 15 Class B IC Class B RCM CCC VCCI KC
Performance
Mean time between failures (MTBF)	3711898 h
Power
Power consumption (max)	3.04 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Heat dissipation	10.4 BTU/h
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	29 mm
Weight	390 g
Logistics data
Harmonized System (HS) code	85176990
