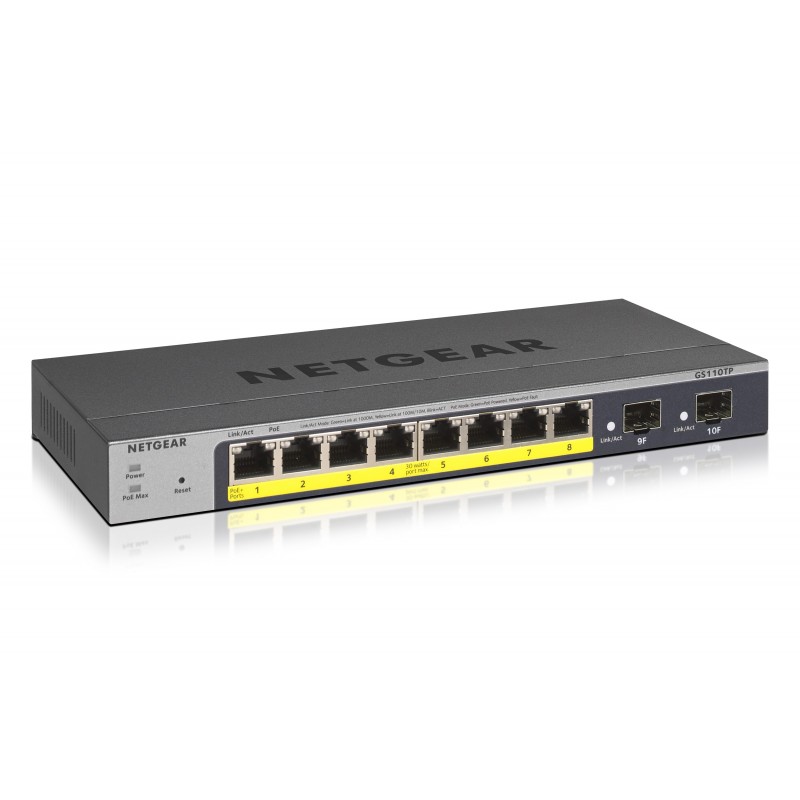

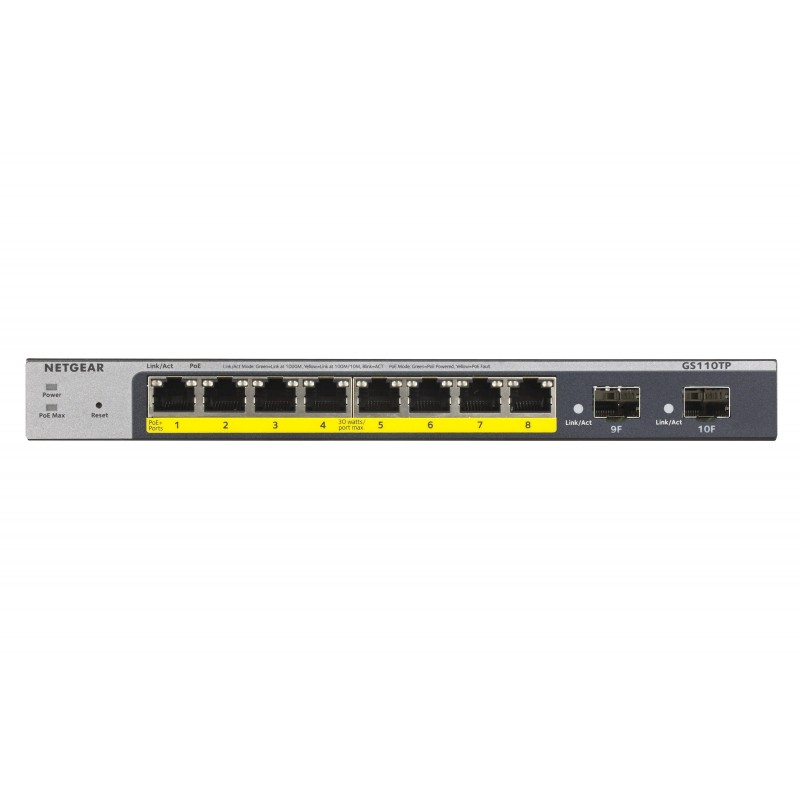

NETGEAR GS110TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

The NETGEAR GS110TPv3 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy PoE devices with a reasonable PoE power budget of 55W. Each PoE port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting. The GS110TPv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR’s Lifetime Limited Warranty and 24/7 support including lifetime chat.

NETGEAR GS110TP. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 54 V. Power over Ethernet (PoE)

Management features
Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP module slots quantity	2
Network
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
MAC address auto-learning supported	Yes
Number of VLANs	64
Data transmission
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Packet buffer memory	0.5 MB
Security
DHCP features	DHCP client
Access Control List (ACL)	Yes
Access Control List (ACL) IPv6 entries	100
IGMP snooping	Yes
MAC address filtering	Yes
Multicast features
Multicast support	Yes
IPv4 multicast entries	32
Number of multicast groups filtered	256
Protocols
Management protocols	SNMP
Switching protocols	SNMP
Data link protocols	Ethernet, Fast Ethernet, Gigabit Ethernet
Supported network protocols	HTTP, HTTPS
Design
Rack mounting	No
Product colour	Grey
LED indicators	Activity, LAN, Link, PoE, Power, Speed
Certification	CE, FCC, VCCI Class B, C-Tick
Performance
Processor frequency	500 MHz
Memory type	RAM
Internal memory	128 MB
Flash memory	32 MB
Mean time between failures (MTBF)	1200041 h
Power
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC input voltage	54 V
Input current	1.25 A
Power consumption (max)	15.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Power over Ethernet (PoE) power per port	55 W
Total Power over Ethernet (PoE) budget	69.5 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Heat dissipation	237.38 BTU/h
Weight & dimensions
Width	236 mm
Depth	101 mm
Height	27 mm
Weight	610 g
Logistics data
Master (outer) case width	274 mm
Master (outer) case length	350 mm
Harmonized System (HS) code	85176990
Master (outer) case gross weight	9.73 kg
Products per master (outer) case	6 pc(s)
