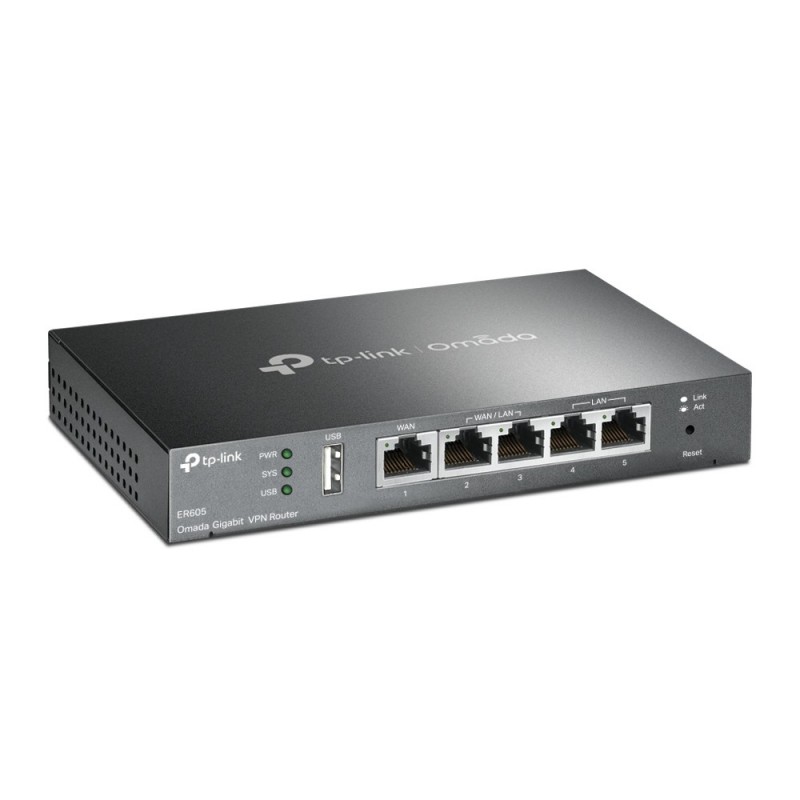

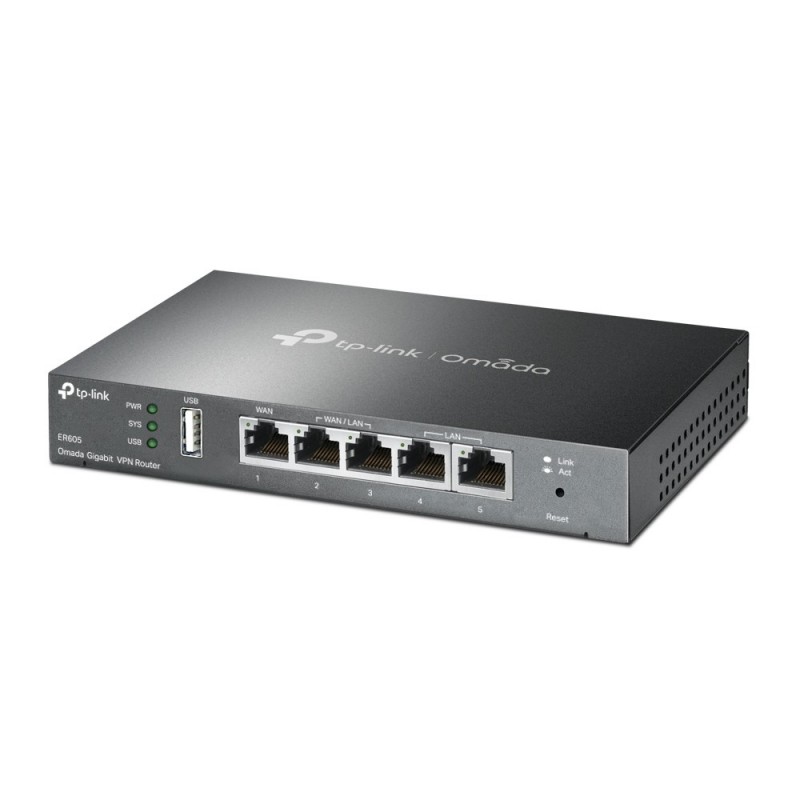

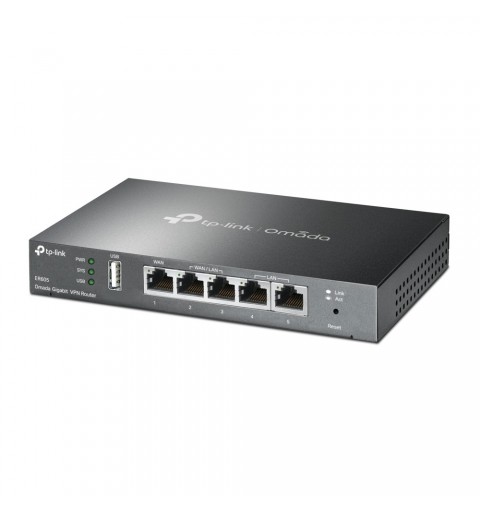

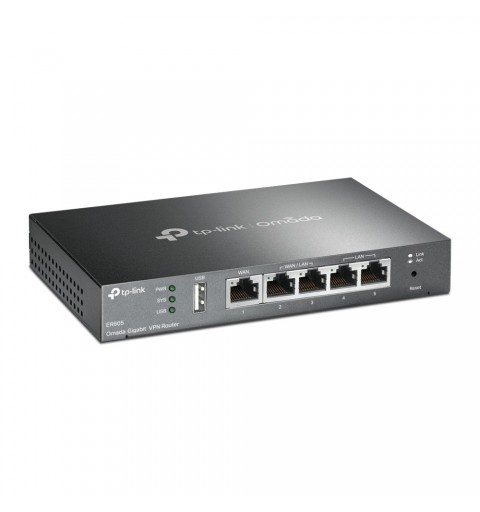

TP-Link ER605 v2 wired router Gigabit Ethernet Black

Omada Gigabit VPN Router

Professional, Secure, and Reliable Gigabit VPN Router

Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband
Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup.

High-Security and High-Performance VPN
ER605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment. It also secures and encrypts private site-to-site data communications traveling over the internet. This version improves VPN performance by 4–5 times thanks to the open line of communication with Omada's user base.

Abundant Security Features

Powerful Firewall
Advanced firewall policies protect your network and data.

Convenient VLAN Support
Create virtual network segments for enhanced security and simplified network management.

DoS Defense
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

IP/MAC/URL Filtering
Forcefully prevent viruses and attacks from intruders.

IP-MAC Binding
Reserves static IP assignment for clients to defend against ARP attacks and spoofing.

One-Click ALG Activation
One-Click ALG Activation for applications such as FTP, H323, SIP, IPSec and PPTP.

Internet Access Management Strategy
Administrators can moderate users' online behavior and easily specify employees' internet access rights and strategies via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a mobile device.

TP-Link ER605 v2. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Routing protocols: RIP-1, RIP-2, Management protocols: Telnet, Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, Authentication method: SHA-1, MD5, VPN support: • 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode •.... Flash memory: 128 MB, Internal memory: 256 MB, Internal memory type: DRAM. Product colour: Black, Rack capacity: 1U, LED indicators: Activity, LAN, System, USB, WAN

WAN connection
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
Network
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Traffic control	Yes
Policy-based routing	Yes
Concurrent connections	150000
Management features
Web-based management	Yes
Universal Plug and Play (UPnP)	Yes
Reset button	Yes
Ports & interfaces

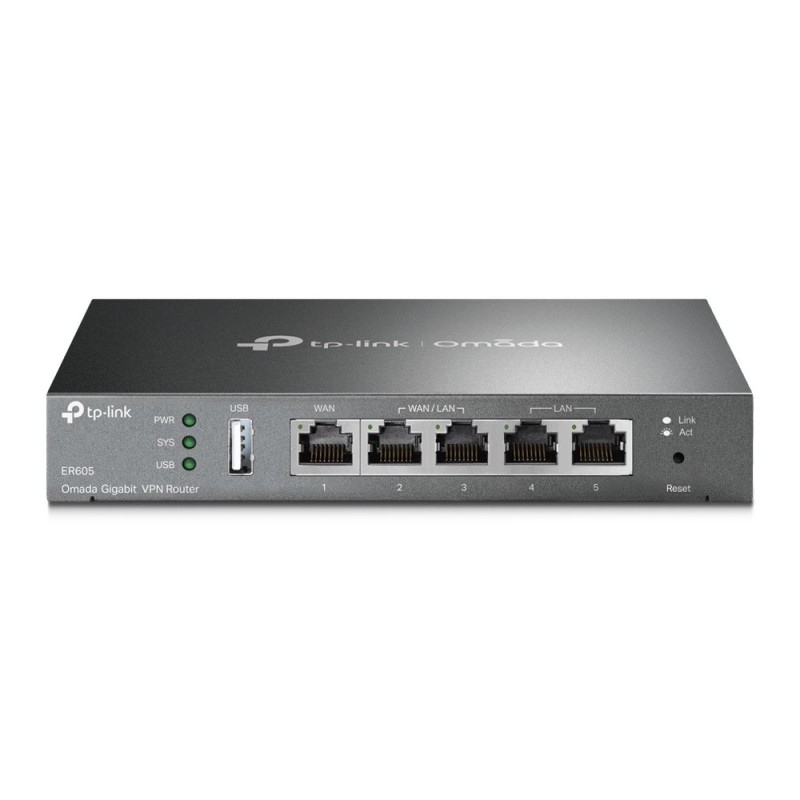

Ethernet LAN (RJ-45) ports	5
USB ports quantity	1
Protocols
DHCP server	Yes
DMZ support	Yes
Routing protocols	RIP-1, RIP-2
Management protocols	Telnet
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
Supported protocols	IPsec/PPTP/L2TP
Security
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1
Firewall	Yes
Authentication method	SHA-1, MD5
URL filtering	Yes
DoS attack prevention	Yes
ARP attack prevention	Yes
Network address translation (NAT)	Yes
System event log	Yes
VPN tunnels quantity	20
VPN support	• 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) • PPTP VPN Server • 10 PPTP VPN Clients • 16 Tunnels • PPTP with MPPE Encryption • L2TP VPN Server • 10 L2TP VPN Clients • 16 Tunnels • L2TP over IPSec • OpenVPN Server • 10 OpenVPN Clients • 16 OpenVPN Tunnels
NAT functionality	• One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Features
Flash memory	128 MB
Internal memory	256 MB
Internal memory type	DRAM
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported	MacOS
Linux operating systems supported	Yes
Certification	CE, FCC, RoHS
Design
Product colour	Black
Rack mounting	Yes
Rack capacity	1U
LED indicators	Activity, LAN, System, USB, WAN

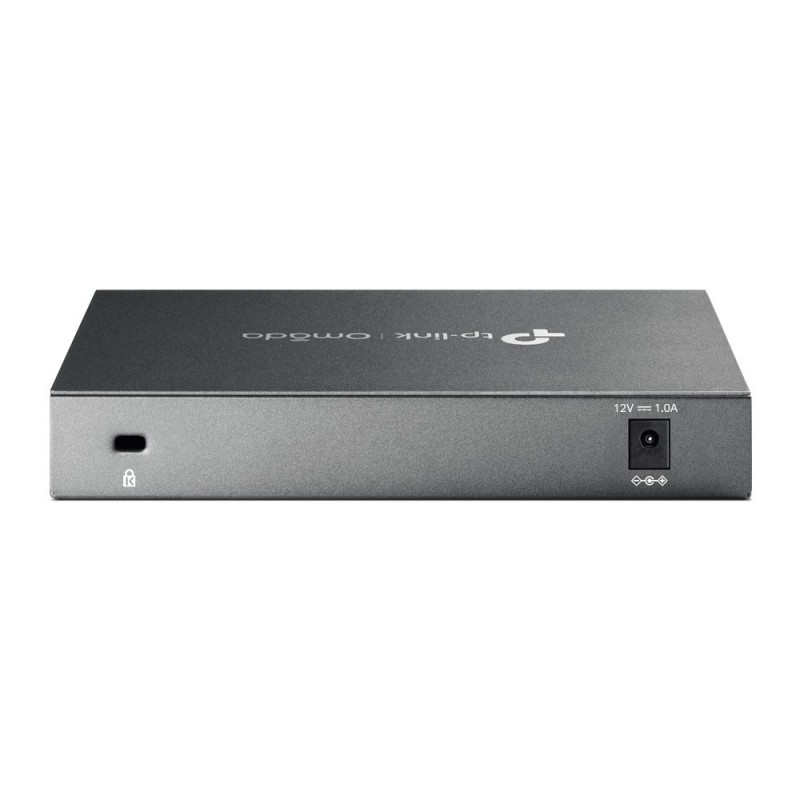

Power
Power consumption (typical)	7.94 W
Power source type	AC
AC input voltage	120 - 240 V
AC input frequency	50 - 60 Hz
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	158 mm
Depth	101 mm
Height	25 mm
Packaging data
Cables included	AC
Manual	Yes
Quick installation guide	Yes
