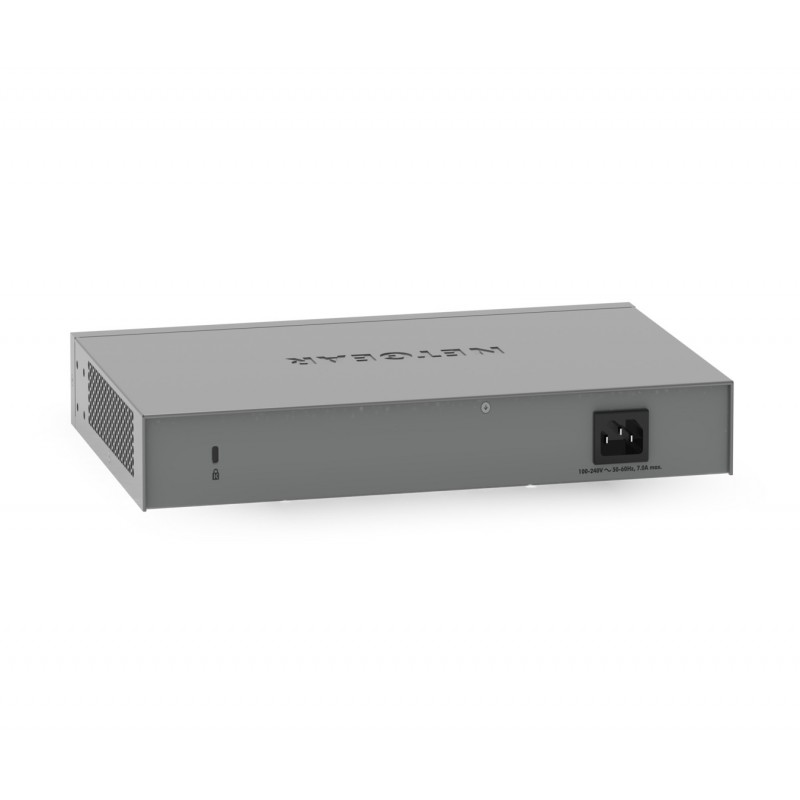

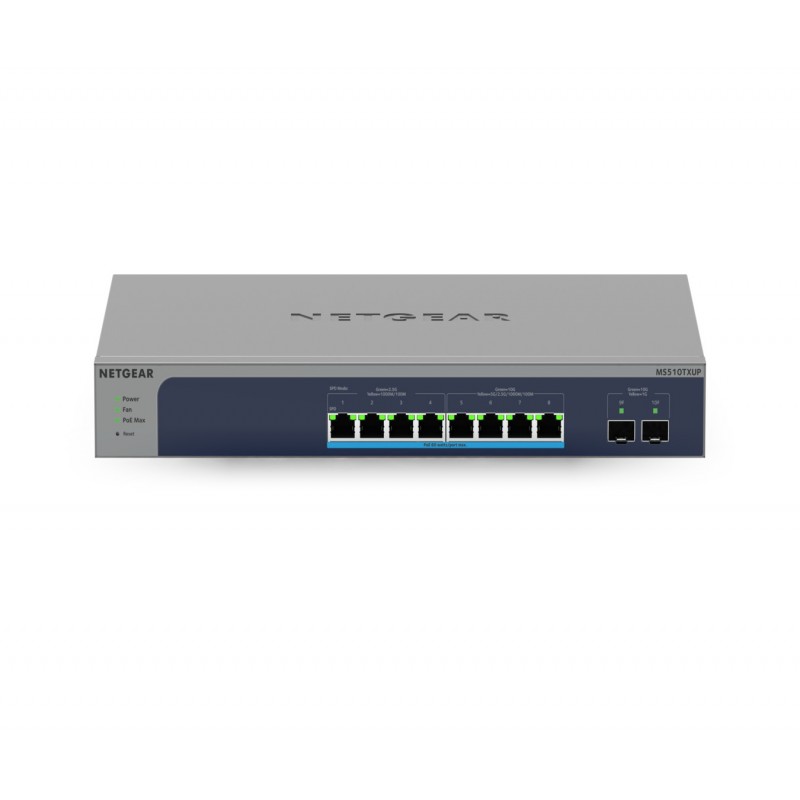

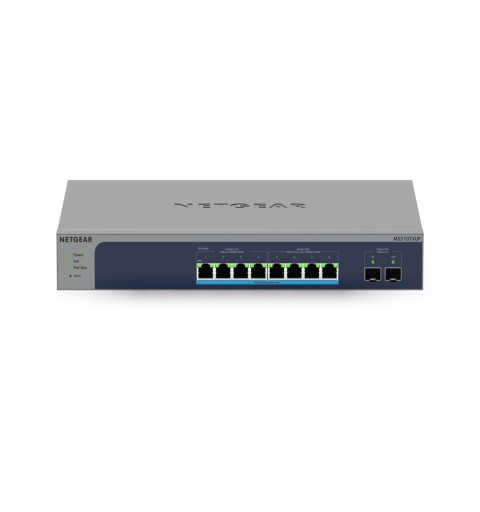

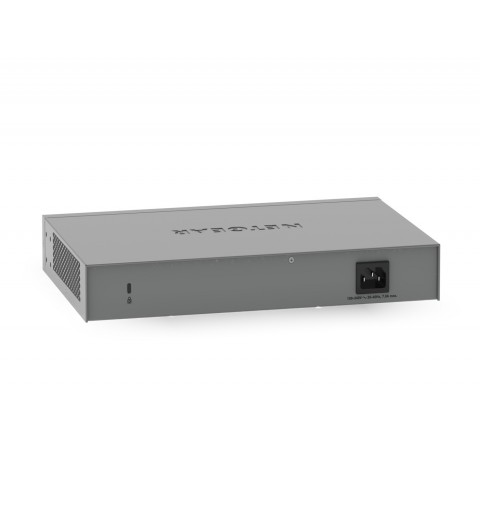

NETGEAR MS510TXUP network switch Managed L2/L3/L4 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey, Blue

The NETGEAR® MS510TXUP 8-Port Ultra60 PoE++ Multi-Gigabit Smart Managed Pro Switch comes with 2 fiber 10G uplinks. Organizations that buy infrastructure for the long term and want future proofing can now deploy denser PoE+ and even PoE++ devices with 295W power budget and 2.5G / 5G /10G speeds. The ideal companion to the MS510TXUP is the NETGEAR WAX610 WiFi 6 Access Point that features a 2.5G Ethernet port.

MS510TXUP provides a total PoE budget of 295W and advanced PoE features such as uninterrupted PoE for powerful PoE applications. The switch provides four auto-adapt multispeed Gigabit PoE+/PoE++ RJ-45 ports that support 2.5G, and 1G; another four multi-speed Gigabit PoE+/PoE++ RJ-45 ports that support 10G, 5G, 2.5G and 1G, and two dedicated SFP+ fiber uplink port that supports 10G and 1G. Each of the 5 multi-Gig Ethernet ports automatically detects which speed is needed by the connected device and provides the adequate connection speed.

NETGEAR MS510TXUP. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 32000 entries, Switching capacity: 140 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting

Management features
Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Yes
Cloud-managed	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	2
Network
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G support	Yes
Copper ethernet cabling technology	1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
VLAN support	Yes
Number of VLANs	256
Data transmission
MAC address table	32000 entries
Switching capacity	140 Gbit/s
Jumbo frames support	Yes
Jumbo frames	10000
Security
DHCP features	DHCP client, DHCP server
Access Control List (ACL)	Yes
Access Control List (ACL) ingress	100
IGMP snooping	Yes
Loop protection	Yes
Multicast features
Multicast support	Yes
Protocols
Management protocols	SNMP v1/v2c,SNMP v3
Design
Rack mounting	Yes
Product colour	Grey, Blue
LED indicators	Activity, Power, Speed
Performance
Built-in processor	Yes
Processor frequency	1000 MHz
Internal memory	256 MB
Flash memory	64 MB
Power
Power supply included	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE) power per port	60 W
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Weight & dimensions
Width	330 mm
Depth	206 mm
Height	43 mm
Logistics data
Harmonized System (HS) code	85176990
