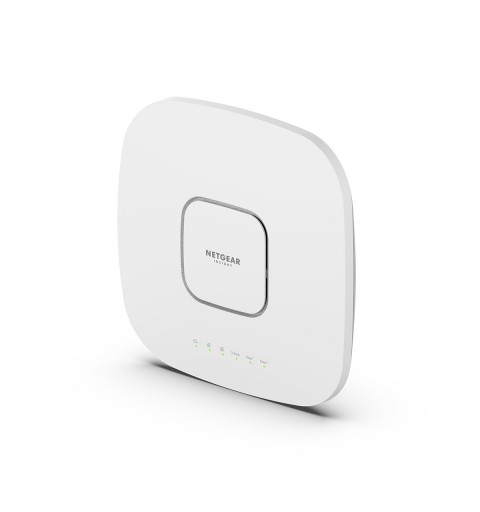

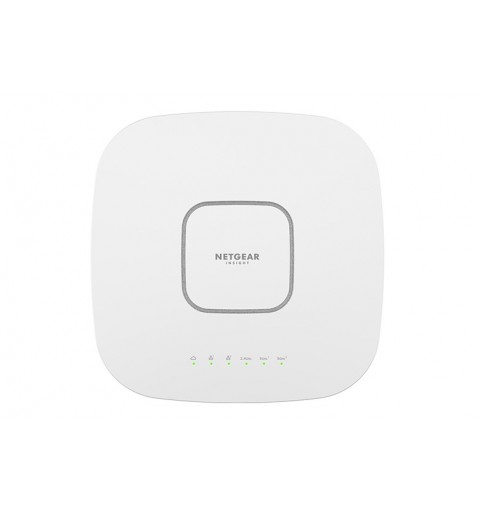

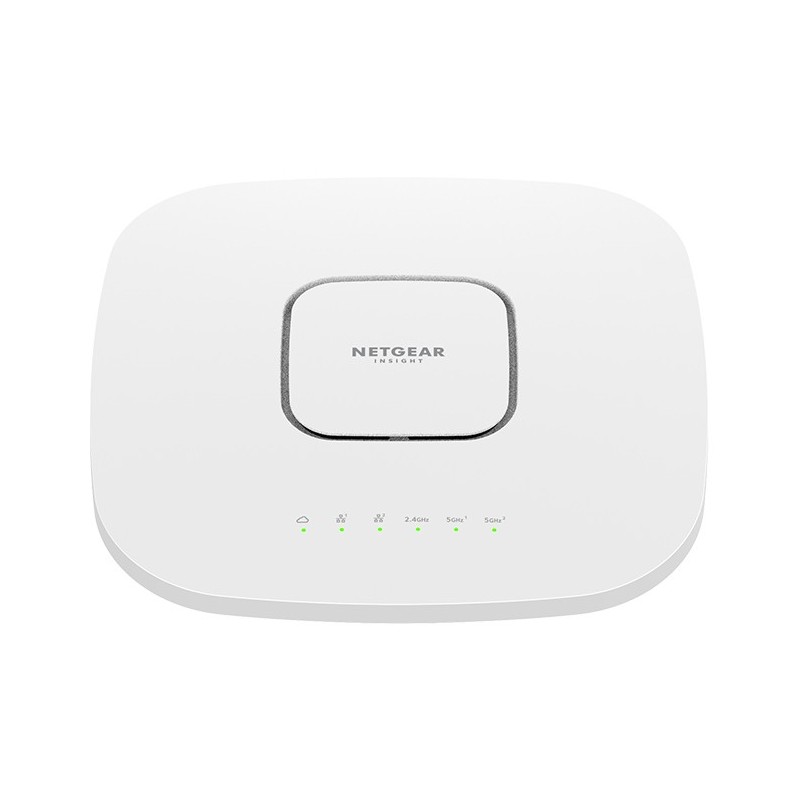

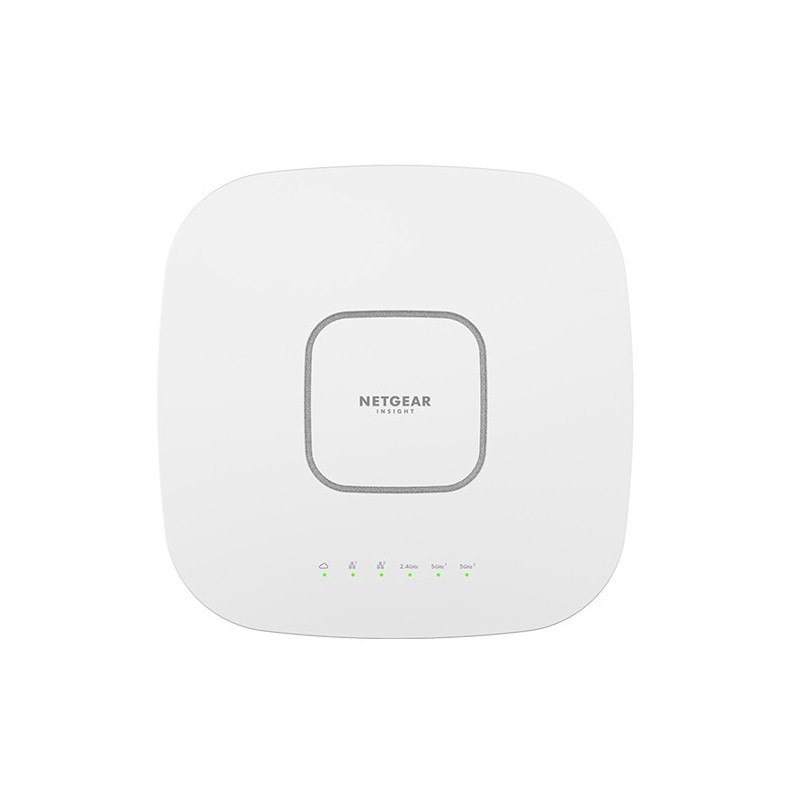

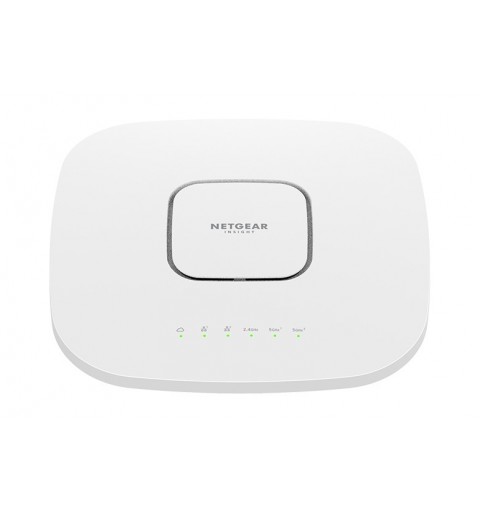

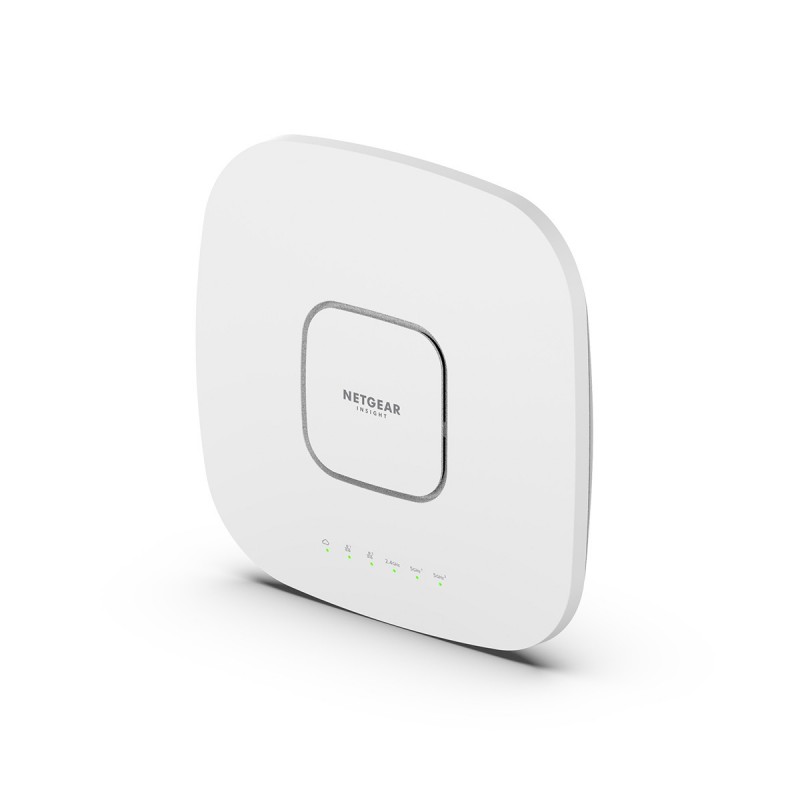

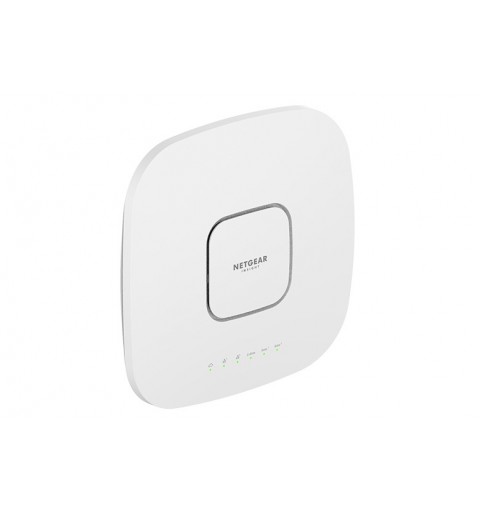

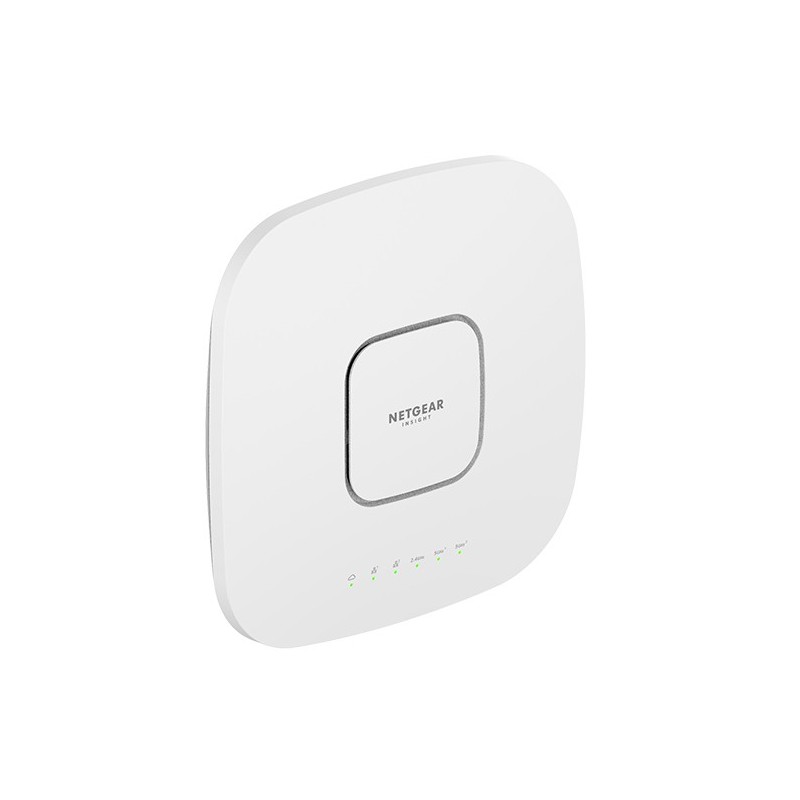

NETGEAR Insight Cloud Managed WiFi 6 AX6000 Tri-band Multi-Gig Access Point (WAX630) 6000 Mbit/s White Power over Ethernet (PoE)

Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for small and medium sized business.

REMOTE CLOUD MANAGEMENT
Plug-and-play set up and remote management of small business networks

NETWORK TOPOLOGY
A single, holistic view of wired and wireless networks for further troubleshooting

HIGH-DENSITY WIFI MANAGEMENT
Deep wireless management features with more tools to deploy small and large WiFi networks

Business-Level Security
WPA3 for the highest level of WiFi connection security

8 Wireless Networks (SSIDs)
Separate VLANs and WPA3 makes WAX630 the ideal network configuration for SMBs for security and manageability

Separate VLANs
Keep admin, employee, visitor, HR, Finance department networks safely separated from each other
NETGEAR INSIGHT FOR VARS
Multi-location & multi-tenant remote network management from a single pane-of-glass

Easy Setup
Set up, configure, and manage with NETGEAR Insight

Remote Management
Remote Cloud monitoring and management with NETGEAR Insight for single pane of glass management of all your Insight Managed devices. 1-Year Insight subscription included

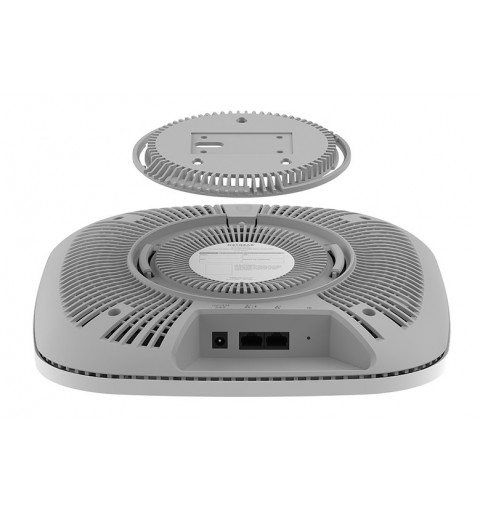

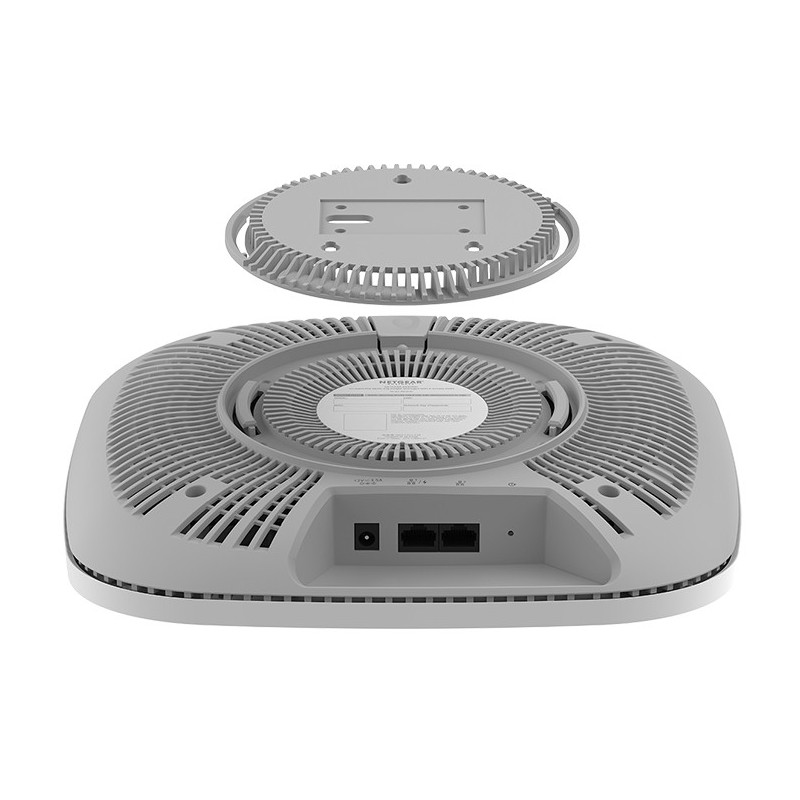

Flexible Mounting
Easy to securely install on the wall of a suspended ceiling with the hardware included

NETGEAR Insight Cloud Managed WiFi 6 AX6000 Tri-band Multi-Gig Access Point (WAX630). Maximum data transfer rate: 6000 Mbit/s, Maximum data transfer rate (2.4 GHz): 1200 Mbit/s, Maximum data transfer rate (5 GHz): 2400 Mbit/s. Security algorithms: EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3, Service Set Identifier (SSID) features: SSID broadcast, SSID broadcast on/off. Output voltage: 12 V, Output current: 3.5 A. Placement: Ceiling, Wall, Product colour: White. Antenna type: Internal, Antenna gain level (max): 4.3 dBi

Features
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	6000 Mbit/s
Maximum data transfer rate (2.4 GHz)	1200 Mbit/s
Maximum data transfer rate (5 GHz)	2400 Mbit/s
Ethernet LAN data rates	100,1000,2500 Mbit/s
Networking standards	IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at
Number of users	200 user(s)
Auto MDI/MDI-X	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDM, OFDMA
Modulation	OFDM
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Security
Security algorithms	EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3
MAC address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast, SSID broadcast on/off
Remote Authentication Dial-In User Service (RADIUS)	Yes
Management features
Web-based management	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
Power over Ethernet (PoE)	Yes
Output voltage	12 V
Output current	3.5 A
Design
Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
LED indicators	Yes
Antenna
Antenna type	Internal
Antenna gain level (max)	4.3 dBi
Weight & dimensions
Width	266.6 mm
Depth	268.3 mm
Height	55.5 mm
Weight	956 g
Packaging content
Number of products included	1 pc(s)
Mounting kit	Yes
Quick start guide	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Logistics data
Harmonized System (HS) code	85176990
