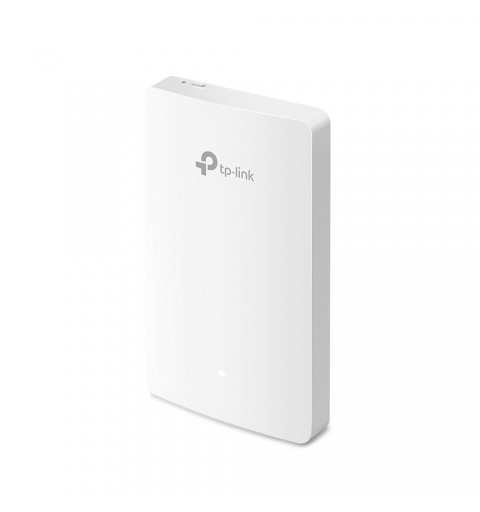

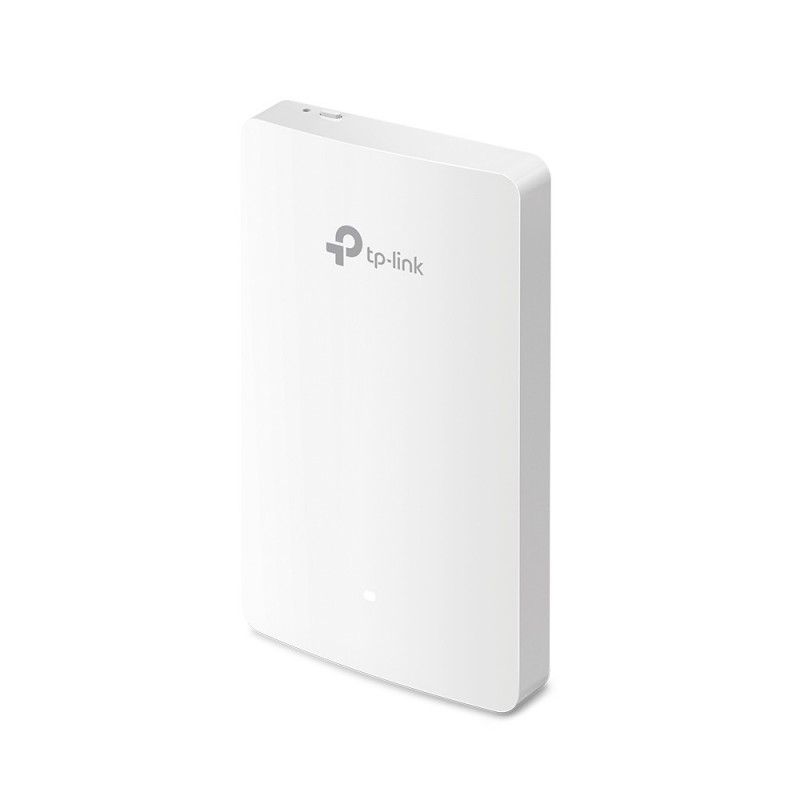

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

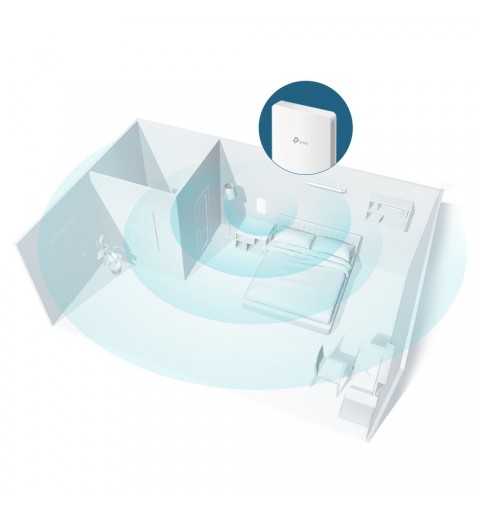

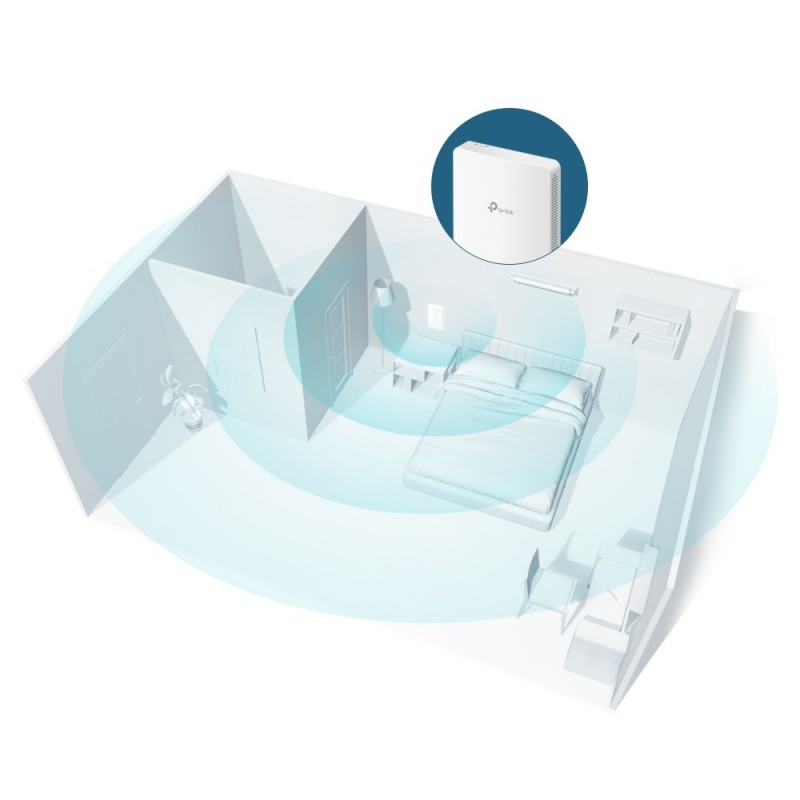

Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that’s fast, delivering a strong signal, and providing corner to corner coverage.

MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.

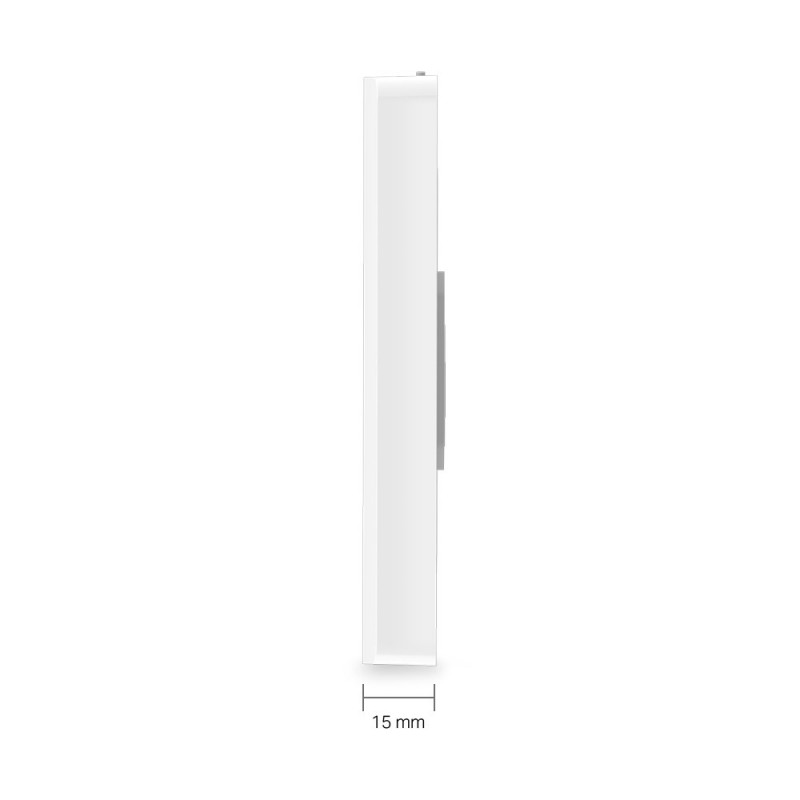

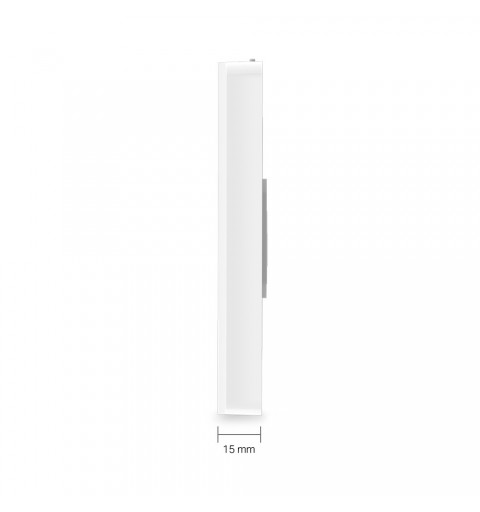

Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available—only 15 mm—featuring a sleek, minimalist appearance. Designed to blend in with the décor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.

Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there’s no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you’re ready to go.

Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

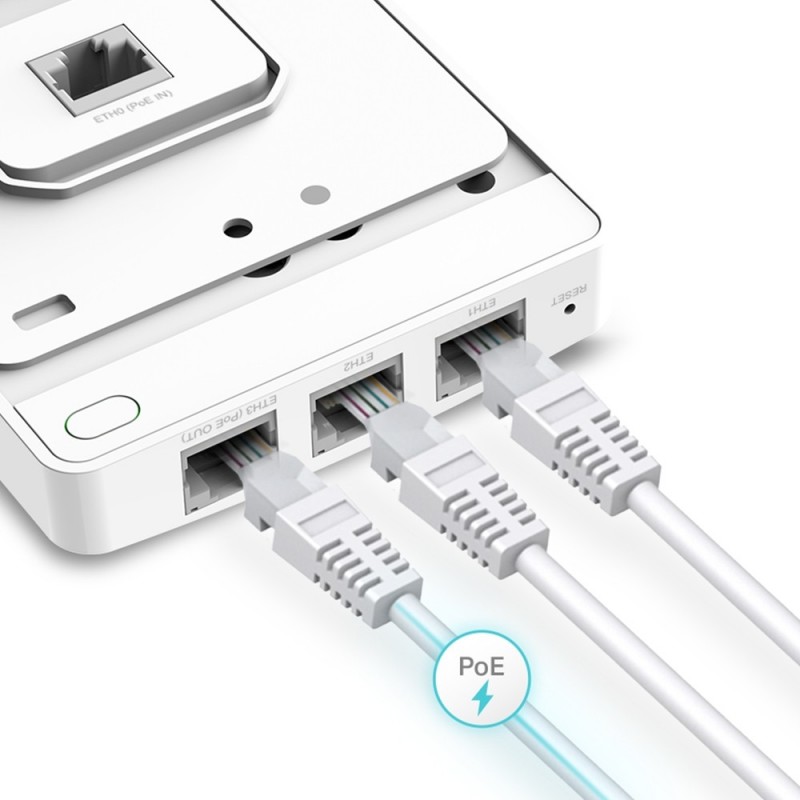

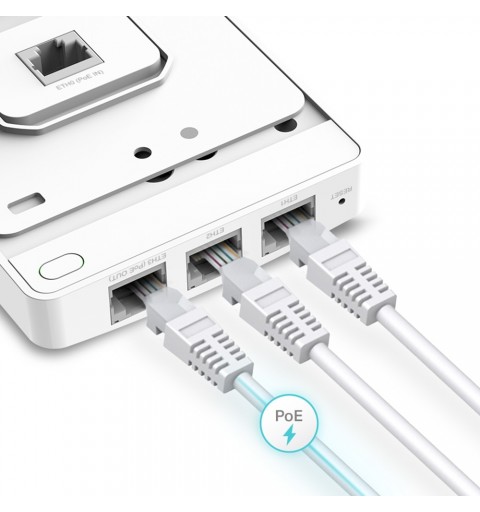

Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point. Maximum data transfer rate: 867 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Maximum data transfer rate (5 GHz): 867 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA,.... WAN connection: Ethernet (RJ-45). Power over Ethernet (PoE) type supported: Active PoE, Passive PoE, Power consumption (typical): 24.4 W. Placement: Wall, Product colour: White, LED indicators: LAN, Power, Status, WAN, WLAN

Features
2.4 GHz	Yes
6 GHz	No
Maximum data transfer rate	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Cabling technology	10/100/1000Base-T(X)
Automatic channel scanning	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Rate limiting	Yes
Wireless isolation	Yes
Quality of Service (QoS) support	Yes
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
Number of SSID supported	16
Remote Authentication Dial-In User Service (RADIUS)	Yes
Access Control List (ACL)	Yes
Protocols
Universal Plug and Play (UPnP)	Yes
Management features
Web-based management	Yes
Syslog	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	4
WAN connection	Ethernet (RJ-45)
Power
Power over Ethernet (PoE) type supported	Active PoE, Passive PoE
Power consumption (typical)	24.4 W
Design
Placement	Wall
Product colour	White
Reset button	Yes
LED indicators	LAN, Power, Status, WAN, WLAN
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	4 dBi
Weight & dimensions
Width	143 mm
Depth	86 mm
Height	20 mm
Packaging data
Package type	Box
Packaging content
Number of products included	1 pc(s)
Mounting kit	Yes
Quick start guide	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Harmonized System (HS) code	85176990
