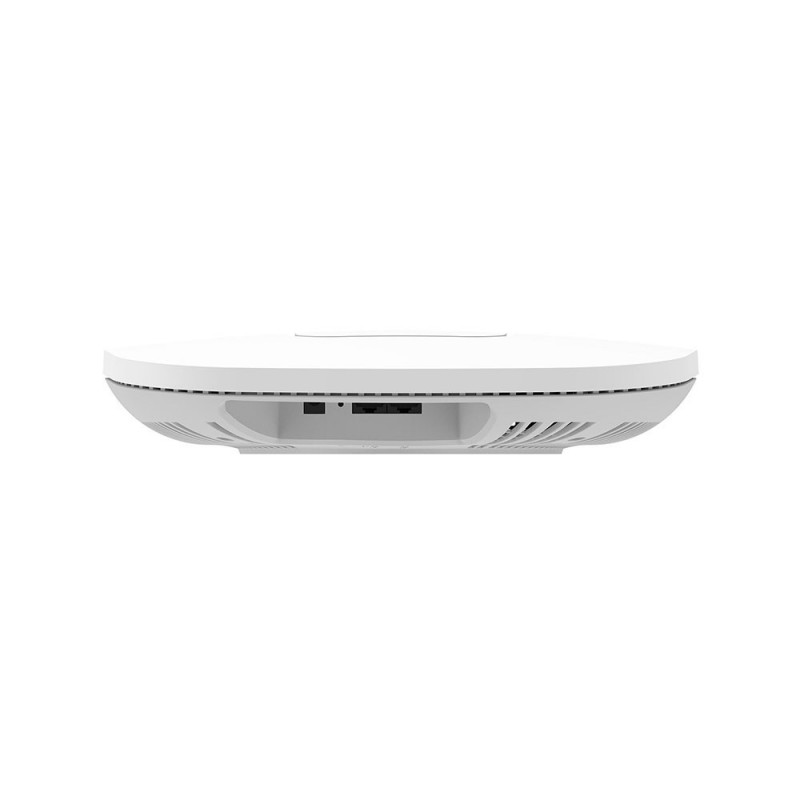

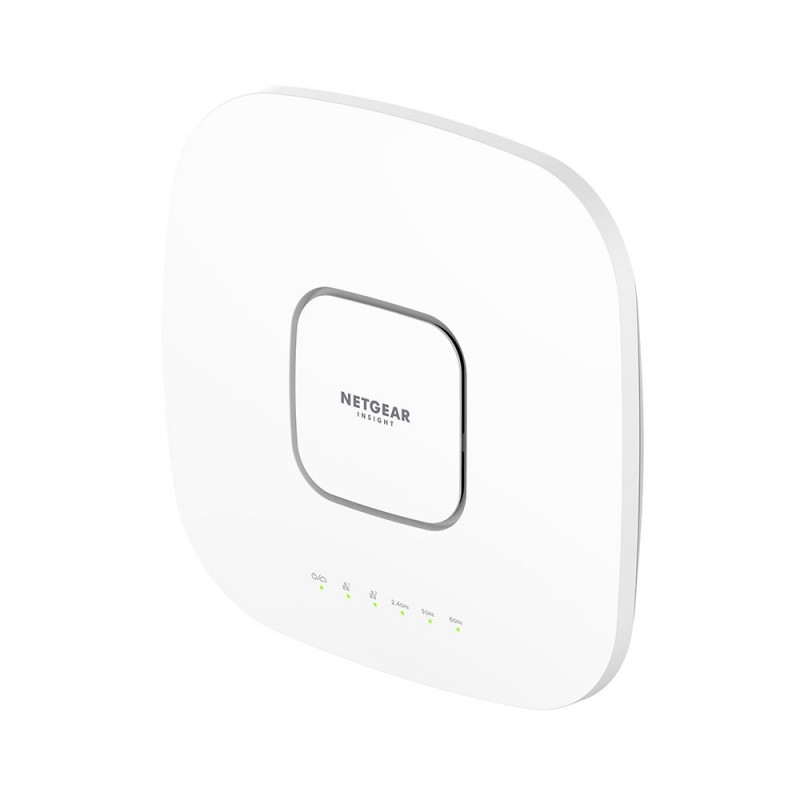

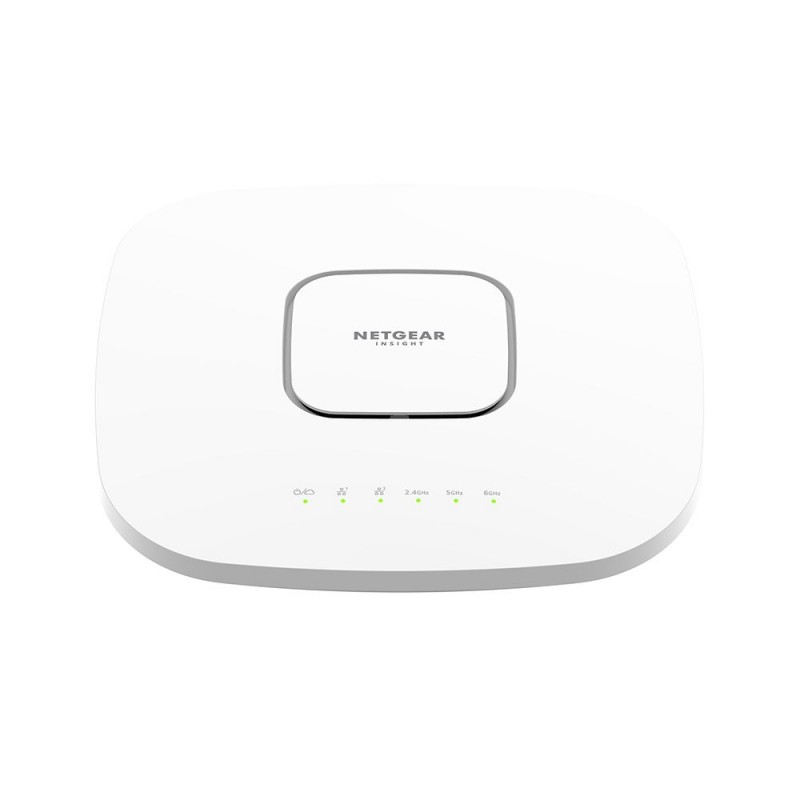

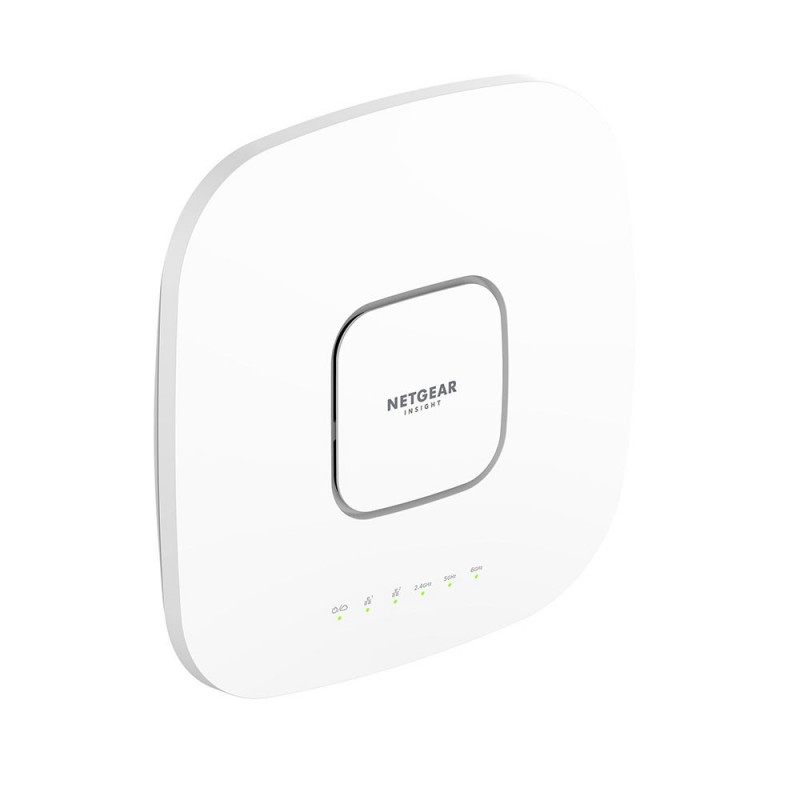

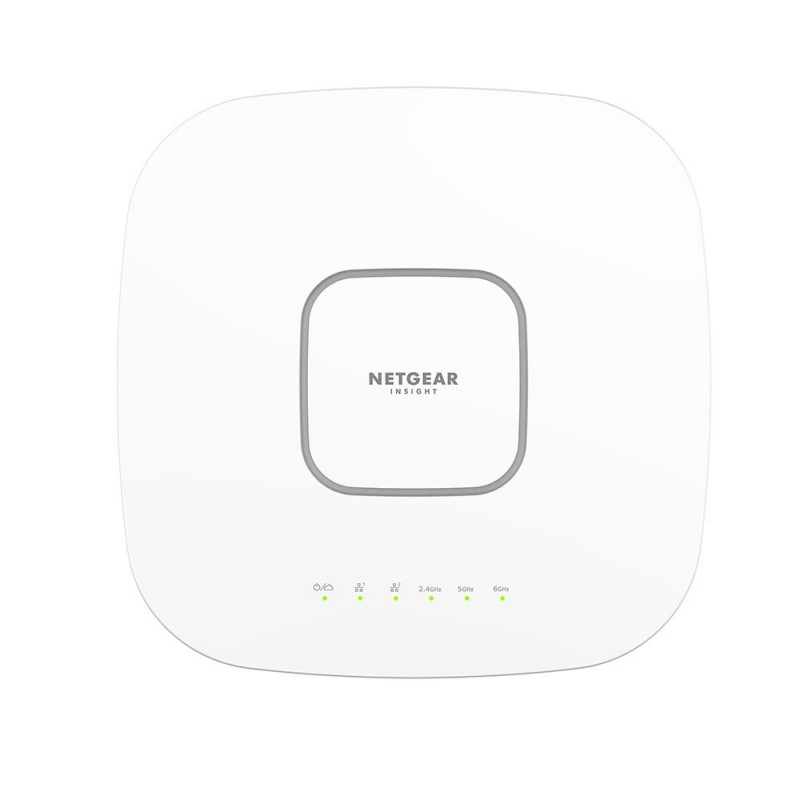

NETGEAR WAX630E 7800 Mbit/s White Power over Ethernet (PoE)

First Tri-Band WiFi 6E access point, WAX630E is the most powerful SMB access point in the industry. With WiFi 6E, a new 6Ghz band added to WiFi 6 making it the fastest WiFi available. Offers the features and capabilities of WiFi 6 access points, including higher performance, lower latency, and faster data rates, and extends into the new 6 GHz band for expanded spectrum capacity.

Wifi 6e, The Fastest Wifi Ever
WAX630E adds a new 6GHz band for new high-performance WiFi 6E devices like laptops and smartphones, reducing data loads on the other two bands so WiFi speed increases for every device connected to the access point.

Netgear Insight Remote Management
Manage locally or remotely through the Cloud for simple
yet powerful control of your network anytime, anywhere. Includes 1-year subscription.

Maximize Performance
WITH A NETGEAR POE++ SWITCH
2.5Gbps Ethernet port with Ultra60 PoE++ enables the fastest connection between the access point and switch

NETGEAR WAX630E. Maximum data transfer rate: 7800 Mbit/s, Maximum data transfer rate (2.4 GHz): 600 Mbit/s, Maximum data transfer rate (5 GHz): 4800 Mbit/s. Security algorithms: EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3, Service Set Identifier (SSID) features: SSID broadcast, SSID broadcast on/off. Output voltage: 12 V, Output current: 3.5 A. Placement: Ceiling, Wall, Product colour: White. Antenna type: Internal, Antenna gain level (max): 4.4 dBi

Features
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	7800 Mbit/s
Maximum data transfer rate (2.4 GHz)	600 Mbit/s
Maximum data transfer rate (5 GHz)	4800 Mbit/s
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Auto MDI/MDI-X	Yes
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDM, OFDMA
Modulation	OFDM
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Security
Security algorithms	EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3
MAC address filtering	Yes
Service Set Identifier (SSID) features	SSID broadcast, SSID broadcast on/off
Remote Authentication Dial-In User Service (RADIUS)	Yes
Management features
Web-based management	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Power
Power over Ethernet (PoE)	Yes
Output voltage	12 V
Output current	3.5 A
Design
Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
Antenna
Antenna type	Internal
Antenna gain level (max)	4.4 dBi
Weight & dimensions
Width	266.6 mm
Depth	268.3 mm
Height	55.5 mm
Weight	1.05 kg
Packaging content
Number of products included	1 pc(s)
Mounting kit	Yes
Quick start guide	Yes
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Logistics data
Harmonized System (HS) code	85176990
