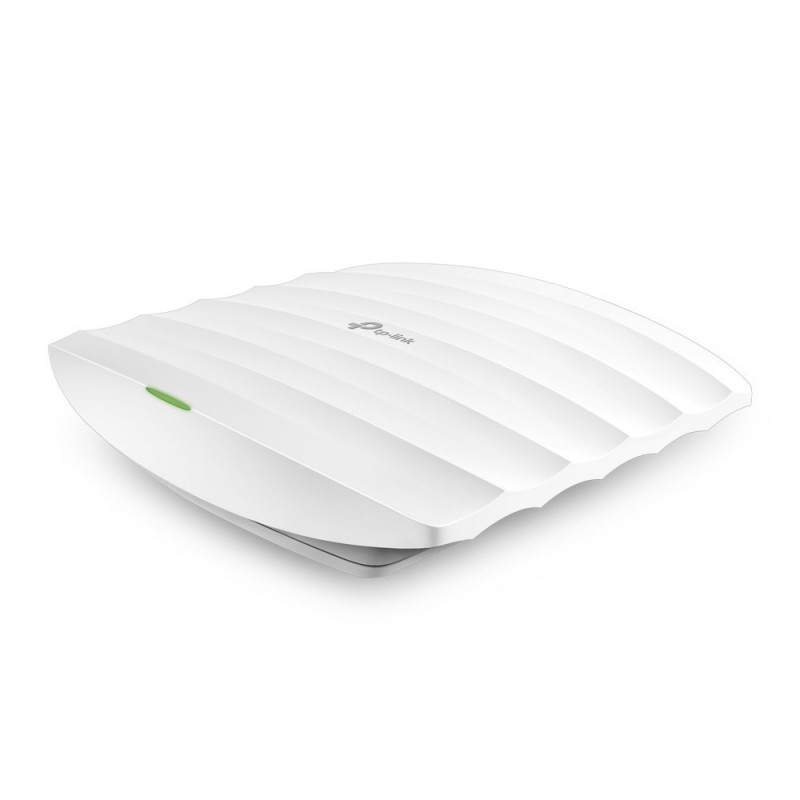

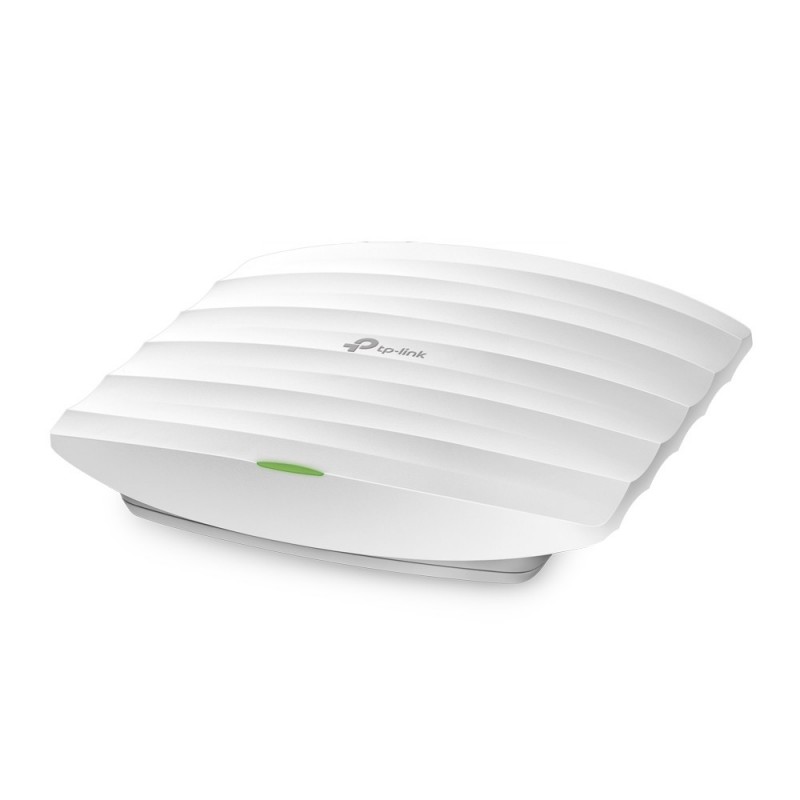

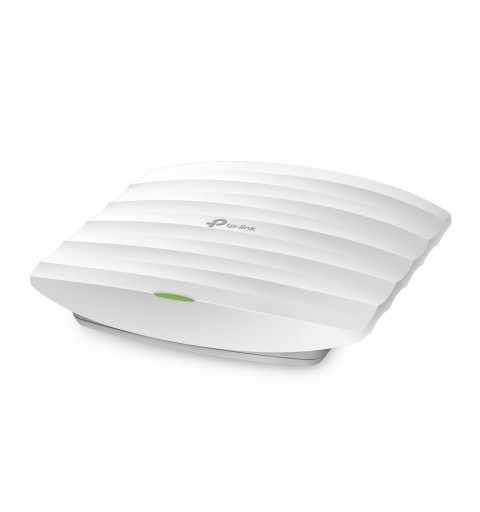

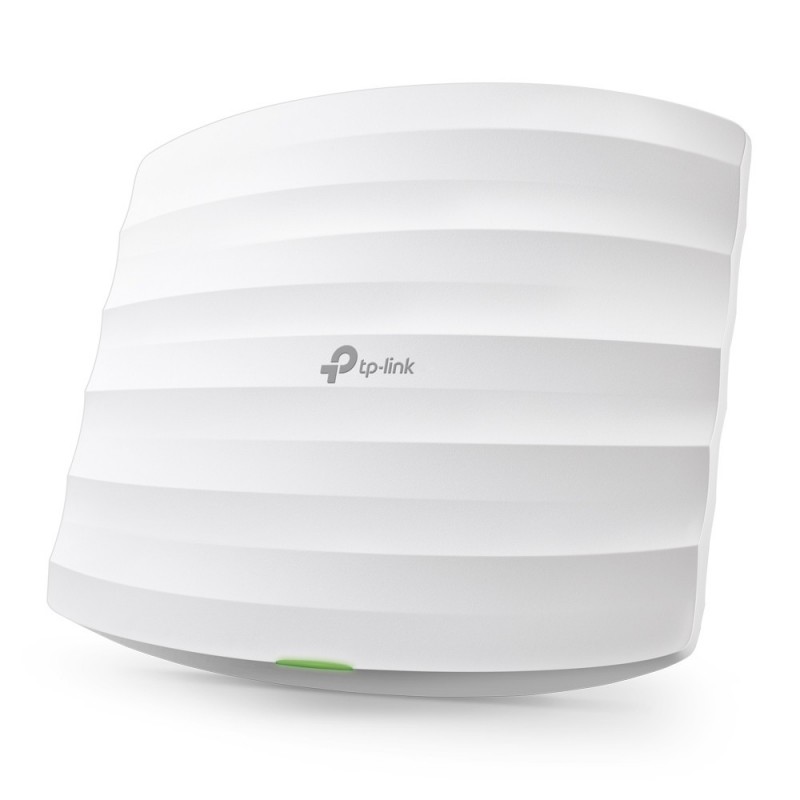

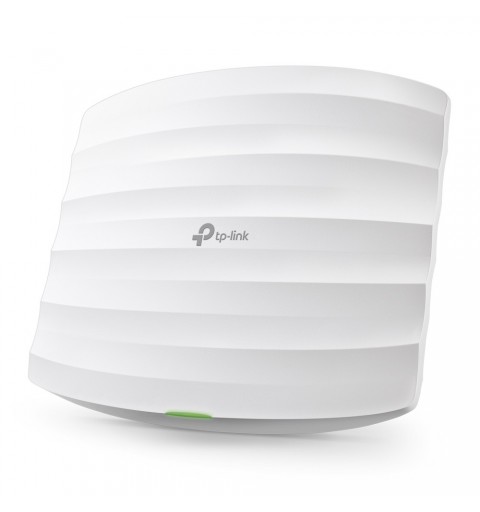

TP-Link 300Mbps Wireless N Ceiling Mount Access Point

An Affordable, Scalable Business Wi-Fi Solution
300Mbps Wireless N Ceiling Mount Access Point

Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Captive Portal
Guest Network with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.

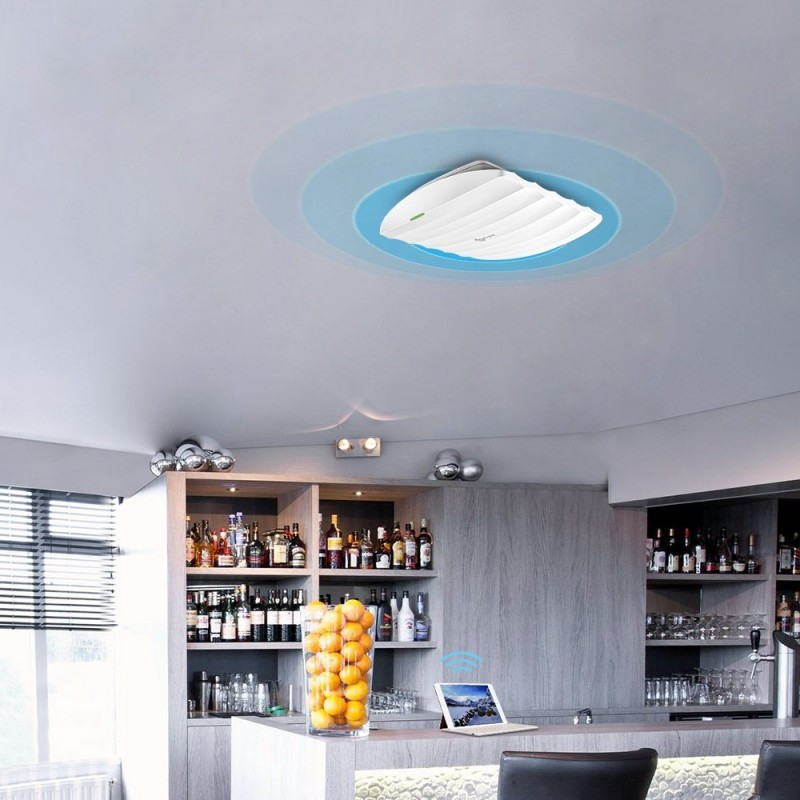

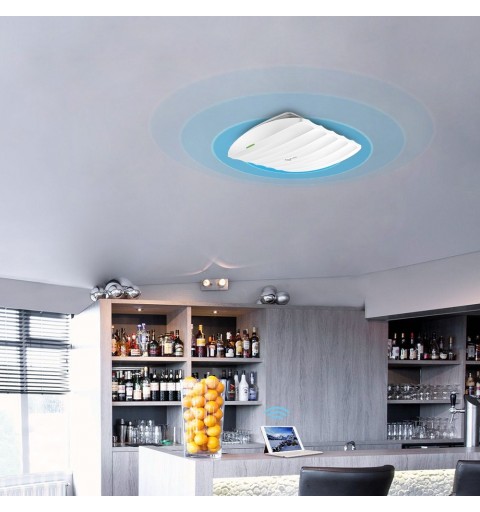

Easy Mount Design and PoE
Timesaving and Flexible Deployment
The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

TP-Link 300Mbps Wireless N Ceiling Mount Access Point. Maximum data transfer rate: 300 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK. WAN connection: Ethernet (RJ-45), Wi-Fi. Output voltage: 9 V, Output current: 0.6 A, Power consumption (typical): 2.8 W. Placement: Ceiling, Wall, Product colour: White, Certification: CE, FCC, RoHS

Features
2.4 GHz	Yes
6 GHz	No
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel selection	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Rate limiting	Yes
Wireless isolation	Yes
Quality of Service (QoS) support	Yes
Receiver sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Security
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Yes
Number of SSID supported	8
System status alarm	Yes
Access Control List (ACL)	Yes
Management features
Web-based management	Yes
Syslog	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45), Wi-Fi
Power
Power over Ethernet (PoE)	Yes
Output voltage	9 V
Output current	0.6 A
Power consumption (typical)	2.8 W
Design
Placement	Ceiling, Wall
Product colour	White
On/off switch	Yes
Reset button	Yes
LED indicators	Yes
Certification	CE, FCC, RoHS
Antenna
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	4 dBi
Performance
Minimum system requirements	Microsoft Windows 10/8/7/Vista/XP
Weight & dimensions
Width	189.4 mm
Depth	172.3 mm
Height	29.5 mm
Packaging data
Package width	268 mm
Package depth	246 mm
Package height	69 mm
Package weight	600 g
Packaging content
Number of products included	1 pc(s)
AC adapter included	Yes
Mounting kit	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Harmonized System (HS) code	85176990
