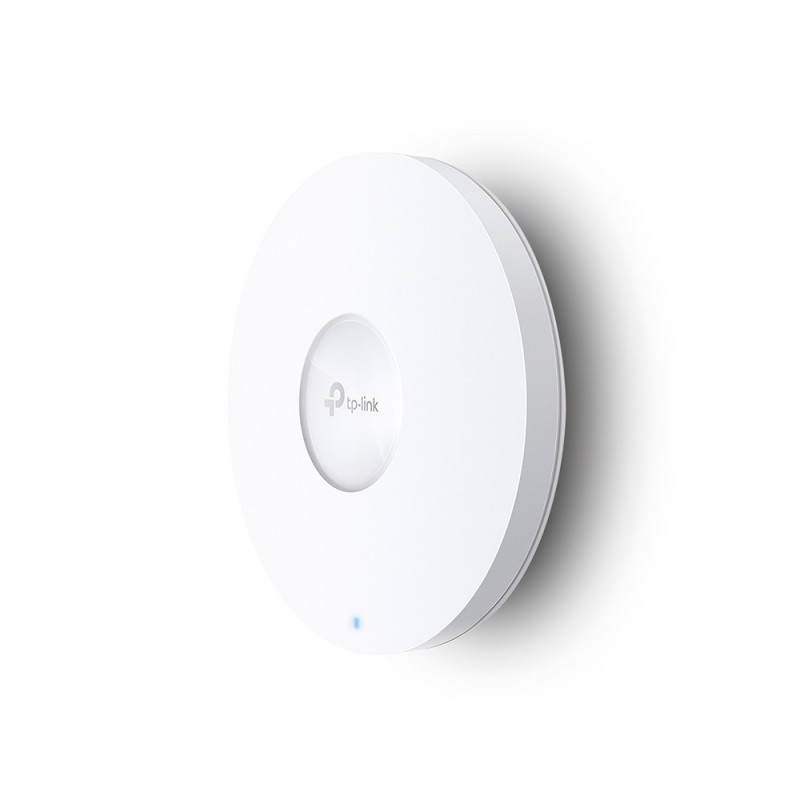

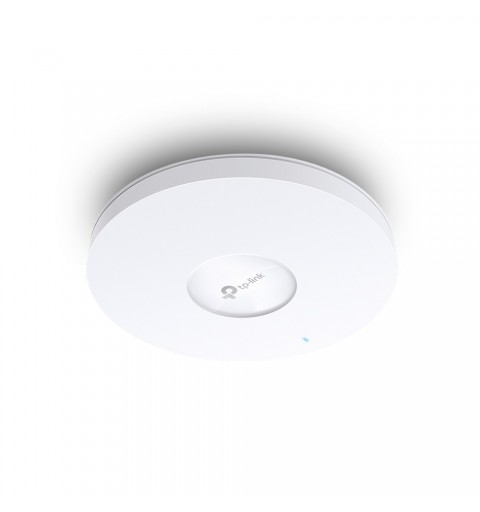

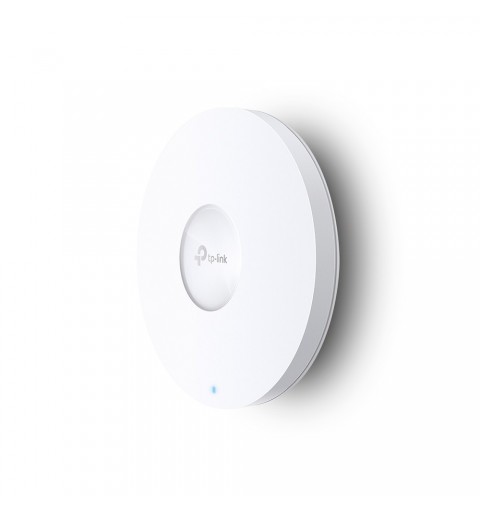

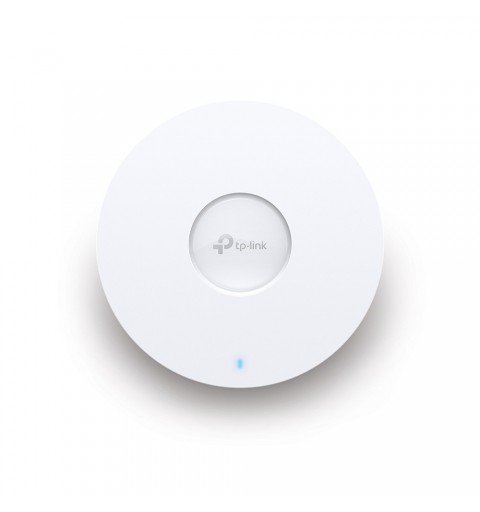

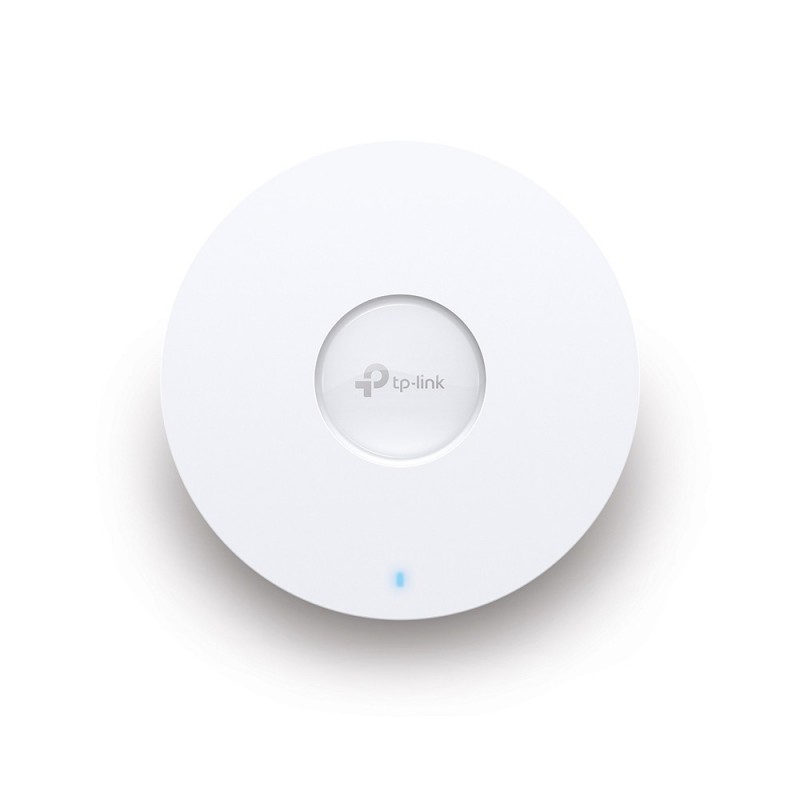

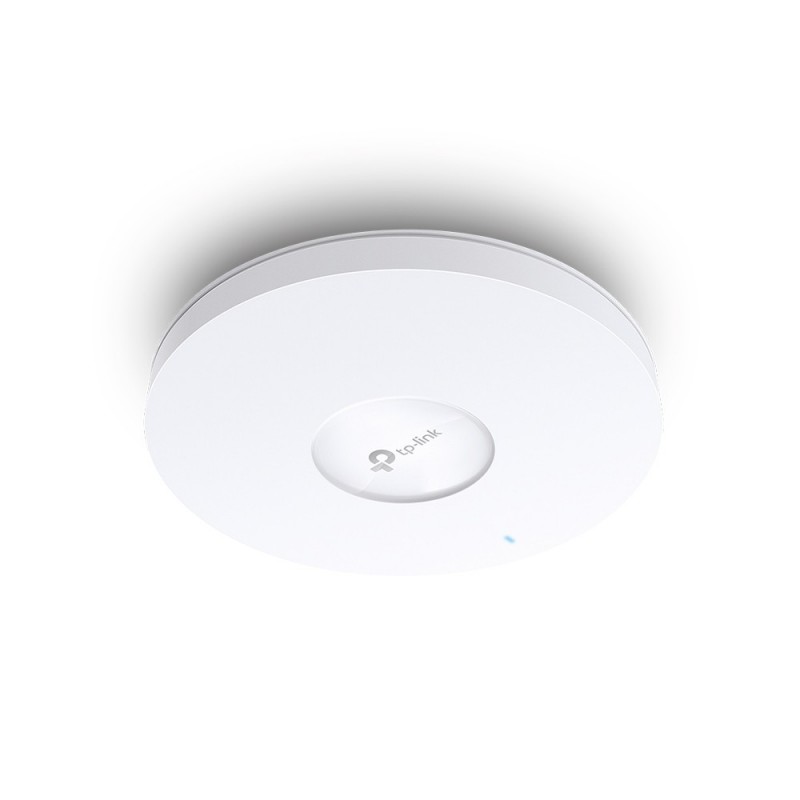

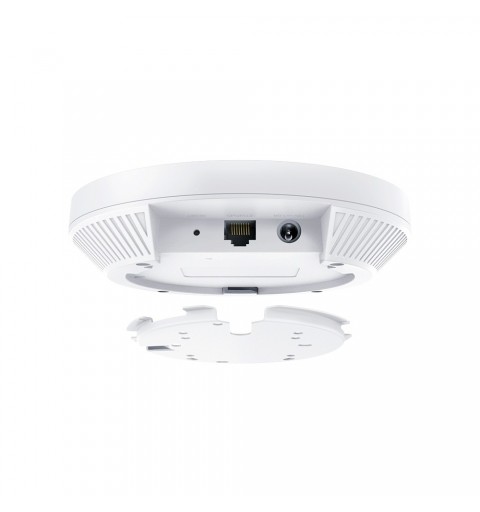

TP-Link AX3000 Ceiling Mount WiFi 6 Access Point

The New Slimline Business WiFi 6
AX3000 Ceiling Mount WiFi 6 Access Point

AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†

High-Efficiency WiFi 6
More connected devices can enjoy faster speeds

Centralized Cloud Management
Manage the whole network locally or from the cloud

160 MHz Channel
Double the data at peak transmission times on a single stream with HE160‡

Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference

Omada Mesh Technology
More flexible and convenient wireless deployment

Seamless Roaming
Uninterrupted streaming when moving between APs

Ultra-Slim Design
Φ160 mm × 33.6 mm elegant design brings more agility

PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

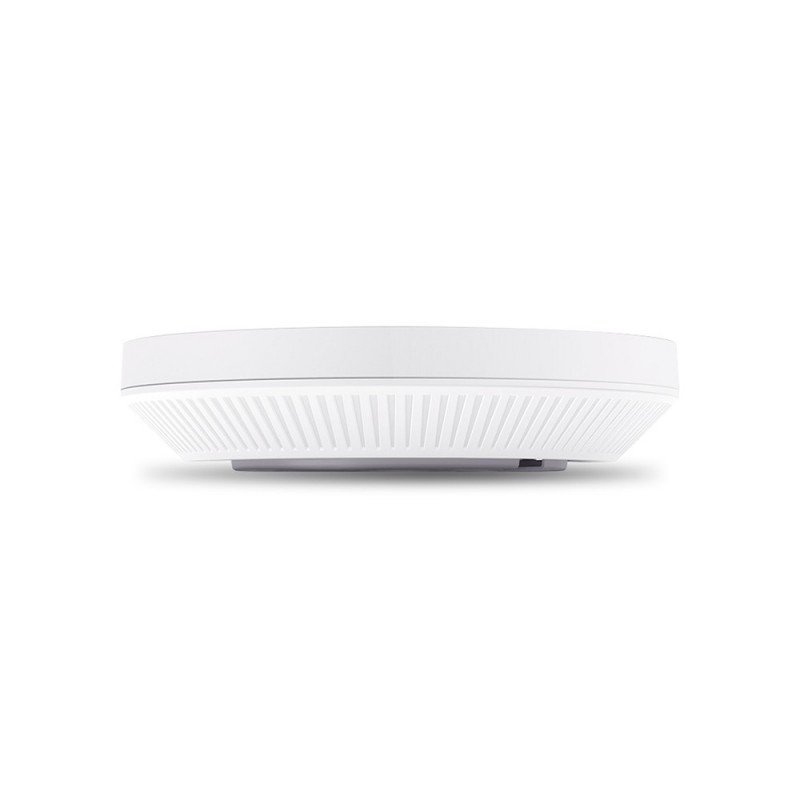

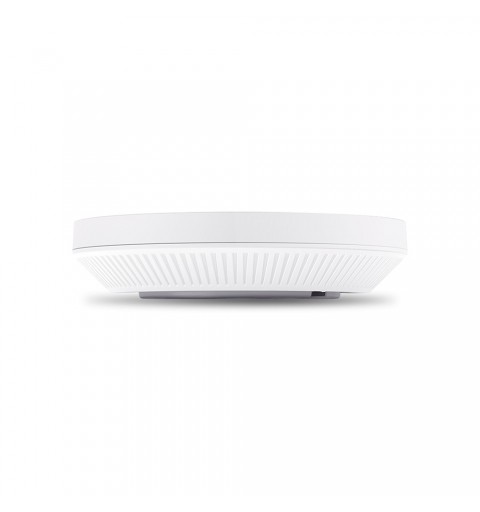

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP650 perfectly blend into any modern office, hotel, classroom, or café.

TP-Link AX3000 Ceiling Mount WiFi 6 Access Point. Maximum data transfer rate: 2976 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 2402 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise,..., Service Set Identifier (SSID) features: Multiple SSIDs. Output voltage: 12 V, Output current: 1 A. Placement: Ceiling, Wall, Product colour: White, Certification: CE, FCC, RoHS. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna gain level (max): 5 dBi

Features
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	2976 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Modulation	1024-QAM, OFDM
Wi-Fi Multimedia (WMM)/(WME)	Yes
VLAN support	Yes
Rate limiting	Yes
Wireless isolation	Yes
Quality of Service (QoS) support	Yes
Transmitting power (FCC)	<25 dBm (2.4 GHz) <25 dBm (5 GHz)
Security
Security algorithms	SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
Access Control List (ACL)	Yes
Management features
Web-based management	Yes

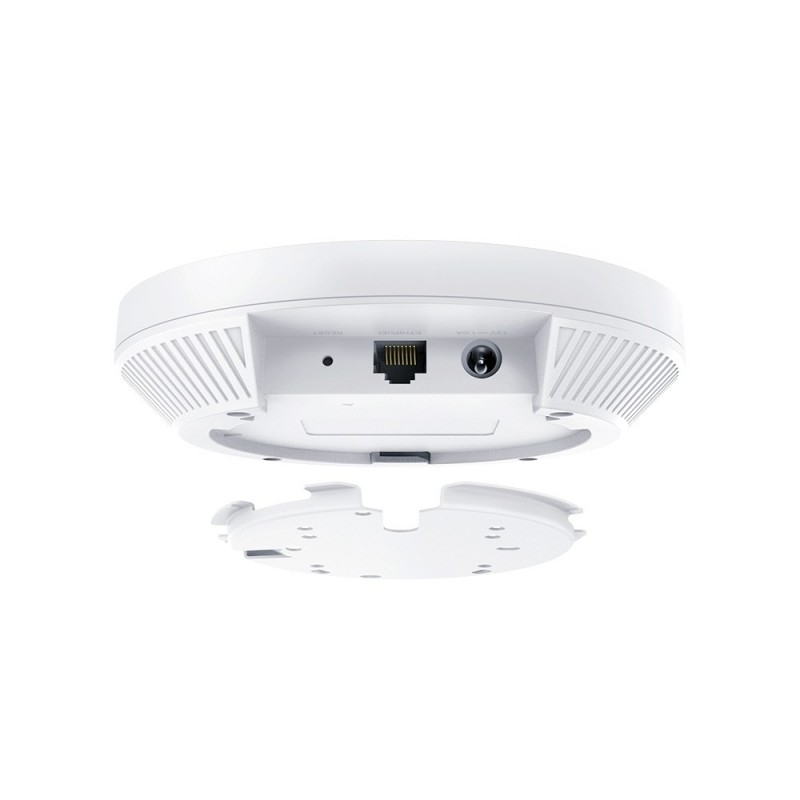

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Yes
Output voltage	12 V
Output current	1 A
Design
Placement	Ceiling, Wall
Product colour	White
LED indicators	Yes
Certification	CE, FCC, RoHS
Antenna
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna gain level (max)	5 dBi
Weight & dimensions
Width	160 mm
Depth	160 mm
Height	33.6 mm
Packaging content
Number of products included	1 pc(s)
AC adapter included	Yes
Quick start guide	Yes
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Logistics data
Harmonized System (HS) code	85176990
