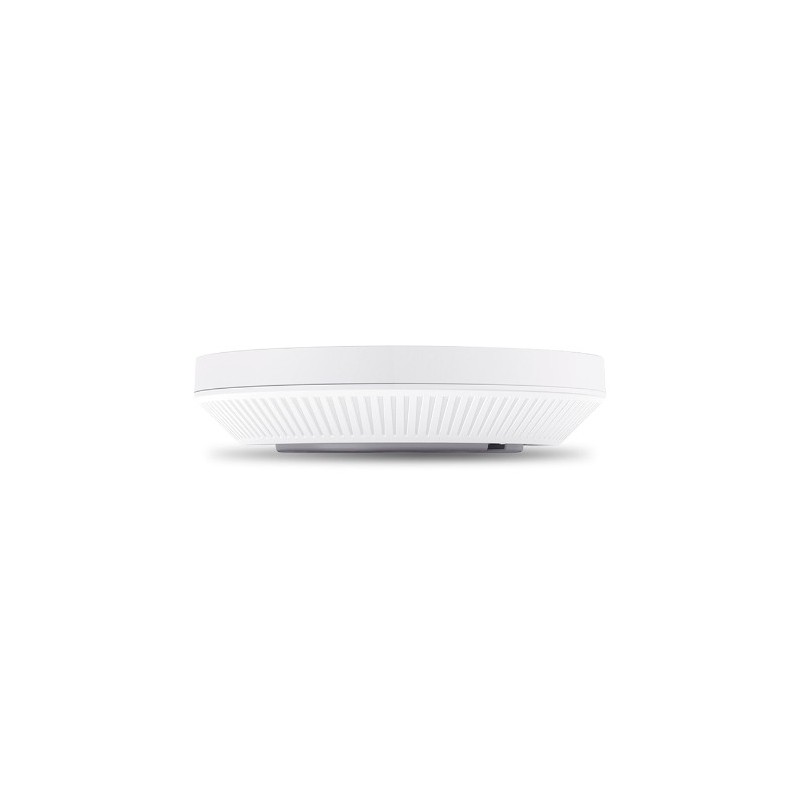

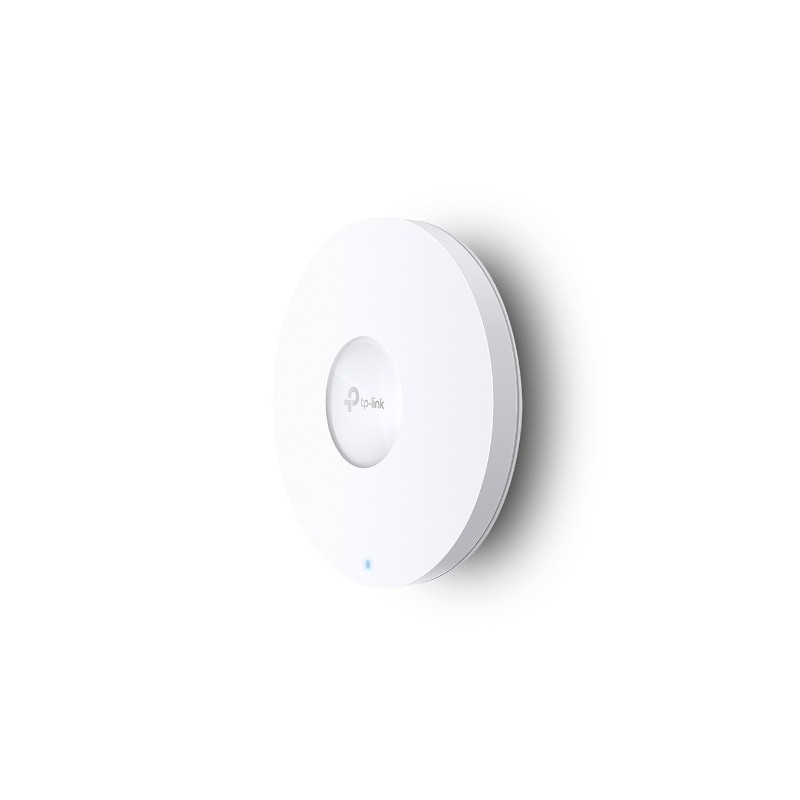

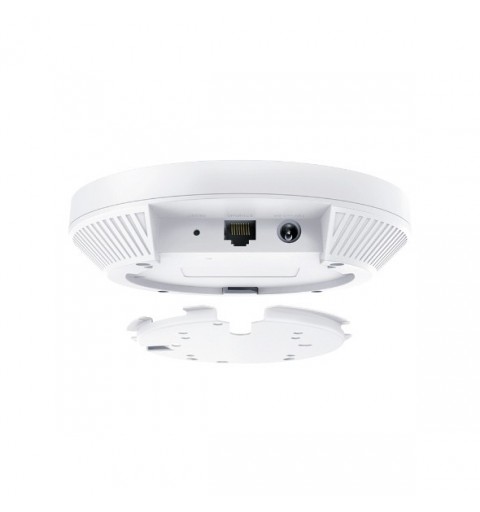

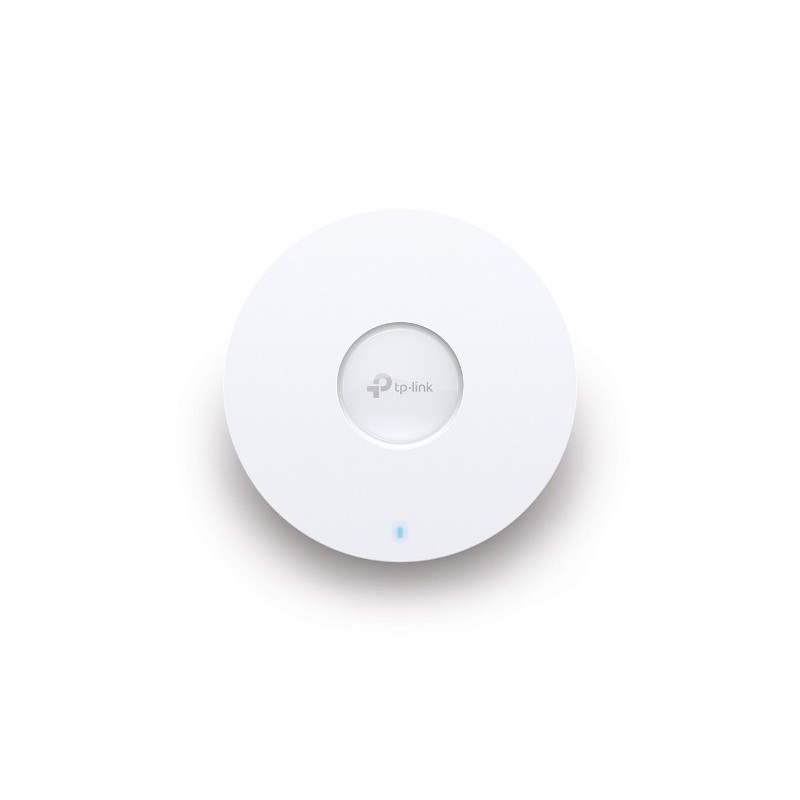

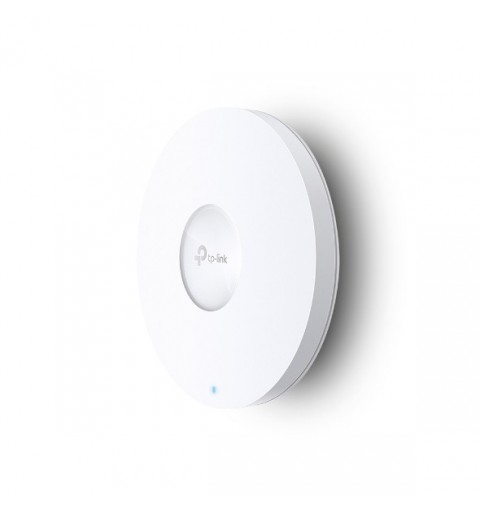

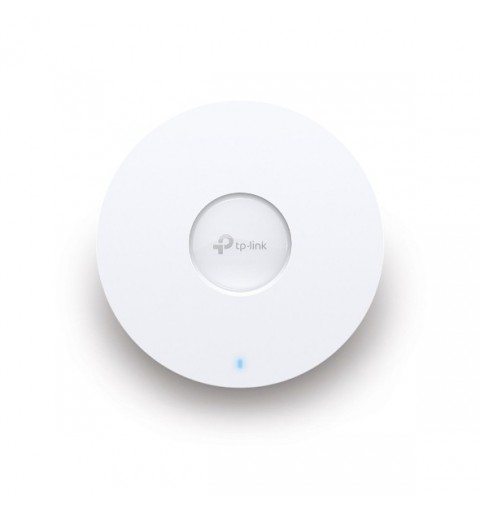

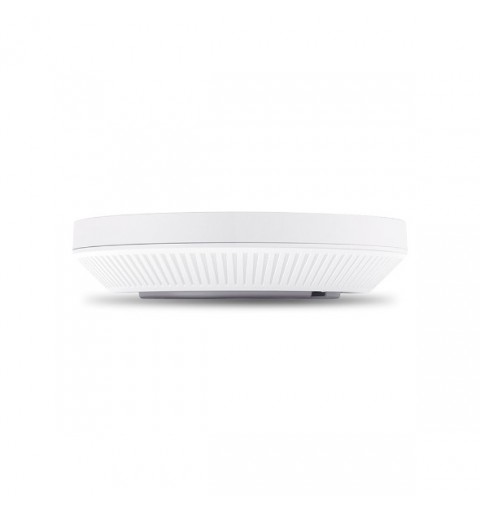

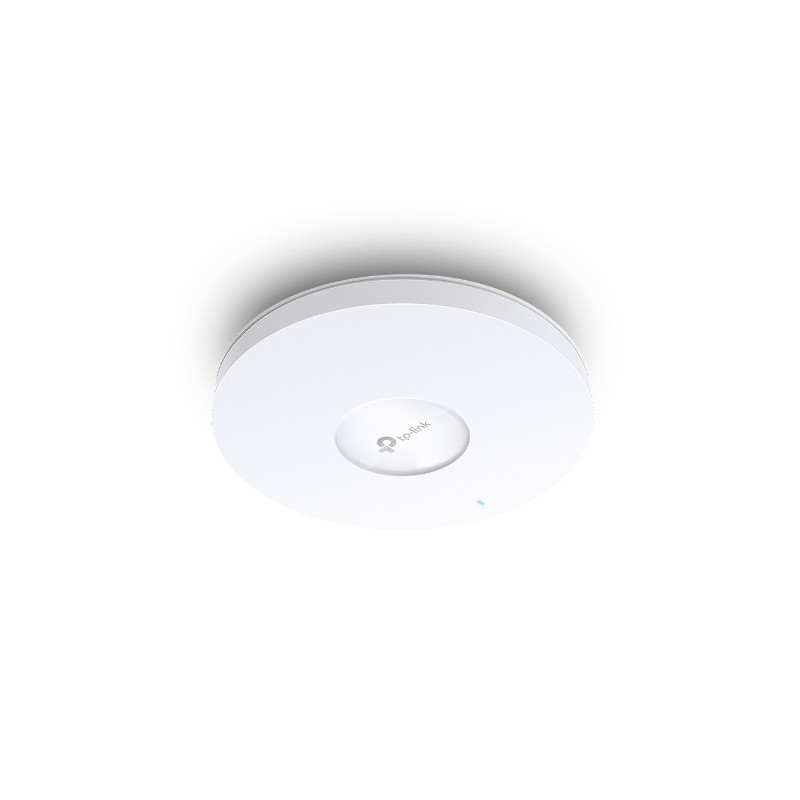

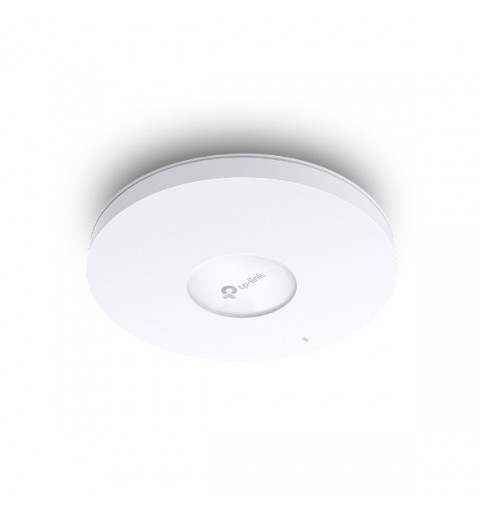

TP-Link AX3000 Ceiling Mount WiFi 6 Access Point

Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.

TP-Link AX3000 Ceiling Mount WiFi 6 Access Point. Maximum data transfer rate: 2976 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 2402 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3. Placement: Ceiling, Wall, Product colour: White. Antenna type: Internal, Antenna gain level (max): 5 dBi. Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Features
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	2976 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	2402 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
Channel bandwidth	160 MHz
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Fit AP mode features	Mesh networking
VLAN support	Yes
Virtual LAN features	VLAN mapping
Band steering	Yes
Quality of Service (QoS) support	Yes
Transmitting power (FCC)	22 dBm
Security
Security algorithms	HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3
MAC address filtering	Yes
Management features
Web-based management	Yes

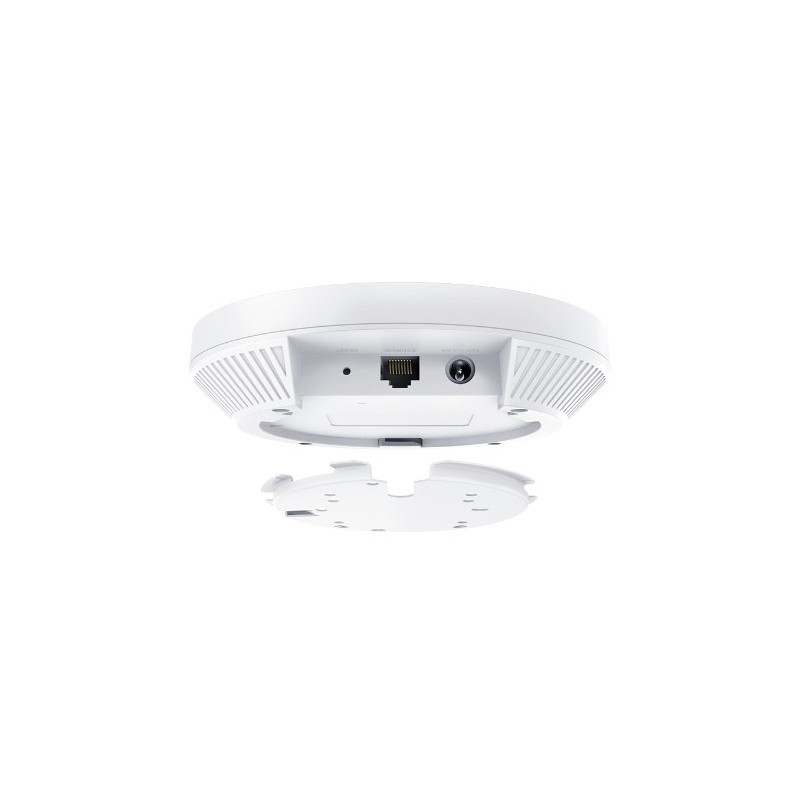

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Yes
Design
Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
LED indicators	Yes
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	5 dBi
Performance
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Weight & dimensions
Width	160 mm
Depth	160 mm
Height	33.6 mm
Packaging content
Number of products included	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Sustainability
Sustainability certificates	RoHS
Logistics data
Harmonized System (HS) code	85176990
