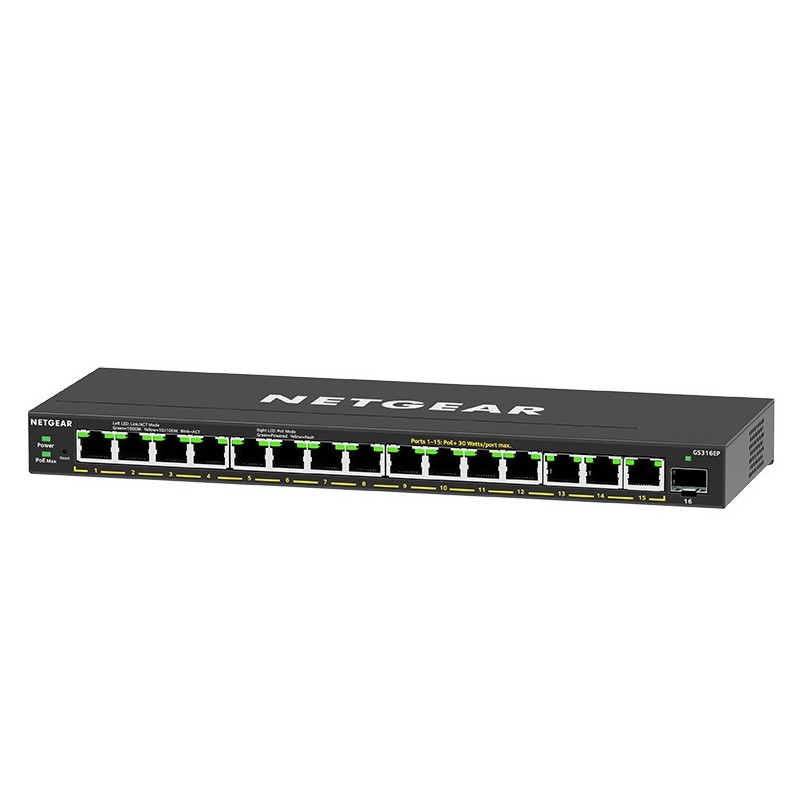

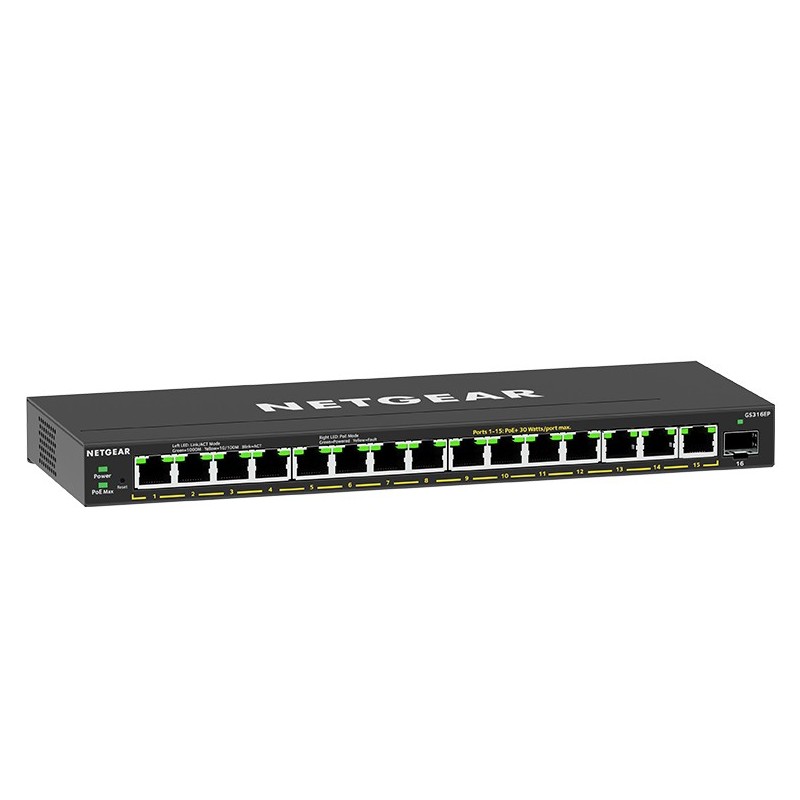

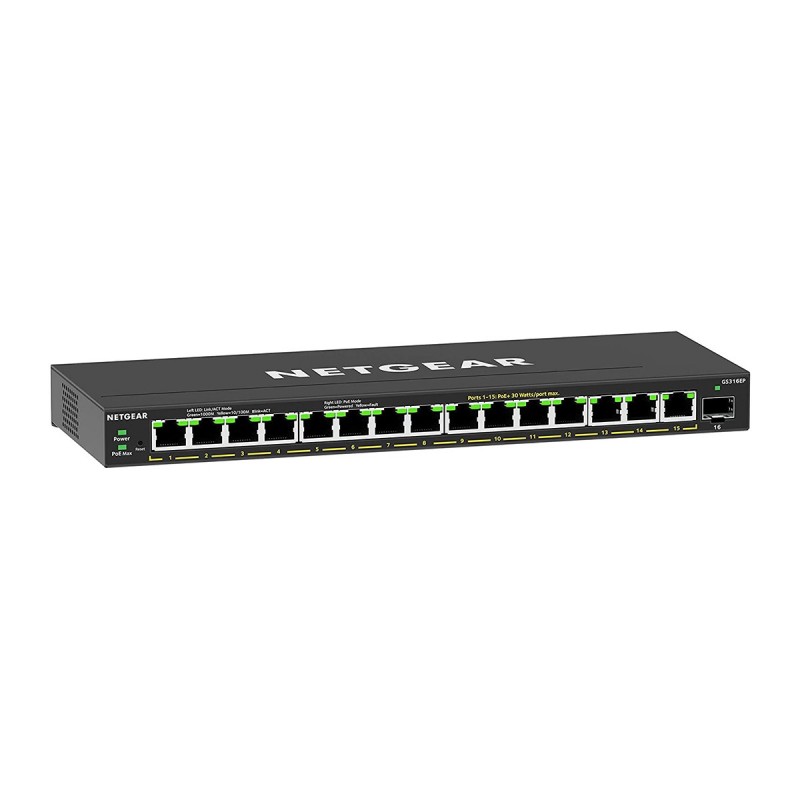

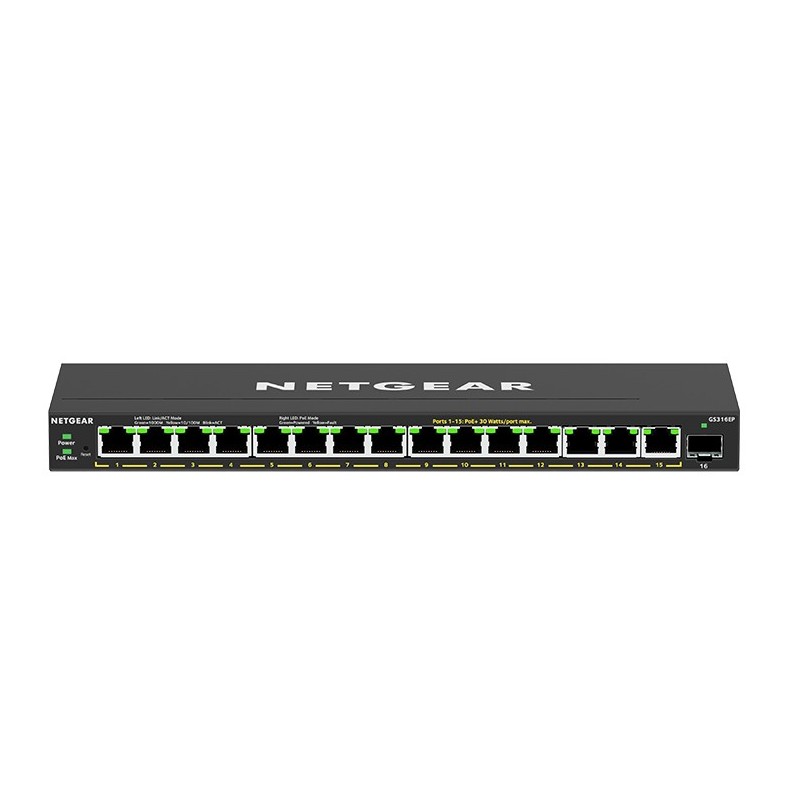

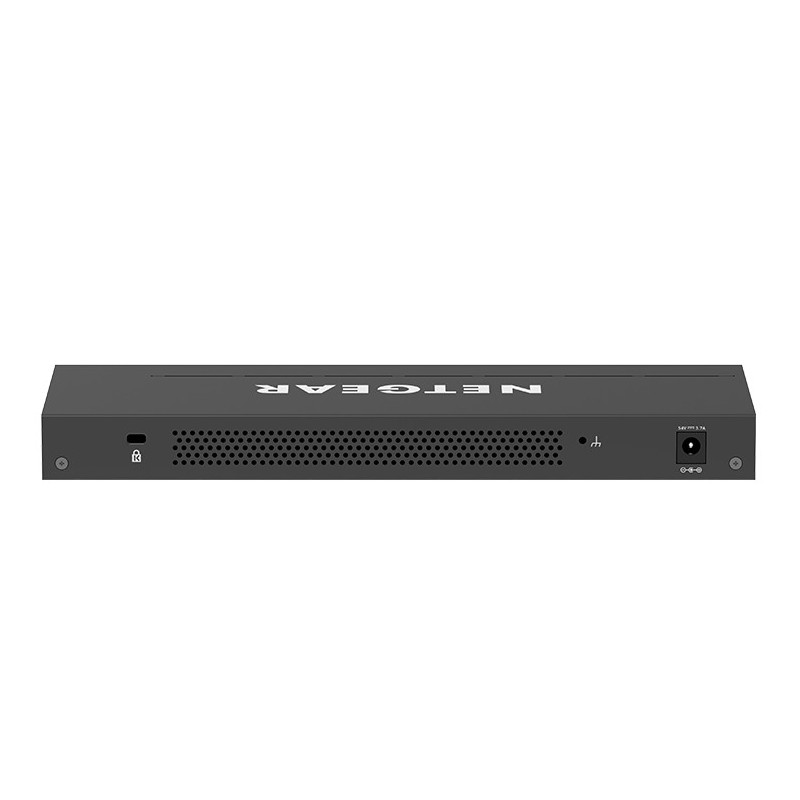

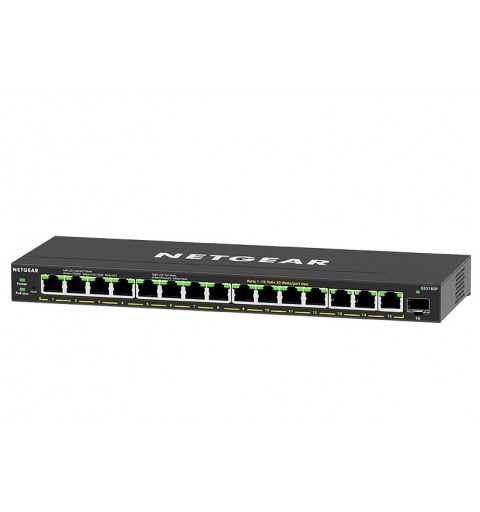

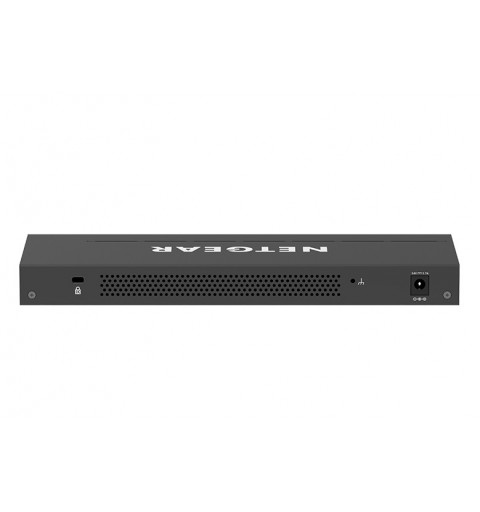

NETGEAR GS316EP-100PES network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

The NETGEAR 16-Port PoE+ Gigabit Ethernet Plus Switch delivers essential business networking features and powers PoE+ devices like VoIP phones, IP cameras, and more.

Gigabit Ethernet
16 ports provide up to 1000 Mbps of dedicated, non-blocking bandwidth each

PoE+ Support
15 PoE+ ports provide a total of 180W of power so you can power and connect your devices with a single wire

Advanced PoE Controls
Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for simple control over all PoE-powered devices

Non-Blocking Switching
10Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices

Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments

Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box

NETGEAR GS316EP-100PES. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 15. Full duplex. MAC address table: 4000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE)

Management features
Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	15
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	15
SFP module slots quantity	1
Power connector	DC-in jack
Network
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Broadcast storm control	Yes
VLAN support	Yes
Data transmission
MAC address table	4000 entries
Switching capacity	32 Gbit/s
Jumbo frames support	Yes
Jumbo frames	10000
Security
DHCP features	DHCP client
Access Control List (ACL)	Yes
Multicast features
Multicast support	Yes
Design
Stackable	No
Product colour	Black
LED indicators	Yes
Power
Power source	DC
Power supply included	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	15
Total Power over Ethernet (PoE) budget	180 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 3000 m
Weight & dimensions
Width	286 mm
Depth	102 mm
Height	27 mm
Weight	883 g
Logistics data
Harmonized System (HS) code	85176990
