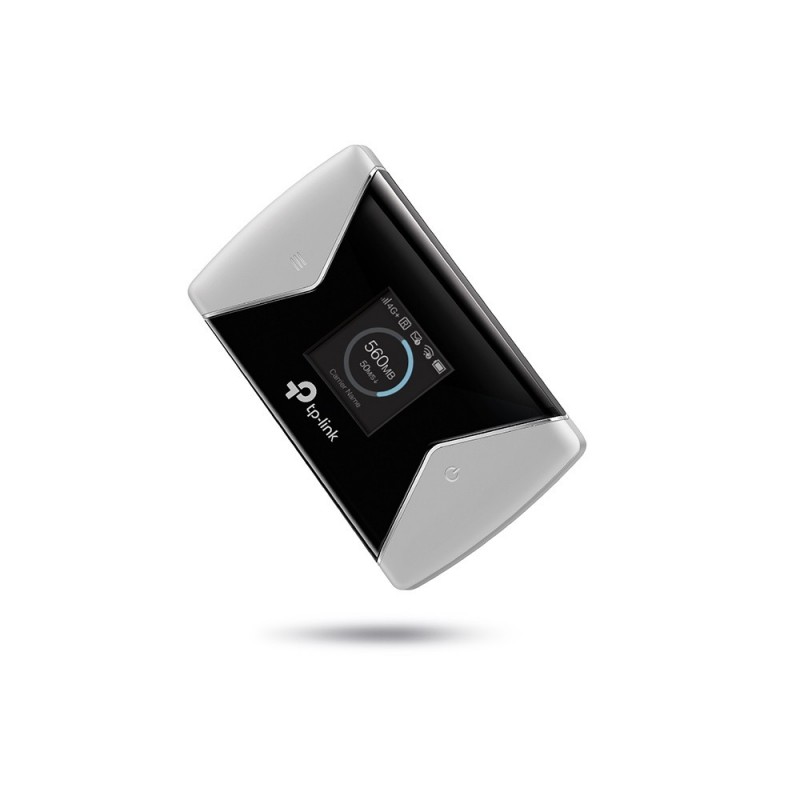

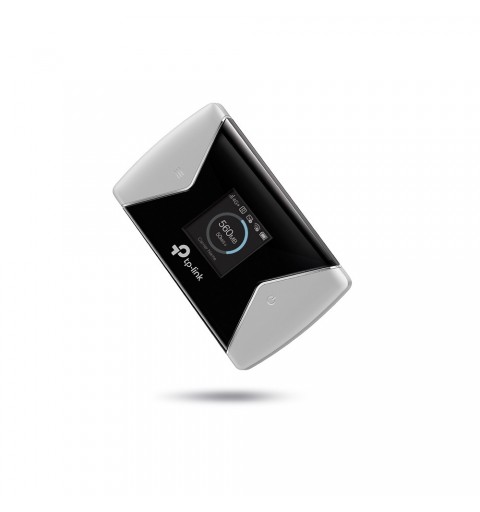

TP-Link M7650 cellular network device Cellular network router

- LTE-Advanced cat11 supported with up to 600Mbps download and 50Mbps upload speeds
- Supports up to 32 devices simultaneously
- Selectable 300Mbps at 2.4GHz or 867Mbps at 5GHz dual band Wi-Fi
- All useful information at a glance with screen display
- 3000mAh battery for up to 15 hours of working
- Equipped with a micro SD card slot for up to 32GB of optional storage
- Easy management with the tpMiFi App

Fastest Mobile Connection up to 600Mbps

The M7650 supporting the 4G LTE network LTE-A Cat.11, which is used Carrier Aggregation. This advanced technology merges the fragmented LTE band into a "virtual" wider band to increase the data rate, with the 256-QAM, to provide fast 4G speeds of up to 600Mbps.

Do more with a Fast Connection

With the fastest 4G speed of up to 600Mbps, you can enjoy HD movies without interruption, downloading files in seconds, and smooth online gaming. Truly fastest, smoothest, most efficient data transmission.

Your Perfect Daily Wi-Fi Partner

The M7650 provides selectable dual band Wi-Fi, 867Mbps at 5GHz or 300Mbps at 2.4GHz. With this convenient companion, you can share your Wi-Fi with your friends everywhere.

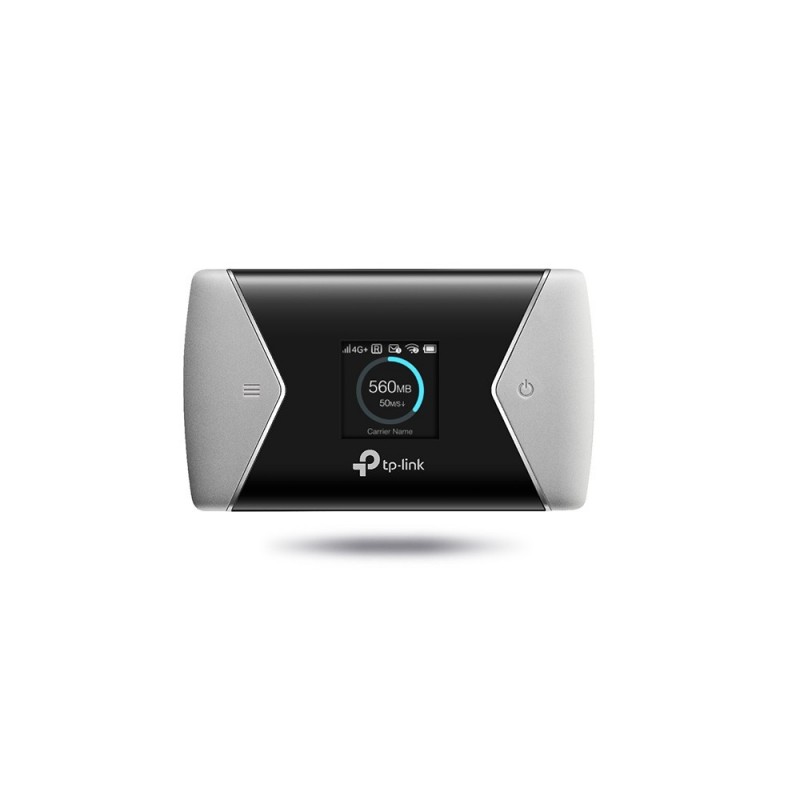

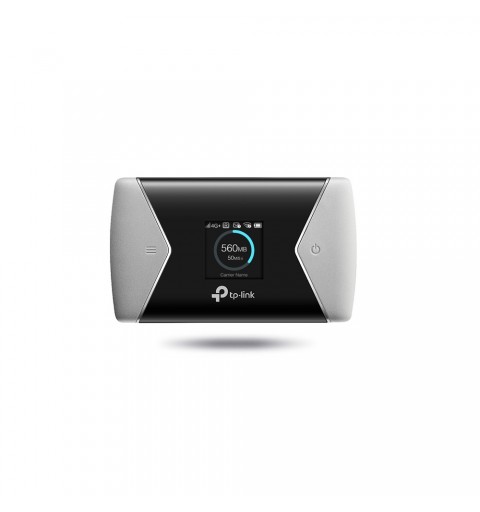

Advanced Screen & Menu for Easy Using

The intuitive screen display of M7650 makes it easy to stay within your data budget and avoids going over the monthly data cap. The screen also displays other much more information of battery life, signal strength, Wi-Fi status, connected users and more.

Internet Access for up to 32 Devices Simultaneously

The M7650 can easily share a 4G/3G connection with up to 32 wireless devices like tablets, laptops, and mobile phones at the same time. It can also provide internet access for desktop computers via the integrated USB port.

Power to Keep Working All-day-long

M7650 is equipped with a powerful 3000mAh battery. On its own, it can work effortlessly up to 15 hours at full capacity and stand by for over 900 hours. M7650 can be recharged via a micro USB cable connected to a laptop, portable charger or adapter for endless hours of 4G sharing.

Spread Your Wings with an Elegant Wi-Fi Companion

The smooth curves and elegant, compact design make the lightweight M7650 perfect for personal travel, business trips, outdoor activities, and everywhere else life takes you.

Wireless Media Sharing from Micro SD Card

It's now easier than ever to share photos, music, videos and more in your mobile network from a micro SD Storage - supports optional storage of up to 32G.

Easy Management with tpMiFi App

With the tpMiFi App, you can easily access and manage the M7650 from your connected iOS/Android devices. The tpMiFi app allows you to establish data limits, control which devices can access your Wi-Fi, send messages, and share media files to/from a removable Micro SD card.

TP-Link M7650. Device type: Cellular network router, Product colour: Black, Grey, Market positioning: Portable. Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), WLAN data transfer rates supported: 867 Mbit/s, Wi-Fi frequency: 5 GHz. Data network: 2G, 3G, 4G, LTE, 2G standards: Edge, GPRS, GSM, 3G standards: DC-HSPA+, HSPA, UMTS. Compatible memory cards: MicroSD (TransFlash). Security algorithms: WPA-PSK, WPA2-PSK

Design
Device type	Cellular network router
Product colour	Black, Grey
Market positioning	Portable
Built-in display	Yes
Display type	TFT
Display diagonal	3.66 cm (1.44")
Reset button	Yes
LED indicators	Yes
Ethernet LAN features
Ethernet LAN	No
DHCP server	Yes
Wireless LAN features
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported	867 Mbit/s
Wi-Fi frequency	5 GHz
Mobile network
Data network	2G, 3G, 4G, LTE
2G standards	Edge, GPRS, GSM
3G standards	DC-HSPA+, HSPA, UMTS
4G standard	LTE
2G bands supported	850,900,1800,1900 MHz
3G bands supported	900,2100 MHz
4G bands supported	800,900,1800,2100 MHz
GSM bands supported	850,900,1800,1900 MHz
UMTS bands supported	900,2100 MHz
SIM card type	MicroSIM
Ports & interfaces
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Security
Security algorithms	WPA-PSK, WPA2-PSK
Performance
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Certification	CE, RoHS
Power
Power source type	AC
Battery capacity	3000 mAh
Operational conditions
Storage relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	106 mm
Depth	66 mm
Height	16 mm
Packaging data
Cables included	Micro-USB
User guide	Yes
Package width	149 mm
Package depth	101 mm
Package height	60 mm
Package weight	260 g
Logistics data
Harmonized System (HS) code	85176990
