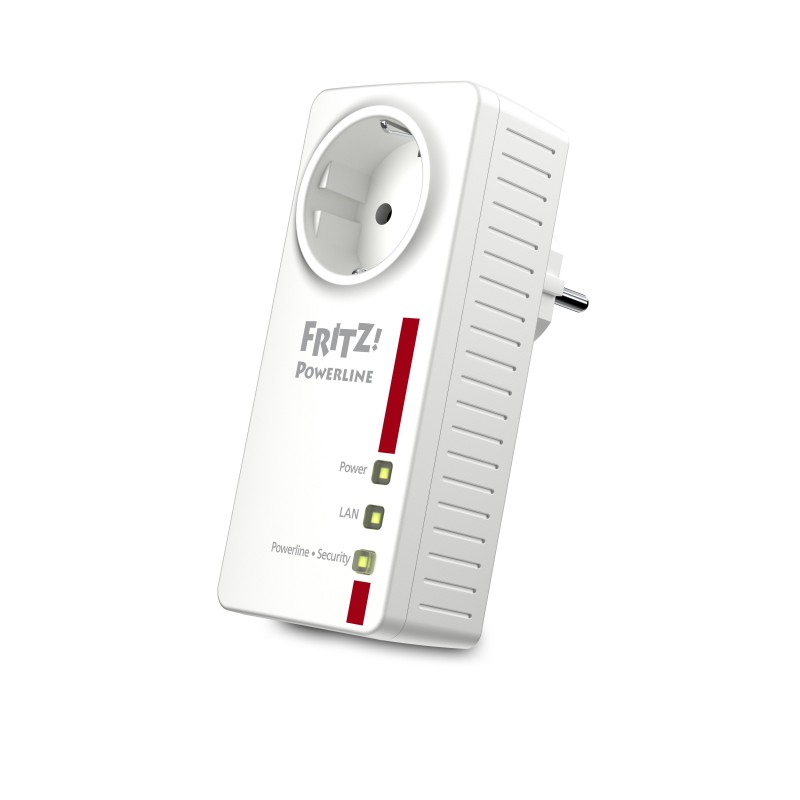

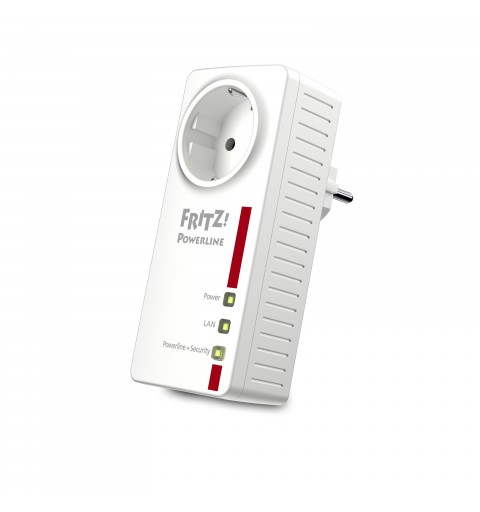

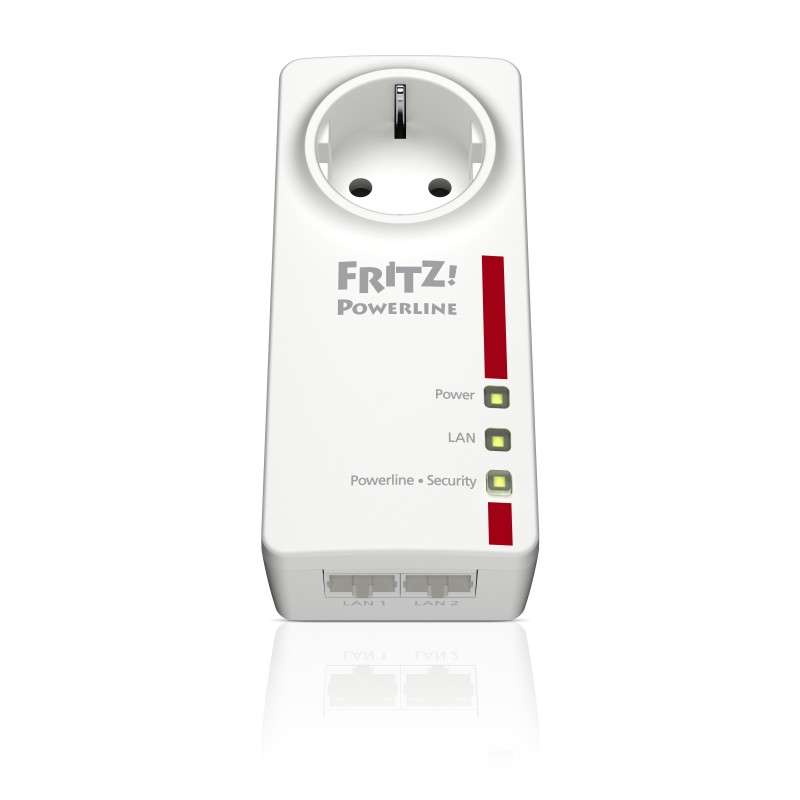

FRITZ!Powerline 1220E Edition International

High speed networking

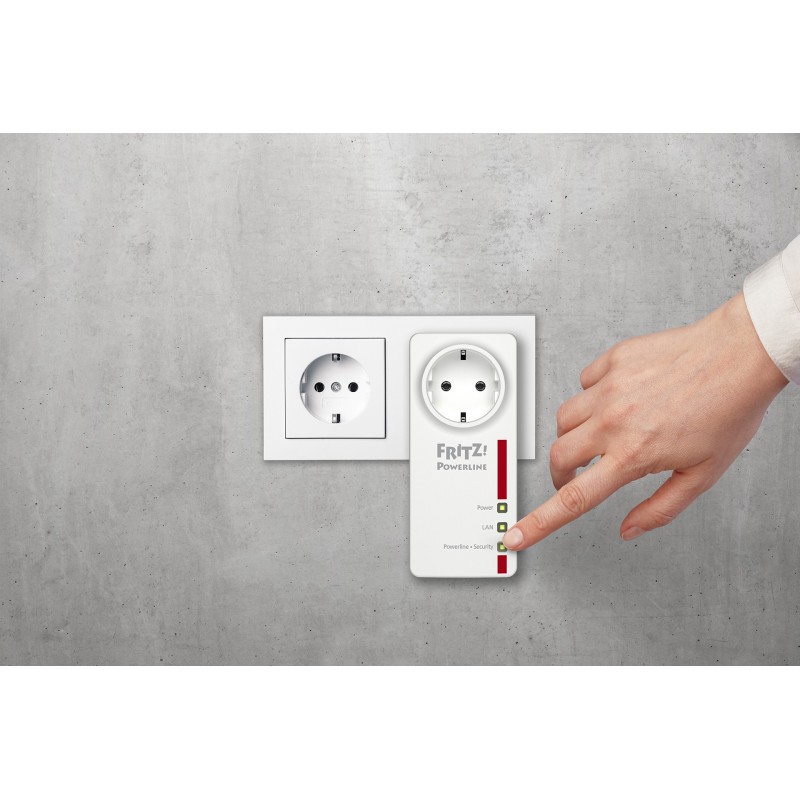

Integrate your network devices into your home network simply using the electrical wiring. Using fast powerline for up to 1200 Mbit/s you can achieve gigabit speeds on both LAN ports without any new cables. Thanks to the integrated outlet, you don't lose any socket space either.

Versatile deployment
Connect your home network players with FRITZ!Powerline 1220E: Aside from PC, smartphone, printer, gaming console and stereo, you can also provide big data applications like network storages, Internet TV or 3D video streaming with fast broadband connections without sacrificing a power outlet.

Simple setup
FRITZ!Powerline is immediately ready for operation without any software installation. Simply insert the adapter into an outlet and connect it to a network device via LAN cable. Now your network is all set and perfectly secure due to the encryption upon delivery.

Fast data transport over the power lines

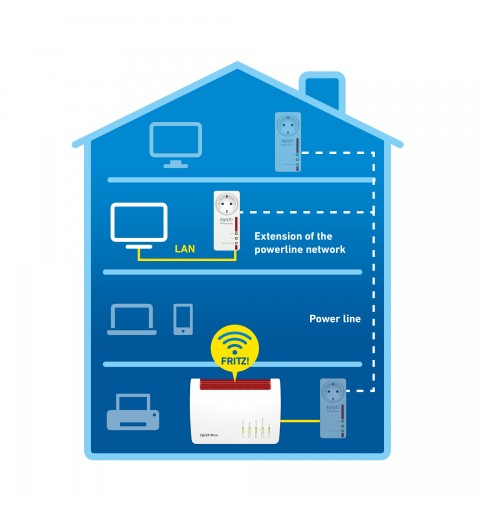

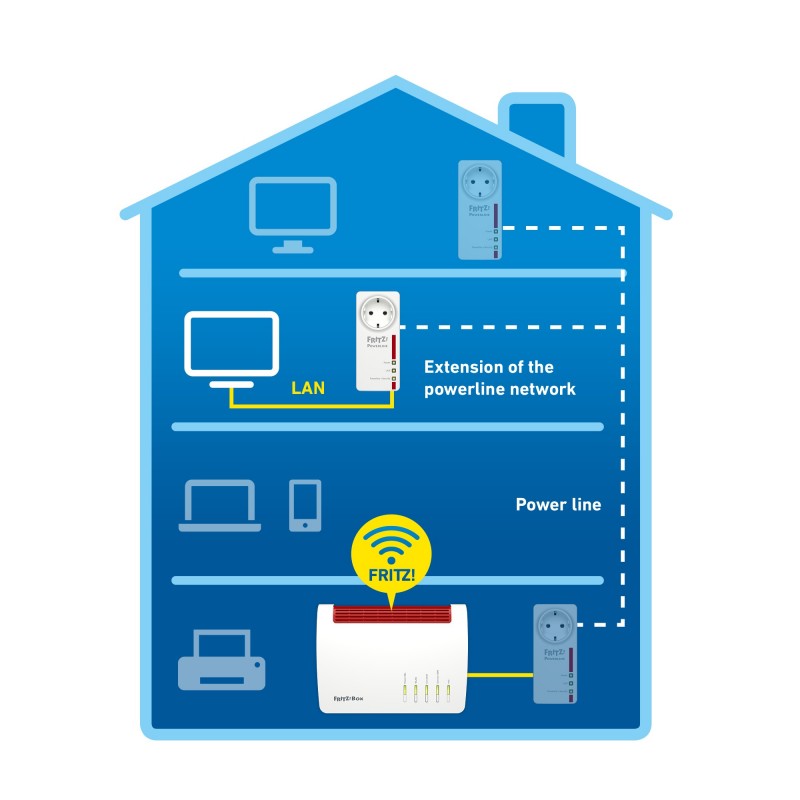

Why lay cables when you can send your data over the electrical wiring? FRITZ!Powerline 1220E turns every outlet in your home into a data freeway: Even large data packages race securely through the home network at speeds of up to 1200 Mbit/s.

Increased range for the network
The advanced powerline technology further provides for better coverage in your home network. Outlets on the margins of the reception area especially benefit from the high, stable transmission power.

Flexible thanks to downward compatibility
Naturally, FRITZ!Powerline 1220E is compatible with products compliant with older powerline standards. You can even use FRITZ!Powerline with 200 Mbit/s or 500 Mbit/s models to expand the boundaries of your home network.

More power – less consumption
FRITZ!Powerline 1220E is more powerful than previous FRITZ!Powerline models, but still offers the same low power consumption. Thanks to the smart energy-saving function, FRITZ!Powerline automatically switches to standby when no data are transmitted.

FRITZ!Powerline 1220E Edition International. Maximum data transfer rate: 1200 Mbit/s, Power plug: Type C, Ethernet LAN interface type: Gigabit Ethernet. Power consumption (typical): 3 W, Power consumption (standby): 1 W, AC input voltage: 230 V. Product colour: White, LED indicators: LAN, Power. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP. Width: 59 mm, Depth: 41 mm, Height: 132 mm

Performance
Maximum data transfer rate	1200 Mbit/s
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
Power plug	Type C
Built-in power socket	Yes
PowerLine standard	HomePlug AV2
Security algorithms	128-bit AES
Quality of Service (QoS) support	Yes
Power
Power consumption (typical)	3 W
Power consumption (standby)	1 W
AC input voltage	230 V
AC input frequency	50 Hz
Design

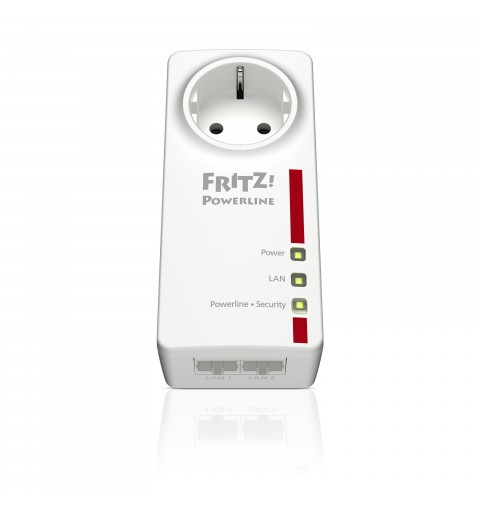

LED indicators	LAN, Power
Product colour	White
System requirements
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Weight & dimensions
Width	59 mm
Depth	41 mm
Height	132 mm
Weight	220 g
Package width	125 mm
Package depth	85 mm
Package height	185 mm
Package weight	410 g
Packaging content
Quantity per pack	1 pc(s)
Quick installation guide	Yes
Cables included	LAN (RJ-45)
Package type	Box
Logistics data
Harmonized System (HS) code	85171800
