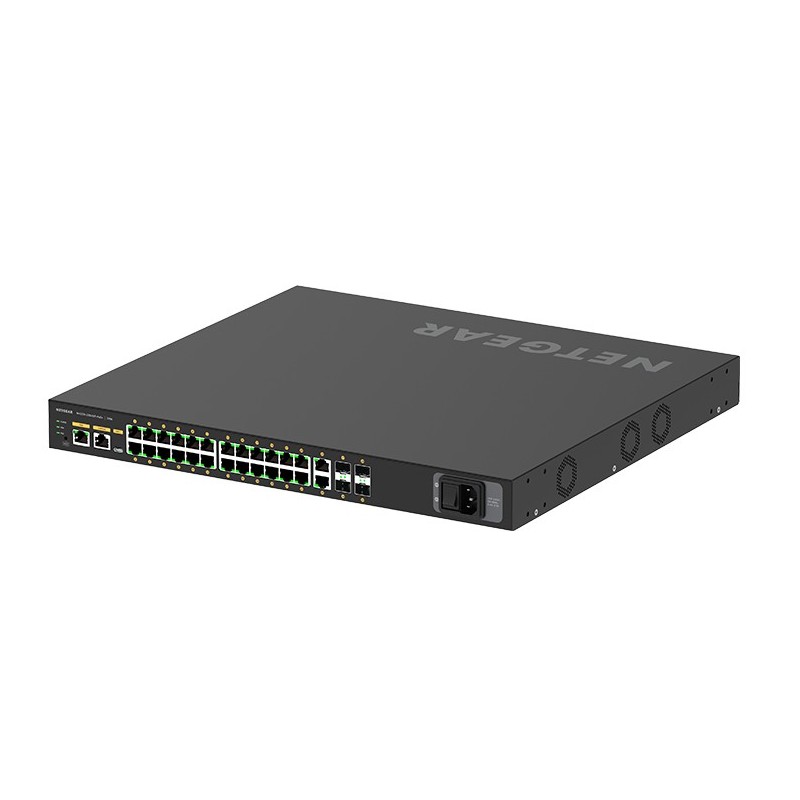

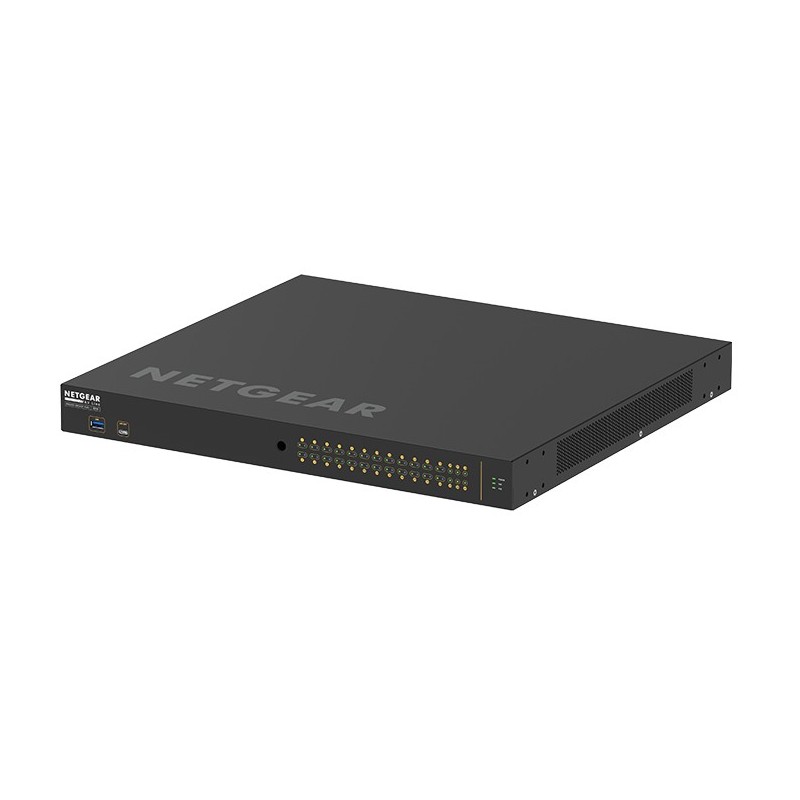

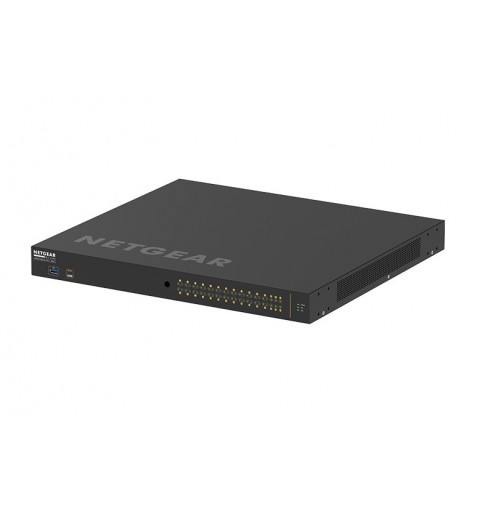

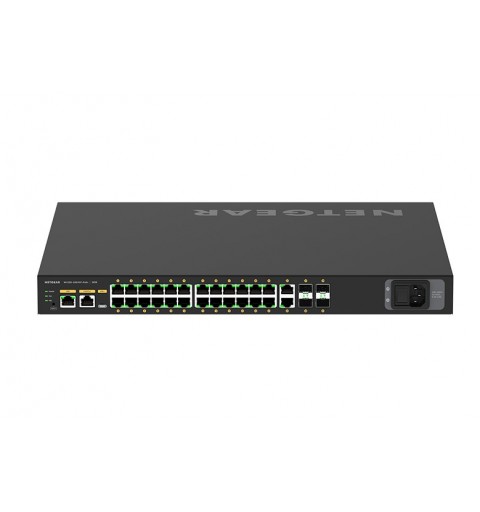

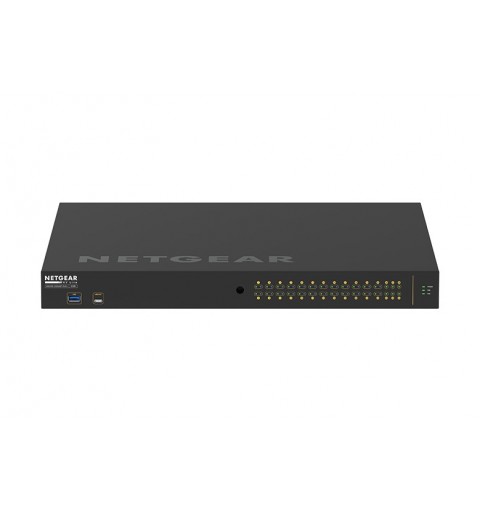

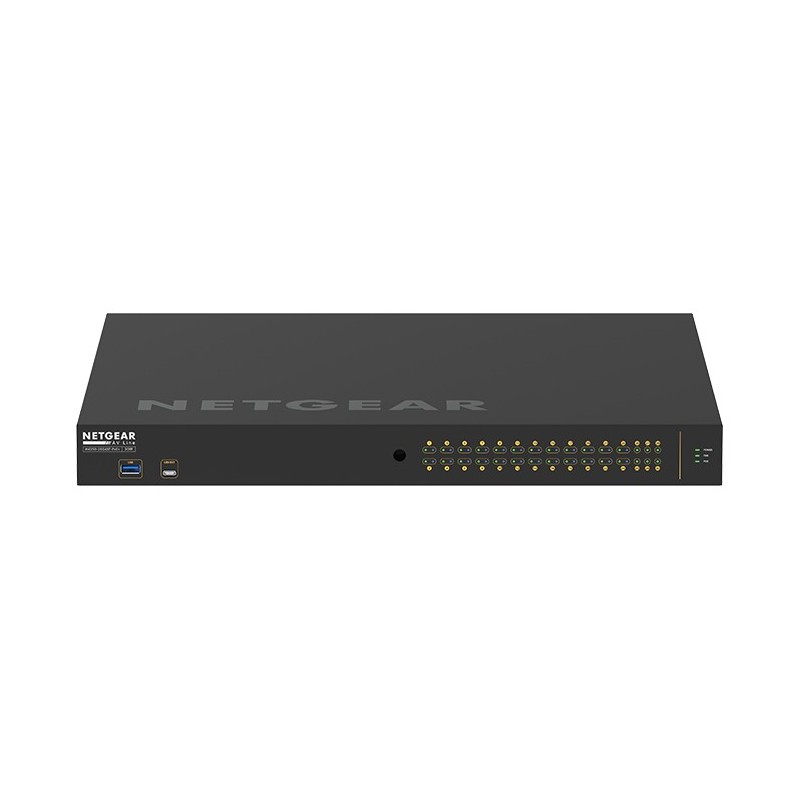

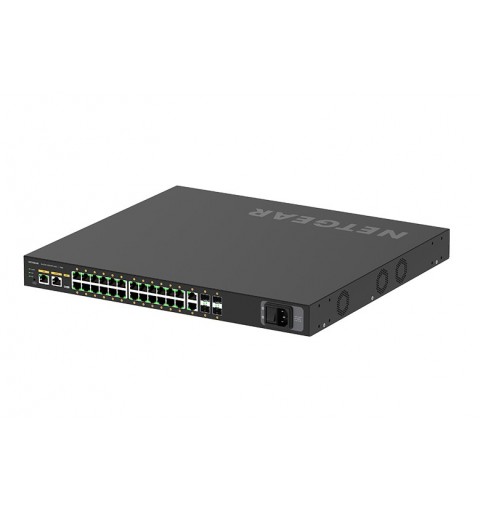

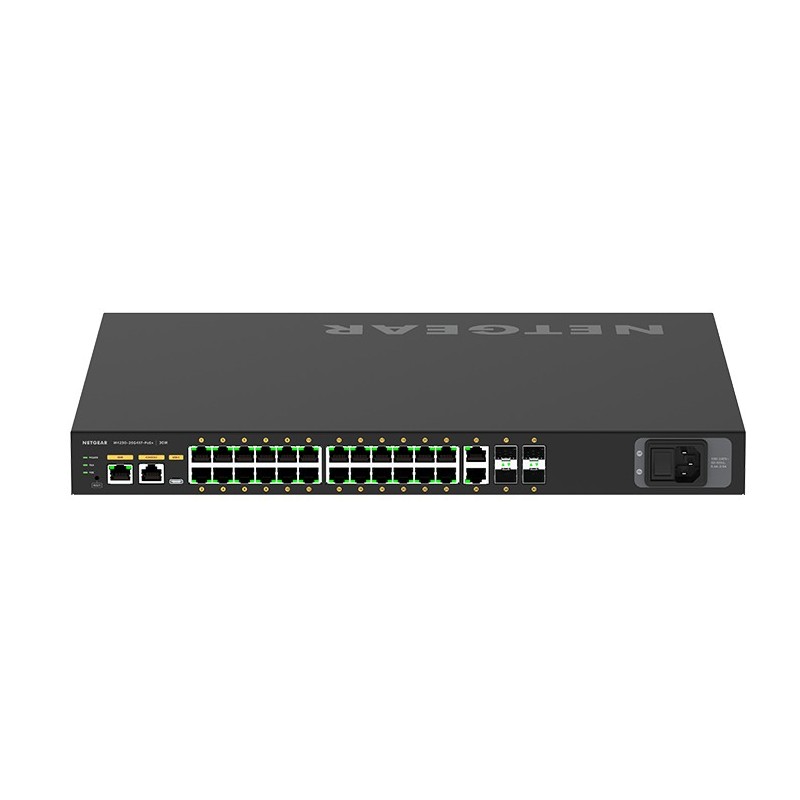

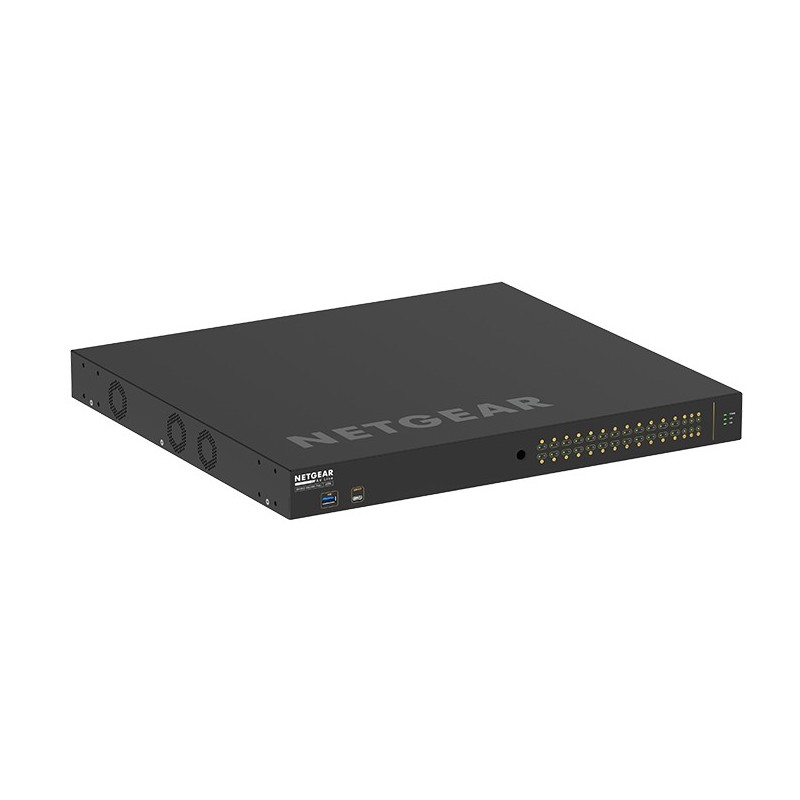

NETGEAR M4250-26G4XF-PoE+ Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Pre-configured for out-of-the-box use
NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations

Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles

Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license

Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed

Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology.

Rackmount versatility
1U, 400mm deep rackmount with all power and Ethernet ports on the back

Reversed mounting possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables

Universal mounting availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes

Adjustable fan functionality
Quiet mode with 42dB@25ºC, or fanless mode when PoE load and temperature allow

Easier configuration with new AV GUI
The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.

Use in noise-sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches.

Get up and running fast with little engineering time required
Our NETGEAR IGMP Plus TM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations

Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.

NETGEAR M4250-26G4XF-PoE+. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16000 entries, Switching capacity: 132 Gbit/s. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Management features
Switch type	Managed
Switch layer	L2/L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity	4
USB 2.0 ports quantity	1
Network
IPv6 routes	128
VLAN support	Yes
Number of VLANs	4
Data transmission
MAC address table	16000 entries
Switching capacity	132 Gbit/s
Throughput	98.21 Mpps
Latency (1 Gbps)	2.29 µs
Latency (10 Gbps)	0.83 µs
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	16 MB
Protocols
IPv4 FIB entries	256
IPv6 FIB entries	16
Design
Rack mounting	Yes
Form factor	1U
Product colour	Black
Temperature sensor	Yes
Performance
Built-in processor	Yes
Processor model	ARM Cortex-A57
Noise level	42 dB
Fanless	Yes
Power
Power supply included	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	45 W
Weight & dimensions
Width	440 mm
Depth	43.2 mm
Height	400 mm
Weight	5.45 kg
Logistics data
Harmonized System (HS) code	85176990
