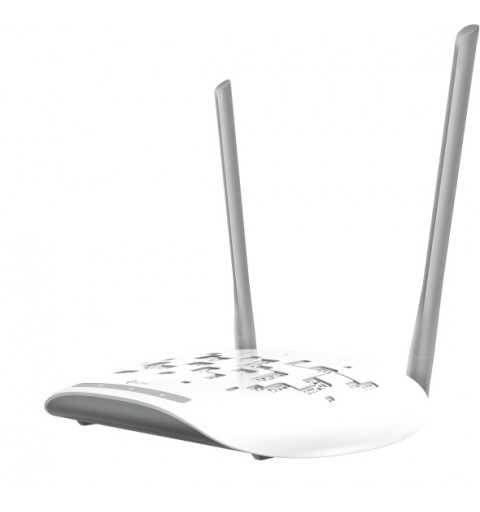

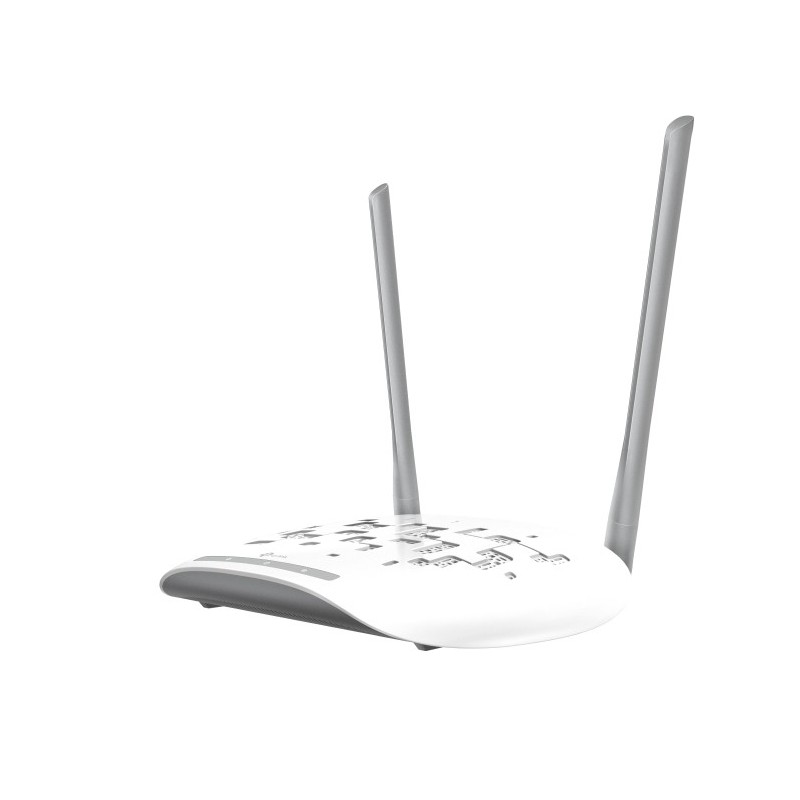

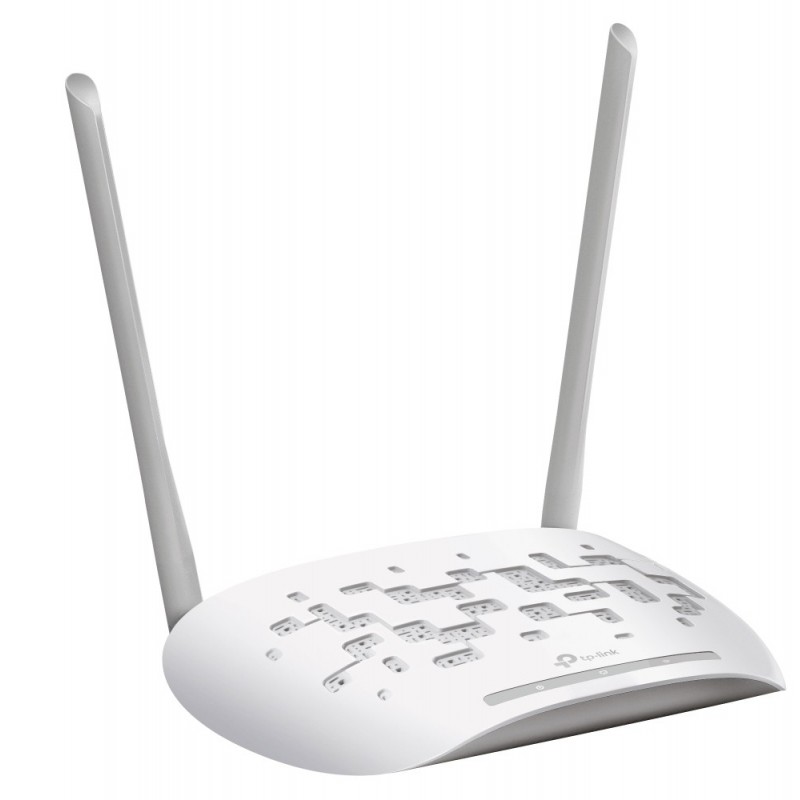

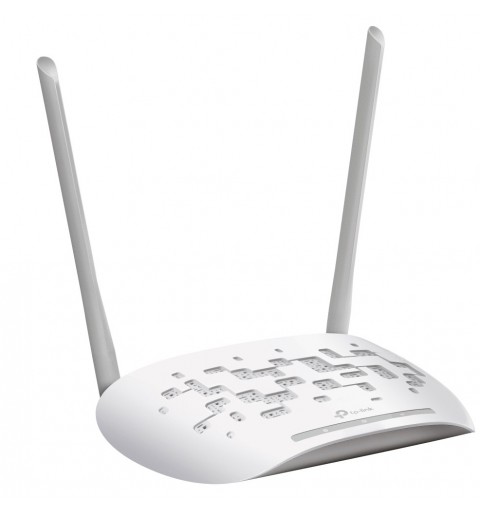

TP-Link TL-WA801N wireless access point 300 Mbit/s White Power over Ethernet (PoE)

What This Product Does
The TP-LINK Wireless N Access Point TL-WA801N is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet-enabled devices such as game consoles, digital media adapters, printers, or network-attached storage devices to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other applications that you may wish to use.

Wireless N - Speed & Range
Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Multiple Operating Modes
- Easy to Build WLAN
Supports multiple operation modes (Access Point, Multi-SSID, Client, Range Extender) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their APs. Multiple operating modes also help you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.

Passive PoE Supported
- More Flexible Deployment
The TL-WA801N is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.

TP-Link TL-WA801N. Maximum data transfer rate: 300 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Ethernet LAN data rates: 10,100 Mbit/s. Security algorithms: WPA, WPA-PSK, WPA2, WPA2-PSK, Service Set Identifier (SSID) features: Multiple SSIDs. Management protocols: SNMP. Output voltage: 9 V, Output current: 0.6 A. Placement: Floor, Table, Product colour: White

Features
2.4 GHz	Yes
6 GHz	No
Maximum data transfer rate	300 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi Multimedia (WMM)/(WME)	Yes
Wireless isolation	Yes
Transmitting power (FCC)	20 dBm
Security
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Yes
Service Set Identifier (SSID) features	Multiple SSIDs
Auto Wireless Distribution System (WDS)	Yes
Protocols
Management protocols	SNMP

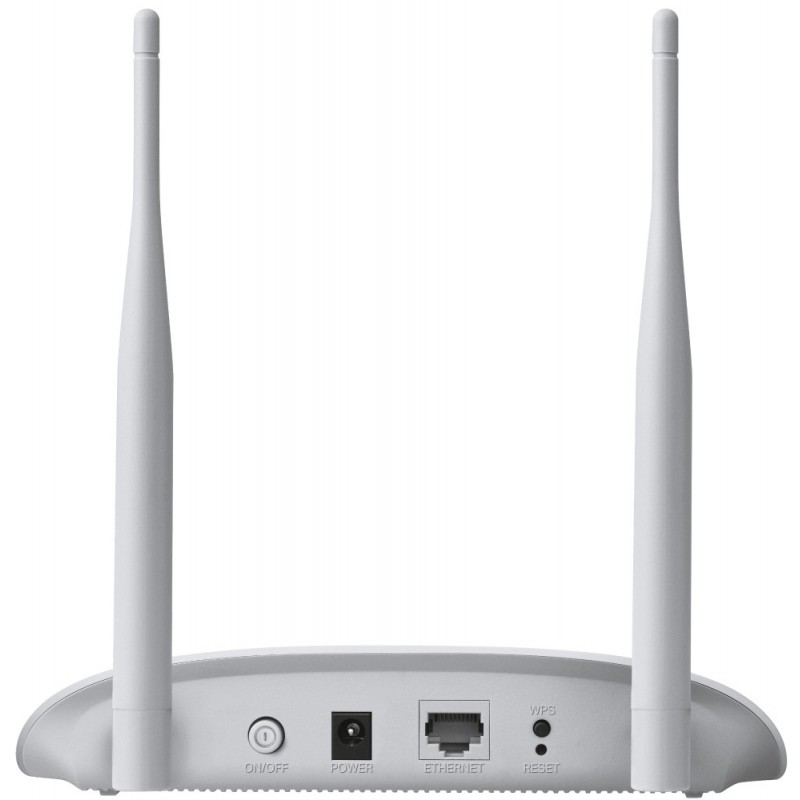

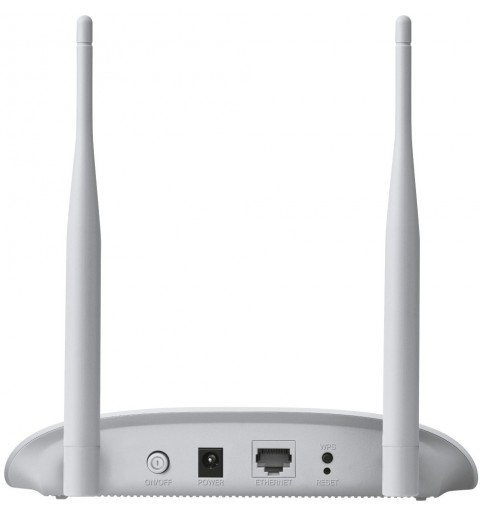

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power over Ethernet (PoE)	Yes
Output voltage	9 V
Output current	0.6 A
Design
Placement	Floor, Table
Product colour	White
On/off switch	Yes
Reset button	Yes
WPS push button	Yes
Antenna
Antenna type	External
Antenna direction type	Omni-directional
Antennas quantity	2
Weight & dimensions
Width	181.6 mm
Depth	129.5 mm
Height	36.2 mm
Packaging data
Package width	310 mm
Package depth	223 mm
Package height	70 mm
Package weight	560 g
Packaging content
AC adapter included	Yes
PoE adapter included	Yes
Cables included	LAN (RJ-45)
Quick start guide	Yes
Other features
Maximum operating distance	30 m
Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Sustainability
Sustainability certificates	Federal Communications Commission (FCC), RoHS
Logistics data
Harmonized System (HS) code	85176990
