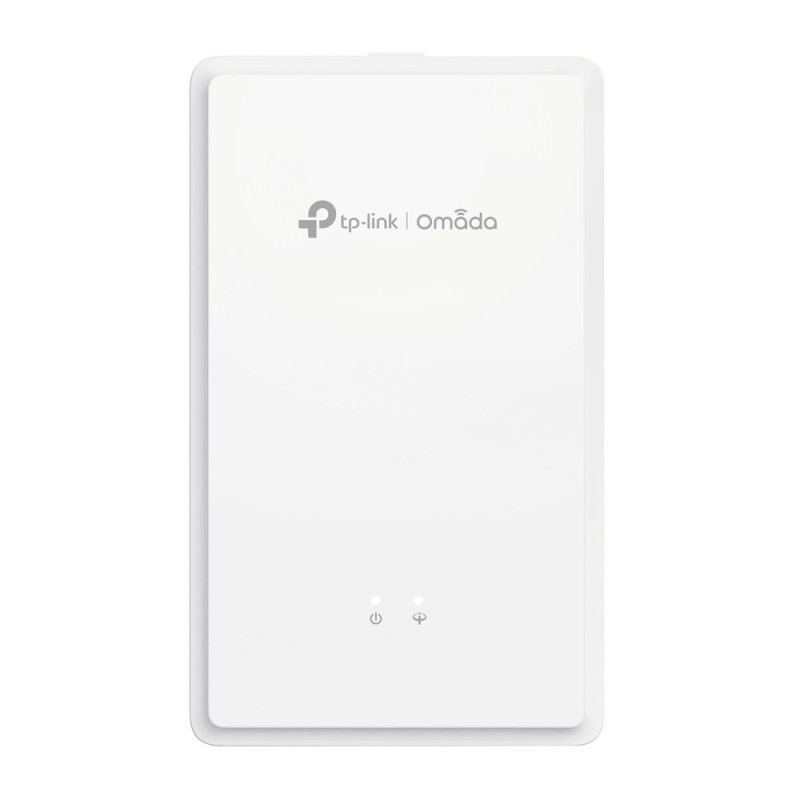

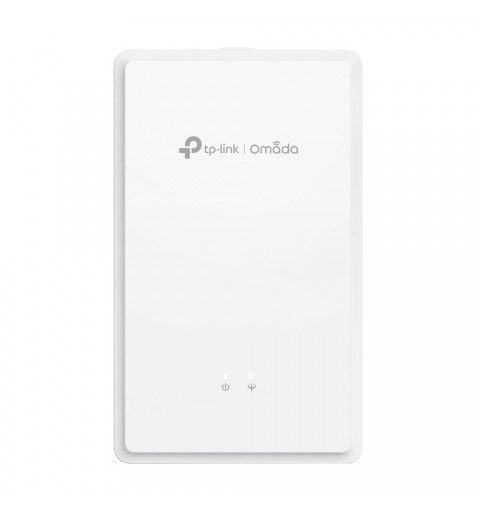

TP-Link Omada AX1800 1201 Mbit s White

    TP-Link Omada AX1800 1201 Mbit/s White

    €135.26 Tax included
    Article Code: 594693
    New product
    2-Year Italian Warranty: logo ita

    TP-Link Omada AX1800, 1201 Mbit/s, 574 Mbit/s, 1201 Mbit/s, 1000 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, 120 user(s)

    Availability:
    Quantity
    Add to Wishlist
    cached Add to Compare
    TP-Link Omada AX1800. Maximum data transfer rate: 1201 Mbit/s, Maximum data transfer rate (2.4 GHz): 574 Mbit/s, Maximum data transfer rate (5 GHz): 1201 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal, Service Set Identifier (SSID) features: Multiple SSIDs, SSID broadcast on/off. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Input current: 0.5 A. Placement: Wall, Product colour: White, LED indicators: Power. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna gain level (max): 6.5 dBi
    Features
    2.4 GHzYes
    6 GHzNo
    Maximum data transfer rate1201 Mbit/s
    Maximum data transfer rate (2.4 GHz)574 Mbit/s
    Maximum data transfer rate (5 GHz)1201 Mbit/s
    Ethernet LAN data rates1000 Mbit/s
    Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    Number of users120 user(s)
    Channel bandwidth80 MHz
    MIMOYes
    MIMO typeMulti User MIMO
    Spread spectrum methodOFDMA
    Wi-Fi roamingYes
    VLAN supportYes
    Rate limitingYes
    Wireless isolationYes
    Band steeringYes
    Airtime Fairness (ATF)Yes
    Quality of Service (QoS) supportYes
    BeamFormingYes
    Transmitting power (FCC)21 dBm
    Security
    Security algorithmsSNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal
    MAC address filteringYes
    Service Set Identifier (SSID) featuresMultiple SSIDs, SSID broadcast on/off
    Number of SSID supported16
    Remote Authentication Dial-In User Service (RADIUS)Yes
    Management features
    Web-based managementYes
    SyslogYes
    Ports & interfaces
    Ethernet LAN (RJ-45) ports2
    Power
    AC input frequency50/60 Hz
    Input current0.5 A
    Power consumption (typical)12.2 W
    Design
    PlacementWall
    Product colourWhite
    Reset buttonYes
    LED indicatorsPower
    CertificationCE, FCC, RoHS, IC
    Antenna
    Antenna typeInternal
    Antenna direction typeOmni-directional
    Antennas quantity2
    Antenna gain level (max)6.5 dBi
    Weight & dimensions
    Width143 mm
    Depth86 mm
    Height37.6 mm
    Weight320 g
    Packaging content
    Number of products included1 pc(s)
    Mounting kitYes
    Quick start guideYes
    Operational conditions
    Operating relative humidity (H-H)10 - 90%
    Operating temperature (T-T)0 - 40 °C
    Storage temperature (T-T)-40 - 70 °C
    Storage relative humidity (H-H)5 - 90%
    Sustainability
    Sustainability certificatesCE, Federal Communications Commission (FCC), RoHS

    Informazioni sul produttore

    TP-Link Technologies Co., Ltd.
    Zeestraat 1
    2201 AZ - Noordwijk
    Paesi Bassi

    CONTATTI
    Tel: +31 71 889 1199
    Mail: support.eu@tp-link.com

    ____

    Persona responsabile dell’UE

    Operatore economico con sede nell’UE che garantisce la conformità del prodotto alle normative richieste.

    TP-Link Technologies Co., Ltd.
    Zeestraat 1
    2201 AZ - Noordwijk
    Paesi Bassi

     594693
      In Stock

    Data sheet
    Width
    143 mm
    Depth
    86 mm
    Height
    37.6 mm
    Weight
    320 g
    Product colour
    White
    Operating temperature (T-T)
    0 - 40 °C
    Storage temperature (T-T)
    -40 - 70 °C
    AC input voltage
    100 - 240 V
    AC input frequency
    50/60 Hz
    Maximum data transfer rate
    1201 Mbit/s
    Networking standards
    IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    Ethernet LAN data rates
    1000 Mbit/s
    Ethernet LAN (RJ-45) ports
    2
    Security algorithms
    SNMP, SNMPv2, SNMPv3, SSH, WPA-Personal, WPA2-Personal, WPA3-Personal
    LED indicators
    Power
    Operating relative humidity (H-H)
    10 - 90%
    Storage relative humidity (H-H)
    5 - 90%
    Sustainability compliance
    Yes
    Sustainability certificates
    CE, Federal Communications Commission (FCC), RoHS
    Quality of Service (QoS) support
    Yes
    Web-based management
    Yes
    Power consumption (typical)
    12.2 W
    2.4 GHz
    Yes
    5 GHz
    Yes
    6 GHz
    No
    Maximum data transfer rate (2.4 GHz)
    574 Mbit/s
    Maximum data transfer rate (5 GHz)
    1201 Mbit/s
    MIMO
    Yes
    MIMO type
    Multi User MIMO
    Wi-Fi roaming
    Yes
    VLAN support
    Yes
    Rate limiting
    Yes
    Wireless isolation
    Yes
    Airtime Fairness (ATF)
    Yes
    MAC address filtering
    Yes
    Service Set Identifier (SSID) features
    Multiple SSIDs, SSID broadcast on/off
    Remote Authentication Dial-In User Service (RADIUS)
    Yes
    Syslog
    Yes
    Placement
    Wall
    Antenna type
    Internal
    Mounting kit
    Yes
    Channel bandwidth
    80 MHz
    Reset button
    Yes
    Quick start guide
    Yes
    Certification
    CE, FCC, RoHS, IC
    Number of users
    120 user(s)
    Spread spectrum method
    OFDMA
    Band steering
    Yes
    BeamForming
    Yes
    Number of products included
    1 pc(s)
    Input current
    0.5 A
    Antennas quantity
    2
    Transmitting power (CE)
    20 dBm
    Antenna gain level (max)
    6.5 dBi
    Transmitting power (FCC)
    21 dBm
    Number of SSID supported
    16
    Antenna direction type
    Omni-directional
