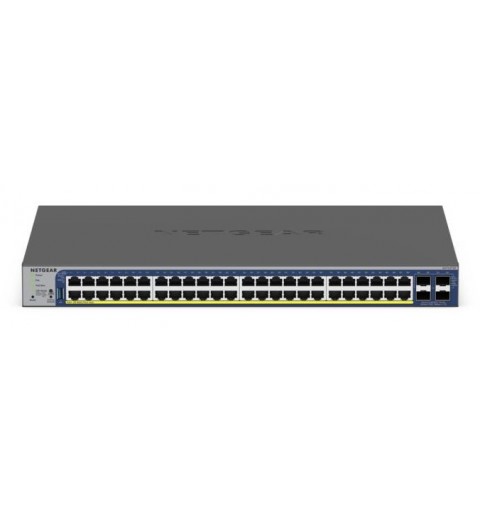

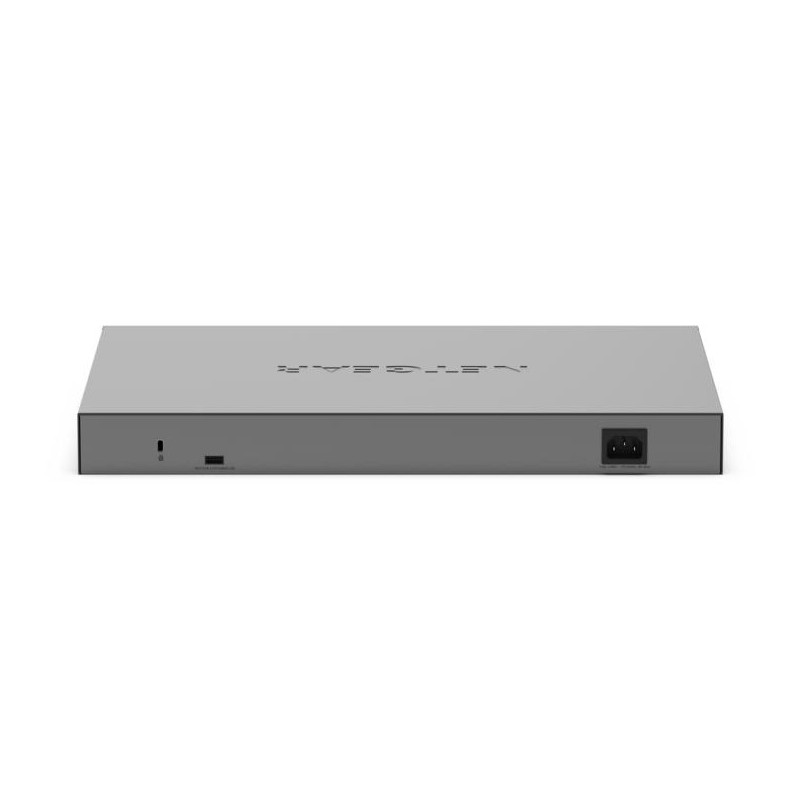

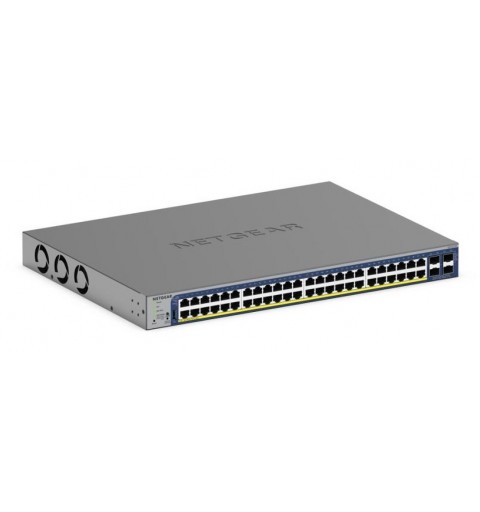

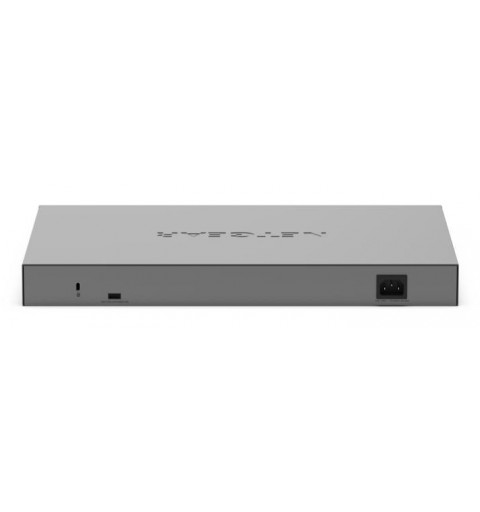

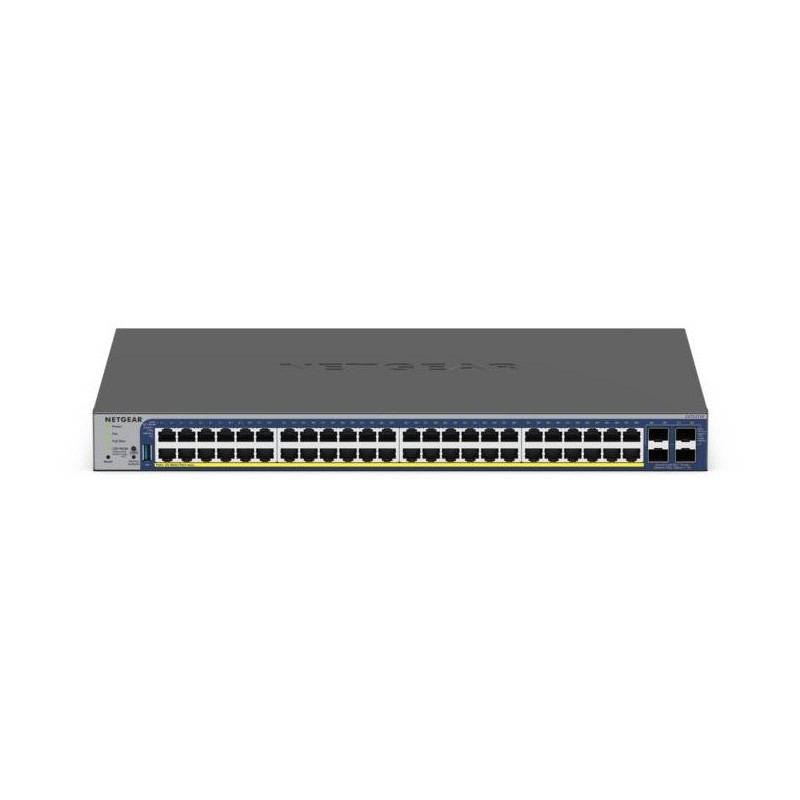

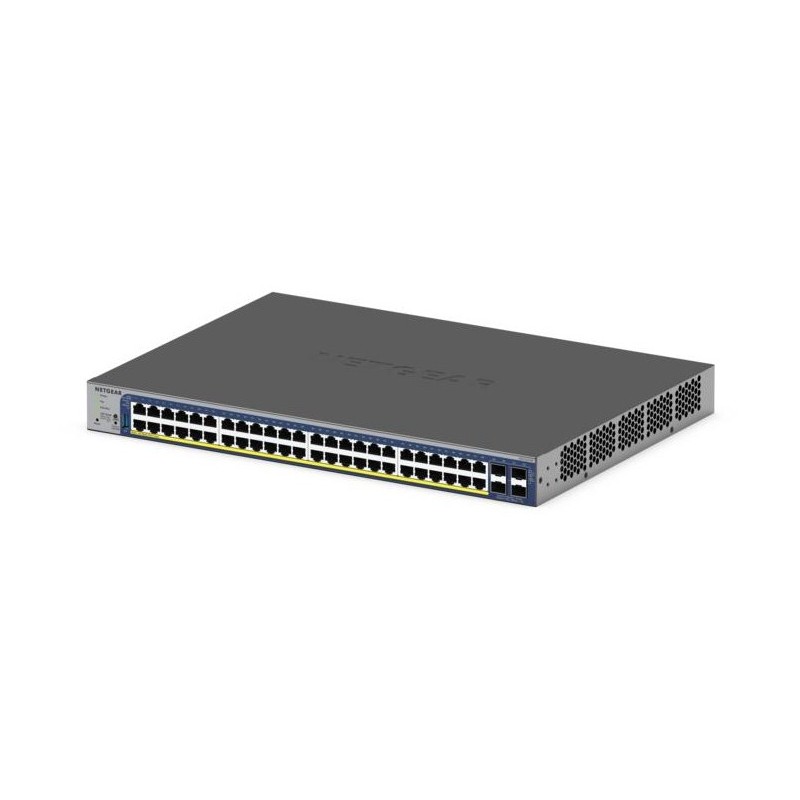

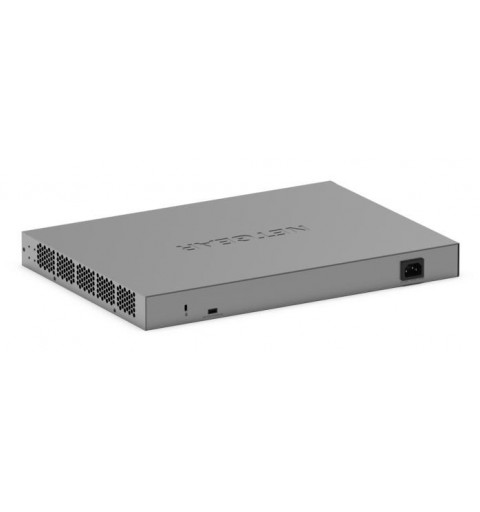

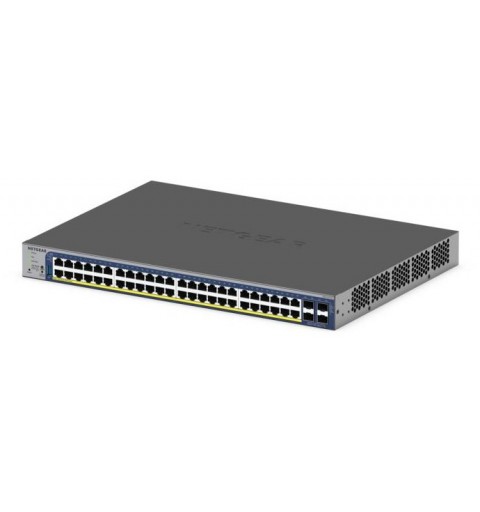

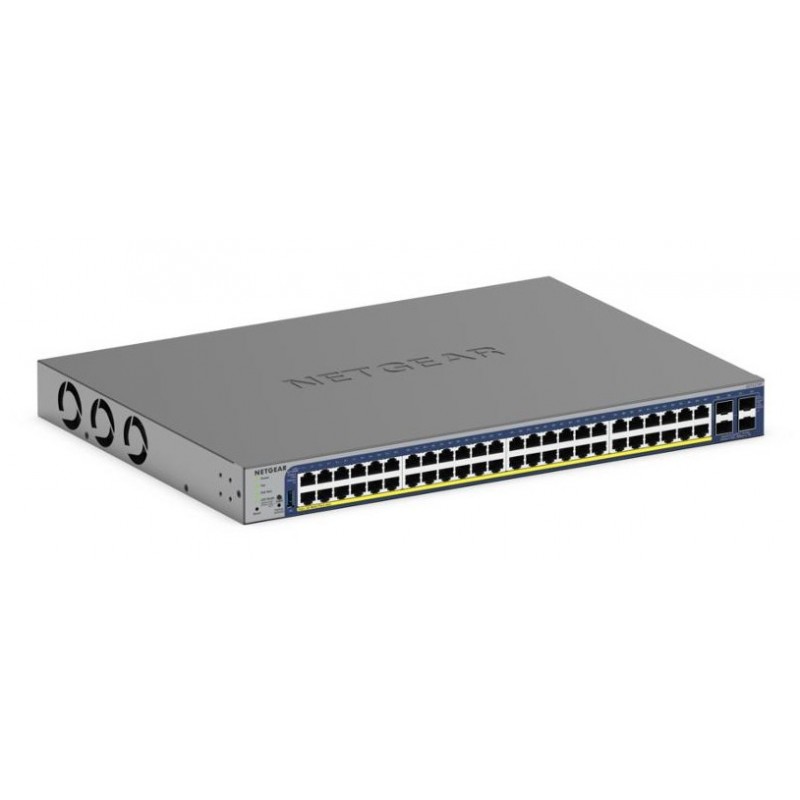

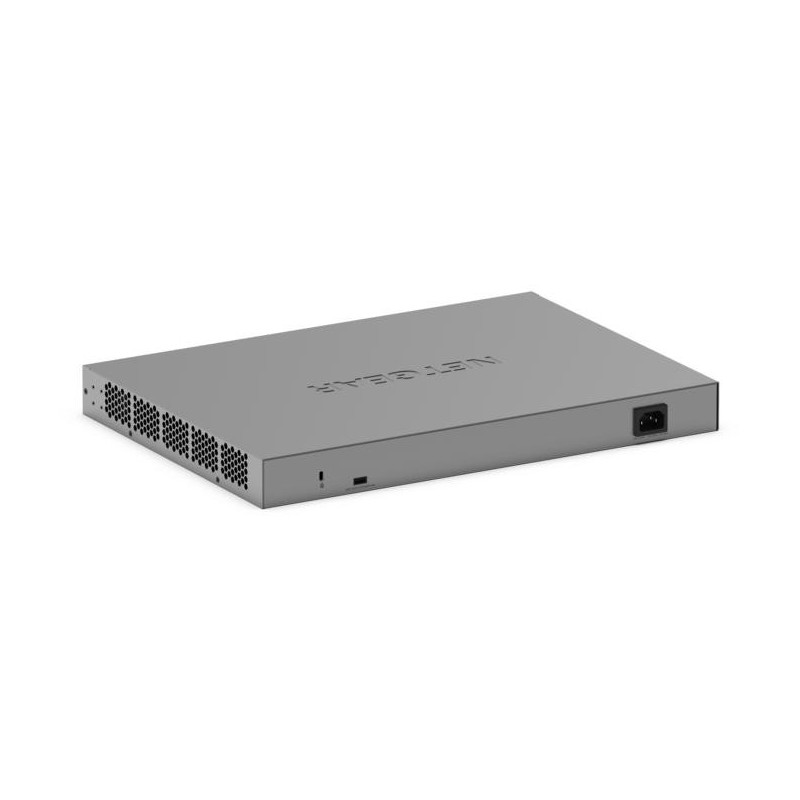

NETGEAR 52-Port PoE Gigabit/10G Stackable Smart Switch (GS752TXP)

Data sheet

Width

440 mm

Depth

345 mm

Height

43 mm

Weight

5.54 kg

Product colour

Black

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 70 °C

Power source

AC

Noise level

36.6 dB

Networking standards

IEEE 802.1ab, IEEE 802.1as, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Switch type

Managed

Switch layer

L2/L3/L4

Basic switching RJ-45 Ethernet ports quantity

48

Port mirroring

Yes

Full duplex

Yes

Flow control support

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

MAC address table

16000 entries

Packet buffer memory

16 MB

DHCP features

DHCP client

Access Control List (ACL)

Yes

IGMP snooping

Yes

Rack mounting

Yes

Stackable

Yes

Mean time between failures (MTBF)

1296949 h

Power over Ethernet (PoE)

Yes

Heat dissipation

2944.6 BTU/h

VLAN support

Yes

Rate limiting

Yes

MAC address filtering

Yes

Operating altitude

0 - 3000 m

Power consumption (max)

51 W

Non-operating altitude

0 - 3000 m

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

10G support

Yes

Power supply included

Yes

Power over Ethernet plus (PoE+) ports quantity

48

Flash memory

64 MB

Built-in processor

Yes

Total Power over Ethernet (PoE) budget

380 W

Static route

Yes

SFP+ module slots quantity

2

Virtual LAN features

Voice VLAN

Number of static routes

32

SSH/SSL support

Yes

Latency (10 Gbps)

4.107 µs
