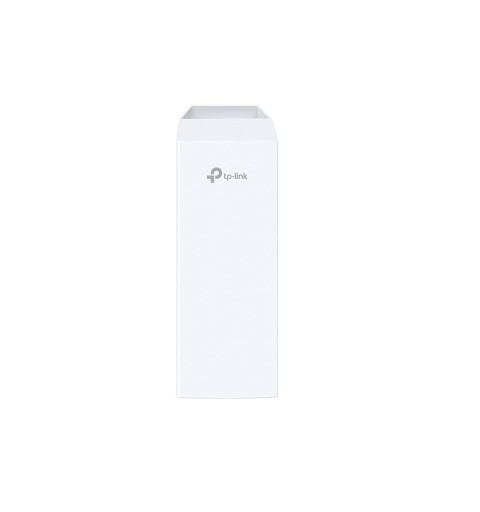

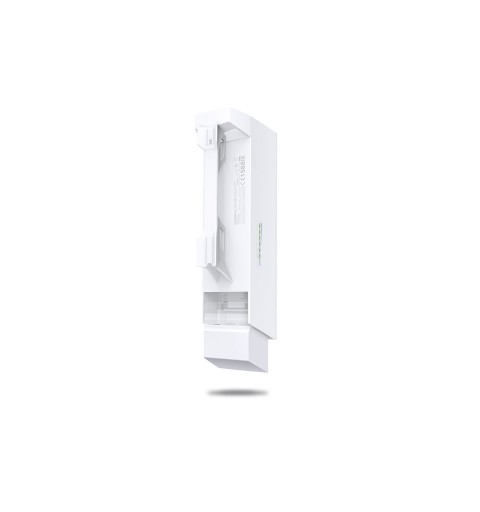

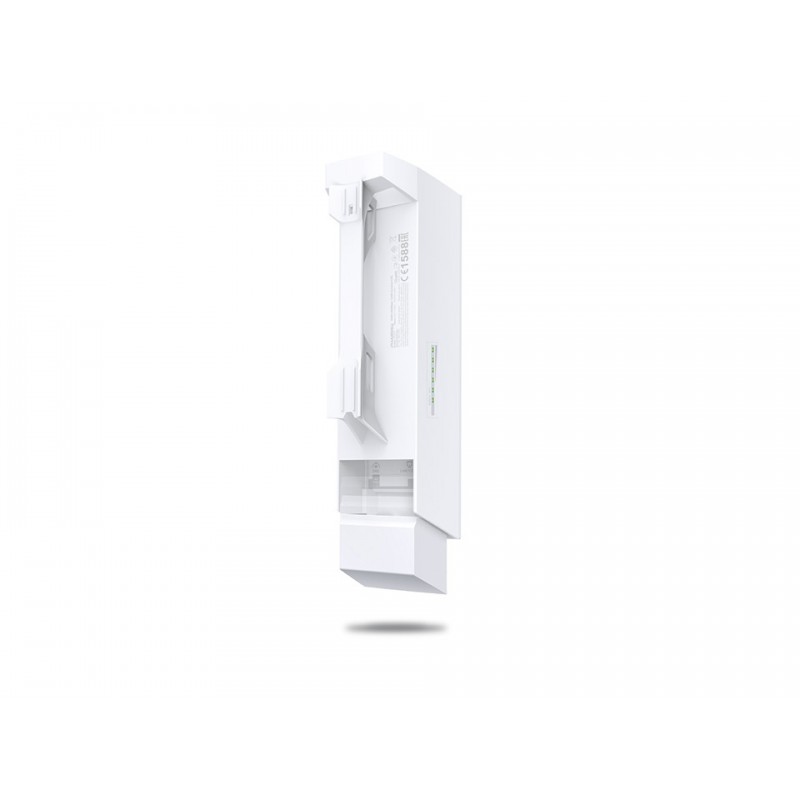

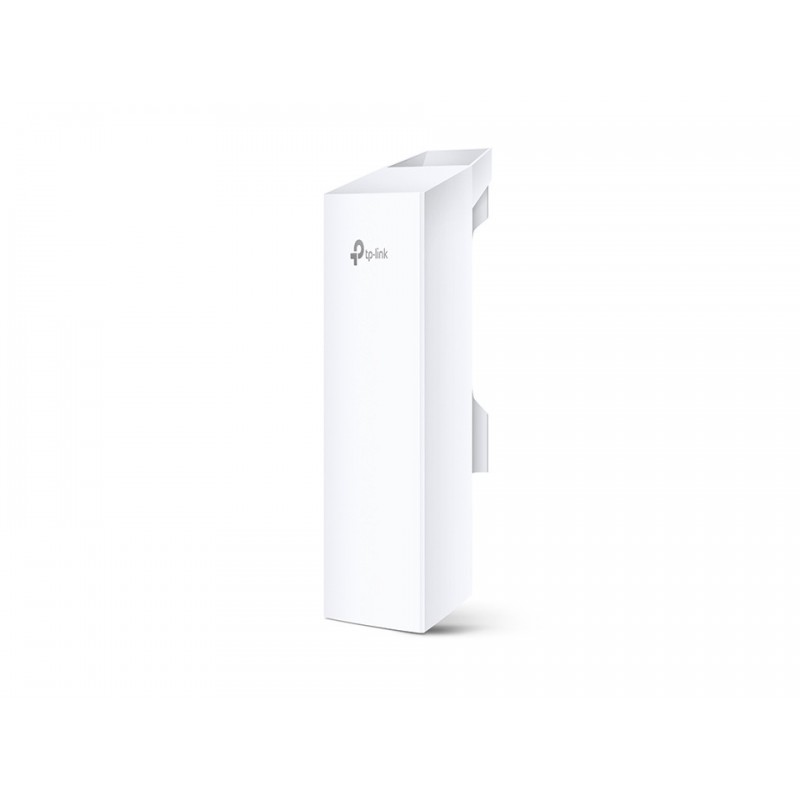

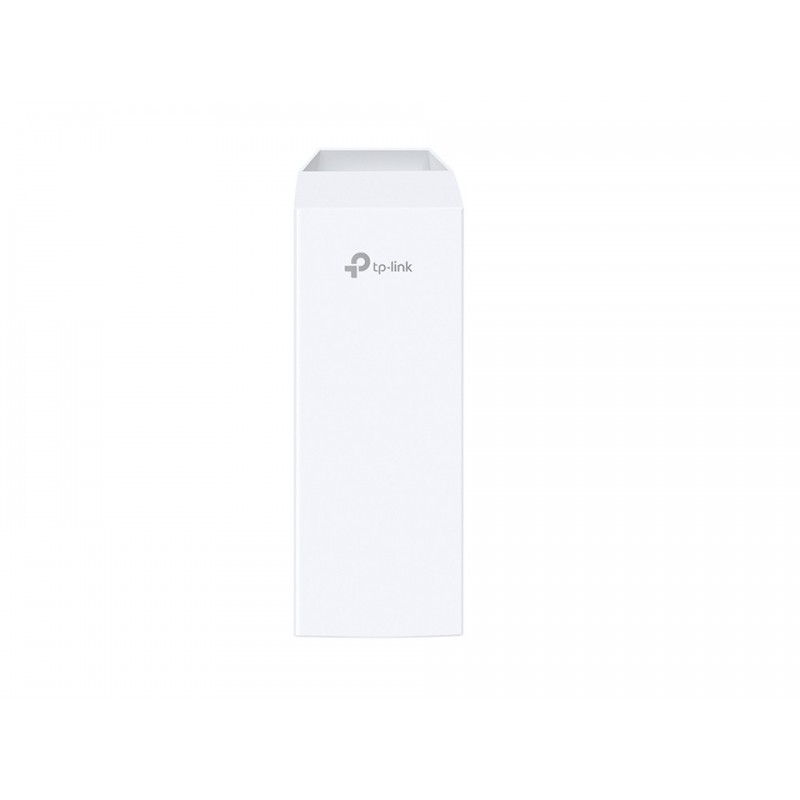

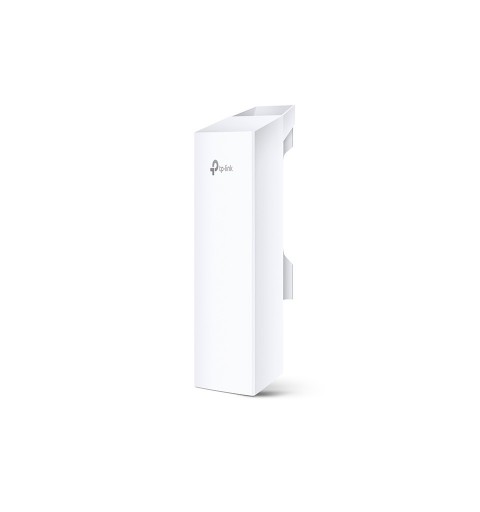

TP-Link 5GHz 300Mbps 13dBi Outdoor CPE

    TP-Link 5GHz 300Mbps 13dBi Outdoor CPE

    €65.94 Tax included
    Article Code: 599559
    New product
    2-Year Italian Warranty: logo ita

    TP-Link 5GHz 300Mbps 13dBi Outdoor CPE, 5 GHz, 300 Mbit/s, AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK, 10,100 Mbit/s

    Availability:
    Quantity
    Add to Wishlist
    cached Add to Compare
    What this product does
    TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.

    Enterprise Hardware Design
    With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

    Advanced Antenna System
    Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.

    High Power & High Sensitivity
    In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE510 an ideal product for outdoor wireless networking applications.
    Professional Outdoor Design
    CPE510 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions.

    Weatherproof Design
    With its outdoor weatherproof enclosure and industrial-level hardware design, CPE510 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C).

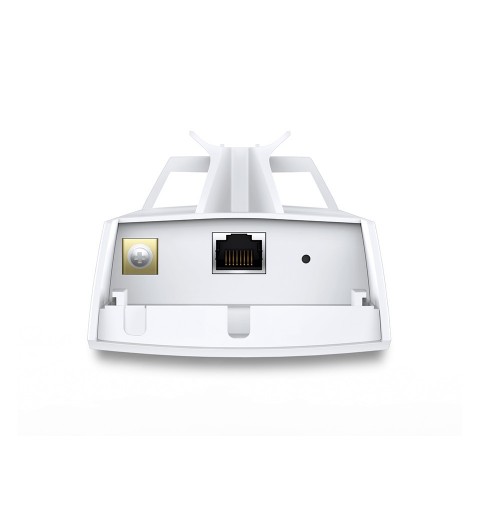

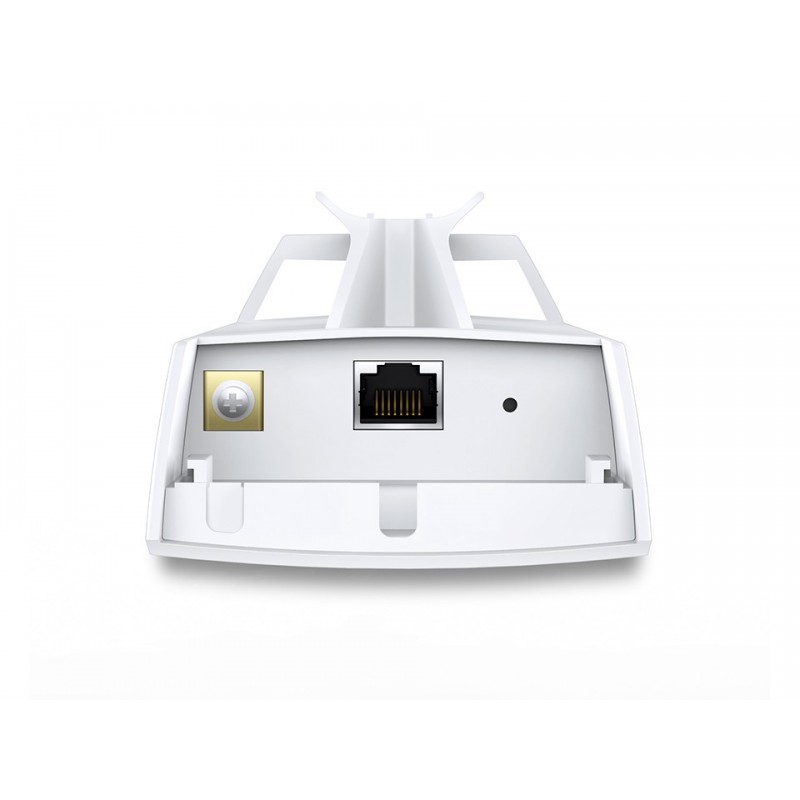

    Double Protection against ESD Attacks
    Besides its grounding terminal, CPE510 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE510’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.

    TP-LINK MAXtream TDMA Technology
    As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE510 uses MAXtream TDMA Technology.

    Pharos Control – Centralized Management System
    CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

    PharOS
    User-friendly web-based management system allows professionals to apply more specific configurations

    TP-Link 5GHz 300Mbps 13dBi Outdoor CPE. 5 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White
    Caratteristiche
    2.4 GHzNo
    6 GHzNo
    Velocità massima di trasferimento dati300 Mbit/s
    Velocità massima di trasferimento dati (5 GHz)300 Mbit/s
    Velocità trasferimento Ethernet LAN10,100 Mbit/s
    Tasso di trasmissione dati300 Mbit/s
    Banda di frequenza5.15 - 5.85 GHz
    Ampiezza banda5 GHz
    Standard di reteIEEE 802.11a, IEEE 802.11n
    Tecnologia di cablaggio10/100Base-T(X)
    Scansione canale automaticaSì
    VLAN supportSì
    Caratteristiche della LAN virtualeTagged VLAN
    Isolamento wirelessSì
    Raggio d'azione esterno15000 m
    Sensibilità ricevitore802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
    Sicurezza
    Algoritmi di sicurezza supportatiAES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
    Filtri MAC addressSì
    Filtraggio per indirizzo IPSì
    Funzioni SSID (Service Set Identifier)Trasmissione SSID, Attivazione/disattivazione della trasmissione SSID
    Funzione IGMP snoopingSì
    Wireless Distribution System (WDS) automaticoSì
    Protocolli
    Universal Plug and Play (UPnP)Sì
    Protocolli di gestioneTDMA
    Caratteristiche di gestione
    Gestione web-basedSì
    SyslogSì
    Piattaforma di gestionePharos Control
    Firmware aggiornabileSì
    Connettività
    Quantità porte Ethernet LAN (RJ-45)1
    Porta WANEthernet (RJ-45)
    Jack DC-inSì
    Gestione energetica
    Supporto Power over Ethernet (PoE)Sì
    tasso di voltaggio DC16 - 27 V
    Consumi13 W
    Design
    InstallazioneAsta, Parete
    Colore del prodottoBianco
    Materiale della scoccaPlastica
    Codice di protezione internazionale (IP)IP5X
    Tasto resetSì
    Indicatori LEDSì
    Antenna
    Tipo di antennaInterno
    Tipo di direzione dell'antennaOmnidirezionale
    Caratteristiche dell'antennaAntenna integrata
    Qualità dell'antenna1
    Livello di guadagno dell'antenna (max)13 dBi
    Prestazione
    Processore integratoSì
    Modello del processoreQualcomm Atheros
    Frequenza del processore560 MHz
    Architettura processoreMIPS 74Kc
    RAM installata64 MB
    Sistema operativo compatibileMicrosoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
    Dimensioni e peso
    Larghezza224,4 mm
    Profondità79 mm
    Altezza60,3 mm
    Dati su imballaggio
    Larghezza imballo132 mm
    Profondità imballo270 mm
    Altezza imballo106 mm
    Peso dell'imballo720 g
    Contenuto dell'imballo
    Quantità per pacco1 pz
    Adattatore PoE inclusoSì
    Cavi inclusiAC
    Kit di montaggioSì
    Condizioni ambientali
    Range di umidità di funzionamento10 - 90%
    Intervallo temperatura di funzionamento-30 - 70 °C
    Intervallo di temperatura-40 - 70 °C
    Umidità5 - 95%

    Informazioni sul produttore

    TP-Link Technologies Co., Ltd.
    Zeestraat 1
    2201 AZ - Noordwijk
    Paesi Bassi

    CONTATTI
    Tel: +31 71 889 1199
    Mail: support.eu@tp-link.com

    ____

    Persona responsabile dell’UE

    Operatore economico con sede nell’UE che garantisce la conformità del prodotto alle normative richieste.

    TP-Link Technologies Co., Ltd.
    Zeestraat 1
    2201 AZ - Noordwijk
    Paesi Bassi

     599559
      In Stock

    Data sheet
    Width
    224.4 mm
    Depth
    79 mm
    Height
    60.3 mm
    Package width
    132 mm
    Package depth
    270 mm
    Package height
    106 mm
    Package weight
    720 g
    Product colour
    White
    Operating temperature (T-T)
    -30 - 70 °C
    Storage temperature (T-T)
    -40 - 70 °C
    Cables included
    AC
    Housing material
    Plastic
    Quantity per pack
    1 pc(s)
    Maximum data transfer rate
    300 Mbit/s
    Networking standards
    IEEE 802.11a, IEEE 802.11n
    Ethernet LAN data rates
    10,100 Mbit/s
    Ethernet LAN (RJ-45) ports
    1
    Security algorithms
    AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
    LED indicators
    Yes
    Operating relative humidity (H-H)
    10 - 90%
    Storage relative humidity (H-H)
    5 - 95%
    Web-based management
    Yes
    IGMP snooping
    Yes
    Power consumption (typical)
    13 W
    Power over Ethernet (PoE)
    Yes
    2.4 GHz
    No
    5 GHz
    Yes
    6 GHz
    No
    Maximum data transfer rate (5 GHz)
    300 Mbit/s
    Frequency band
    5.15 - 5.85 GHz
    Automatic channel selection
    Yes
    Automatic channel scanning
    Yes
    VLAN support
    Yes
    Wireless isolation
    Yes
    MAC address filtering
    Yes
    Service Set Identifier (SSID) features
    SSID broadcast, SSID broadcast on/off
    Syslog
    Yes
    DC-in jack
    Yes
    Placement
    Pole, Wall
    Antenna type
    Internal
    Mounting kit
    Yes
    Processor model
    Qualcomm Atheros
    Internal memory
    64 MB
    International Protection (IP) code
    IP5X
    Reset button
    Yes
    Certification
    - FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS
    Firmware upgradeable
    Yes
    DC voltage range
    16 - 27 V
    Processor frequency
    560 MHz
    Cabling technology
    10/100Base-T(X)
    Flash memory
    8 MB
    Built-in processor
    Yes
    Universal Plug and Play (UPnP)
    Yes
    Antennas quantity
    1
    Processor architecture
    MIPS 74Kc
    IP address filtering
    Yes
    Management protocols
    TDMA
    Compatible operating systems
    Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
    Virtual LAN features
    Tagged VLAN
    Throughput data rate
    300 Mbit/s
    Antenna gain level (max)
    13 dBi
    Antenna direction type
    Omni-directional
    Maximum outdoor range
    15000 m
    Auto Wireless Distribution System (WDS)
    Yes
    Bandwidth
    5 GHz
    Management platform
    Pharos Control
    WAN connection
    Ethernet (RJ-45)
    Antenna features
    Integrated antenna
    PoE adapter included
    Yes
