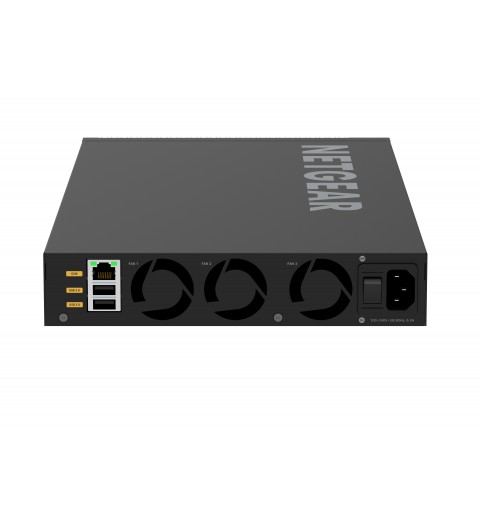

NETGEAR M4350-12X12F Managed L3 10G Ethernet (100 1000 10000) 1U Black

    NETGEAR M4350-12X12F Managed L3 10G Ethernet (100/1000/10000) 1U Black

    €4,346.16 Tax included
    Article Code: 601676
    New product
    2-Year Italian Warranty: logo ita

    NETGEAR M4350-12X12F, Managed, L3, 10G Ethernet (100/1000/10000), Full duplex, Rack mounting, 1U

    Availability:
    Quantity
    Add to Wishlist
    cached Add to Compare
    POWER AND THROUGHPUT
    Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

    Groundbreaking AV GUI
    A simplified user interface makes it easy to assign configuration profiles to each port.

    Multicast in an Instant
    NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

    Sleek, Quiet Design
    Less fan noise, and mounting ears included for rack mounting.

    Automatic Configuration
    Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

    FAST, EASY CONFIGURATION FOR AV PROS
    A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

    FOCUS ON THE EVENT NOT FAN NOISE
    Most models have quiet mode which greatly reduces fan noise.

    DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
    With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

    NETGEAR M4350-12X12F. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 12. Full duplex. MAC address table: 16000 entries, Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Rack mounting, Form factor: 1U
    Caratteristiche di gestione
    Tipo interruttoreGestito
    Livello del commutatoreL3
    Supporto qualità del servizio (QoS)Sì
    Gestione web-basedSì
    Ispezione ARPSì
    Connettività
    Quantità di porte RJ-4512
    Tipo di porte RJ-4510G Ethernet (100/1000/10000)
    Quantità di porte 10G Ethernet (rame)12
    Quantità di moduli SFP installati0
    Quantità di moduli SFP+ installati0
    Quantità di slot del modulo SFP+12
    Connettore di alimentazioneJack di ingresso AC
    Collegamento in rete
    Standard di reteIEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
    Supporto 10GSì
    Routing basato su criteriSì
    Percorsi IPv6256
    VLAN supportSì
    Caratteristiche della LAN virtualeMAC address-based VLAN, Private VLAN, Voice VLAN
    Numero di VLA4093
    Trasmissione dati
    Dimensioni tavola MAC16000 voci
    Capacità di commutazione480 Gbit/s
    Throughput357,12 Mpps
    Store-and-forwardSì
    Latenza (1 Gbps)2,14 µs
    Latenza (10 Gbps)2,29 µs
    Supporto Jumbo FramesSì
    Frame Jumbo12000
    Buffer di memoria di pacchetto32 MB
    Sicurezza
    Caratteristiche DHCPDHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
    Lista di controllo accesso (ACL)Sì
    Uscita della Lista di controllo degli accessi (ACL)1023
    Ingresso della Lista di controllo degli accessi (ACL)511
    IGMP proxySì
    Algoritmi di pianificazione di codaStrict Priority Queue (SPQ), Weighted random early detection (WRED)
    Funzioni Multicast
    Supporto multicastSì
    Snooping del Multicast listener discovery (MLD)Y
    Protocolli
    Protocolli di gestioneSNMP V1, V2, V3
    Protocollo di routingOSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
    Design
    Montaggio rackSì
    ImpilabileSì
    Fattore di forma1U
    Colore del prodottoNero
    Indicatori LEDSì
    Direzione del flusso d'ariaFlusso d'aria anteriore-posteriore
    Prestazione
    Processore integratoSì
    Modello del processoreARM Cortex-A57
    Frequenza del processore1800 MHz
    Tipo memoriaDDR4-SDRAM
    RAM installata2048 MB
    Memoria flash512 MB
    sFlowSì
    Gestione energetica
    AlimentazioneAC
    Fonte di alimentazione inclusaSì
    Consumi95,8 W
    Power over Ethernet (PoE)
    Supporto Power over Ethernet (PoE)No
    Altre caratteristiche
    Alimentazione240 W
    Condizioni ambientali
    Intervallo temperatura di funzionamento0 - 50 °C
    Intervallo di temperatura-20 - 70 °C
    Range di umidità di funzionamento0 - 90%
    Umidità0 - 95%
    Altitudine di funzionamento0 - 3000 m
    Altitudine di non-funzionamento0 - 3000 m
    Dimensioni e peso
    Larghezza220 mm
    Profondità400 mm
    Altezza43,2 mm
    Peso4,3 kg
    Contenuto dell'imballo
    Cavi inclusiAC, USB tipo-C
    Guida rapidaSì
    Kit di montaggio per rackSì
    Dati su imballaggio
    Tipi di spina inclusaEU, UK, NA
    Sostenibilità
    Conformità alla sostenibilitàSì

    Informazioni sul produttore

    Netgear Europe GmbH
    Netgear Straüe 13
    40210 - Dusseldorf
    Germania

    CONTATTI
    Tel: +49 211 141414
    Mail: info@netgear.eu

    ____

    Persona responsabile dell’UE

    Operatore economico con sede nell’UE che garantisce la conformità del prodotto alle normative richieste.

    Netgear Europe GmbH
    Netgear Straüe 13
    40210 - Dusseldorf
    Germania

     601676

    Data sheet
    Width
    220 mm
    Depth
    400 mm
    Height
    43.2 mm
    Weight
    4.3 kg
    Product colour
    Black
    Operating temperature (T-T)
    0 - 50 °C
    Storage temperature (T-T)
    -20 - 70 °C
    Cables included
    AC, USB Type-C
    Power source
    AC
    Networking standards
    IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
    LED indicators
    Yes
    Operating relative humidity (H-H)
    0 - 90%
    Storage relative humidity (H-H)
    0 - 95%
    Sustainability compliance
    Yes
    Switch type
    Managed
    Switch layer
    L3
    Quality of Service (QoS) support
    Yes
    Web-based management
    Yes
    Basic switching RJ-45 Ethernet ports quantity
    12
    Power connector
    AC-in jack
    Full duplex
    Yes
    Flow control support
    Yes
    Link aggregation
    Yes
    Broadcast storm control
    Yes
    Spanning tree protocol
    Yes
    Number of VLANs
    4093
    MAC address table
    16000 entries
    Switching capacity
    480 Gbit/s
    Store-and-forward
    Yes
    Packet buffer memory
    32 MB
    DHCP features
    DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
    Access Control List (ACL)
    Yes
    IGMP snooping
    Yes
    Multicast support
    Yes
    Rack mounting
    Yes
    Stackable
    Yes
    Power consumption (typical)
    95.8 W
    Power over Ethernet (PoE)
    No
    VLAN support
    Yes
    Rate limiting
    Yes
    MAC address filtering
    Yes
    Form factor
    1U
    Processor model
    ARM Cortex-A57
    Internal memory
    2048 MB
    Operating altitude
    0 - 3000 m
    Password protection
    Yes
    Quick start guide
    Yes
    Memory type
    DDR4-SDRAM
    Processor frequency
    1800 MHz
    Non-operating altitude
    0 - 3000 m
    Basic switching RJ-45 Ethernet ports type
    10G Ethernet (100/1000/10000)
    10G support
    Yes
    Jumbo frames support
    Yes
    Jumbo frames
    12000
    Loop protection
    Yes
    Power supply included
    Yes
    Flash memory
    512 MB
    Latency (1 Gbps)
    2.14 µs
    Built-in processor
    Yes
    Rack mount kit
    Yes
    Management protocols
    SNMP V1, V2, V3
    SFP+ module slots quantity
    12
    Policy-based routing
    Yes
    Virtual LAN features
    MAC address-based VLAN, Private VLAN, Voice VLAN
    BPDU filtering/protection
    Yes
    IGMP proxy
    Yes
    ARP inspection
    Yes
    10G Ethernet (copper) ports quantity
    12
    IPv4 routes
    512
    IPv6 routes
    256
    Authentication
    Guest VLAN, MAC-based authentication
    Included power plug types
    EU, UK, NA
    Throughput
    357.12 Mpps
    Latency (10 Gbps)
    2.29 µs
    Compliance certificates
    BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
    DoS attack prevention
    Yes
    Routing protocols
    OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
    Static port security
    Yes
    Authentication type
    RADIUS, TACACS+
    Queue scheduling algorithms
    Strict Priority Queue (SPQ), Weighted random early detection (WRED)
    Multicast Listener Discovery (MLD) snooping
    Y
    GARP VLAN Registration Protocol (GVRP)
    Yes
    Installed SFP modules quantity
    0
    Installed SFP+ modules quantity
    0
    6to4 tunnel
    Yes
    Access Control List (ACL) egress
    1023
    Access Control List (ACL) ingress
    511
    Root protection
    Yes
    Airflow direction
    Front-to-back airflow
    sFlow
    Yes
