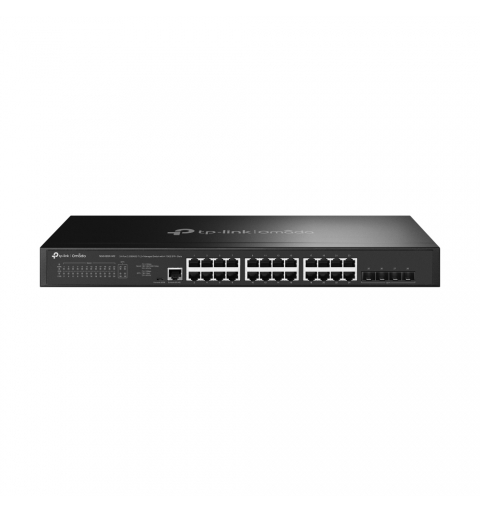

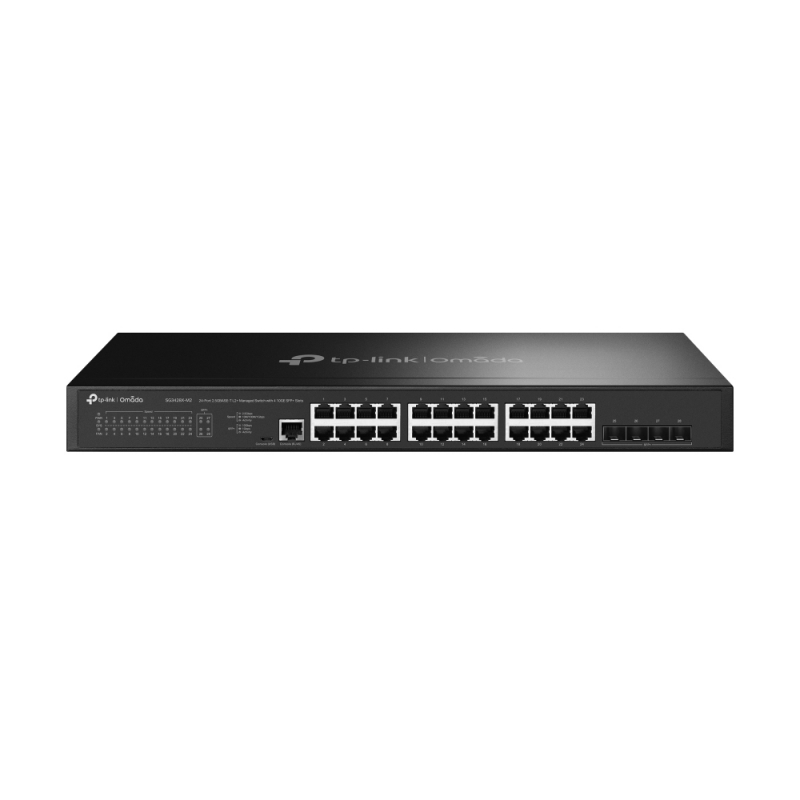

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots

€619.52 Tax included

Article Code: 607963

Condition:

2-Year Italian Warranty: logo ita

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots, Managed, L2+, 2.5G Ethernet (100/1000/2500), Rack mounting, 1U

Description

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Power connector: AC-in jack. Rack mounting, Form factor: 1U

Caratteristiche di gestione
Tipo interruttore	Gestito
Livello del commutatore	L2+
Supporto qualità del servizio (QoS)	Sì
Gestito in Cloud	Sì
Configurazione dei parametri di localizzazione (CLI)	Sì
Registro evento di sistema	Sì
Supporto MIB	Yes
Connettività
Quantità di porte RJ-45	24
Tipo di porte RJ-45	2.5G Ethernet (100/1000/2500)
Quantità di porte 2.5G Ethernet (rame)	24
Quantità di moduli SFP installati	0
Quantità di moduli SFP+ installati	0
Quantità di slot del modulo SFP+	4
Console port	RJ-45/Micro-USB
Connettore di alimentazione	Jack di ingresso AC
Collegamento in rete
Standard di rete	IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Supporto 10G	Sì
Mirroring della porta	Sì
Routing basato su criteri	Sì
Percorsi IPv6	48
VLAN support	Sì
Caratteristiche della LAN virtuale	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Trasmissione dati
Dimensioni tavola MAC	32000 voci
Capacità di commutazione	200 Gbit/s
tasso di inoltro	148,8 Mpps
Store-and-forward	Sì
Instradamento statico	Sì
Numero di instradamenti statici	48
Supporto Jumbo Frames	Sì
Frame Jumbo	9000
Buffer di memoria di pacchetto	16 MB
Sicurezza
Caratteristiche DHCP	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Lista di controllo accesso (ACL)	Sì
Funzione IGMP snooping	Sì
tipo di autenticazione	Mini Stilo AAA, RADIUS, TACACS+
Funzioni Multicast
Supporto multicast	Sì
Snooping del Multicast listener discovery (MLD)	Y
Protocolli
Protocolli di gestione	SNMP v1/v2c/v3, SNTP
Protocollo di registrazione GARP VLAN (GVRP)	Sì
Caratteristiche IPv4 e IPv6	IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Voci IPv4 FIB	100
Voci IPv6 FIB	100
Design
Montaggio rack	Sì
Fattore di forma	1U
Colore del prodotto	Nero
Indicatori LED	Sì
Numero di ventole	1 ventola(e)
Gestione energetica
Alimentazione	AC
Fonte di alimentazione inclusa	Sì
Tensione di ingresso AC	100 - 240 V
Frequenza di ingresso AC	50/60 Hz
Consumo energetico (max)	45,1 W
Power over Ethernet (PoE)
Supporto Power over Ethernet (PoE)	No
Condizioni ambientali
Intervallo temperatura di funzionamento	0 - 40 °C
Intervallo di temperatura	-40 - 70 °C
Range di umidità di funzionamento	10 - 90%
Umidità	5 - 90%
Dissipazione del calore	154,38 BTU/h
Dimensioni e peso
Larghezza	440 mm
Profondità	180 mm
Altezza	44 mm
Contenuto dell'imballo
Cavi inclusi	LAN (RJ-45)
Guida rapida	Sì

Product Details

Informazioni sul produttore

TP-Link Technologies Co., Ltd.
Zeestraat 1
2201 AZ - Noordwijk
Paesi Bassi

CONTATTI
Tel: +31 71 889 1199
Mail: support.eu@tp-link.com

____

Persona responsabile dell’UE

Operatore economico con sede nell’UE che garantisce la conformità del prodotto alle normative richieste.

TP-Link Technologies Co., Ltd.
Zeestraat 1
2201 AZ - Noordwijk
Paesi Bassi

Reference 607963

In stock In Stock

Data sheet

Width: 440 mm
Depth: 180 mm
Height: 44 mm
Product colour: Black
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Cables included: LAN (RJ-45)
Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Networking standards: IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
LED indicators: Yes
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Switch type: Managed
Switch layer: L2+
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes
MIB support: Yes
Basic switching RJ-45 Ethernet ports quantity: 24
Power connector: AC-in jack
Port mirroring: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
MAC address table: 32000 entries
Switching capacity: 200 Gbit/s
Store-and-forward: Yes
Packet buffer memory: 16 MB
DHCP features: DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL): Yes
IGMP snooping: Yes
Multicast support: Yes
Rack mounting: Yes
Power over Ethernet (PoE): No
Heat dissipation: 154.38 BTU/h
VLAN support: Yes
Rate limiting: Yes
Form factor: 1U
Power consumption (max): 45.1 W
Quick start guide: Yes
Certification: CE, FCC, RoHS
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
10G support: Yes
Jumbo frames support: Yes
Jumbo frames: 9000
Loop protection: Yes
Power supply included: Yes
Console port: RJ-45/Micro-USB
Management protocols: SNMP v1/v2c/v3, SNTP
Static route: Yes
Cloud-managed: Yes
SFP+ module slots quantity: 4
Policy-based routing: Yes
Active link detection: Yes
Virtual LAN features: Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Forwarding rate: 148.8 Mpps
Number of static routes: 48
SSH/SSL support: Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Number of fans: 1 fan(s)
ARP inspection: Yes
IPv4 routes: 48
IPv6 routes: 48
Authentication: Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI): Yes
Authentication type: AAA, RADIUS, TACACS+
Multicast Listener Discovery (MLD) snooping: Y
GARP VLAN Registration Protocol (GVRP): Yes
Installed SFP modules quantity: 0
Installed SFP+ modules quantity: 0
2.5G Ethernet (copper) ports quantity: 24
IPv4 FIB entries: 100
IPv6 FIB entries: 100
