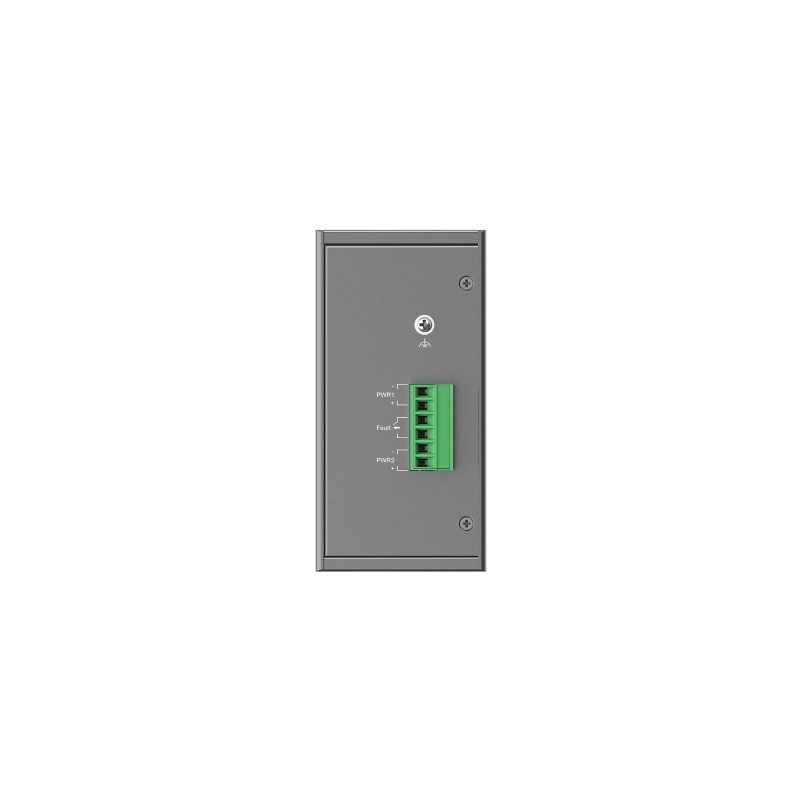

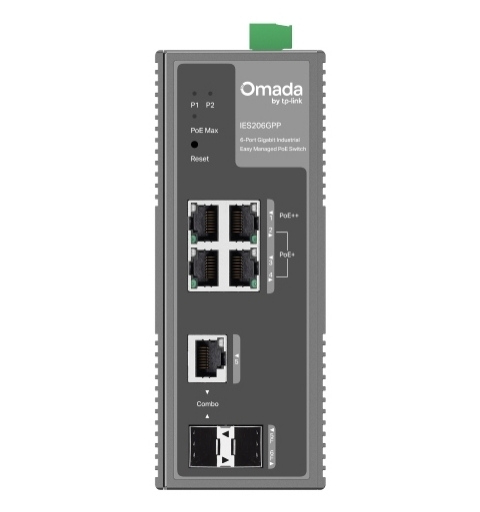

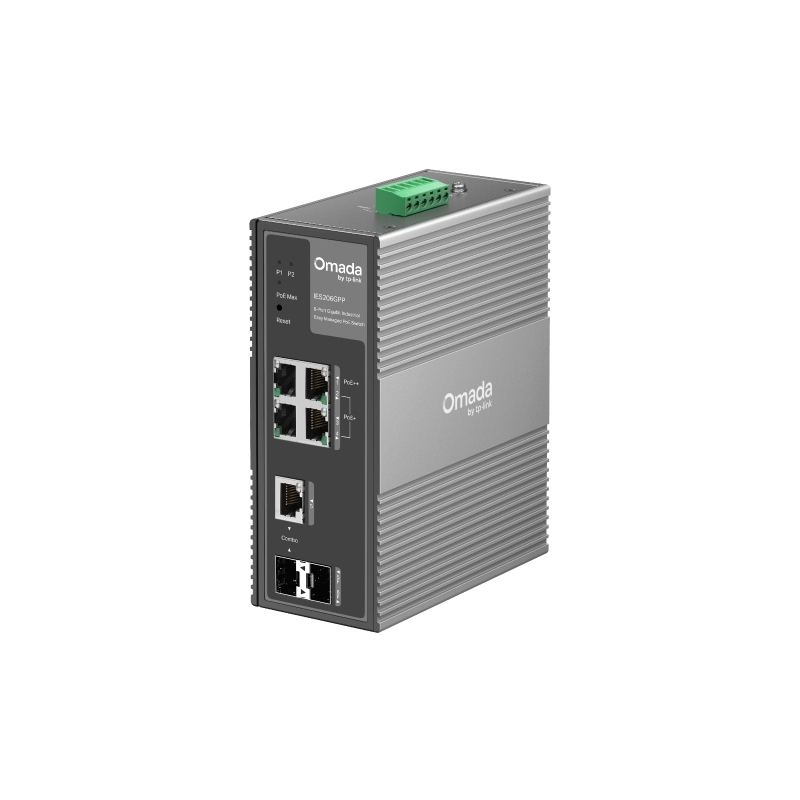

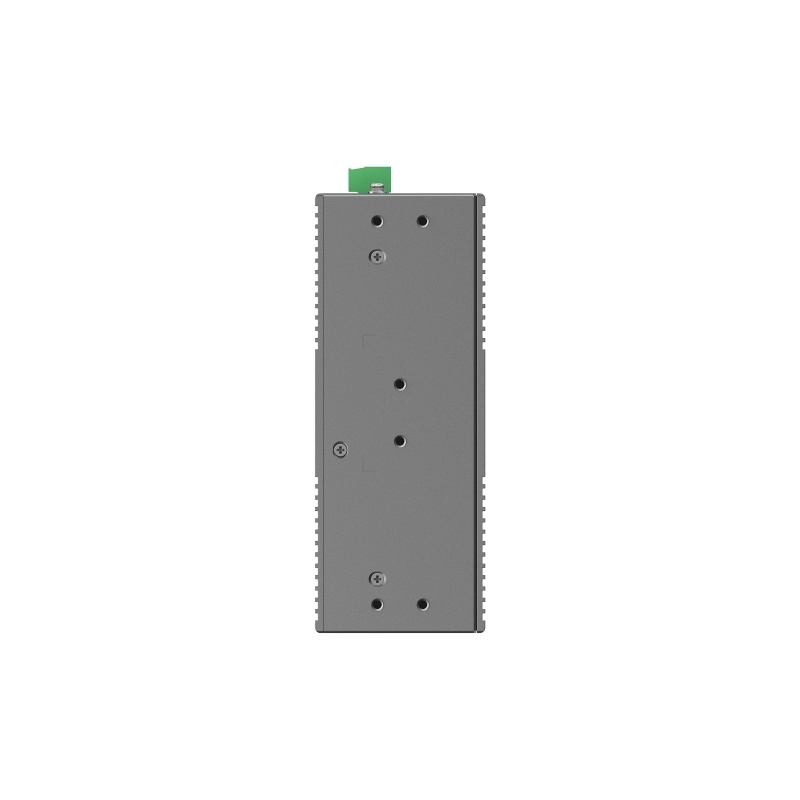

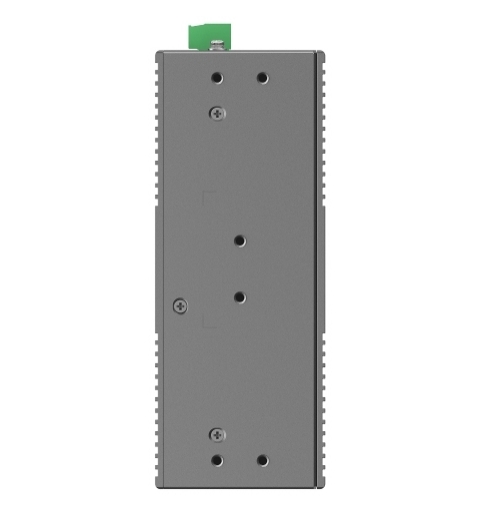

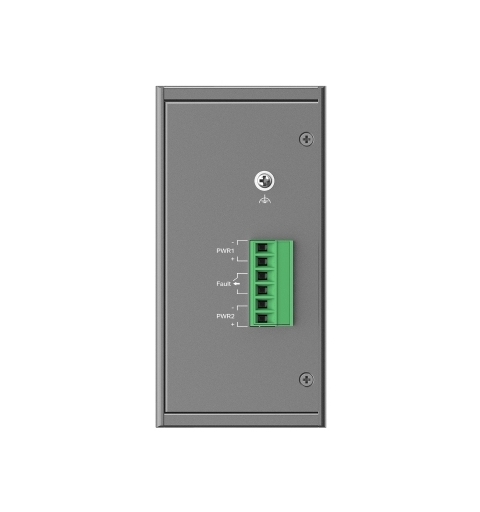

TP-Link IES206GPP, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, Wall mountable
TP-Link IES206GPP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
€230.60 Tax included
Article Code: 613018
2-Year Italian Warranty:
TP-Link IES206GPP, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, Wall mountable
Industrial-Grade Protection Built for Harsh Environments
Enhanced Networking Stability and Security
Easy Operation and Maintenance with Omada’s Free Cloud Management
TP-Link IES206GPP. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE.... DC input voltage: 12 - 57 V. Power over Ethernet (PoE). Wall mountable, Rack mounting
Enhanced Networking Stability and Security
Easy Operation and Maintenance with Omada’s Free Cloud Management
TP-Link IES206GPP. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE.... DC input voltage: 12 - 57 V. Power over Ethernet (PoE). Wall mountable, Rack mounting
| Caratteristiche di gestione | |
| Tipo interruttore | Gestito |
| Connettività | |
| Quantità di porte RJ-45 | 4 |
| Tipo di porte RJ-45 | Gigabit Ethernet (10/100/1000) |
| Quantità di porte Combo SFP | 1 |
| Quantità di slot per modulo SFP | 1 |
| Collegamento in rete | |
| Standard di rete | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Supporto 10G | No |
| Mirroring della porta | Sì |
| Auto-negoziazione | Sì |
| Trasmissione dati | |
| Dimensioni tavola MAC | 8000 voci |
| Capacità di commutazione | 12 Gbit/s |
| tasso di inoltro | 8,93 Mpps |
| Store-and-forward | Sì |
| Supporto Jumbo Frames | Sì |
| Frame Jumbo | 15000 |
| Sicurezza | |
| Caratteristiche DHCP | DHCP client |
| Funzione IGMP snooping | Sì |
| Funzioni Multicast | |
| Supporto multicast | Sì |
| Design | |
| Montaggio rack | Sì |
| Colore del prodotto | Nero |
| Montaggio su rail DIN | Sì |
| Prestazione | |
| Fanless | Sì |
| Gestione energetica | |
| Alimentazione | DC/PoE |
| Supporto Redundant power supply (RPS) | Sì |
| Voltaggio input DC | 12 - 57 V |
| Power over Ethernet (PoE) | |
| Supporto Power over Ethernet (PoE) | Sì |
| Tipo Power over Ethernet (PoE) supportato | PoE+, PoE++ (4PPoE) |
| Quantità di porte Power over Ethernet plus (PoE+) | 3 |
| Numero di porte Power over Ethernet 4PPoE (PoE++) | 1 |
| Potenza Power over Ethernet (PoE) per porta | 30 W |
| Bilancio energetico totale del PoE | 120 W |
| Condizioni ambientali | |
| Intervallo temperatura di funzionamento | -40 - 75 °C |
| Intervallo di temperatura | -40 - 85 °C |
| Range di umidità di funzionamento | 5 - 95% |
| Umidità | 5 - 95% |
| Dimensioni e peso | |
| Larghezza | 155 mm |
| Profondità | 120 mm |
| Altezza | 60 mm |
| Contenuto dell'imballo | |
| Guida rapida | Sì |
Informazioni sul produttore
TP-Link Technologies Co., Ltd.
Zeestraat 1
2201 AZ - Noordwijk
Paesi Bassi
CONTATTI
Tel: +31 71 889 1199
Mail: support.eu@tp-link.com
____
Persona responsabile dell’UE
Operatore economico con sede nell’UE che garantisce la conformità del prodotto alle normative richieste.
TP-Link Technologies Co., Ltd.
Zeestraat 1
2201 AZ - Noordwijk
Paesi Bassi
In Stock
Data sheet
- Width
- 155 mm
- Depth
- 120 mm
- Height
- 60 mm
- Product colour
- Black
- Operating temperature (T-T)
- -40 - 75 °C
- Storage temperature (T-T)
- -40 - 85 °C
- Power source
- DC/PoE
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Operating relative humidity (H-H)
- 5 - 95%
- Storage relative humidity (H-H)
- 5 - 95%
- Switch type
- Managed
- Basic switching RJ-45 Ethernet ports quantity
- 4
- Combo SFP ports quantity
- 1
- Port mirroring
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Auto MDI/MDI-X
- Yes
- Spanning tree protocol
- Yes
- MAC address table
- 8000 entries
- Switching capacity
- 12 Gbit/s
- Store-and-forward
- Yes
- DHCP features
- DHCP client
- IGMP snooping
- Yes
- Multicast support
- Yes
- Rack mounting
- Yes
- Power over Ethernet (PoE)
- Yes
- Quick start guide
- Yes
- Certification
- FCC, CE, RoHS
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- 10G support
- No
- Jumbo frames support
- Yes
- Jumbo frames
- 15000
- Power over Ethernet plus (PoE+) ports quantity
- 3
- SFP module slots quantity
- 1
- Total Power over Ethernet (PoE) budget
- 120 W
- Wall mountable
- Yes
- Forwarding rate
- 8.93 Mpps
- Auto-negotiation
- Yes
- Power over Ethernet (PoE) power per port
- 30 W
- DC input voltage
- 12 - 57 V
- Redundant power supply (RPS) support
- Yes
- Fanless
- Yes
- Power over Ethernet (PoE) type supported
- PoE+, PoE++ (4PPoE)
- DIN rail mounting
- Yes
- Power over Ethernet 4PPoE (PoE++) ports quantity
- 1
