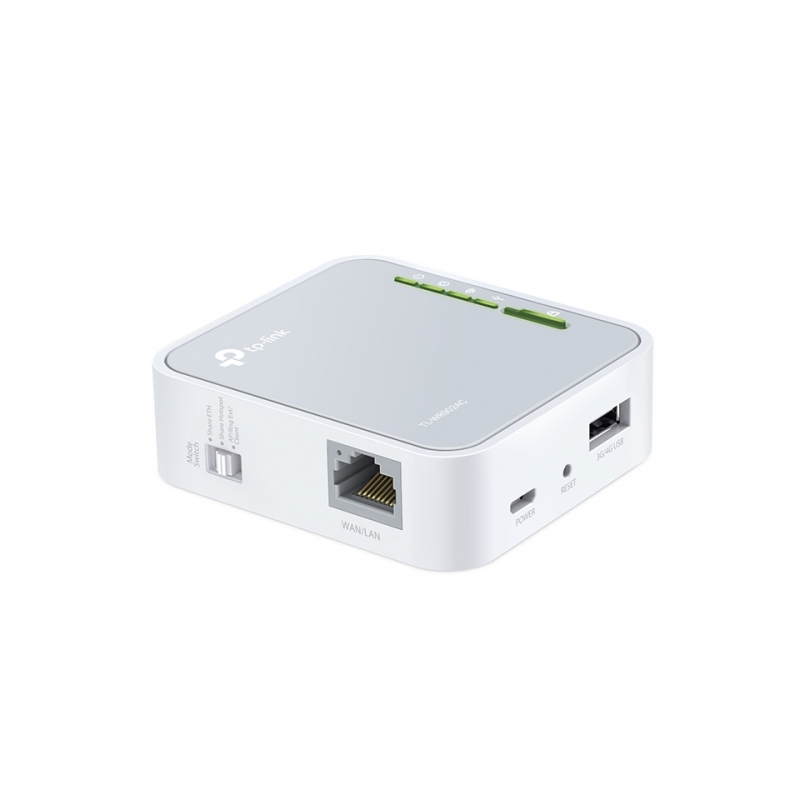

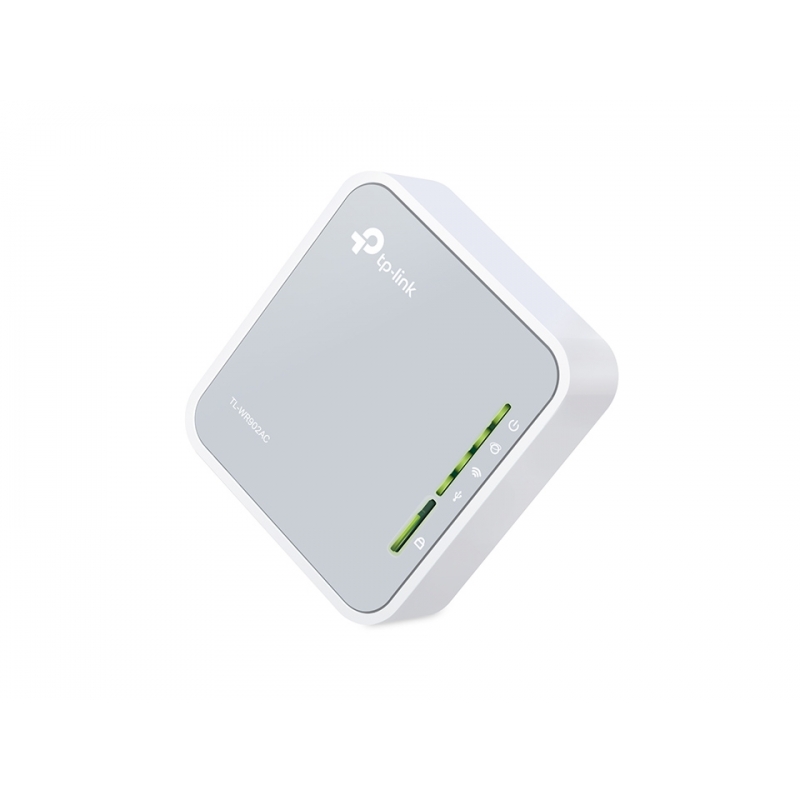

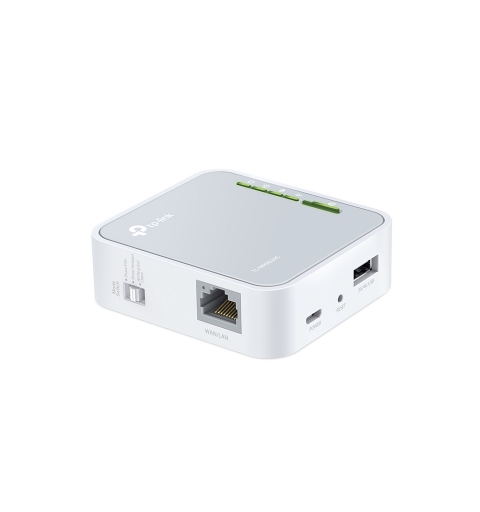

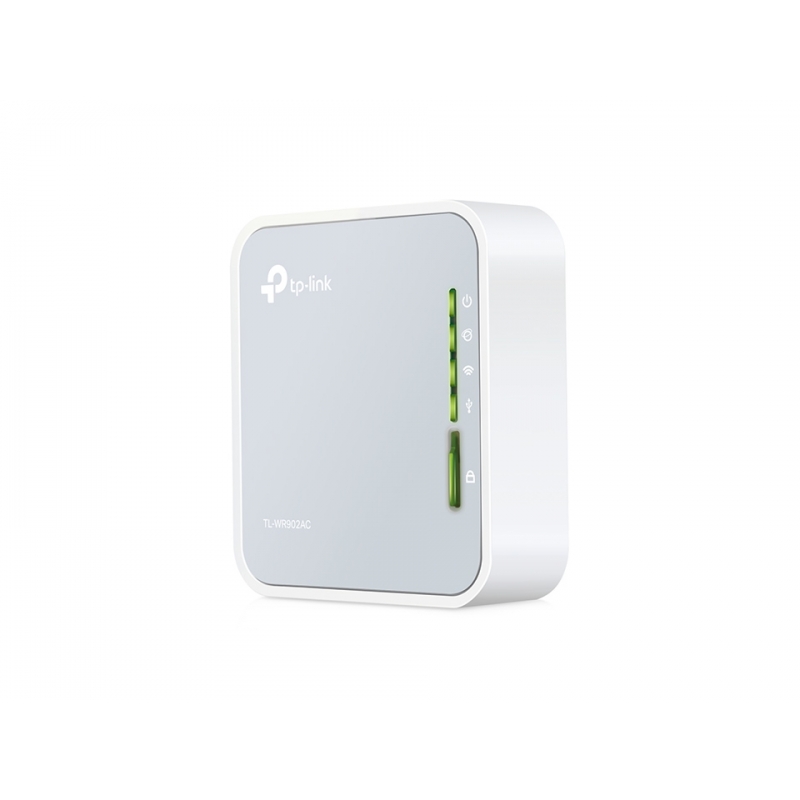

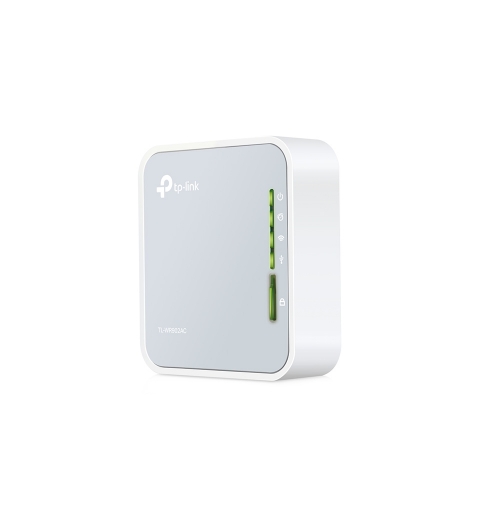

TP-Link TL-WR902AC wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) 4G White

Data sheet

Width

74 mm

Depth

67 mm

Height

22 mm

Weight

56.7 g

Package width

110 mm

Package depth

109 mm

Package height

81.5 mm

Package weight

299 g

Product colour

White

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Cables included

LAN (RJ-45)

USB port

Yes

Product type

Portable router

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Harmonized System (HS) code

85176990

Ethernet LAN

Yes

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u

Ethernet LAN interface type

Fast Ethernet

Ethernet LAN data rates

10,100 Mbit/s

Ethernet LAN (RJ-45) ports

1

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac)

Security algorithms

WEP, WPA, WPA2

Linux operating systems supported

Yes

Mac compatibility

Yes

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Sustainability compliance

Yes

Quality of Service (QoS) support

Yes

Output voltage

5 V

Output current

2 A

Processor cores

1

Mobile network generation

4G

AC adapter included

Yes

Power source type

USB

Reset button

Yes

Quick start guide

Yes

Cabling technology

10/100Base-T(X)

USB 2.0 ports quantity

1

Built-in processor

Yes

Ethernet WAN

Yes

SIM card slot

No

3G/4G USB modem compatibility

Yes

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

WLAN data transfer rate (max)

433 Mbit/s

WLAN data transfer rate (first band)

300 Mbit/s

WLAN data transfer rate (second band)

433 Mbit/s

Guest access

Yes

Universal Plug and Play (UPnP)

Yes

Antenna design

Internal

Antennas quantity

2

DSL WAN

No

Port forwarding

Yes

VPN Passthrough

Yes

VPN support

PPTP, L2TP, IPSec

WPS push button

Yes

Firewall

Yes

Firewall security

SPI

Filtering

Yes

IP address filtering

Yes

URL filtering

Yes

DMZ support

Yes

DHCP client

Yes

DHCP server

Yes

Supported network protocols

IPv4, IPv6

Dynamic DNS (DDNS)

Yes

Number of guest networks (5 GHz)

1

Number of guest networks (2.4 GHz)

1

Compliance certificates

RoHS, Federal Communications Commission (FCC), CE

WAN connection type

RJ-45

Stateful Packet Inspection (SPI)

Yes

DoS attack prevention

Yes

Port triggering

Yes

Transmit power

CE:<20dBm(2.4GHz), <23dBm(5GHz)

Media server

Yes

Receiver sensitivity

11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm

Built-in FTP server

Yes

Receive power

11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9: -61.5dBm, 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm
