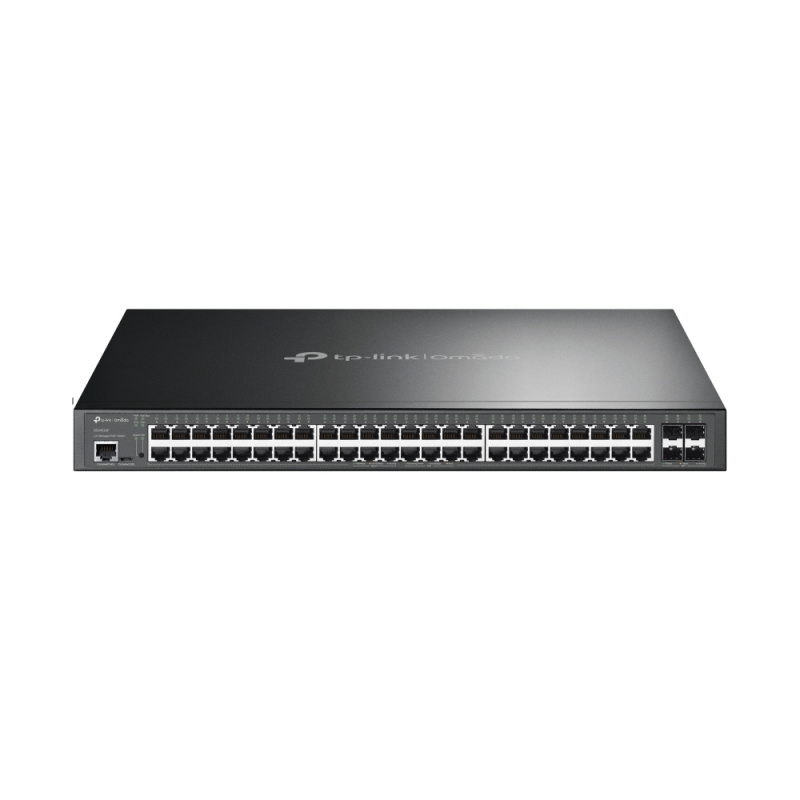

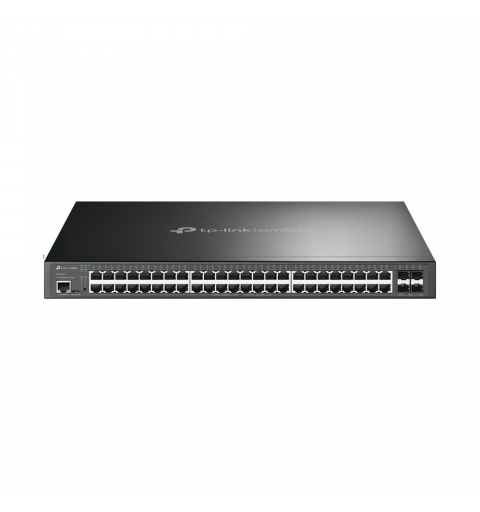

TP-Link Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+

    TP-Link Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+

    €1,032.53 Tax included
    Article Code: 616732
    2-Year Italian Warranty: logo ita

    TP-Link Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

    Availability:
    Quantity
    Add to Wishlist
    cached Add to Compare
    TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

    TP-Link Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
    Caratteristiche di gestione
    Tipo interruttoreGestito
    Livello del commutatoreL2+
    Supporto qualità del servizio (QoS)Sì
    Gestito in CloudSì
    Configurazione dei parametri di localizzazione (CLI)Sì
    Registro evento di sistemaSì
    Connettività
    Quantità di porte RJ-4548
    Tipo di porte RJ-45Gigabit Ethernet (10/100/1000)
    Quantità di slot del modulo SFP+4
    Console portRJ-45/Micro-USB
    Connettore di alimentazioneJack di ingresso AC
    Collegamento in rete
    Standard di reteIEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
    Supporto 10GSì
    Mirroring della portaSì
    Blocco Head-of-line (HOL)Sì
    VLAN supportSì
    Trasmissione dati
    Dimensioni tavola MAC16000 voci
    Capacità di commutazione176 Gbit/s
    tasso di inoltro130,9 Mpps
    Store-and-forwardSì
    Supporto Jumbo FramesSì
    Frame Jumbo9000
    Buffer di memoria di pacchetto12 MB
    Sicurezza
    Caratteristiche DHCPDHCP client, DHCP relay, DHCP server
    Lista di controllo accesso (ACL)Sì
    Funzione IGMP snoopingSì
    AutenticazioneAuto VLAN, VLAN Guest
    Funzioni Multicast
    Supporto multicastSì
    Design
    Montaggio rackSì
    Fattore di forma1U
    Colore del prodottoNero
    Tasto resetSì
    Indicatori LEDSì
    Numero di ventole3 ventola(e)
    Gestione energetica
    AlimentazioneAC
    Fonte di alimentazione inclusaSì
    Tensione di ingresso AC100 - 240 V
    Frequenza di ingresso AC50/60 Hz
    Consumo energetico (max)635,7 W
    Power over Ethernet (PoE)
    Supporto Power over Ethernet (PoE)Sì
    Quantità di porte Power over Ethernet plus (PoE+)48
    Potenza Power over Ethernet (PoE) per porta30 W
    Bilancio energetico totale del PoE500 W
    Condizioni ambientali
    Intervallo temperatura di funzionamento0 - 40 °C
    Intervallo di temperatura-40 - 70 °C
    Range di umidità di funzionamento10 - 90%
    Umidità5 - 90%
    Dissipazione del calore2169,2 BTU/h
    Dimensioni e peso
    Larghezza440 mm
    Profondità330 mm
    Altezza44 mm
    Contenuto dell'imballo
    Cavi inclusiAC
    Guida rapidaSì

    Informazioni sul produttore

    TP-Link Technologies Co., Ltd.
    Zeestraat 1
    2201 AZ - Noordwijk
    Paesi Bassi

    CONTATTI
    Tel: +31 71 889 1199
    Mail: support.eu@tp-link.com

    ____

    Persona responsabile dell’UE

    Operatore economico con sede nell’UE che garantisce la conformità del prodotto alle normative richieste.

    TP-Link Technologies Co., Ltd.
    Zeestraat 1
    2201 AZ - Noordwijk
    Paesi Bassi

     616732
      In Stock

    Data sheet
    Width
    440 mm
    Depth
    330 mm
    Height
    44 mm
    Product colour
    Black
    Operating temperature (T-T)
    0 - 40 °C
    Storage temperature (T-T)
    -40 - 70 °C
    Cables included
    AC
    Power source
    AC
    AC input voltage
    100 - 240 V
    AC input frequency
    50/60 Hz
    Networking standards
    IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
    LED indicators
    Yes
    Operating relative humidity (H-H)
    10 - 90%
    Storage relative humidity (H-H)
    5 - 90%
    Switch type
    Managed
    Switch layer
    L2+
    Quality of Service (QoS) support
    Yes
    Web-based management
    Yes
    System event log
    Yes
    Basic switching RJ-45 Ethernet ports quantity
    48
    Power connector
    AC-in jack
    Port mirroring
    Yes
    Flow control support
    Yes
    Link aggregation
    Yes
    Broadcast storm control
    Yes
    Spanning tree protocol
    Yes
    Head-of-line (HOL) blocking
    Yes
    MAC address table
    16000 entries
    Switching capacity
    176 Gbit/s
    Store-and-forward
    Yes
    Packet buffer memory
    12 MB
    DHCP features
    DHCP client, DHCP relay, DHCP server
    Access Control List (ACL)
    Yes
    IGMP snooping
    Yes
    Multicast support
    Yes
    Rack mounting
    Yes
    Power over Ethernet (PoE)
    Yes
    Heat dissipation
    2169.2 BTU/h
    VLAN support
    Yes
    Rate limiting
    Yes
    MAC address filtering
    Yes
    Form factor
    1U
    Power consumption (max)
    635.7 W
    Reset button
    Yes
    Quick start guide
    Yes
    Certification
    CE, FCC, RoHS
    Basic switching RJ-45 Ethernet ports type
    Gigabit Ethernet (10/100/1000)
    10G support
    Yes
    Jumbo frames support
    Yes
    Jumbo frames
    9000
    Power supply included
    Yes
    Power over Ethernet plus (PoE+) ports quantity
    48
    Console port
    RJ-45/Micro-USB
    Total Power over Ethernet (PoE) budget
    500 W
    Cloud-managed
    Yes
    SFP+ module slots quantity
    4
    Forwarding rate
    130.9 Mpps
    SSH/SSL support
    Yes
    BPDU filtering/protection
    Yes
    IP-MAC-Port binding
    Yes
    Number of fans
    3 fan(s)
    ARP inspection
    Yes
    Authentication
    Auto VLAN, Guest VLAN
    Power over Ethernet (PoE) power per port
    30 W
    Configuring Location Settings (CLI)
    Yes
    Static port security
    Yes
