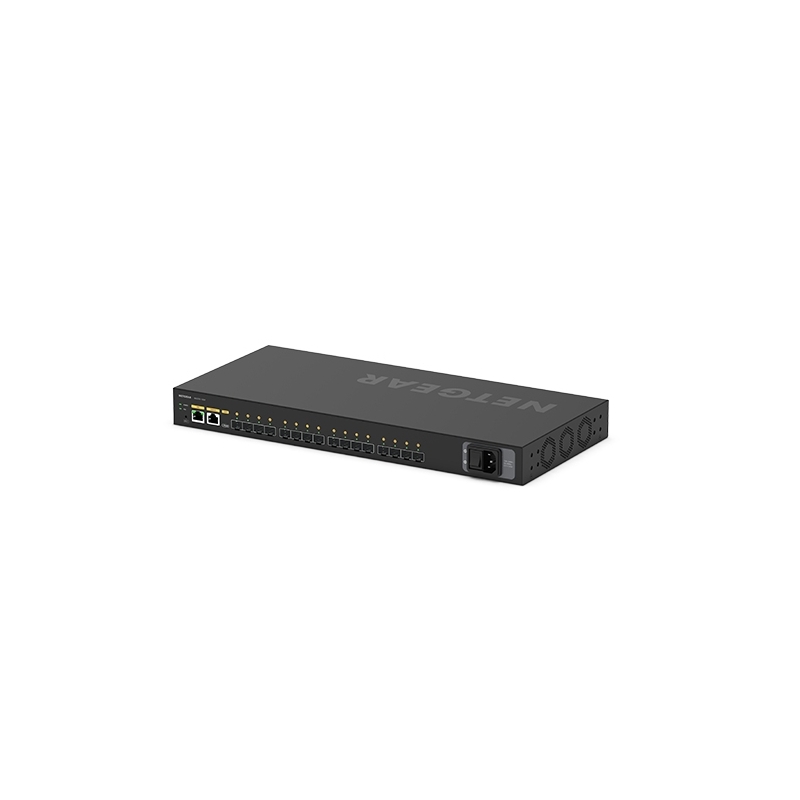

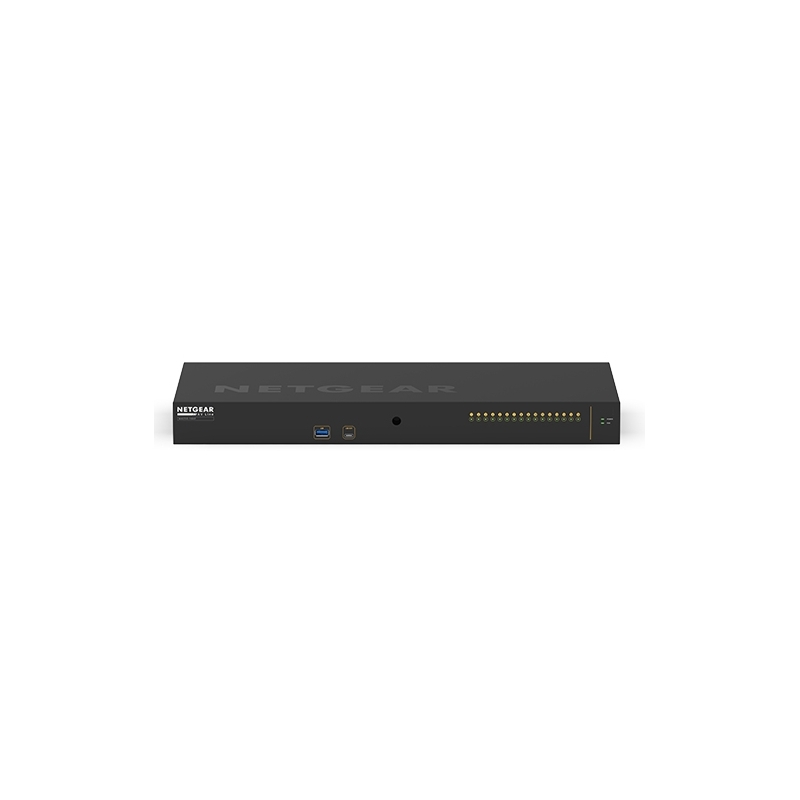

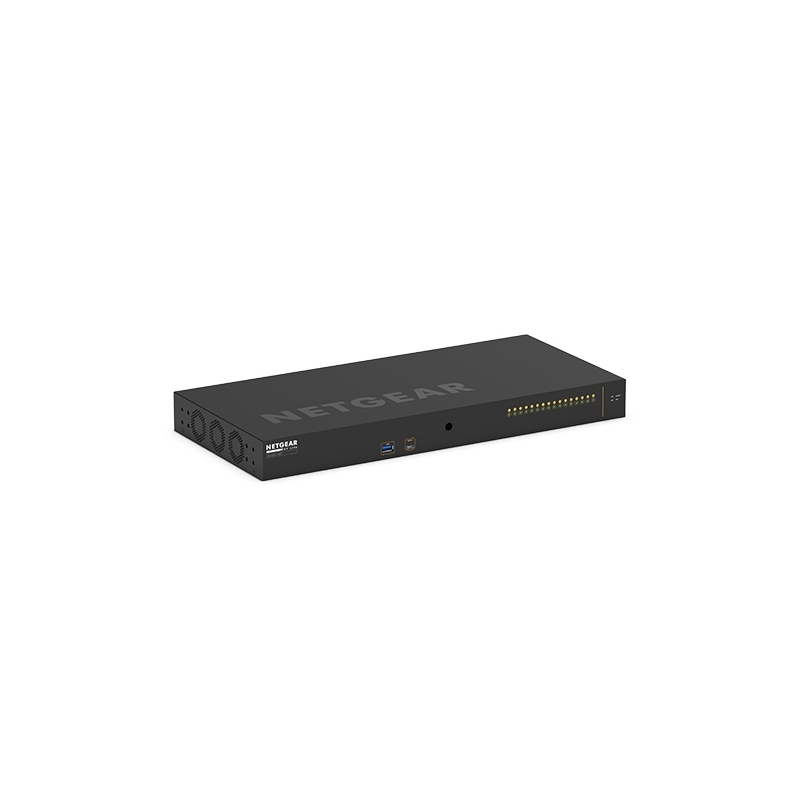

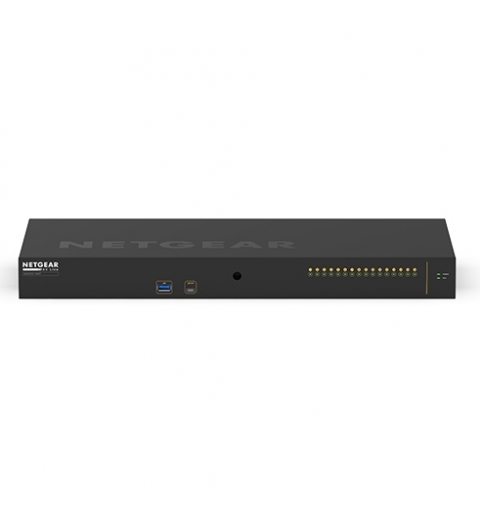

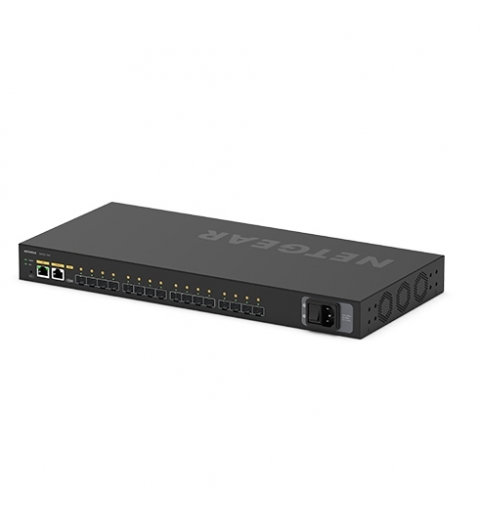

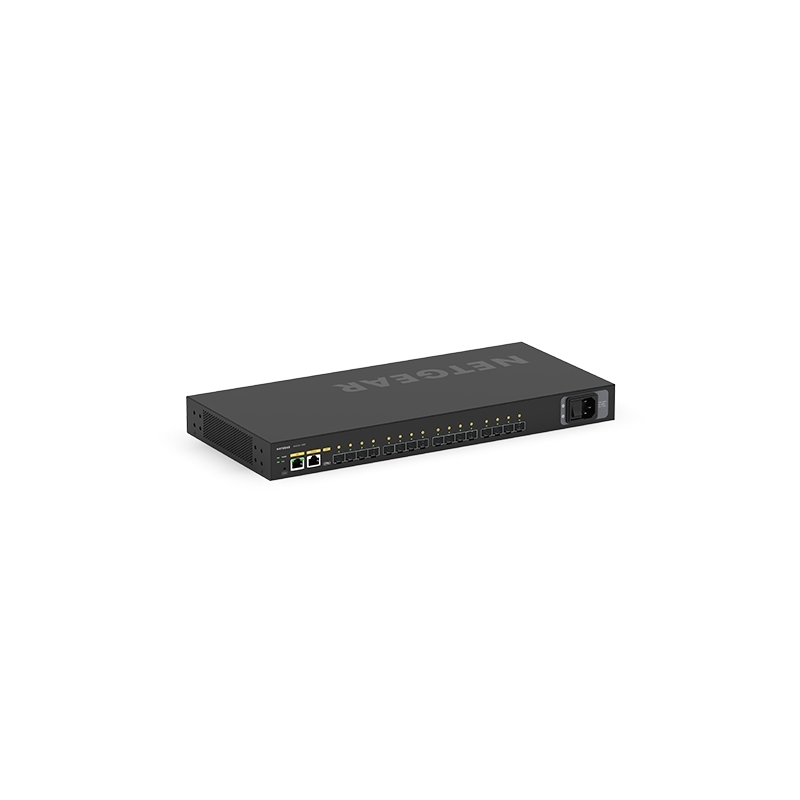

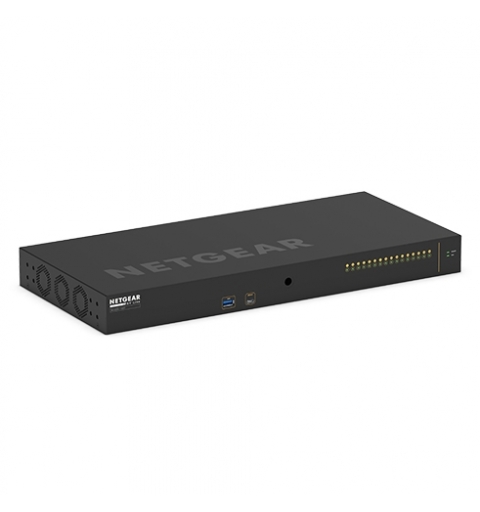

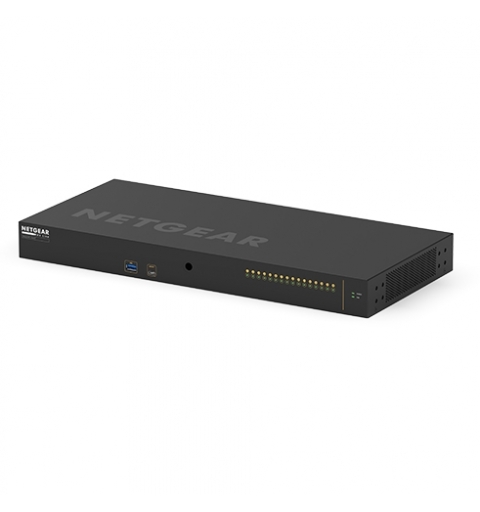

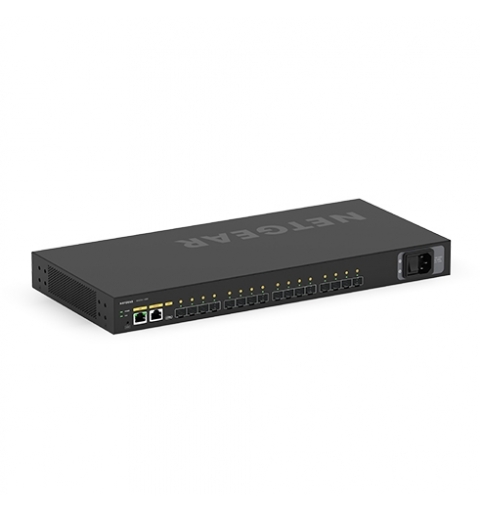

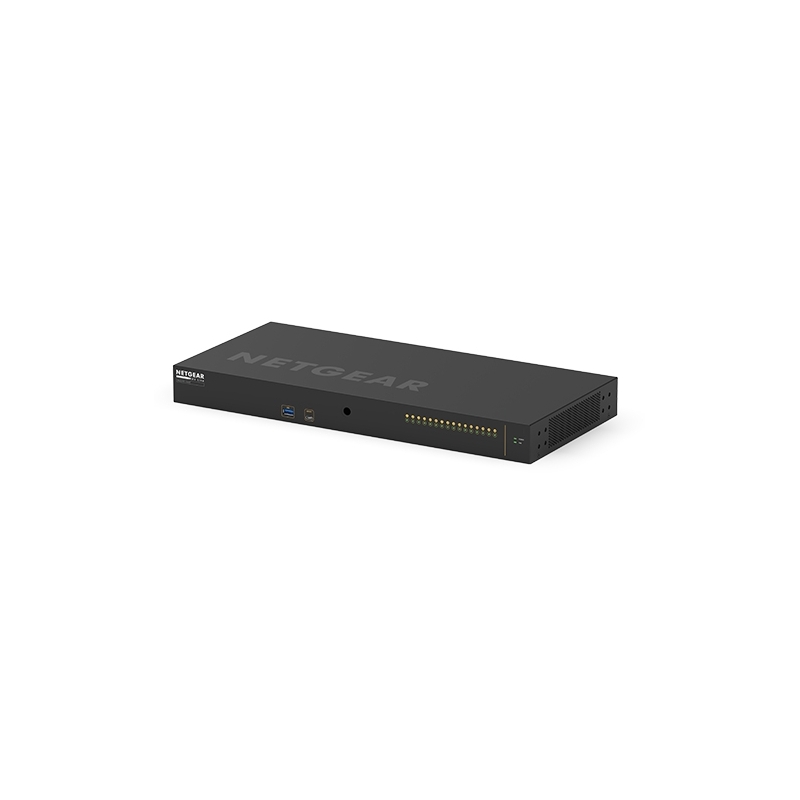

NETGEAR XSM4216F, Managed, L2/L3, Full duplex, Rack mounting, 1U
NETGEAR XSM4216F Managed L2/L3 1U Black
€1,931.80 Tax included
Article Code: 618153
2-Year Italian Warranty:
NETGEAR XSM4216F, Managed, L2/L3, Full duplex, Rack mounting, 1U
Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
NETGEAR XSM4216F. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45/USB Type-C. Full duplex. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U
M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
NETGEAR XSM4216F. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45/USB Type-C. Full duplex. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U
| Caratteristiche di gestione | |
| Tipo interruttore | Gestito |
| Livello del commutatore | L2/L3 |
| Supporto qualità del servizio (QoS) | Sì |
| Connettività | |
| Quantità di porte RJ-45 | 0 |
| Tipo di porte RJ-45 | No |
| Quantità di moduli SFP installati | 0 |
| Quantità di moduli SFP+ installati | 0 |
| Quantità di slot del modulo SFP+ | 16 |
| Console port | RJ-45/USB Type-C |
| Collegamento in rete | |
| Standard di rete | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Supporto 10G | Sì |
| Full duplex | Sì |
| Apertura albero di protocollo | Sì |
| VLAN support | Sì |
| Caratteristiche della LAN virtuale | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Numero di VLA | 4093 |
| Trasmissione dati | |
| Dimensioni tavola MAC | 16000 voci |
| Capacità di commutazione | 320 Gbit/s |
| Throughput | 238,08 Mpps |
| Store-and-forward | Sì |
| Latenza (1 Gbps) | 1,274 µs |
| Latenza (10 Gbps) | 0,811 µs |
| Numero di code | 8 |
| Supporto Jumbo Frames | Sì |
| Frame Jumbo | 12000 |
| Buffer di memoria di pacchetto | 16 MB |
| Sicurezza | |
| Caratteristiche DHCP | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Lista di controllo accesso (ACL) | Sì |
| Funzione IGMP snooping | Sì |
| tipo di autenticazione | RADIUS |
| Funzioni Multicast | |
| Supporto multicast | Sì |
| Voci IPv4 multicast | 2000 |
| Voci IPv6 multicast | 2000 |
| Design | |
| Montaggio rack | Sì |
| Fattore di forma | 1U |
| Colore del prodotto | Nero |
| Indicatori LED | PoE, Potenza, status |
| Prestazione | |
| Processore integrato | Sì |
| Modello del processore | ARM Cortex-A9 |
| Frequenza del processore | 1250 MHz |
| RAM installata | 2048 MB |
| Emissione acustica | 56,7 dB |
| Tempo medio tra guasti (MTBF) | 778769 h |
| Gestione energetica | |
| Consumi | 47,84 W |
| Power over Ethernet (PoE) | |
| Supporto Power over Ethernet (PoE) | No |
| Condizioni ambientali | |
| Intervallo temperatura di funzionamento | 0 - 50 °C |
| Intervallo di temperatura | -20 - 70 °C |
| Range di umidità di funzionamento | 0 - 90% |
| Umidità | 0 - 95% |
| Altitudine di funzionamento | 0 - 3000 m |
| Dissipazione del calore | 163,33 BTU/h |
| Dimensioni e peso | |
| Larghezza | 440 mm |
| Profondità | 100 mm |
| Altezza | 43,2 mm |
| Peso | 1,74 kg |
| Dati logistici | |
| Codice del Sistema Armonizzato (SA) | 85176990 |
Informazioni sul produttore
Netgear Europe GmbH
Netgear Straüe 13
40210 - Dusseldorf
Germania
CONTATTI
Tel: +49 211 141414
Mail: info@netgear.eu
____
Persona responsabile dell’UE
Operatore economico con sede nell’UE che garantisce la conformità del prodotto alle normative richieste.
Netgear Europe GmbH
Netgear Straüe 13
40210 - Dusseldorf
Germania
Last items in stock
Data sheet
- Width
- 440 mm
- Depth
- 100 mm
- Height
- 43.2 mm
- Weight
- 1,74 kg
- Product colour
- Black
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Noise level
- 56.7 dB
- Harmonized System (HS) code
- 85176990
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
- LED indicators
- PoE, Power, Status
- Operating relative humidity (H-H)
- 0 - 90%
- Storage relative humidity (H-H)
- 0 - 95%
- Switch type
- Managed
- Switch layer
- L2/L3
- Quality of Service (QoS) support
- Yes
- Basic switching RJ-45 Ethernet ports quantity
- 0
- Full duplex
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Spanning tree protocol
- Yes
- Number of VLANs
- 4093
- MAC address table
- 16000 entries
- Switching capacity
- 320 Gbit/s
- Store-and-forward
- Yes
- Packet buffer memory
- 16 MB
- DHCP features
- DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
- Access Control List (ACL)
- Yes
- IGMP snooping
- Yes
- Multicast support
- Yes
- Rack mounting
- Yes
- Mean time between failures (MTBF)
- 778769 h
- Power consumption (typical)
- 47.84 W
- Power over Ethernet (PoE)
- No
- Heat dissipation
- 163.33 BTU/h
- VLAN support
- Yes
- Rate limiting
- Yes
- Form factor
- 1U
- Processor model
- ARM Cortex-A9
- Internal memory
- 2048 MB
- Operating altitude
- 0 - 3000 m
- Processor frequency
- 1250 MHz
- Basic switching RJ-45 Ethernet ports type
- No
- 10G support
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 12000
- Loop protection
- Yes
- Console port
- RJ-45/USB Type-C
- Latency (1 Gbps)
- 1.274 µs
- Built-in processor
- Yes
- SFP+ module slots quantity
- 16
- Virtual LAN features
- MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
- SSH/SSL support
- Yes
- BPDU filtering/protection
- Yes
- Authentication
- MAC-based authentication
- IPv4 multicast entries
- 2000
- IPv6 multicast entries
- 2000
- Throughput
- 238.08 Mpps
- Latency (10 Gbps)
- 0.811 µs
- Number of queues
- 8
- Authentication type
- RADIUS
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
