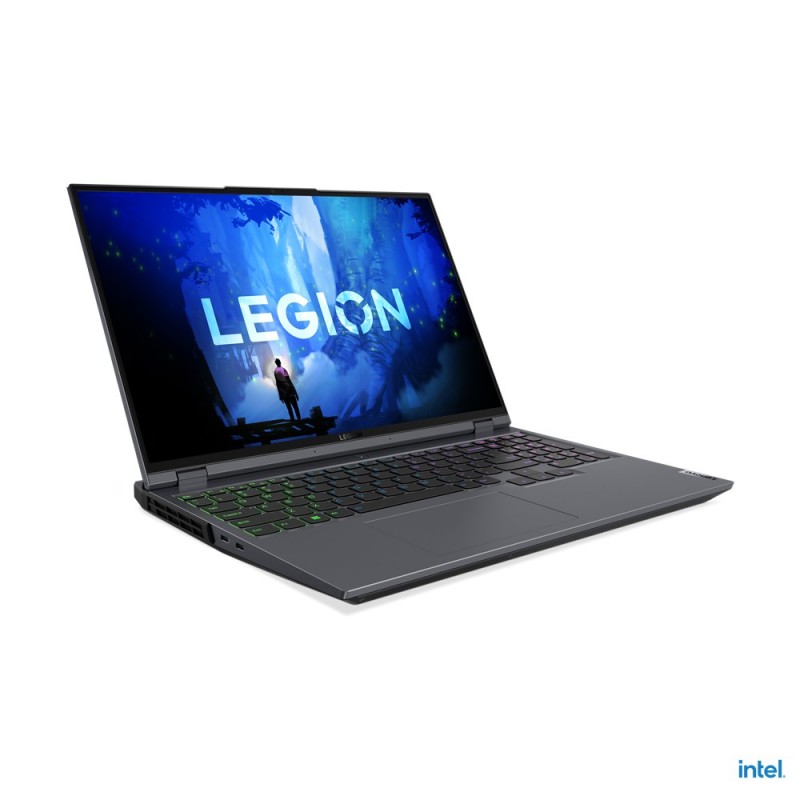

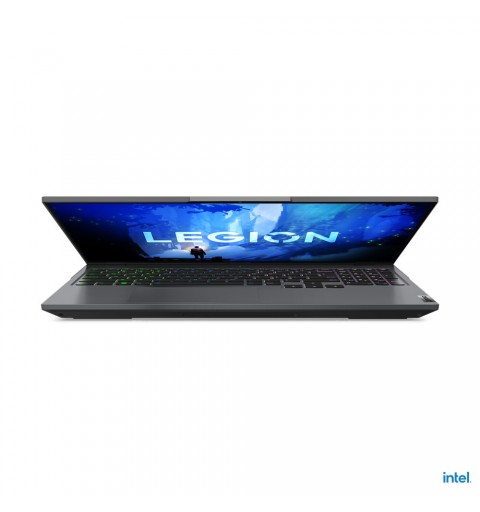

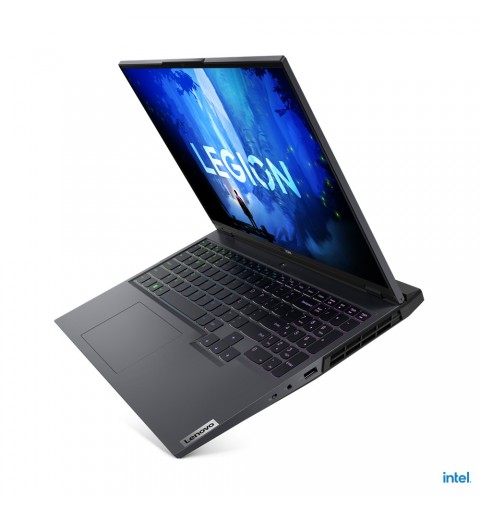

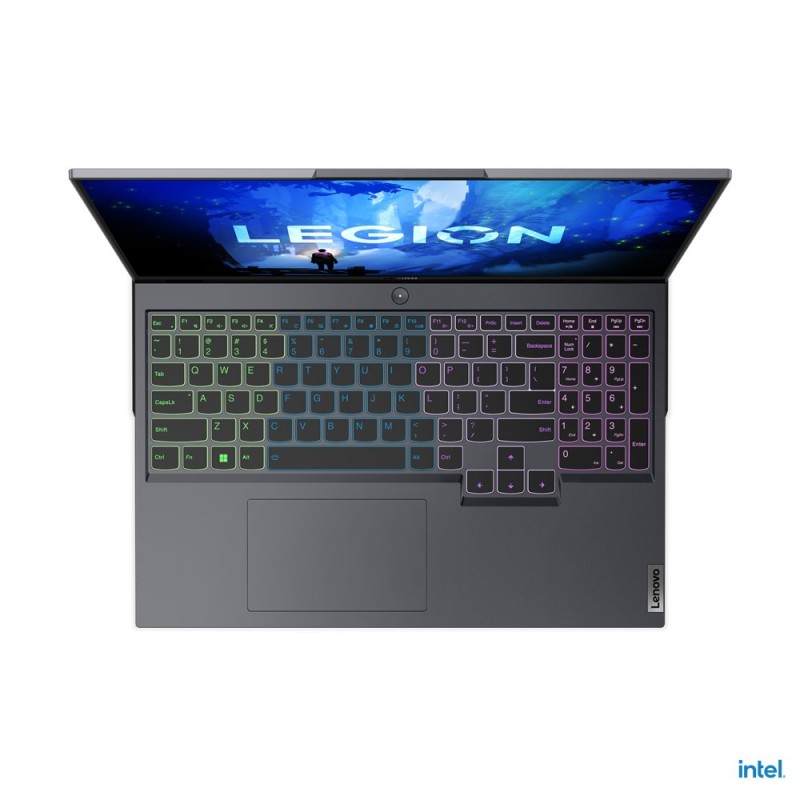

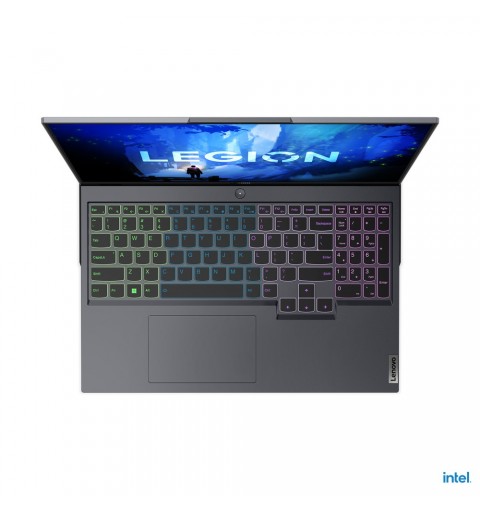

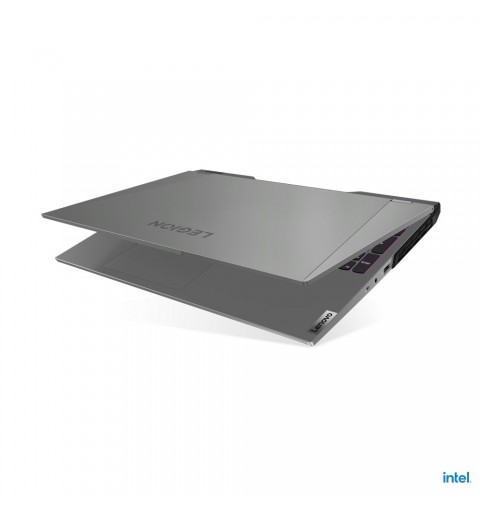

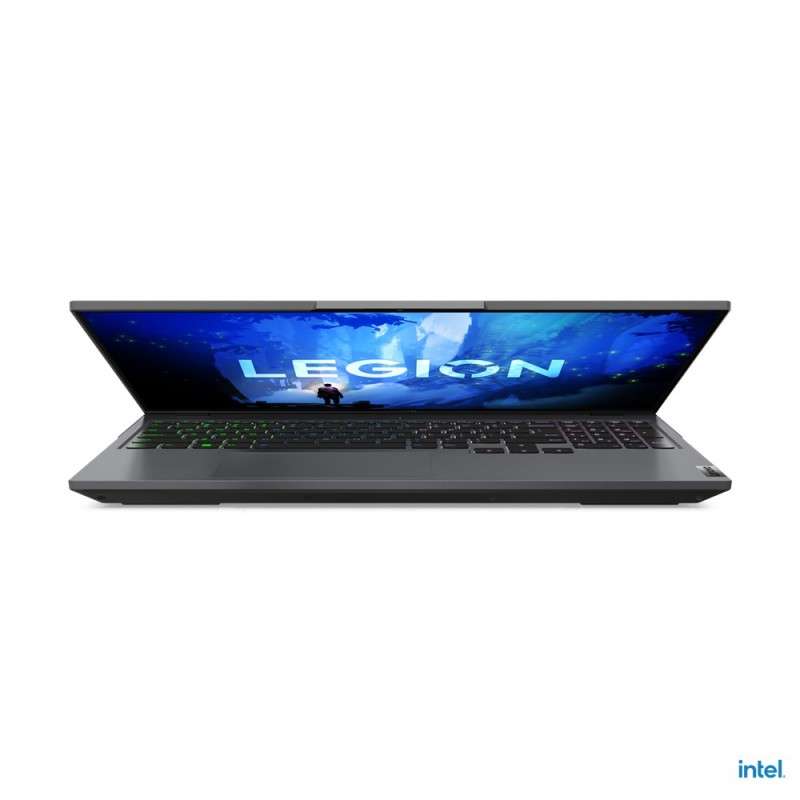

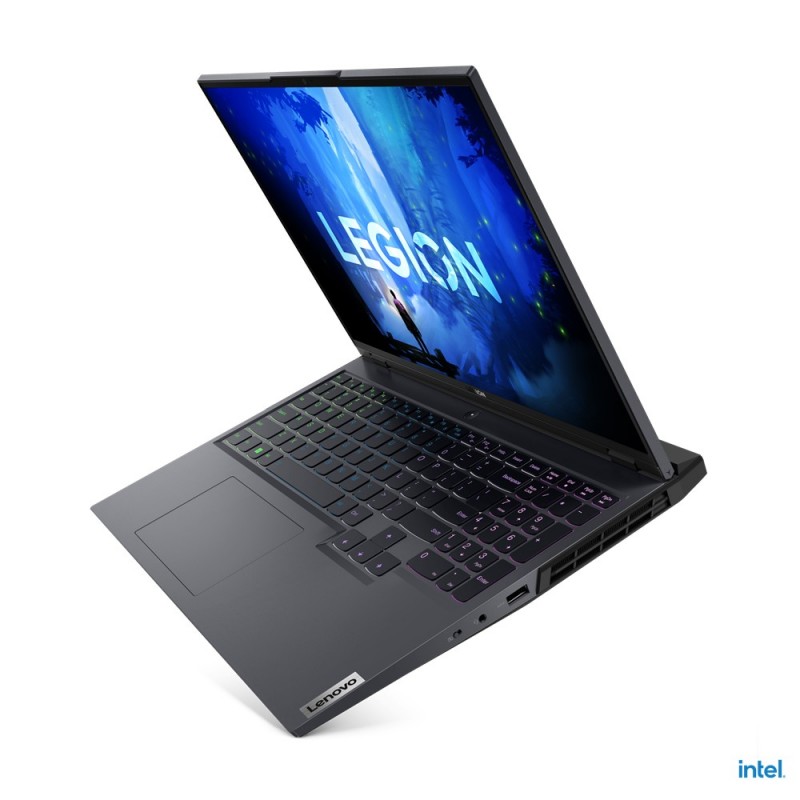

Lenovo Legion 5 Pro 16IAH7H i7-12700H Notebook 40.6 cm (16") WQXGA Intel® Core™ i7 16 GB DDR5-SDRAM 1000 GB SSD NVIDIA GeForce

Bigger, better, & born to conquer
Decimate the competition with up to 12th Gen Intel® Core™ processors, the latest NVIDIA® GeForce RTX™ graphics, and the awesome Legion AI Engine, auto-detecting and auto-optimizing your in-game performance. Vanquish all your foes in stunning, precise WQHD+. And with a sleek Storm Gray or Glacier White chassis, the only other decision you’ll need to make is your trophy’s colour.

Lenovo Legion 5 Pro 16IAH7H. Product type: Notebook, Form factor: Clamshell. Processor family: Intel® Core™ i7, Processor model: i7-12700H. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1000 GB, Storage media: SSD. On-board graphics card model: Intel Iris Xe Graphics, Discrete graphics card model: NVIDIA GeForce RTX 3070 Ti. Operating system installed: Windows 11 Home. Product colour: Grey

Design
Product type	Notebook
Product colour	Grey
Colour name	Storm Grey
Form factor	Clamshell
Display
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	N
HD type	WQXGA
Panel type	IPS
Native aspect ratio	16:10
Anti-glare screen	Y
Display brightness	500 cd/m²
Maximum refresh rate	165 Hz
Processor
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-12700H
Processor boost frequency	4.7 GHz
Processor cores	14
Motherboard chipset	Intel SoC
Configurable TDP-down	35 W
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB
Storage
Total storage capacity	1000 GB
Storage media	SSD
Total SSDs capacity	1000 GB
Number of SSDs installed	1
SSD capacity	1000 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	N
Card reader integrated	N
Graphics
On-board graphics card	Y
Discrete graphics card	Y
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 3070 Ti
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
Audio
Audio chip	Realtek ALC3287
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Y
Camera
Front camera	Y
Front camera HD type	HD
Privacy camera	Y
Privacy type	Privacy shutter
Network
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Y
Ethernet LAN data rates	100,1000 Mbit/s
Bluetooth	Y
Bluetooth version	5.1
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
Thunderbolt 4 ports quantity	1
Combo headphone/mic port	Y
USB Type-C DisplayPort Alternate Mode	Y
USB Power Delivery	Y
USB Sleep-and-Charge	Y
Keyboard
Pointing device	Touchpad
Keyboard language	Italian
Keyboard backlit	Y
Software
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	Office
Processor special features
Intel Virtualization Technology (VT-x)	Y
Battery
Battery technology	Lithium Polymer (LiPo)
Battery capacity	80 Wh
Battery life (max)	6.55 h
Power
AC adapter power	300 W
Security
Fingerprint reader	N
Trusted Platform Module (TPM)	Y
Password protection	Y
Password protection type	HDD, Power on, Supervisor
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	8 - 95%
Storage relative humidity (H-H)	5 - 95%
Certificates
Certification	TÜV
Sustainability
Sustainability certificates	ErP, RoHS
Weight & dimensions
Weight	2.49 kg
Width	359.9 mm
Depth	264.4 mm
Height	19.9 mm
