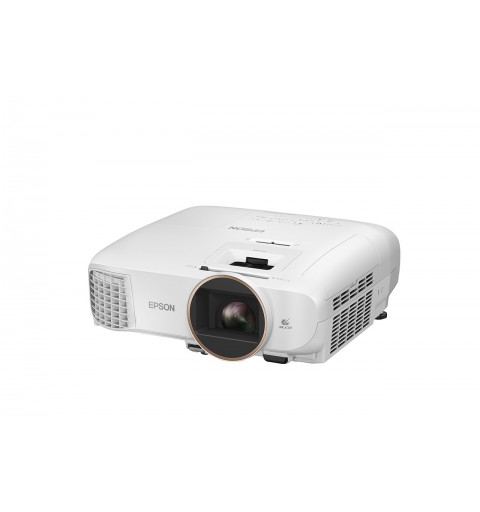

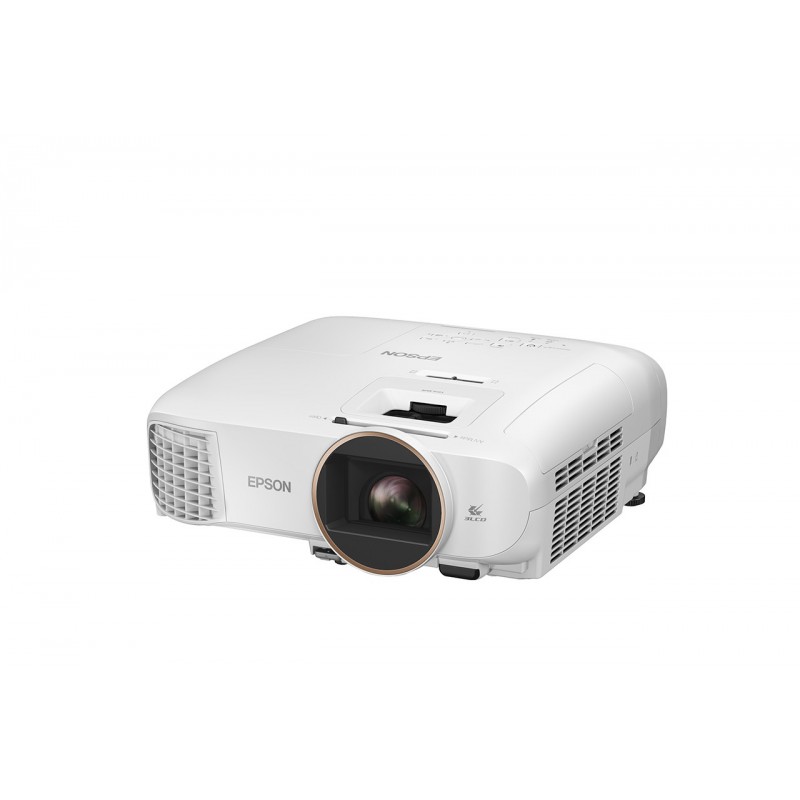

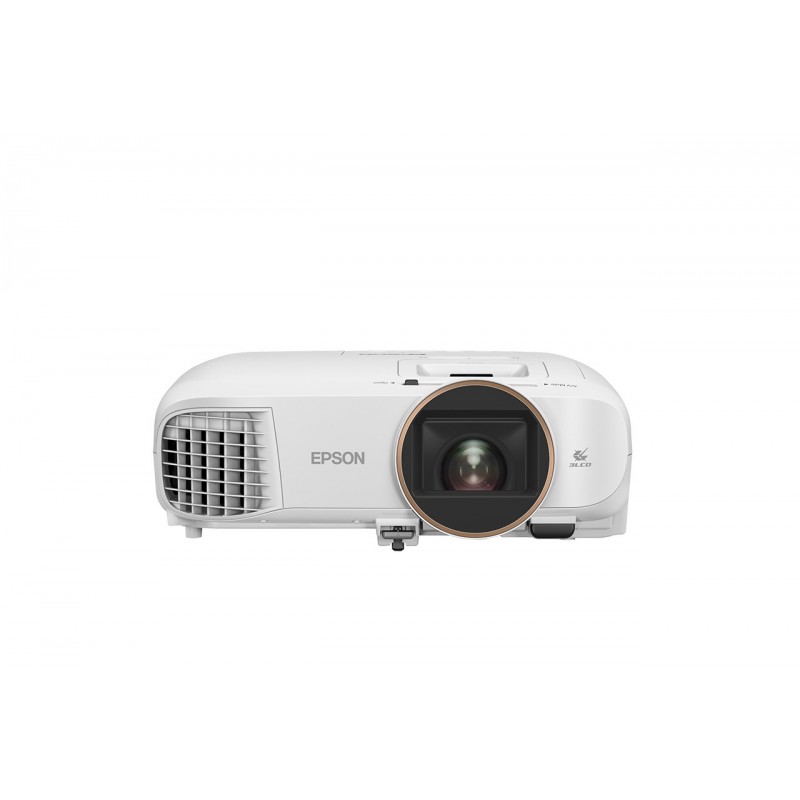

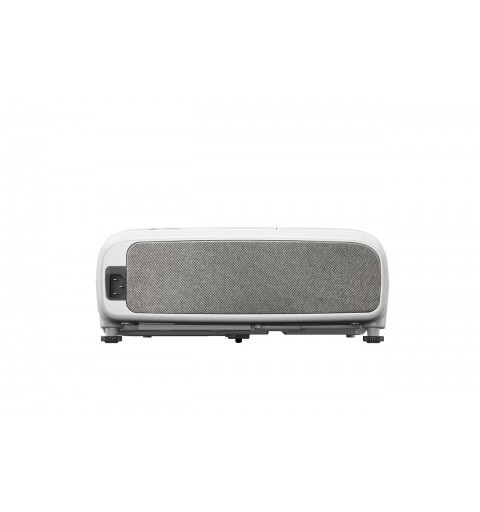

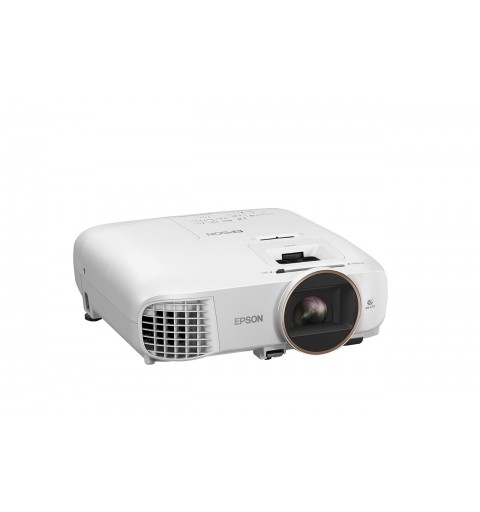

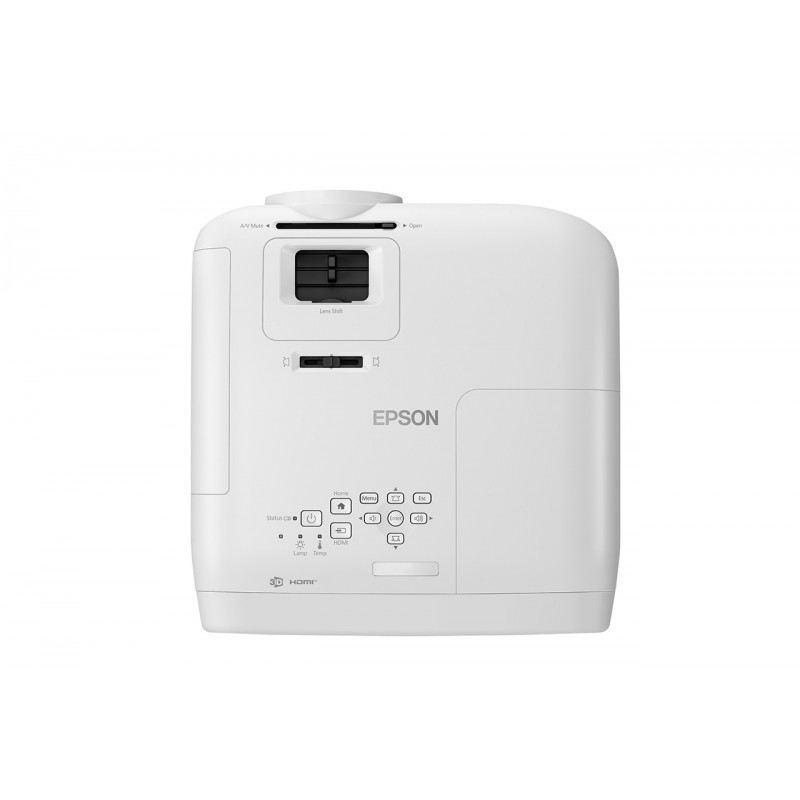

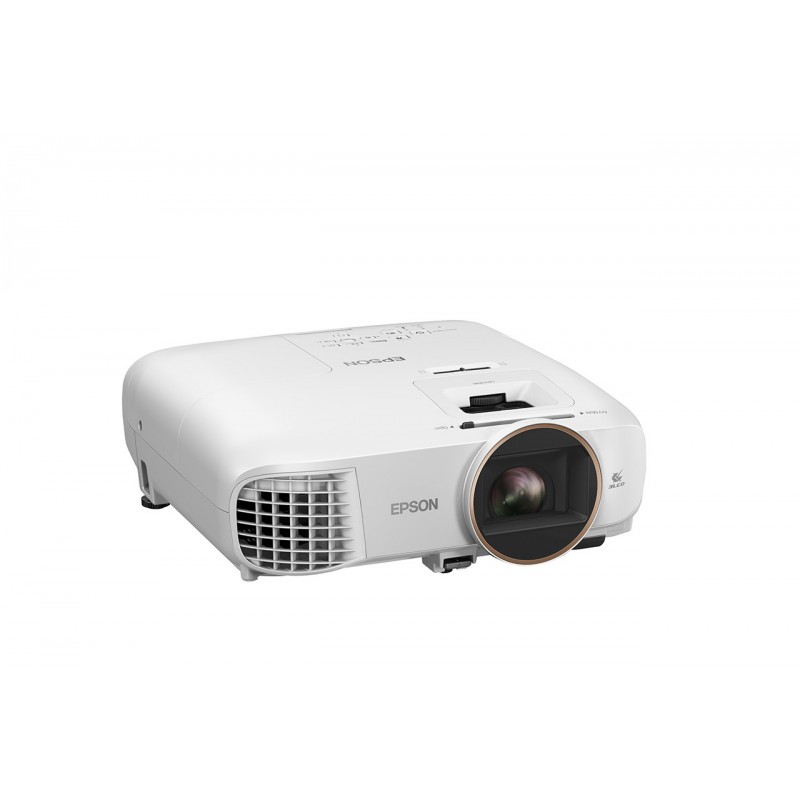

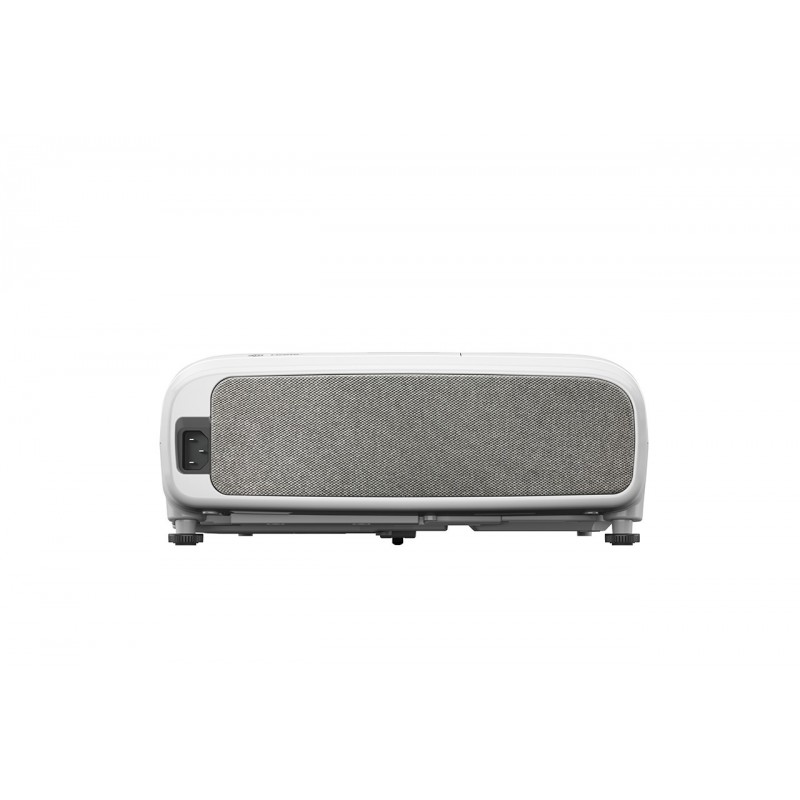

Epson EH-TW5820 data projector Standard throw projector 2700 ANSI lumens 3LCD 1080p (1920x1080) 3D White

Make your home centre stage for all the action with a Full HD 1080p projector with gaming features. WIth Android TV™ you can easily stream and cast entertainment to a smart and flexible display solution. Sharp images deep blacks and smooth movement, plus great connectivity, easy set-up and alignment make this projector the ultimate choice for all home entertainment.

Big screen experience
With this Full HD 1080p home cinema projector you can create the big screen experience with images reaching up to 300 inches (762cm). It can handle the most atmospheric scenes with clearly defined shadow detail and deep blacks, while also remaining clear, sharp and smooth during high-action scenes with Detail Enhancement and Frame Interpolation. Feel completely immersed and play games as they should be played with dark gamma uplift. Increase the brightness to capture every detail and extend your resolution to 21:9 for a more enhanced gaming experience.

Bright and beautiful images

Sit back, relax and revel in the beauty of our projected displays. Our projectors incorporate a range of high-tech features that work seamlessly in the background to provide you with awe-inspiring images. Epson’s 3LCD technology, which is up to three times brighter than 1-chip DLP projectors¹, radiates exceptionally bright yet colourful images by producing an equally high White and Colour Light Output. Even in bright living rooms, this Full HD 1080p projector delivers 2,700 lumens and a 60,000:1 contrast ratio.

Expand the possibilities

Make your home centre stage for all the action and create truly unforgettable experiences for all home entertainment with Epson’s projectors. With Android TV™, you can easily stream and cast entertainment, talk to Google Assistant² and share content from your phone to a smart and flexible display solution.

Powerful speaker

Enjoy dynamic audio from the built-in 10W speaker or simply connect to a soundbar, Bluetooth speaker or headphones with Bluetooth AptX.

Long-lasting solution

Looking for a long-term, hassle-free and affordable solution for your entertainment needs? With the EH-TW5820, you could watch a film every day for up to 11 years thanks to the long-lasting lamp light source.

Flexible placement

The 1.6x zoom along with horizontal keystone correction function and lens shift, provide you with a wide range of placement options even in a limited space.

Epson EH-TW5820. Projector brightness: 2700 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Lamp, Service life of light source: 4500 h, Service life of light source (economic mode): 7500 h. Focus: Manual, Focal length range: 18.2 - 29.2 mm, Aperture range (F-F): 1.51 - 1.99. Supported 3D formats: Side by side, Top and bottom, Video processing: 10 bit, Video colour modes: Cinema, Dynamic, Natural, Bright cinema. Noise level: 36 dB, Noise level (economic mode): 28 dB, Country of origin: Philippines

Projector
Projector brightness	2700 ANSI lumens
Projection technology	3LCD
Projector native resolution	1080p (1920x1080)
Contrast ratio (typical)	70000:1
Native aspect ratio	16:9
Screen size compatibility	762 - 7620 mm (30 - 300")
Projection distance	2.35 - 3.82 m
Number of colours	1.07 billion colours
Projector brightness (economic mode)	1780 ANSI lumens
Vertical scan range	192 - 240 Hz
Matrix size	1.55 cm (0.61")
Heat dissipation	1009.8 BTU/h
Light source
Light source type	Lamp
Service life of light source	4500 h
Service life of light source (economic mode)	7500 h
Lamp type	UHE
Lamp power	200 W
Lens system
Focus	Manual
Focal length range	18.2 - 29.2 mm
Aperture range (F-F)	1.51 - 1.99
Zoom capability	Y
Zoom type	Manual
Zoom ratio	1.6:1
Throw ratio	1.33 - 2.00:1
Vertical lens shift range	-60 - 60%
Video
Full HD	Y
3D	Y
Supported 3D formats	Side by side, Top and bottom
3D video colour modes	3D Dynamic,3D Cinema
Ports & interfaces
HDMI ports quantity	1
HDMI version	1.4
USB 2.0 ports quantity	1
Audio (L/R) in	1
Network
Smart TV	Y
Bluetooth	Y
Storage
Card reader integrated	N
Features
Noise level	36 dB
Noise level (economic mode)	28 dB
Country of origin	Philippines
Operating system installed	Android
Multimedia
Built-in speaker(s)	Y
RMS rated power	10 W
Design
Product type	Standard throw projector
Market positioning	Home cinema
Product colour	White
Placement	Ceiling, Desktop
Cable lock slot type	Kensington
Display
Built-in display	N
Power
Power source	AC
Power consumption (typical)	297 W
Power consumption (standby)	0.3 W
Power consumption (economy mode)	227 W
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Weight	3.8 kg
Width	309 mm
Depth	315 mm
Height	122 mm
Package width	380 mm
Package depth	410 mm
Package height	180 mm
Package weight	5.37 kg
Packaging content
Remote control included	Y
Manual	Y
Logistics data
Quantity per pack	1 pc(s)
Products per pallet (UK)	66 pc(s)
