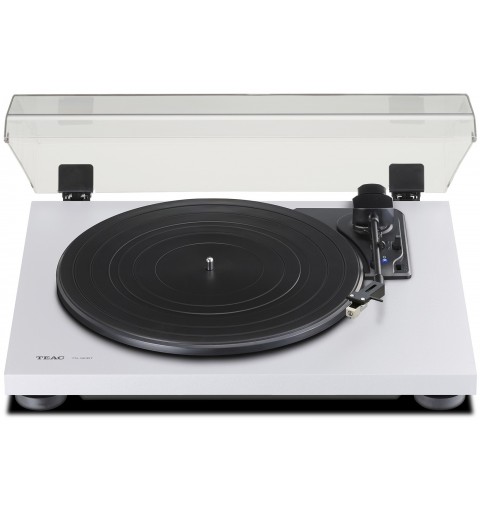

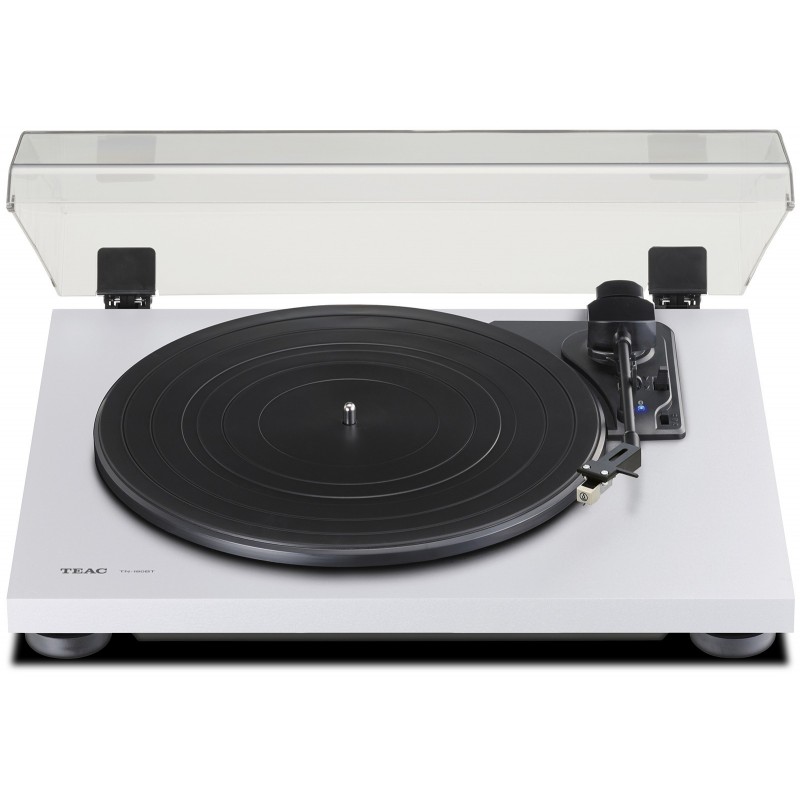

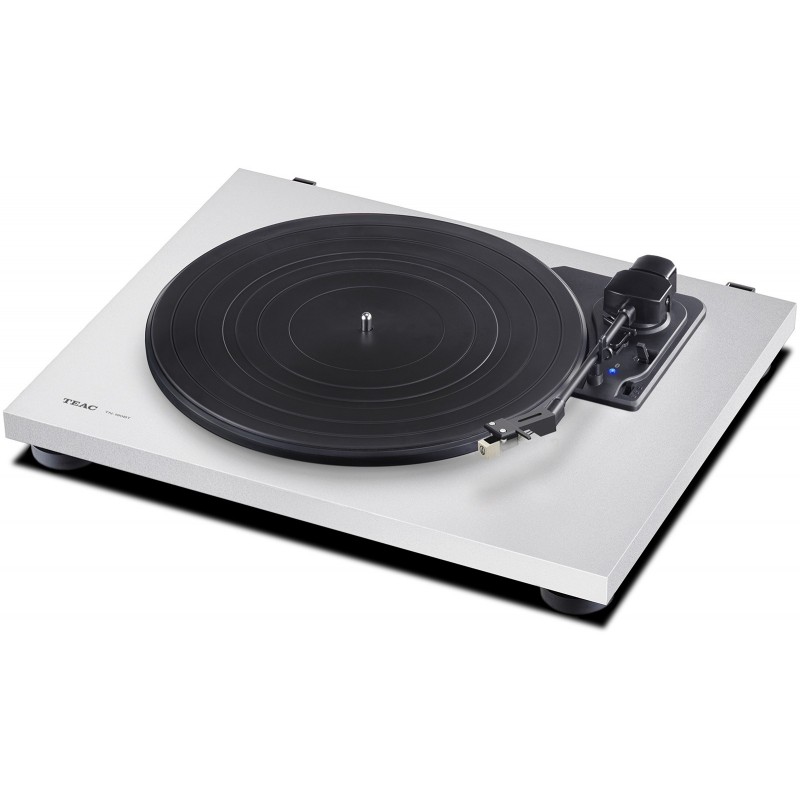

TEAC TN-180BT-A3 Belt-drive audio turntable Black, White

Bluetooth Turntable

TN-180BT-A3

The simplest way of enjoying vinyl records
The TN-180BT-A3 brings you a totally new way of listening to vinyl records with its Bluetooth® capability. No extra cost for hi-fi components or complicated wiring is required. Only Bluetooth® speakers or headphones you might have for smartphones/tablets are required to enjoy the world of vinyl records.

Designed for music enthusiasts, the belt-drive motor ensures a clearer sound than direct-drive DJ players, while selectable outputs, Phono, Line or Bluetooth allow you to connect any type of amplifiers, powered speakers or Bluetooth devices.

Unlike many budget turntables, the TN-180BT-A3 employs a single wooden board cabinet with high-density MDF to dampen vibrations and provide clearer and richer sound, while 3-speed and auto-return turntable mechanism.

For music lovers who have been collecting vinyl records for decades or those just starting out, TEAC’s TN-180BT-A3 delivers the true sound of vinyl records. Available in cherry, black and white finish.

A new way of record playing
Built-in Bluetooth® transmitter
The TN-180BT-A3 delivers the sound wirelessly via built-in Bluetooth® transmitter, in addition to conventional RCA output in analog Line or Phono format. The pairing button is located at the tone-arm base, which illuminates when the connection with BT speakers/headphone is made successfully.

Unlike other turntable units, the TN-180BT-A3 provides you the simplest way of listening to vinyl records via Bluetooth® wireless technology.
If you already have a Bluetooth-enable speakers or headphone for your iPhone/Android phone, all you have to do is to install the TN-180BT-A3 in your room – no pricy hi-fi system and complicated wiring are required –. The connection is as simple as ABC, just press the BT pairing button when the Bluetooth® speakers/headphones are ready to the pairing, and once the connection is established, you don't need to repeat the same process every time you listening to vinyl records.

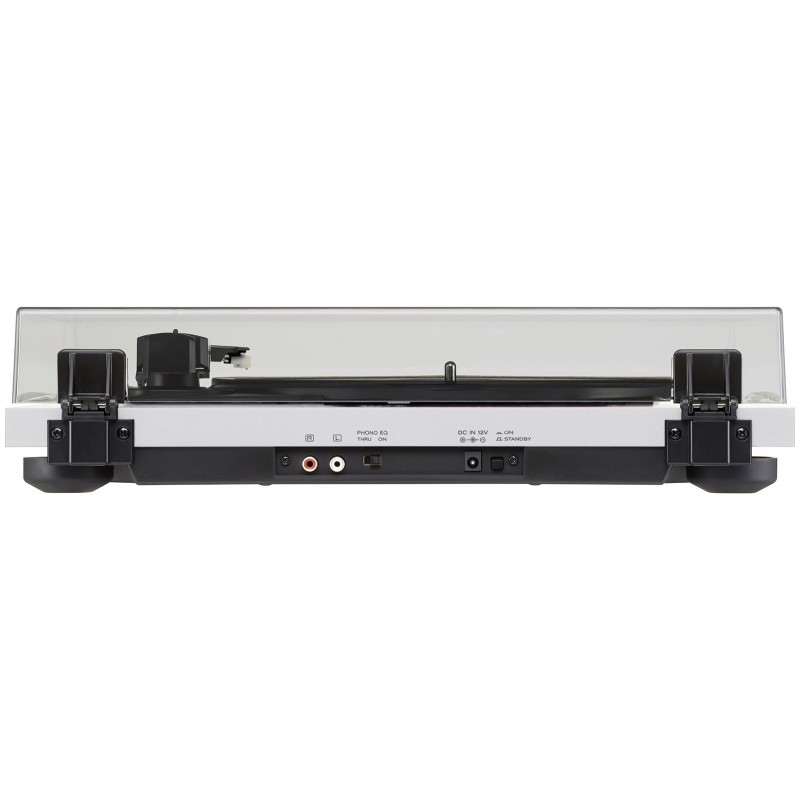

The TN-180BT-A3 also provides conventional ways of connection to hi-fi system with or without PHONO input via cable, and an RCA audio cable comes with the TN-180BT-A3.

An authentic 3-speed Turntable
The TN-180BT-A3 plays LP, EP and SP records from your library. The tone-arm automatically returns to the original position as playback finished.
*The groove of the SP (78rpm) records is 3 to 4 times wider than typical 33 1/3rpm record, so it might damage the stylus and cause the noise when you play back the record with pre-installed stylus. Please keep it limited use.

MM-type cartridge pre-installed for quick start
A VM-type (equivalent to MM-type) cartridge AT3600L by audio-technica is already installed to the straight-type tone-arm at the factory, so you can start playing records as soon as you open the box.
The authentic belt-drive turntable is driven by a high torque DC motor, while precision stainless steel spindle and durable brass spindle holder maintain accurate rotation speed.

High-density MDF cabinet construction
Unlike others with plastic chassis, a single wooden board with high-density MDF minimizes vibrations and resonance to playback of your vinyl record library with clearer sound.

Built-in VM-type Phono EQ amplifier
Enjoy vinyl playback with any amplifier regardless type of inputs. The TN-180BT-A3 supports both PHONO and LINE outputs that allow you to play vinyl with or without Phono equalizer.

TEAC TN-180BT-A3. Type: Belt-drive audio turntable, Operation: Semi Automatic, Product colour: Black, White. Tonearm type: Statically balanced tonearm, Arm length: 20 cm. Bluetooth range: 10 m. Power supply type: AC, Power consumption (typical): 1.5 W, Power consumption (standby): 0.2 W. Width: 420 mm, Depth: 356 mm, Height: 105 mm

Features
Type	Belt-drive audio turntable
Product colour	Black, White
Housing material	MDF
Operation	Semi Automatic
Platter material	Plastic
Nominal speeds	33 1/3,45,78 RPM
Motor type	DC motor
Built-in phono preamplifier	Y
LED indicators	Bluetooth
Tonearm
Tonearm type	Statically balanced tonearm
Auto return tonearm	Y
Arm length	20 cm
Ports & interfaces
Bluetooth range	10 m
Line outputs (RCA)	1
Display
Built-in display	N
Power
AC adapter output voltage	12 V
Weight & dimensions
Width	420 mm
Depth	356 mm
Height	105 mm
Weight	4.9 kg
Packaging content
Quantity	1
Manual	Y
Accessories included	Rubber Sheet, EP Adapter, Dust Cover, Rubber Feet fro Dust Cover x2, Hinge x2, RCA Audio Cable, AC Adapter (GPE053A-120050-Z), Owner's Manual (including Warranty Card)
